Lower Wenatchee River Flow Enhancement Project
|

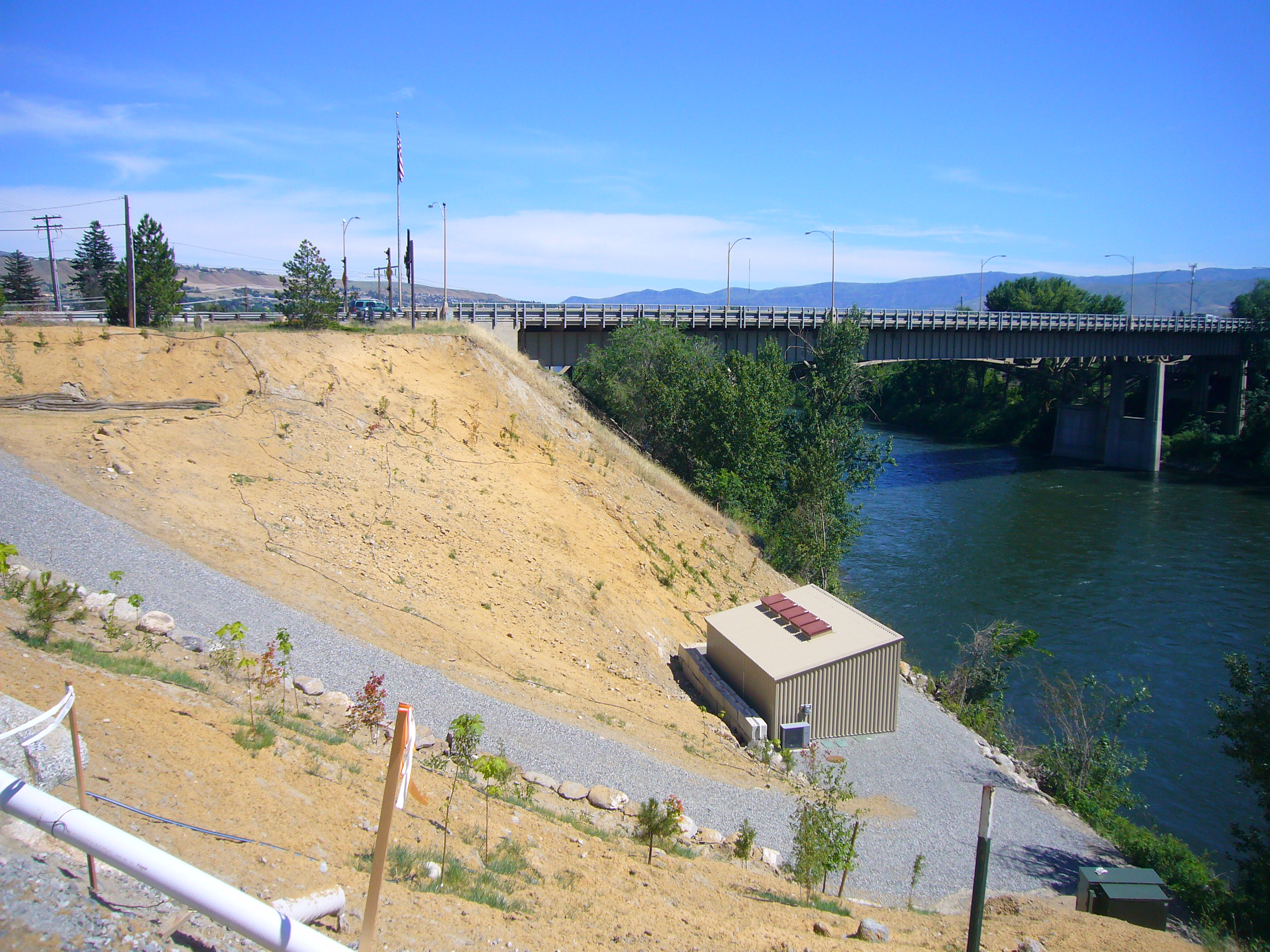

Trout Unlimited Inc.; Lower Wenatchee River Flow Enhancement Project (#09-1623)
06/06/2013, Attachment #166517, Don & Aaron, TU
|
|
|
|
|
The objective of this project is to improve habitat by increasing flows in the Lower Wenatchee by 15 cubic-feet per second (CFS). This project will initiate and implement the primary phase of the Pioneer Water Users Association project in the lower 7.5 miles of the Wenatchee River. This project will create infrastructure improvements for the Pioneer Water Users Association (PWUA) who operate and maintain the Gunn Ditch, which supplies water for agricultural and residential irrigation to shareholders. The project has several components that will address limiting factors in the Wenatchee and is part of the Upper Columbia Salmon Recovery Board implementation schedule. By initiating this project, other biologically productive restoration activities can also be implemented, including habitat improvements, diversion removal, and possible side channel reconnection.

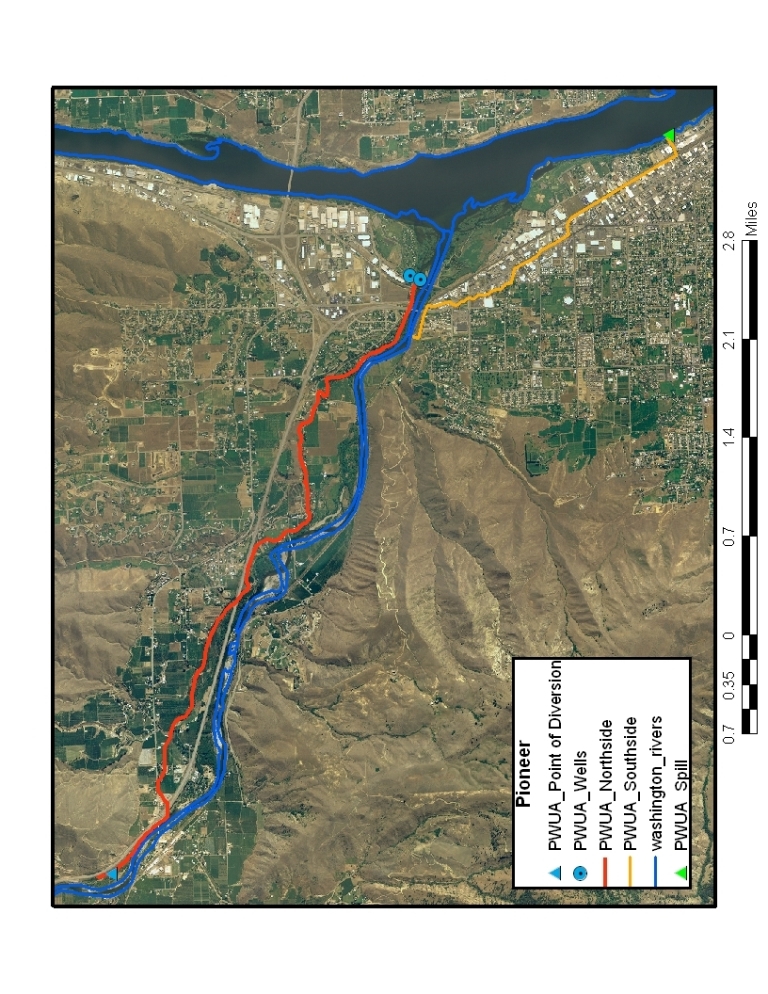

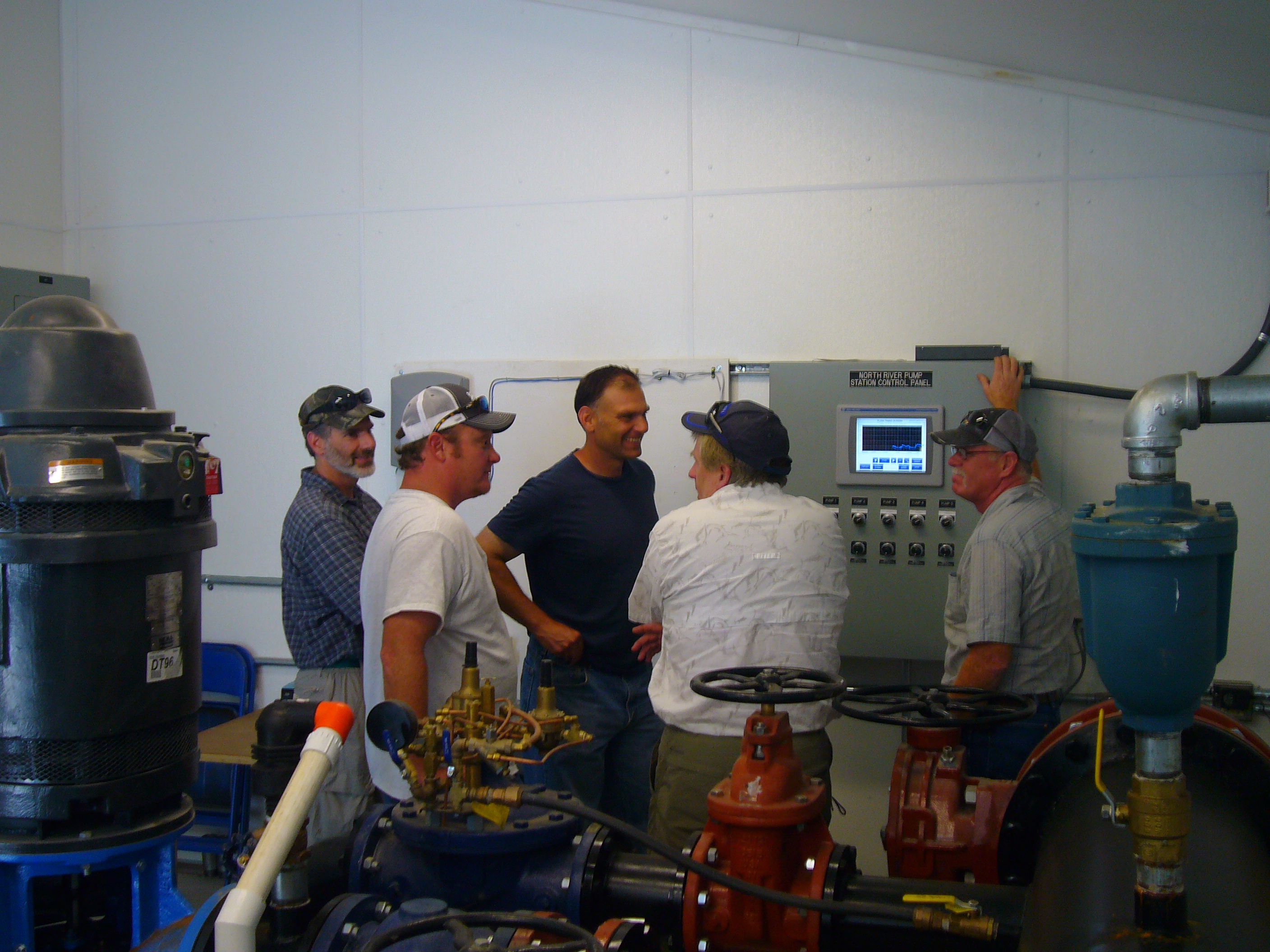

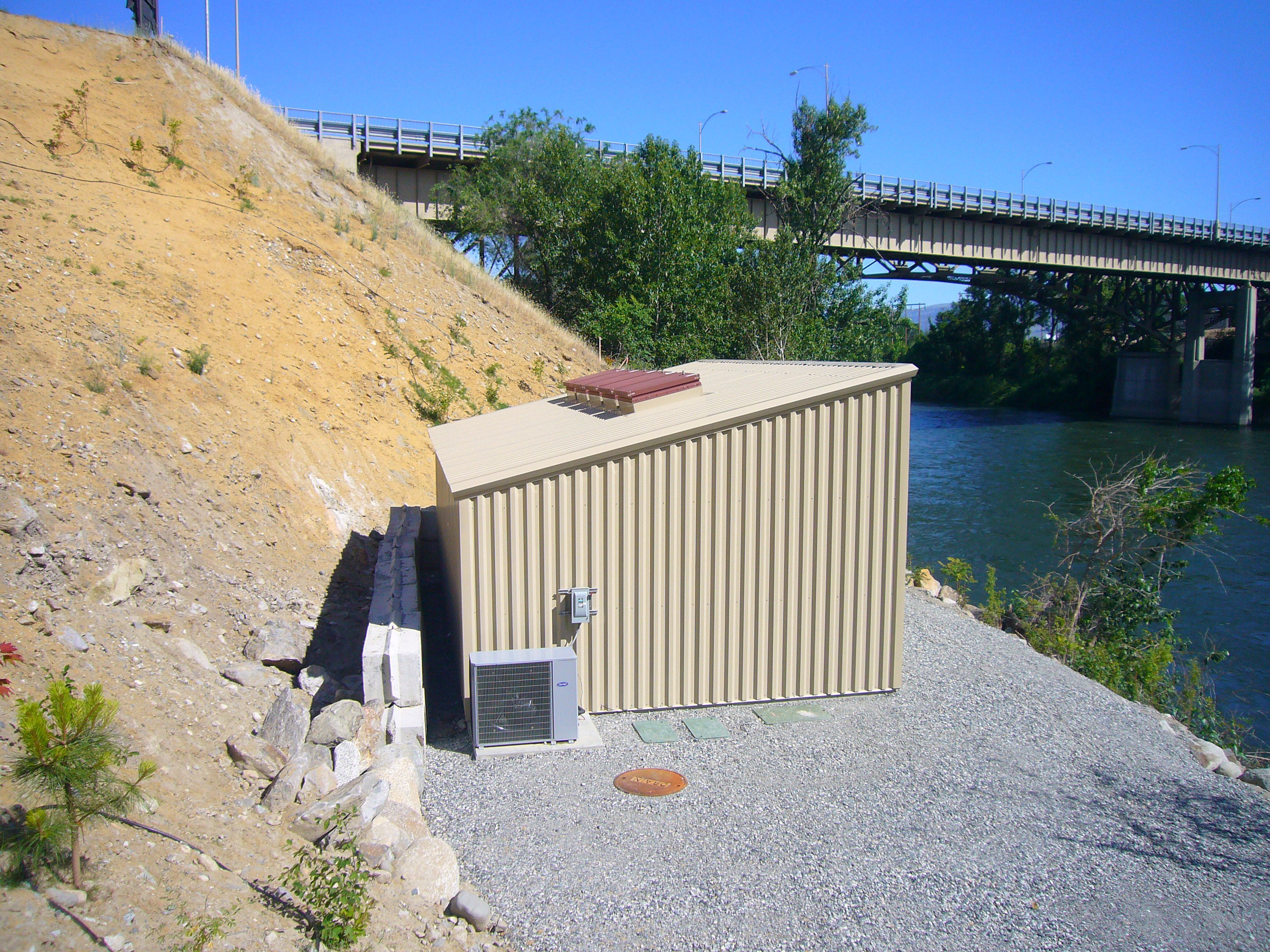

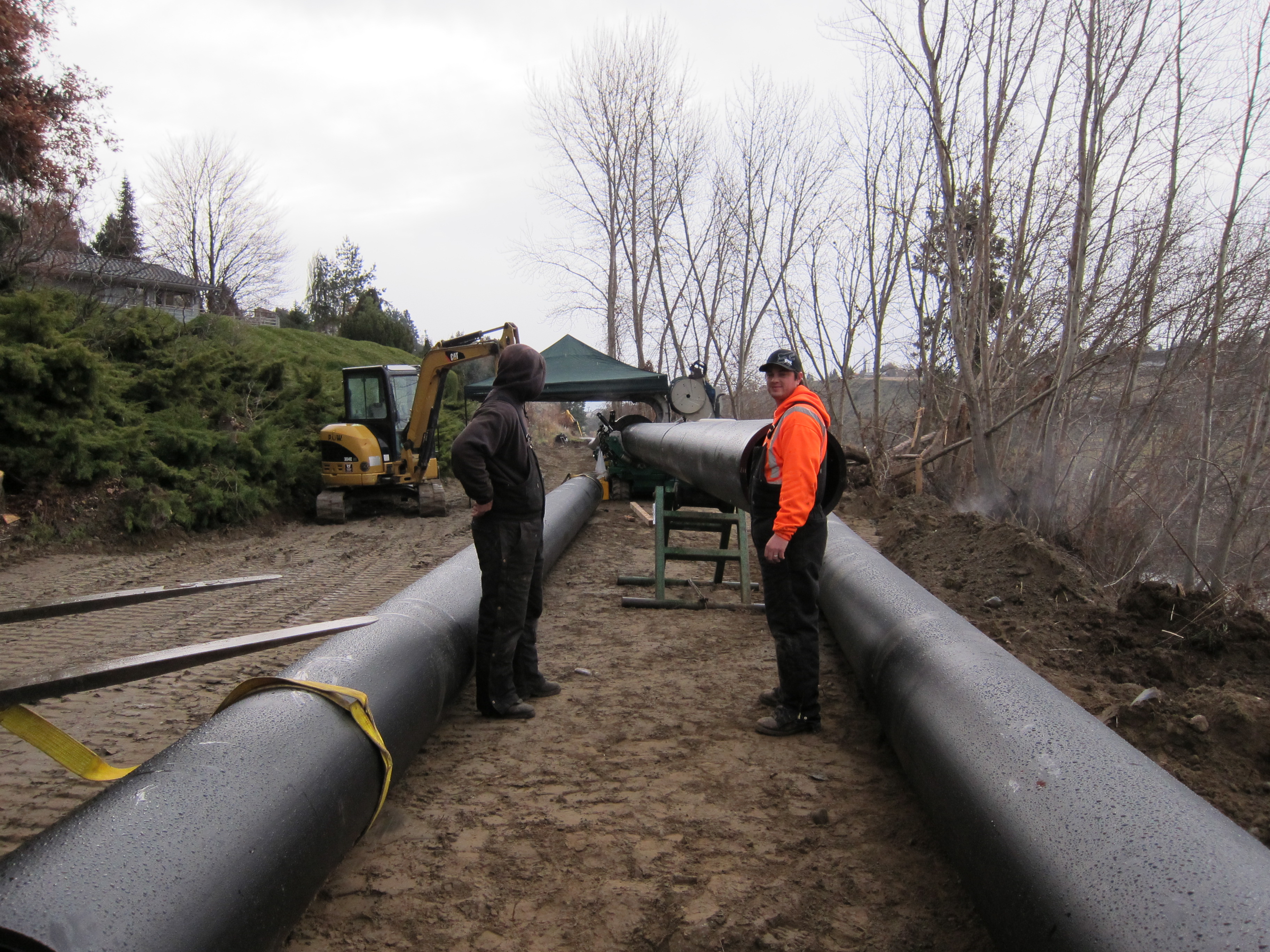

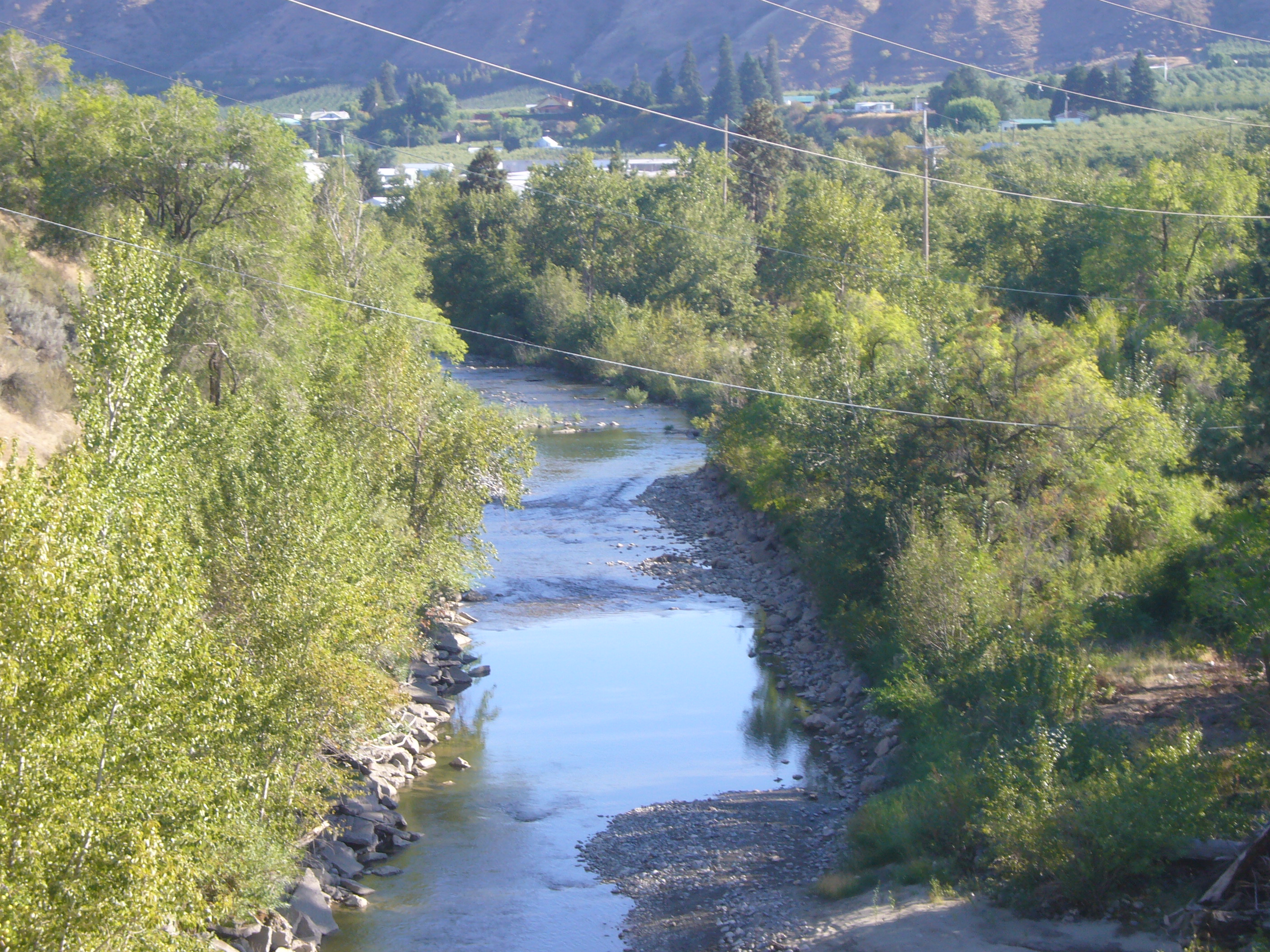

This project has two key elements: 1) The project will replace the PWUA current conveyance system, a gravity fed open ditch, with a new enclosed pressurized system and 2) change the PWUA point of diversion from the flow limited Wenatchee River to the Columbia River. This project would put approximately 15 cfs of the historically diverted water back into the lower 7.5 miles of the Wenatchee River, benefiting habitat for fish, particularly during low flows. The water will be permanently protected as an in-stream flow right through Washington States Trust Water Rights Program (TWRP).
|
|
General Area:
|
|
lower wenatchee river, Chelan County, Wa
|
|
Waterbody:
|
|
Columbia River, Wenatchee River
|
|
County:
|
|
Chelan
|
|
Legislative District:
|
|
12
|
|
Congressional District 2022:
|
|
08
|
|
Salmon Recovery Regions:
|
|
Upper Columbia River
|
|
Watershed Administrative Unit:
|
|
Lower Wenatchee
|
|
HUC8:
|
|
Wenatchee (17020011)
|
|
WRIA:
|
|
Wenatchee
|
|
Sections:
|
|
28
|
|
Township:
|
|
T23NR20E
|
|

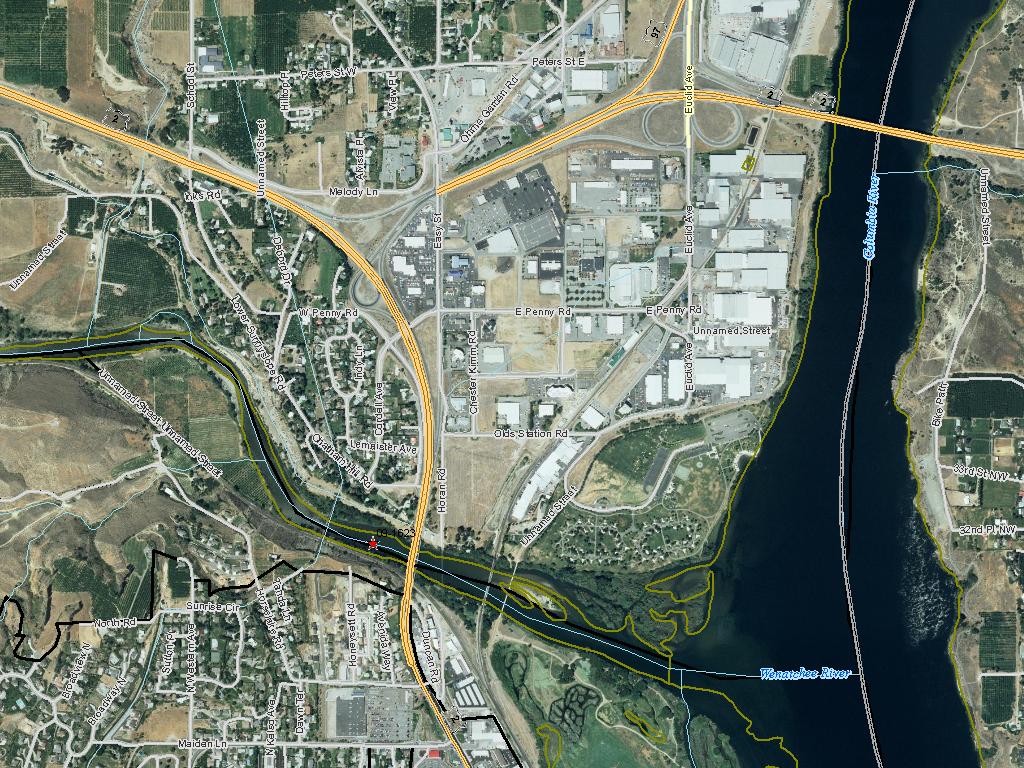

Coordinates:
|
|
47.45918760
-120.33835561
|
|
|
Amounts may not be complete
| Worksite Name | | Property Name | Landowner Type |
|
Lower Wenatchee River Flow Enhancement (#1)
|
|
Property 1 - Pioneer Water User's Association
|
Local Government
|
| | | | Total |
Amounts may not be complete
| | Category / Work Type / Metric | Final |
Restoration Metrics (rolled up from Worksite level) |
Instream Flow Project |
| Irrigation practice improvement (C.3.e.1) |
|
|
Acre Feet Of Water Conserved (C.3.e.2)
|
7824
|
|
|
Cfs (Cubic Feet Per Second) Of Water Conserved (C.3.e.3)
|
38
|
| Milestone Name | Target Date | Description |
|
Project Start
|
12/10/2009
|
|
|
Applied for Permits
|
05/15/2010
|
permits will be filled out
|
|
Cultural Resources Complete
|
05/15/2010
|
by USFWS
|
|
Progress Report Due
|
07/31/2010
|
|
|
Annual Project Billing Due
|
07/31/2010
|
|
|
Progress Report Due
|
12/01/2010
|
|
|
Progress Report Due
|
07/31/2011
|
|
|
Annual Project Billing Due
|
07/31/2011
|
|
|
Progress Report Due
|
12/01/2011
|
|
|
Annual Project Billing Due
|
07/31/2012
|
|
|
Progress Report Due
|
07/31/2012
|
|
|
Progress Report Due
|
12/01/2012
|
|
|
Progress Report Due
|
07/31/2013
|
|
|
Annual Project Billing Due
|
07/31/2013
|
|
|
Progress Report Due
|
12/01/2013
|
no progress report required if final documents are submitted prior to December 31, 2013
|
|
Agreement End Date
|
12/15/2013
|
original proposed end date 12/15/2012
|
