Washington State Recreation and Conservation Office
Project Snapshot
PRISM Project #21-1427 (In Progress)
George Davis Creek Fish Passage Construction

Collapse All

    Project Details
Sammamish City of; George Davis Creek Fish Passage Construction (#23-1943) Attachment #496623, Upstream Side of ELSP.jpg
Sammamish City of; George Davis Creek Fish Passage Construction (#23-1943) Attachment #496623, Upstream Side of ELSP.jpg

Sammamish City of; George Davis Creek Fish Passage Construction (#23-1943) Attachment #496623, Upstream Side of ELSP.jpg Sammamish City of; George Davis Creek Fish Passage Construction (#23-1943) Attachment #496620, Downstream Side of ELSP.jpgSammamish City of; George Davis Creek Fish Passage Construction (#23-1943) Attachment #496629, Downstream Side of Dam.JPEG
Project Status:  Funding Agency Approved since 07/01/2023

Project Type:  Restoration
Project Sponsor:  City of Sammamish
Funding Board:  Recreation and Conservation Office
              Funding
BA Fish Barrier Removal Board: $1,300,000
Total RCO Grant: $1,300,000 (85%)
Sponsor Match: $230,000 (15%)
Total Agreement: $1,530,000 (100%)
              Links


    Project Description
The City of Sammamish will use this grant to fund final design and construction to remove three fish passage barriers on the lowest one half-mile of George Davis Creek, east of Lake Sammamish. In partnership with King County, the outcome will eliminate a total of four barriers between Lake Sammamish and the next barrier at NE 6th St (920113). The project is located in King County near East Lake Sammamish Parkway (ELSP) at NE 7th Court. The City will remove three barriers including 920017, 920111, and 920112 (the concrete dam 1,140 feet upstream of Lake Sammamish). The County will remove 920268 with their trail project. Combined, the outcome will restore fish access beyond the dam, to 4,000 lineal feet (.75 mi) of high-quality spawning and rearing ecosystem habitat. The target species supported are the native kokanee salmon, coho, sockeye, steelhead, and cutthroat and rainbow trout which will greatly benefit from the significant increase in habitat gain. During recent years, kokanee have been observed annually along the 100 feet of accessible stream, making this an exciting opportunity to revive the population and runs in this tributary stream to Lake Sammamish. Since 2018, WRIA 8, the Kokanee Work Group, the Snoqualmie Indian Tribe, the City of Sammamish, King County, and several private property owners have identified George Davis Creek as a regionally significant stream for kokanee salmon restoration and a priority for capital investment to improve stormwater conveyance.

    Project Contacts

Project Sponsor: City of Sammamish Lead Entity: Lake Washington/Cedar/Sammamish Watershed (WRIA 8) Lead Entity
  Project Contact: Toby Coenen
tcoenen@sammamish.us
(425) 295-0567

Funding Agency: Recreation and Conservation Office
  Project Manager: John Foltz
john.foltz@rco.wa.gov
13608678573

    Project Location
General Area:   George Davis Creek, King County, WA
County:   King
Legislative District:   45
Congressional District 2022:   08
Salmon Recovery Regions:   Puget Sound
Watershed Administrative Unit:   Lake Sammamish
HUC8:   Lake Washington (17110012)
WRIA:   Cedar - Sammamish
Sections:   32
Township:   T25NR06E
Coordinates:   47.61539745
-122.06785122

    Worksites
Worksite NameScope of WorkProposed Restoration Cost
George Davis Creek (#1) Architectural & Engineering (A&E), Culvert installed or improved (C.2.f.1), Fish passage blockages removed or altered (C.2.c.1) $1,530,000
 Total$1,530,000
Amounts may not be complete

    Properties
Worksite Name Property NameLandowner Type
George Davis Creek (#1)   Property 1 - 10a: Parcel no. 0777100040 (city-owned) Local Government
George Davis Creek (#1)   Property 2 - 10b: East Lake Sammamish Parkway ROW Local Government
George Davis Creek (#1)   Property 3 - 10b: Parcel no. 3225069305 (city-owned) Local Government
George Davis Creek (#1)   Property 4 - 10c: Parcel no. 8653600290 (city-owned) Local Government
George Davis Creek (#1)   Property 5 - Parcel no. 3225069296 (Hammer) Private
George Davis Creek (#1)   Property 6 - Parcel no. 3225069284 (Starkey) Private
   Total
Amounts may not be complete

    Project Metrics (Outcomes, Benefits)
 Category / Work Type / MetricProposed

Restoration Metrics (rolled up from Worksite level)

Fish Passage Improvement
      Fish passage blockages removed or altered (C.2.c.1)
Number of Blockages/Impediments/Barriers Removed/Altered (C.2.c.2) 1
      Culvert installed or improved (C.2.f.1)
Miles of stream made accessible by culvert installation/repair (C.2.f.3) 0.75
Number of culverts (C.2.f.2) 2

Number of blockages / impediments / barriers impeding passage (C.2.b.4) 3

    Project Permits
Permit TypeApplied
Date		Received
Date		Expiration
Date		Permit Number
Other Required Permits 12/08/2021 SUPS22-0003
Other Required Permits
Nationwide Permit 06/24/2020 NWS-2020-594
Shoreline Permit
SEPA
Hydraulics Project Approval [HPA]
Building Permit
Clear & Grade Permit

    Project Attachments
Attachment TypeAttachment TitleAttach Date
Applicant Resolution/Authorizations R2022-948 - George Davis Creek Fish Passage Grant-FINAL.pdf.pdf 04/29/2022
Application Document PHS Report 2022-01-12.pdf.pdf 01/12/2022
Application Document Attach_O-ECY_303d_Listing.pdf.pdf 01/12/2022
Application Document Attach_R-KingCo_LakeSamm_ClimateChange.pd.pdf 01/12/2022
Application Document Attach_Q-WCDG_CrossingDecisionTree.pdf.pdf 01/12/2022
Application Document Attach_N-Muckleshoot_StateOfWatershed.pdf.pdf 01/12/2022
Application Document Attach_L3-WDFW_Cutthroat_Status.pdf.pdf 01/12/2022
Application Document Attach_L2-USFWS_CutthroatESU_Summary.pdf.pdf 01/12/2022
Application Document Attach_L1-NOAA_CutthroatESU_Map.pdf.pdf 01/12/2022
Application Document Attach_K-NOAA_SteelheadESU_Status.pdf.pdf 01/12/2022
Application Document Attach_I-NOAA_CohoESU_Status.pdf.pdf 01/12/2022
Application Document Attach_H2-NOAA-ChinookESU_Review.pdf.pdf 01/12/2022
Application Document Attach_H1-NOAA_ChinookESU_Map.pdf.pdf 01/12/2022
Application Document Attach_G6b-WRIA8-SteelheadDistData.pdf.pdf 01/12/2022
Application Document Attach_G6a-WRIA8-SteelheadDist.pdf.pdf 01/12/2022
Application Document Attach_G5-WRIA8_CutthroatDist.pdf.pdf 01/12/2022
Application Document Attach_G4-WRIA8_SockeyeDist.pdf.pdf 01/12/2022
Application Document G2-WRIA8_CohoDist.pdf.pdf 01/12/2022
Application Document G1-WRIA8_ChinookDist.pdf.pdf 01/12/2022
Application Document Attach_F1-KWG_KokaneeBlueprint.pdf.pdf 01/12/2022
Application Document Attach_E-WRIA8_WorkPlan_2021.pdf.pdf 01/12/2022
Application Review Report Grant Manager Comments, 21-1427R(compl 06/15/22 11:19).pdf 06/15/2022
Application Review Report Grant Manager Comments, 21-1427R(rtnd 02/09/22 12:30).pdf 02/09/2022
Correspondence 20240207_GEORGE_FBRBGrant_ltr.pdf.pdf 05/14/2024
Correspondence Cover Letter FBRB Application 5-2-22.pdf.pdf 04/29/2022
Cost Estimate CostEstimateSpreadsheet_REVISED 2022.06.14.xlsx.xlsx 06/15/2022
Cost Estimate Attach_C-60pct-EngrEstimate.pdf.pdf 01/12/2022
Cultural Resource Screening Report Project Cultural Resource Screening Report (06/01/23 10:29:4.pdf 06/01/2023
Cultural Resource Screening Report Project Cultural Resource Screening Report (04/26/23 16:31:0.pdf 04/26/2023
Design document NHC_George_Davis_Hydraulic_Report_Appendix_R3.pdf.pdf 01/12/2022
Design document Alternatives Analysis 2019.pdf.pdf 01/12/2022
Design document ReducedGeorge Davis 60 Plans.pdf.PDF.pdf 01/12/2022
Design document NHC_George_Davis_Hydraulic_Report_R2.pdf (1).PDF.pdf 01/12/2022
Design document Attach_P-NHC-DRAFT_HHReport.pdf.pdf 01/12/2022
Letters of Support Attach_X-2-WRIA8_Support_Sammamish_FBRB.pdf.pdf 01/07/2022
Map: Area of Potential Effect (APE) Project APE Report (06/01/23 10:29:43).pdf 06/01/2023
Map: Area of Potential Effect (APE) Project APE Report (04/26/23 16:31:01).pdf 04/26/2023
Map: Restoration Worksite Map - Restoration Sites.pdf.pdf 01/12/2022
Map: Restoration Worksite Attach_A2-InglewoodBasin_Map.pdf.pdf 01/12/2022
Map: Restoration Worksite Attach_A1-SiteMap.pdf.pdf 01/12/2022
Permit 20200617-JARPA Application.pdf.pdf 01/12/2022

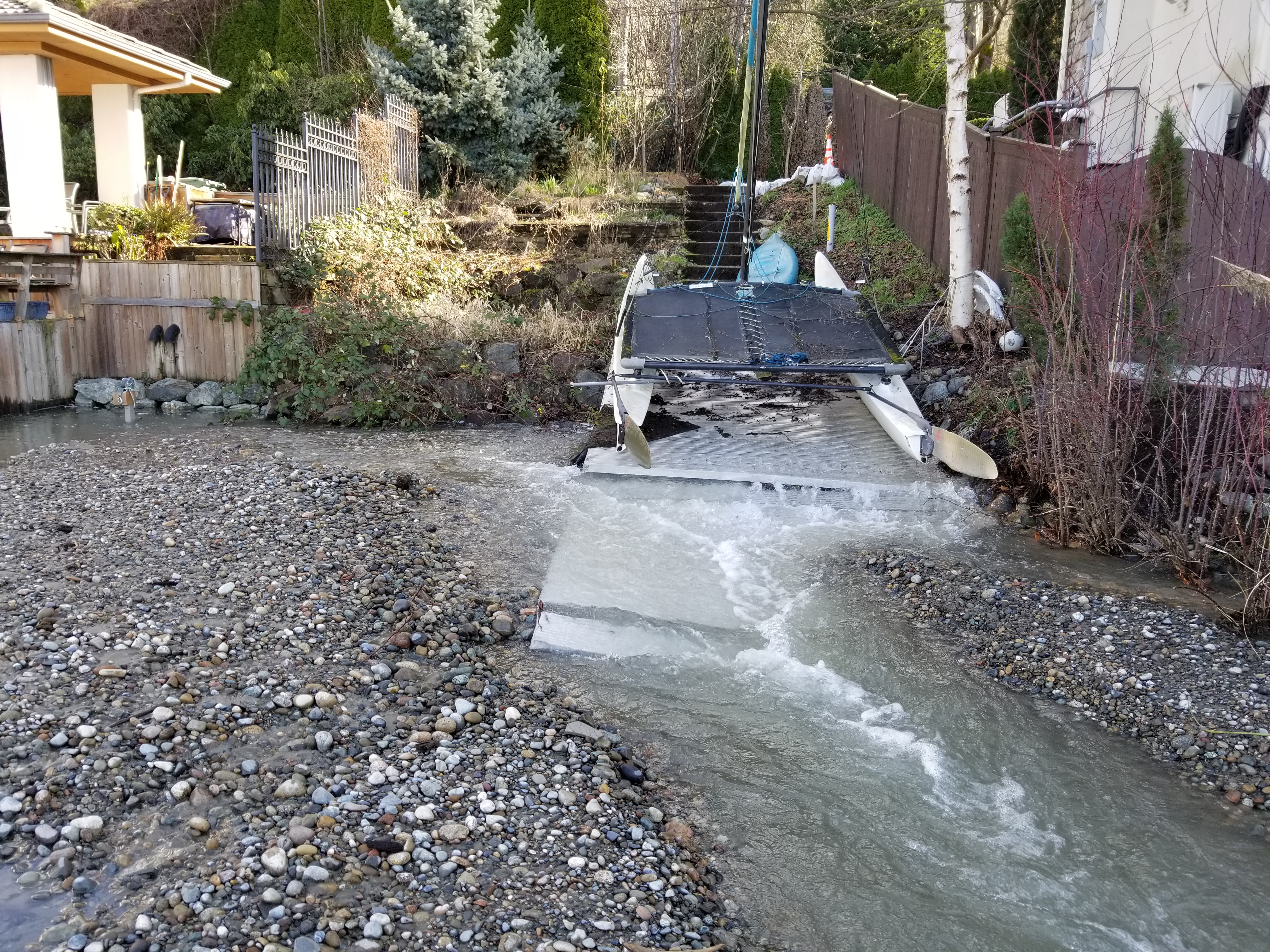

Photo High Flow Bypass System Outfall to Lake Sammamish 1.jpg.jpg 01/12/2022
Photo High Flow Bypass System Outfall to Lake Sammamish 2.jpg.jpg 01/12/2022

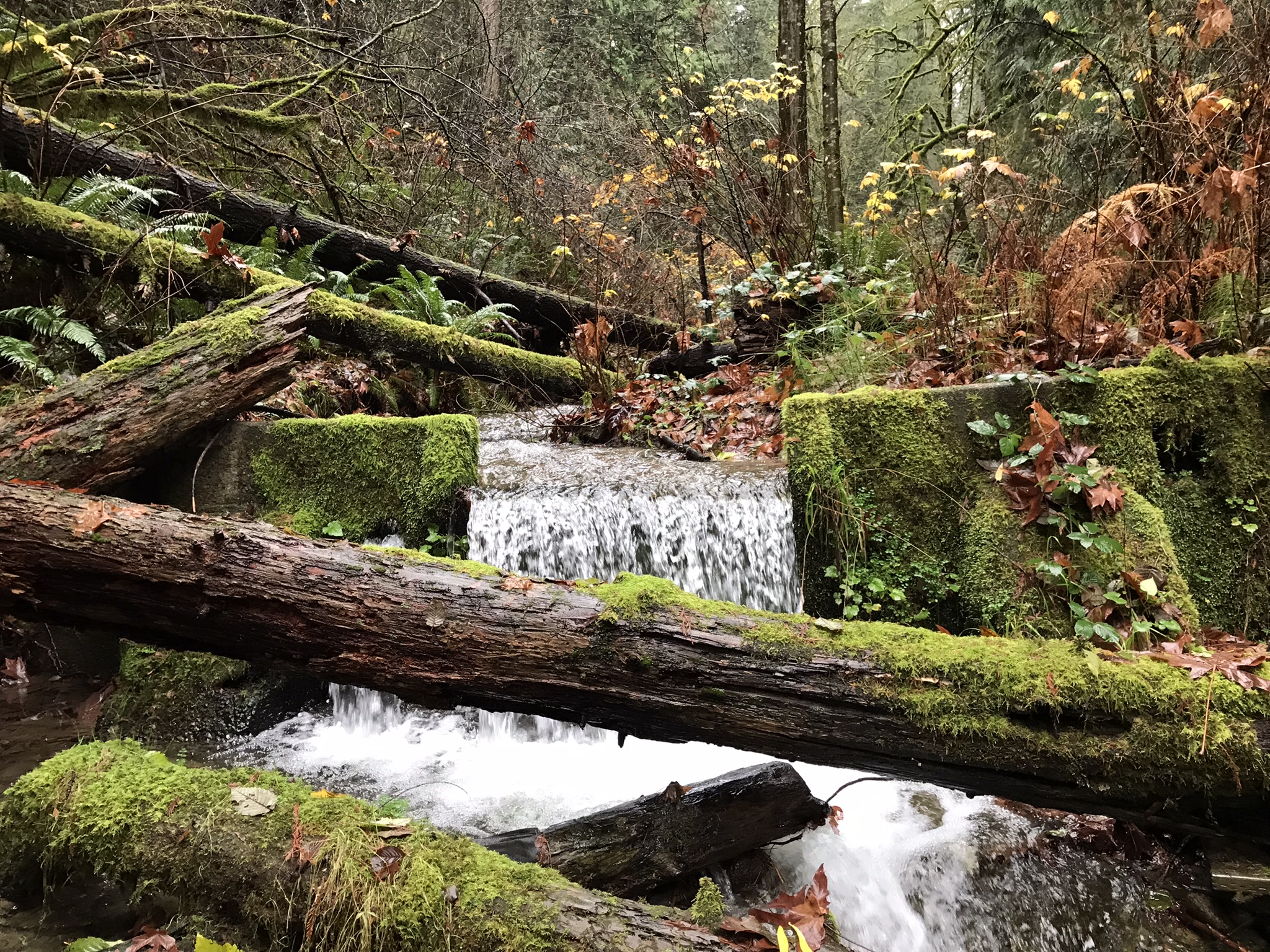

Photo Downstream Side of Dam.JPEG.jpeg 01/12/2022

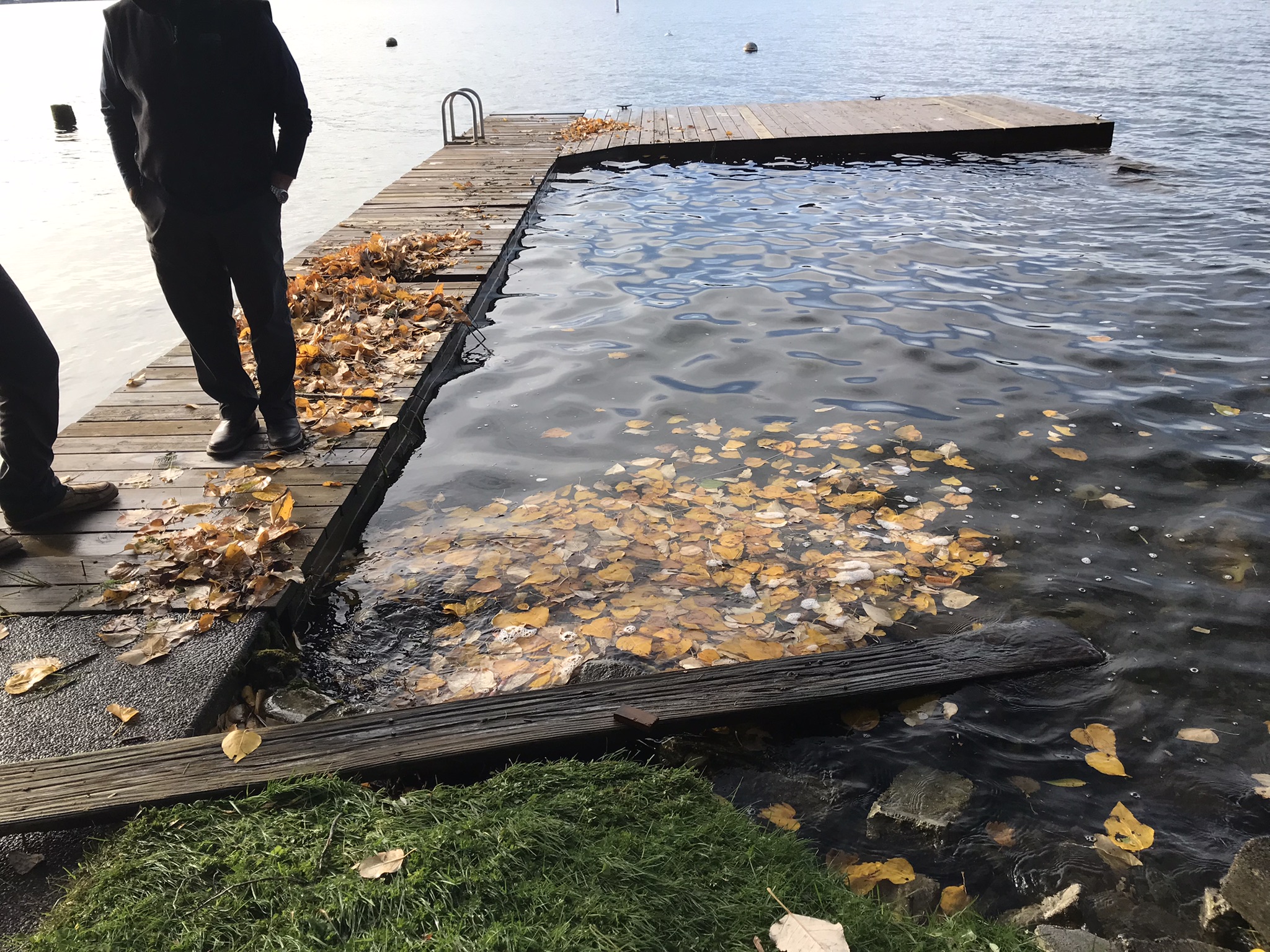

Photo Dock to be Removed.JPEG.jpeg 01/12/2022

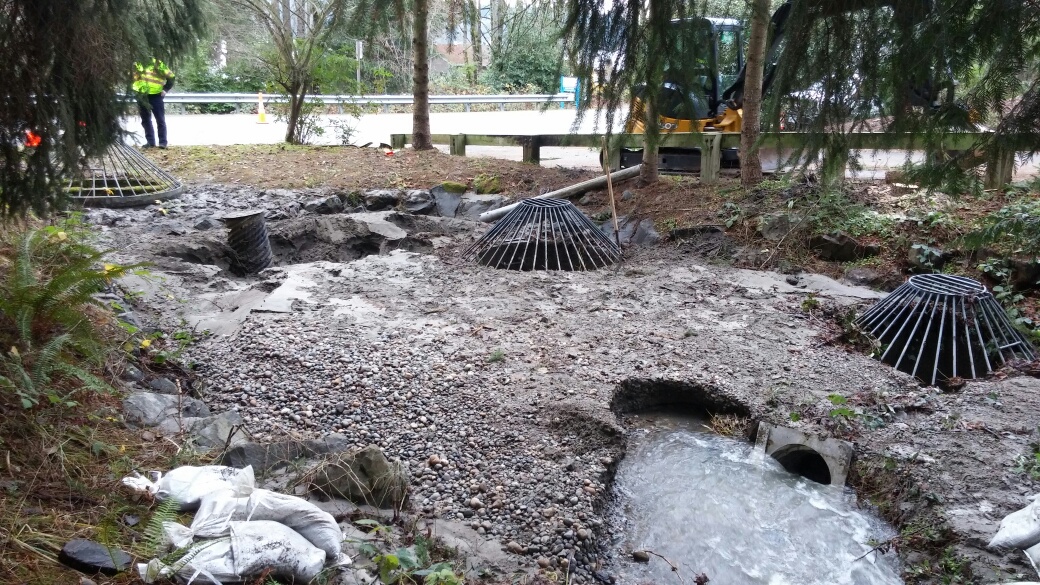

Photo Upstream Side of ELSP.jpg.jpg 01/12/2022

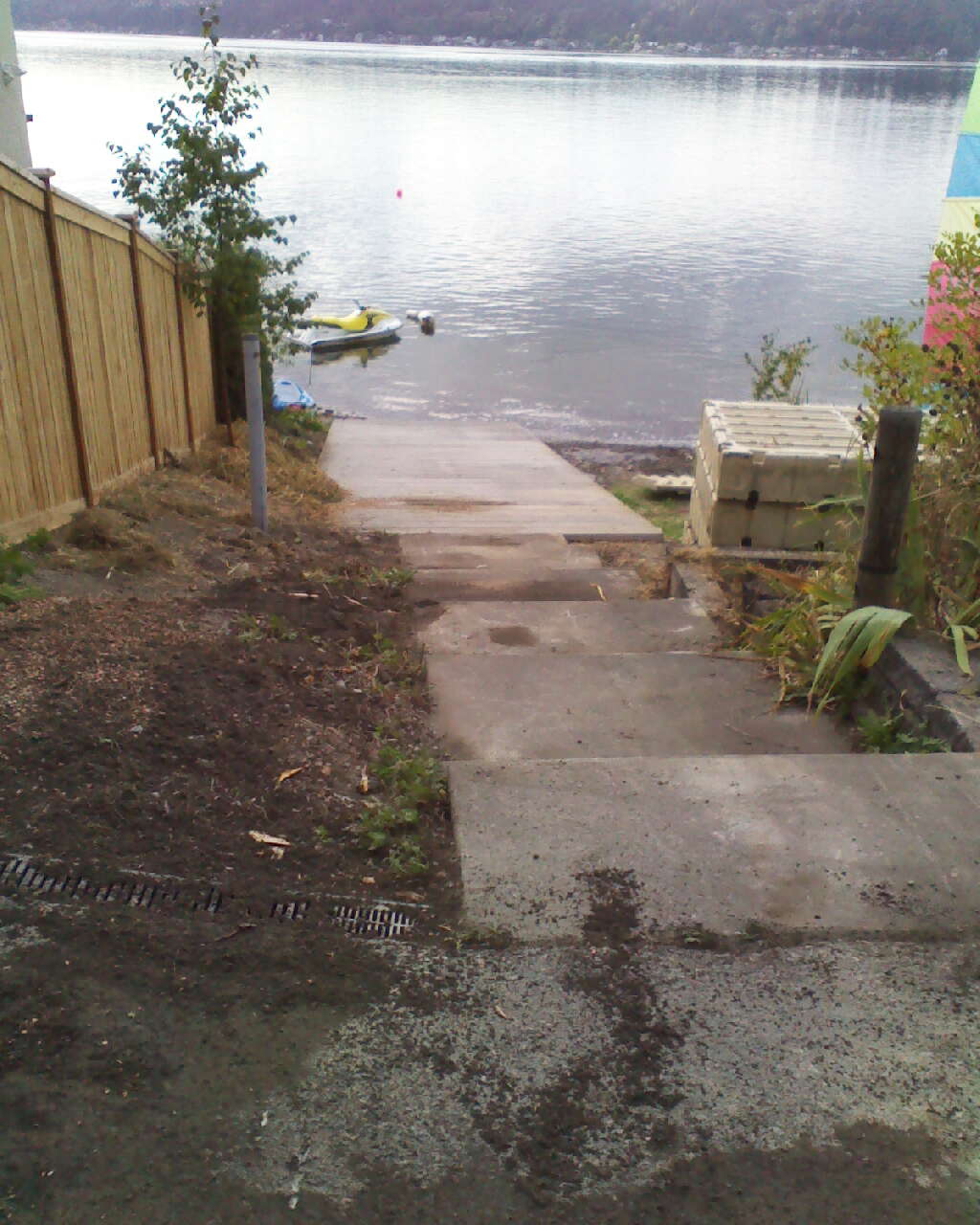

Photo 629 East Lake Sammamish Shore Lane.jpg.jpg 01/12/2022

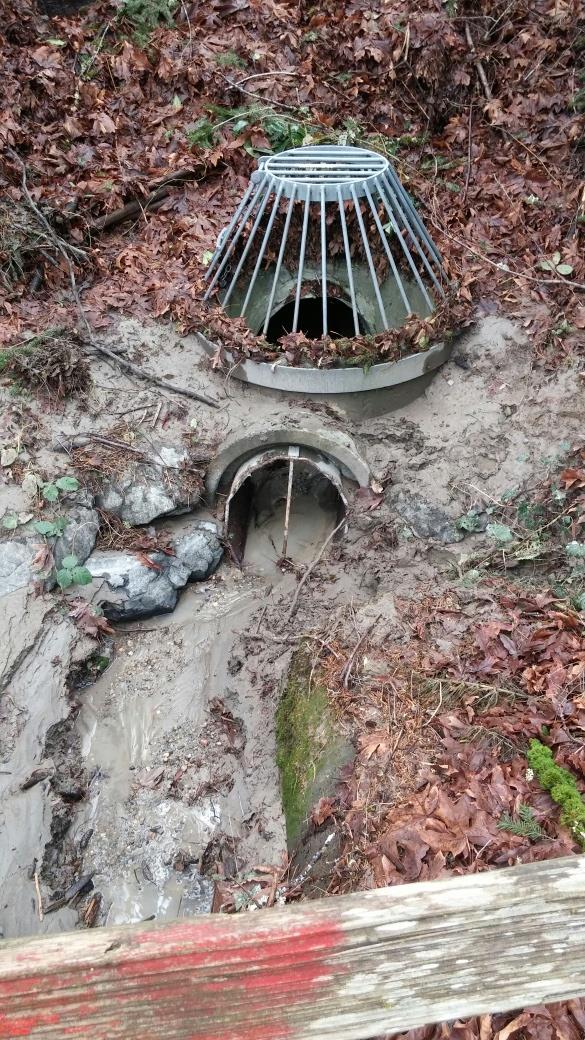

Photo Downstream Side of ELSP.jpg.jpg 01/12/2022
Project Application Report Project Application Report, 21-1427R (sub 06/01/23 10:29:42).pdf 06/01/2023
Project Application Report Project Application Report, 21-1427R (sub 05/02/22 12:53:06).pdf 05/02/2022
Project Application Report Project Application Report, 21-1427R (sub 01/12/22 18:10:52).pdf 01/12/2022
Project plan document Attach_S-EcologicalAssess_2016.pdf.pdf 01/12/2022
Project plan document Attach_M-InglewoodBasinPlan.pdf.pdf 01/12/2022
Project Review Comments Proj Review Comments Eval, 21-1427R(compl 06/01/23 10:29).pdf 06/01/2023
Visuals George Davis Creek Restoration 21-1427_to RCO.pdf.pdf 06/15/2023
Visuals Attach_U-KingCo-ELSTrailPresentation.pdf.pdf 01/12/2022
WDFW barrier & screening forms WDFW 920017_Barrier Report.pdf.pdf 04/29/2022
WDFW barrier & screening forms Attach_D2-WDFW_BarrierReport_920112_Dam.p.pdf 01/12/2022
WDFW barrier & screening forms Attach_D1-WDFW_BarrierReport_920111_ELSP..pdf 01/12/2022
