PRISM Project #08-1962 (Completed)
North Road Culvert

Collapse All

    Project Details
Chelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98386, North Road Final Inspection channel
Chelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98386, North Road Final Inspection channel

Chelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98386, North Road Final Inspection channel Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65890, CCNRD_North Road Culvert_APE mapChelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65896, North Road Culvert_1957_1Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65897, North Road Culvert_1957_2Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65898, North Road Culvert_downstream 1Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65899, North Road Culvert_downstream 2Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65900, North Road Culvert_downstream 3Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65901, North Road Culvert - 1Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65902, North Road Culvert upstream 2Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65903, North Road Culvert upstream 3Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65904, North Road Culvert upstream 4Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65905, Chumstick Creek looking downstream from North RoadChelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #65907, North Road Culvert_staging area 1Chelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85321, north road channel and engineered banksChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85322, north road bridge and channel bChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85323, north road bridge and channelChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85324, north road bridge bioengineering aChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85325, north road bridge bioengineering bChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85326, north road bridge bioengineering cChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85327, north road bridgeChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85328, north road concrete girdersChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85329, north road culvert downstream sillChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85330, Alan Schmidt on bridgeChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85331, downstream end of new channelChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85332, excavator assisting with channel const north roadChelan Co Natural Resource; North Road Culvert (#08-1962) 10/06/2009, Attachment #85333, north road culvert replacement channelChelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98382, North Road postChelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98383, North Road post constructionChelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98384, North Road post construction 2Chelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98385, North Road rock weirChelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98387, North Road final channelChelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98388, North Road final channel profileChelan Co Natural Resource; North Road Culvert (#08-1962) 06/14/2010, Attachment #98389, North Road final inspection photoChelan Co Natural Resource; North Road Culvert (#08-1962) 04/05/2011, Attachment #129349, North Road Bridge on Chumstick CreekChelan Co Natural Resource; North Road Culvert (#08-1962) 04/05/2011, Attachment #129350, Riparian PlantingsChelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #171116, P1130944Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #171117, P1130946Chelan Co Natural Resource; North Road Culvert (#08-1962) Attachment #171118, P1130945
Project Status:  Closed Completed since 11/18/2011

Project Type:  Restoration
Project Sponsor:  Chelan County Natural Resources Department
Funding Board:  Salmon Recovery Funding Board
              Funding
Salmon Federal Projects: $100,000
Total RCO Grant: $100,000 (5%)
Sponsor Match: $1,718,779 (95%)
Total Agreement: $1,818,779 (100%)
              Links


    Project Description
The objective of the North Road Culvert project is to replace an existing 10 foot diameter partial fish passage barrier culvert with a bridge and natural stream channel to provide year-round passage to all fish species at all life stages. The goal of this action is to increase the spatial structure, abundance and productivity of listed Upper Columbia spring Chinook salmon and steelhead in the Wenatchee subbasin. Replacing the culvert with a bridge should also facilitate the natural function of sediment and wood transport through the system. The re-established migration corridor should benefit Chinook, steelhead, resident redband rainbow trout, and re-introduced coho.

This proposal is requesting matching funds for part of a large scale road project. The Chelan County Public Works Department is replacing the North Road Culvert over Chumstick Creek along with a portion of the North Road, from Chumstick Highway to Fox Road (MP 0.05 to MP 0.56). Only the goals, objectives and budget for the North Road Culvert are included in this proposal. The goals, objectives and costs for the rest of the road project are not included. Cost estimate for the road project (including the North Road Culvert): $2,521,063. North Road Culvert (without the road): $1,818,779.

The replacement bridge is currently being designed. All necessary permits should be secured by April 2009 and construction is planned during the 2009 Chumstick Creek in-stream work window.

    Project Contacts

Project Sponsor: Chelan County Natural Resources Department Lead Entity: Upper Columbia Salmon Recovery Board Lead Entity
  Project Contact: Michael Kaputa
mike.kaputa@co.chelan.wa.us
(509) 670-6935

Funding Agency: Recreation and Conservation Office
  Project Manager: Amee Bahr
Amee.Bahr@rco.wa.gov
(360) 867-8585

    Project Location
General Area:   Near Leavenworth.
Waterbody:   , Chumstick Creek
County:   Chelan
Legislative District:   12
Congressional District 2022:   08
Salmon Recovery Regions:   Upper Columbia River
Watershed Administrative Unit:   Derby
HUC8:   Wenatchee (17020011)
WRIA:   Wenatchee
Sections:   01
Township:   T24NR17E
Coordinates:   47.60482932
-120.64860405

    Worksites
Worksite NameScope of WorkActual Restoration Cost
North Road Culvert (#1) Architectural & Engineering (A&E), Bridge installed or improved (C.2.g.1), Obtain permits, Streambank stabilization (C.4.e.1) $2,121,770
 Total$2,121,770
Amounts may not be complete

    Properties
Worksite Name Property NameLandowner Type
North Road Culvert (#1)   Property 1 - Chelan County Public Works Local Government
   Total
Amounts may not be complete

    Project Metrics (Outcomes, Benefits)
 Category / Work Type / MetricFinal

Restoration Metrics (rolled up from Worksite level)

Instream Habitat Project
      Streambank stabilization (C.4.e.1)
Miles of Streambank Stabilized (C.4.e.3) 0.06

Permits
      Obtain permits
Number of permits required for implementation of project 5

Fish Passage Improvement
      Bridge installed or improved (C.2.g.1)
Miles of stream made accessible by bridge installation/repair (C.2.g.3) 2.14
Number of bridges (C.2.g.2) 1

Number of blockages / impediments / barriers impeding passage (C.2.b.4) 1

    Project Milestones
Milestone NameTarget DateDescription
Project Start 08/01/2008 Received funding, design began
RFP Complete 04/30/2009 Ready to go out to advertisement
Annual Project Billing Due 07/31/2009
Applied for Permits 03/31/2010 All permits should be applied for and received (HPA, Section 404, and 404).
A&E Plans Submitted 05/31/2010 Will be submitted with permits and approved by state and federal agencies.
Monitor/Steward Plan Submitted 05/31/2010 Monitoring will be conducted per Hydraulic Project Approval.
Bid Awarded/Consultant Hired 05/31/2010 Review all bids, select contractor
Special Conditions Met 05/31/2010 Ensure compliance with EO 05-05 prior to ground disturbance
Construction Started 06/30/2010 Contractor mobilzed to site.
Annual Project Billing Due 07/31/2010
Construction Complete 11/30/2010 Contractor has all project work completed.
Annual Project Billing Due 07/31/2011
Agreement End Date 05/31/2012
Final Docs/Billing to Mgmt Agy 07/31/2012
Monitoring Complete 12/31/2013 80% survival after 3 years of vegetation used for restoration.


    Project Attachments
Attachment TypeAttachment TitleAttach Date
Agreement - State Agreement.pdf 05/22/2009
Correspondence Mitigation Plan Figures 1 - 4 May 2009.pdf 11/17/2011
Correspondence FINAL Detailed Mitigation Plan May 2009.pdf 11/17/2011
Correspondence North Road Culvert SRFB Project Proposal.pdf 09/06/2008
Correspondence North Road Response to RTT 09-06-08.pdf 09/06/2008
Design document Creek Enhance Design March 2009.pdf 11/17/2011
Design document North Road Culvert Restoration Drawings.pdf 07/17/2009
Evaluation proposal North Road Barrier Evaluation Form.pdf 08/07/2008
Final project report Final Report 11/18/2011.pdf 11/18/2011
Final project report Final Invoice and Final Report 03-17-10.pdf 03/19/2010

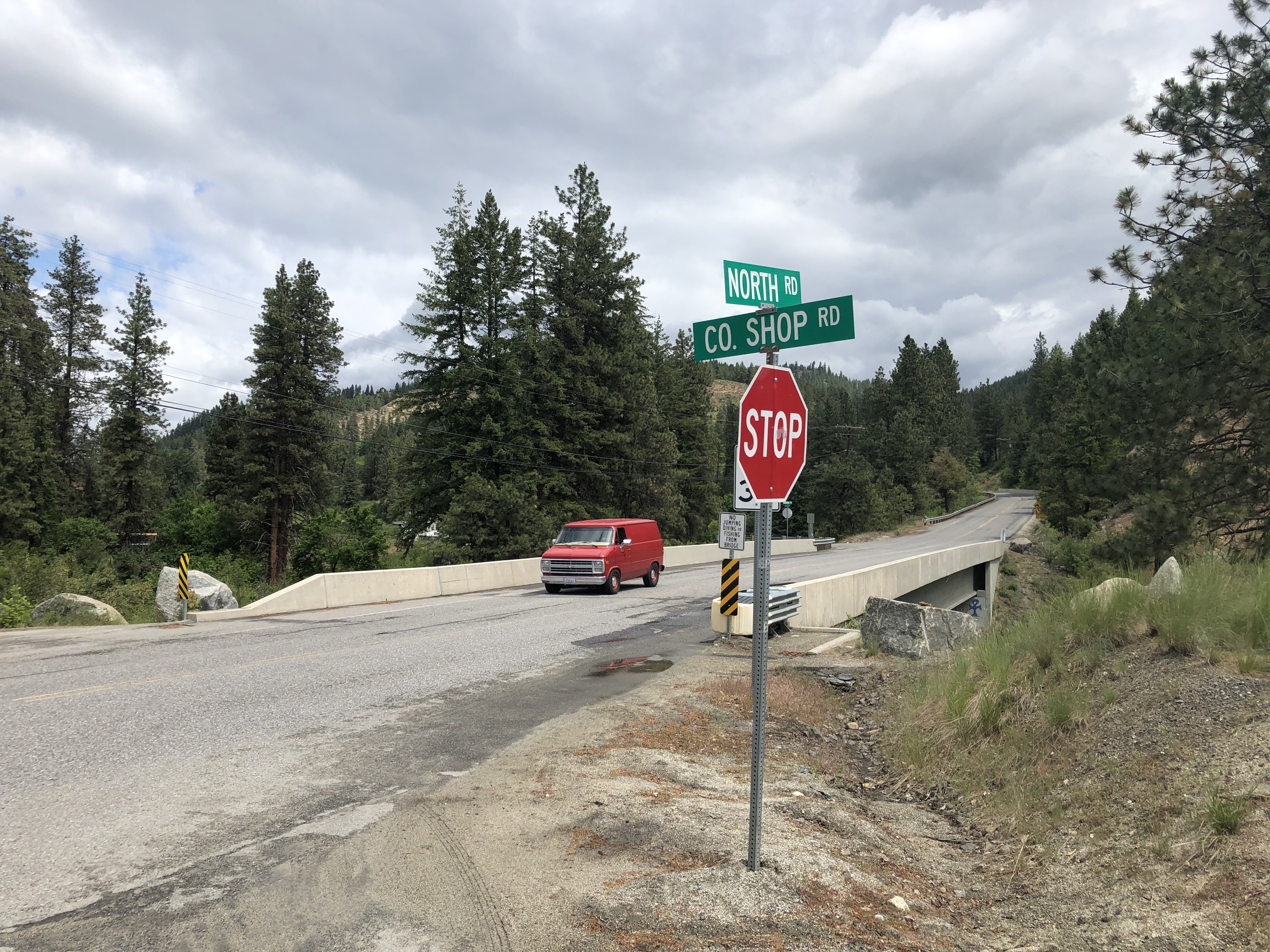

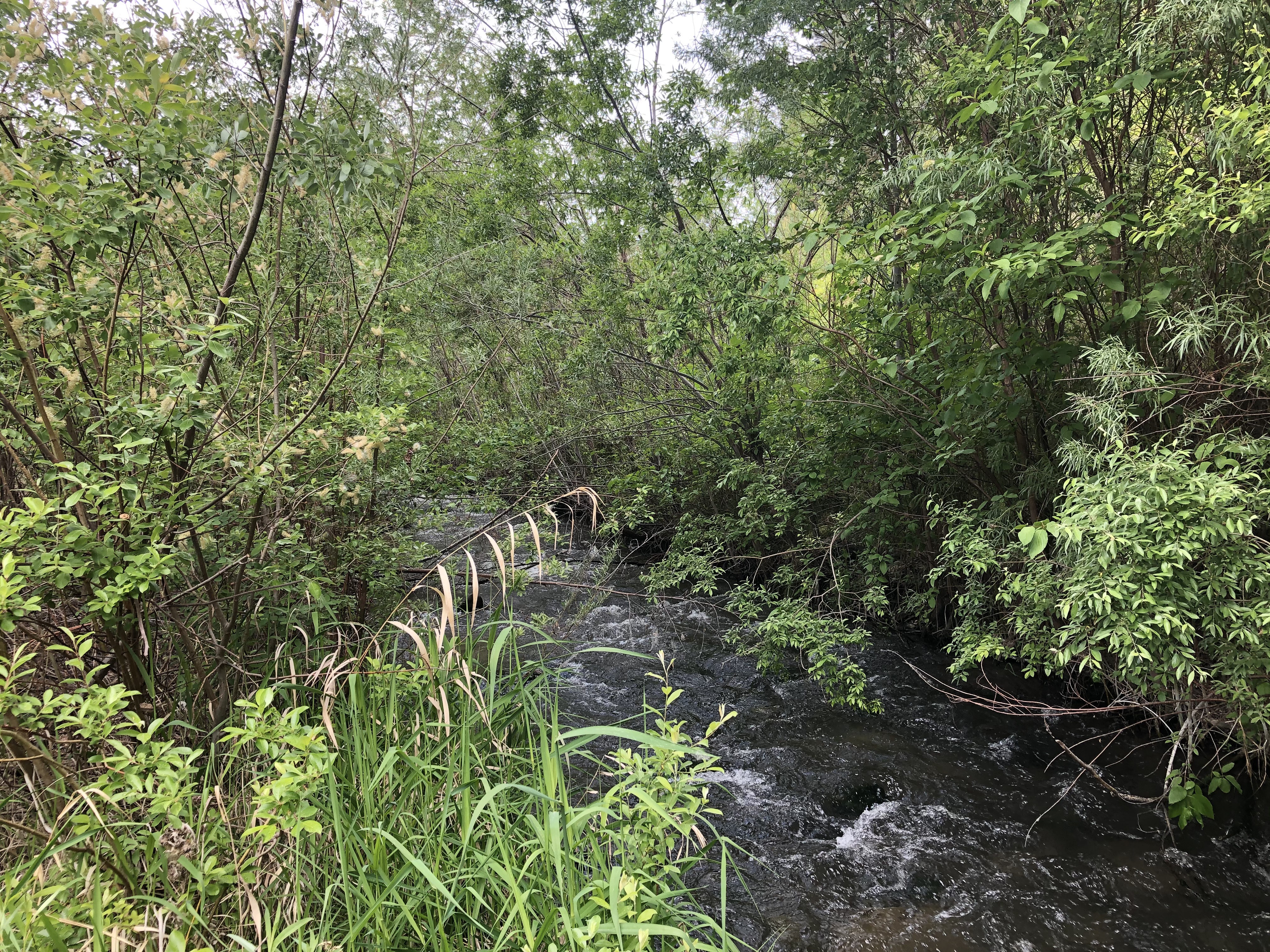

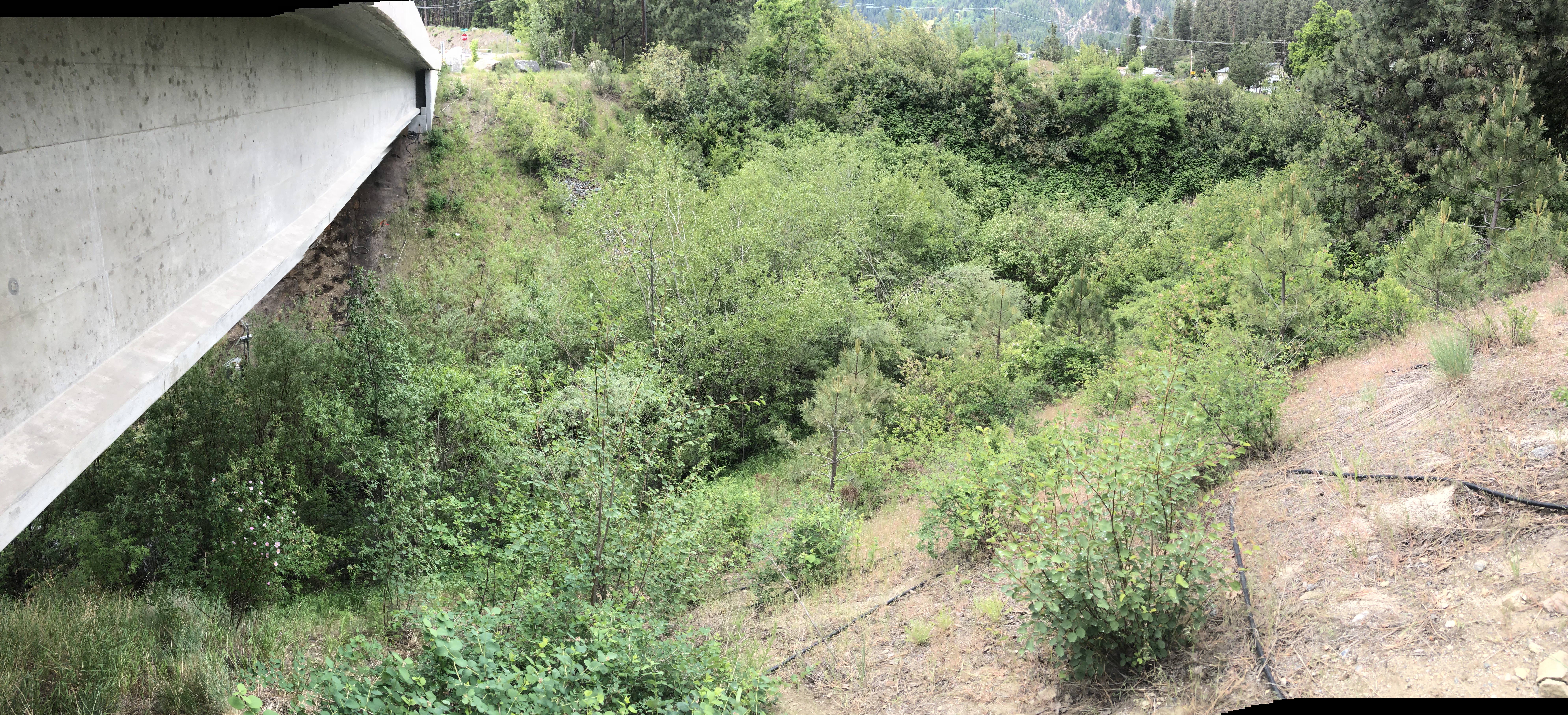

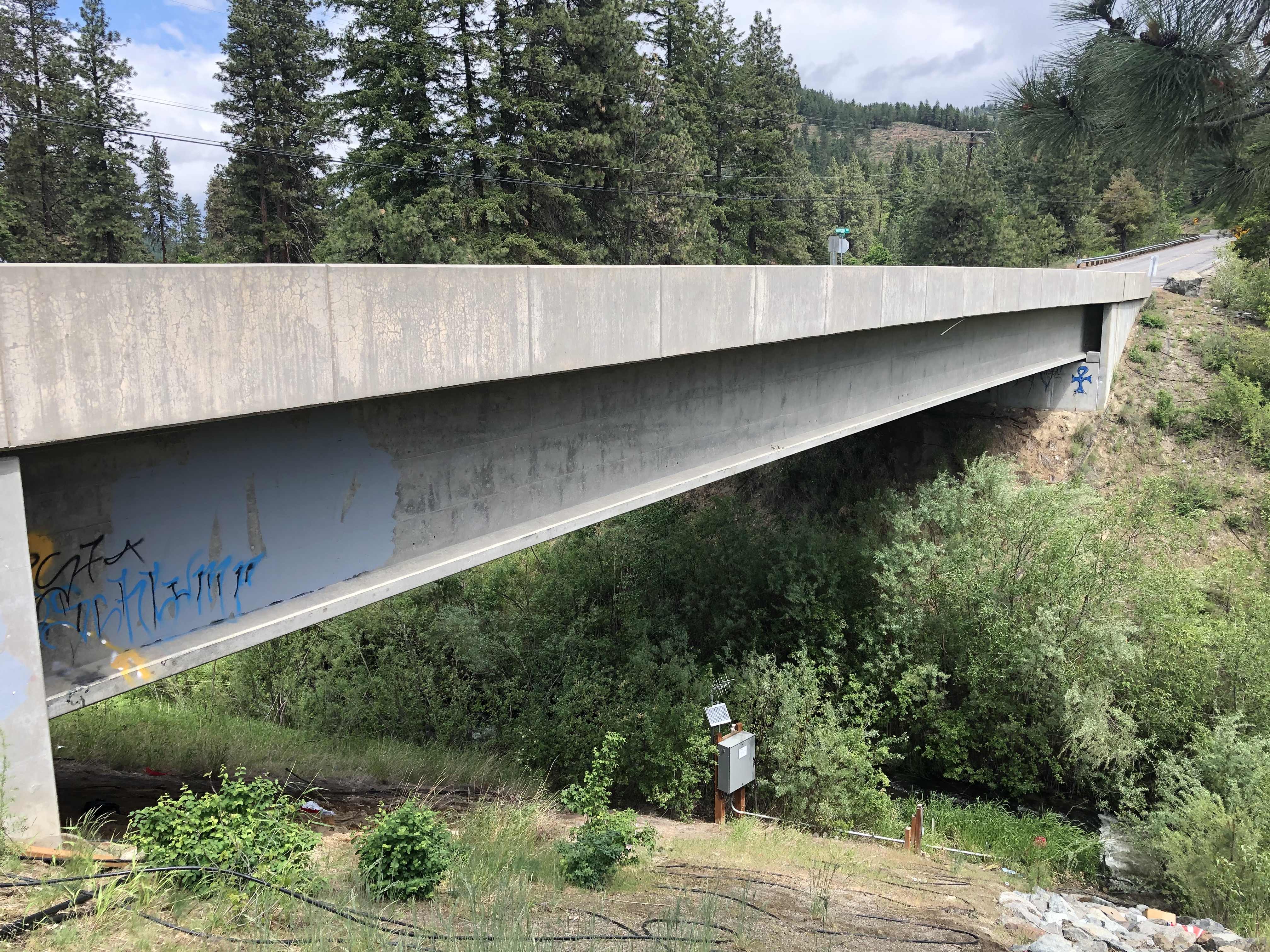

Inspection Photos 05-20-2021 Compliance Inspection 5.jpg 06/16/2021
Inspection Photos 05-20-2021 Compliance Inspection 4.jpg 06/16/2021
Inspection Photos 05-20-2021 Compliance Inspection 3.jpg 06/16/2021
Inspection Photos 05-20-2021 Compliance Inspection 2.jpg 06/16/2021
Inspection Photos 05-20-2021 Compliance Inspection 1.jpg 06/16/2021
Inspection Photos 05-20-2021 Compliance Inspection .jpg 06/16/2021
Inspection Photos 05-20-21 Compliance Inspection Photos.pdf.pdf 06/16/2021
Inspection Report Inspection Report, #2802 (Accepted 06/16/21 15:22:16).pdf 06/16/2021
Inspection Report Final Inspection Photos 04-05-11.pptx 11/17/2011

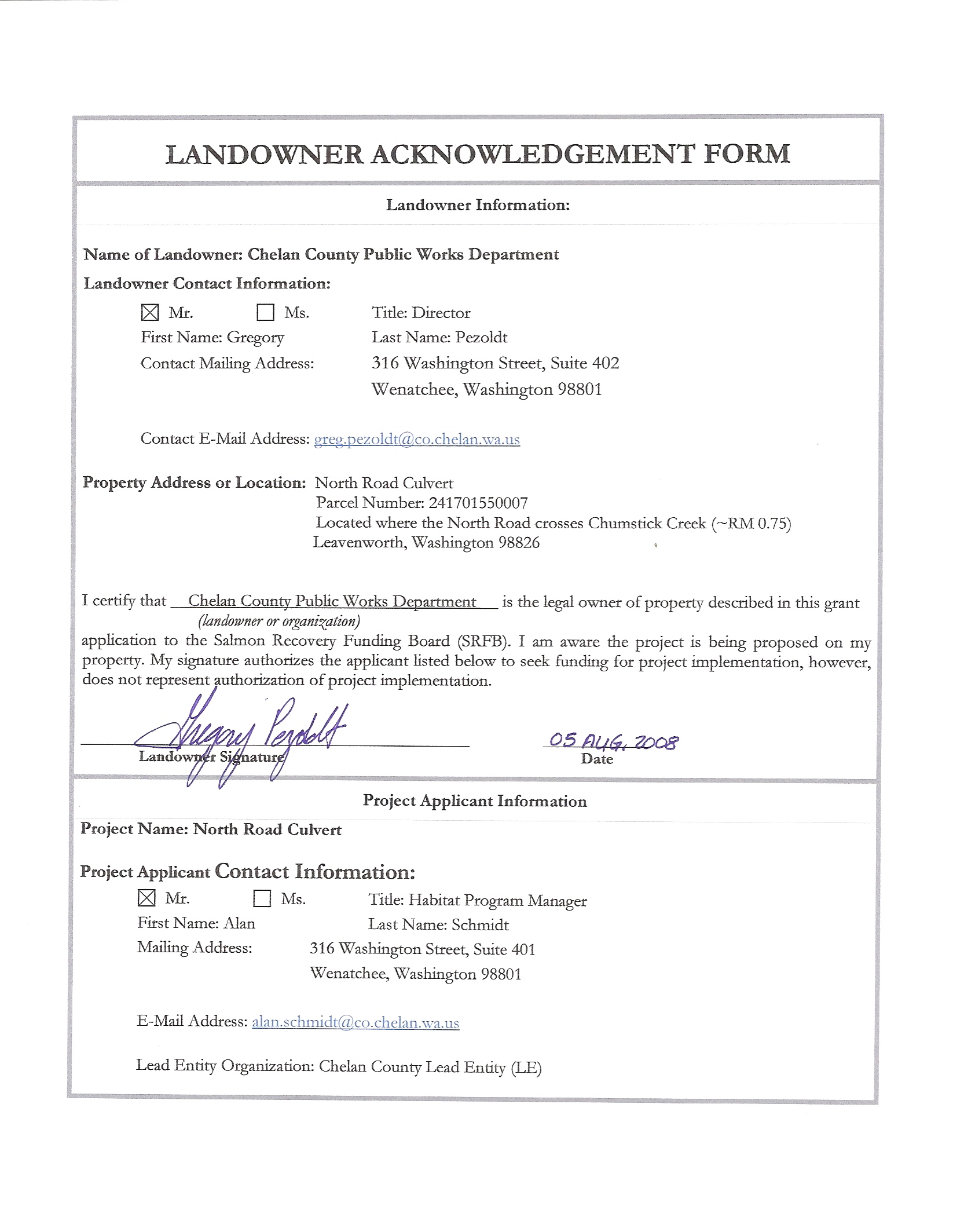

Landowner acknowledgement form CCNRD_North Road Culvert_Landowner Acknowledgement_Public Wo.jpg 08/07/2008
Map North Road Constr Access & Staging Ortho.pdf 08/08/2008
Map North Road Work Site Aerial Photo.pdf 08/08/2008
Map North Road Landownership Parcel Ortho.pdf 08/07/2008

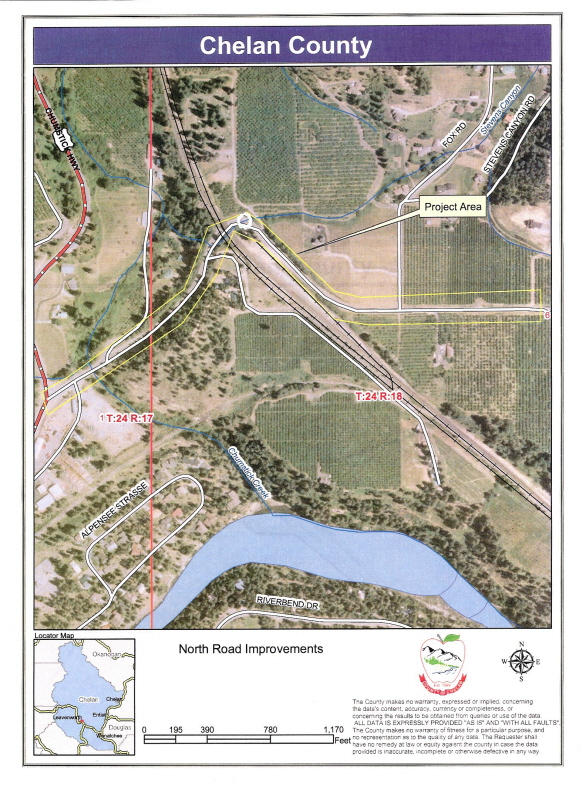

Map CCNRD_North Road Culvert_APE map.jpg 08/07/2008

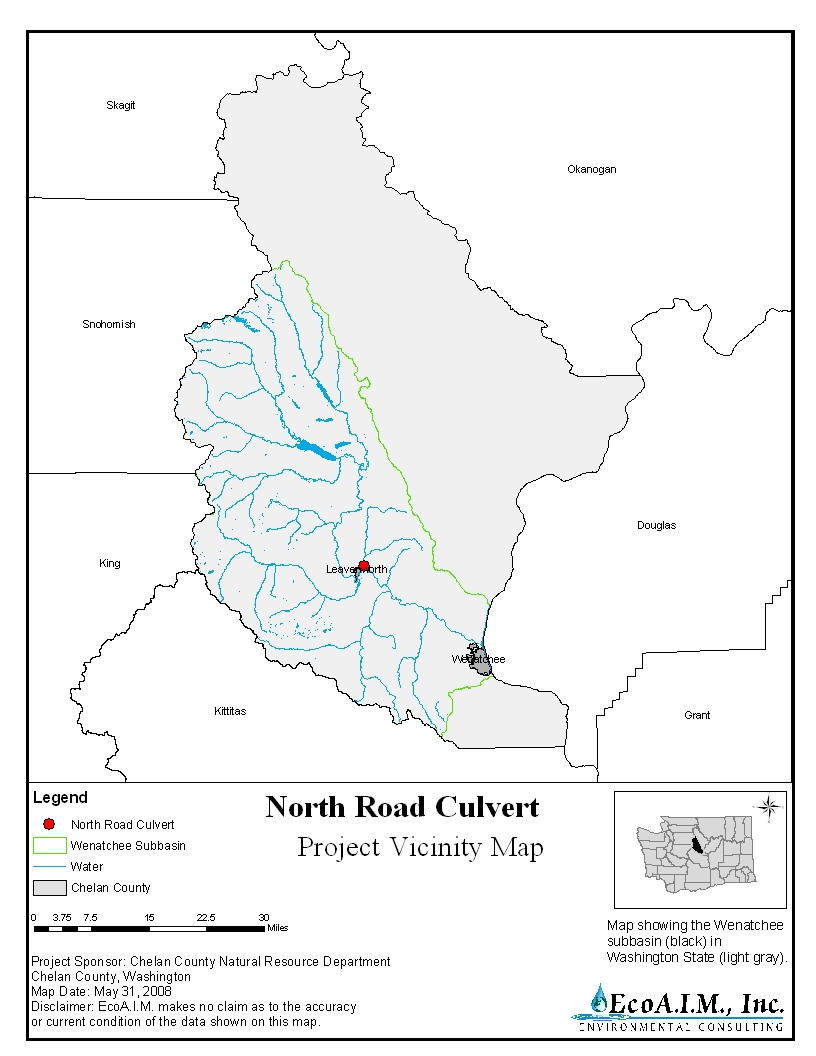

Map CCNRD_CMZ North Road Culvert_Project Vicinity Map.jpg 08/07/2008
News Article 08-1962 news clip.pdf 03/22/2011
News Article News Clip 06/24/09.pdf 12/07/2009
Photo P1130945.jpg 08/19/2013
Photo P1130946.jpg 08/19/2013
Photo P1130944.jpg 08/19/2013

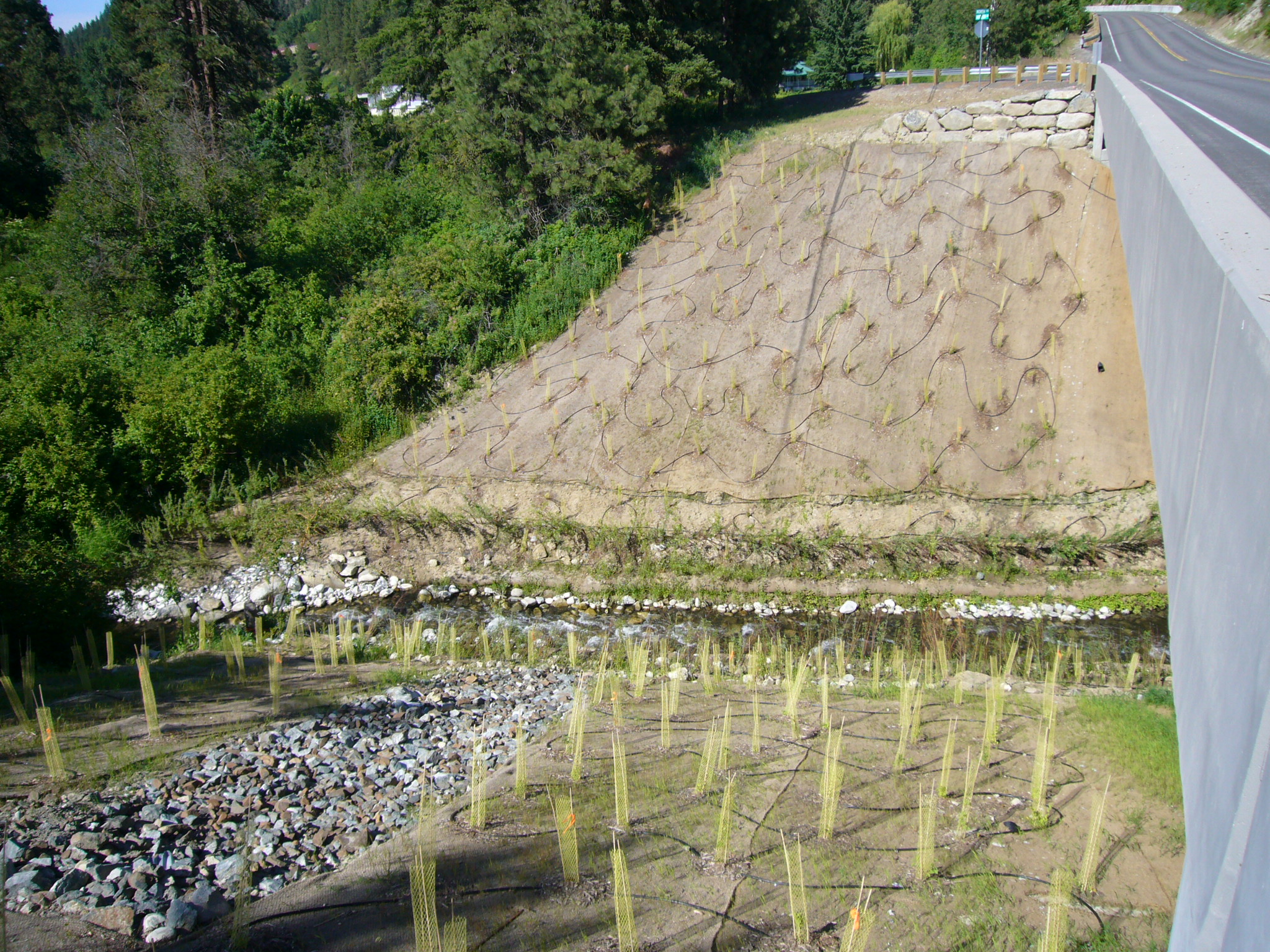

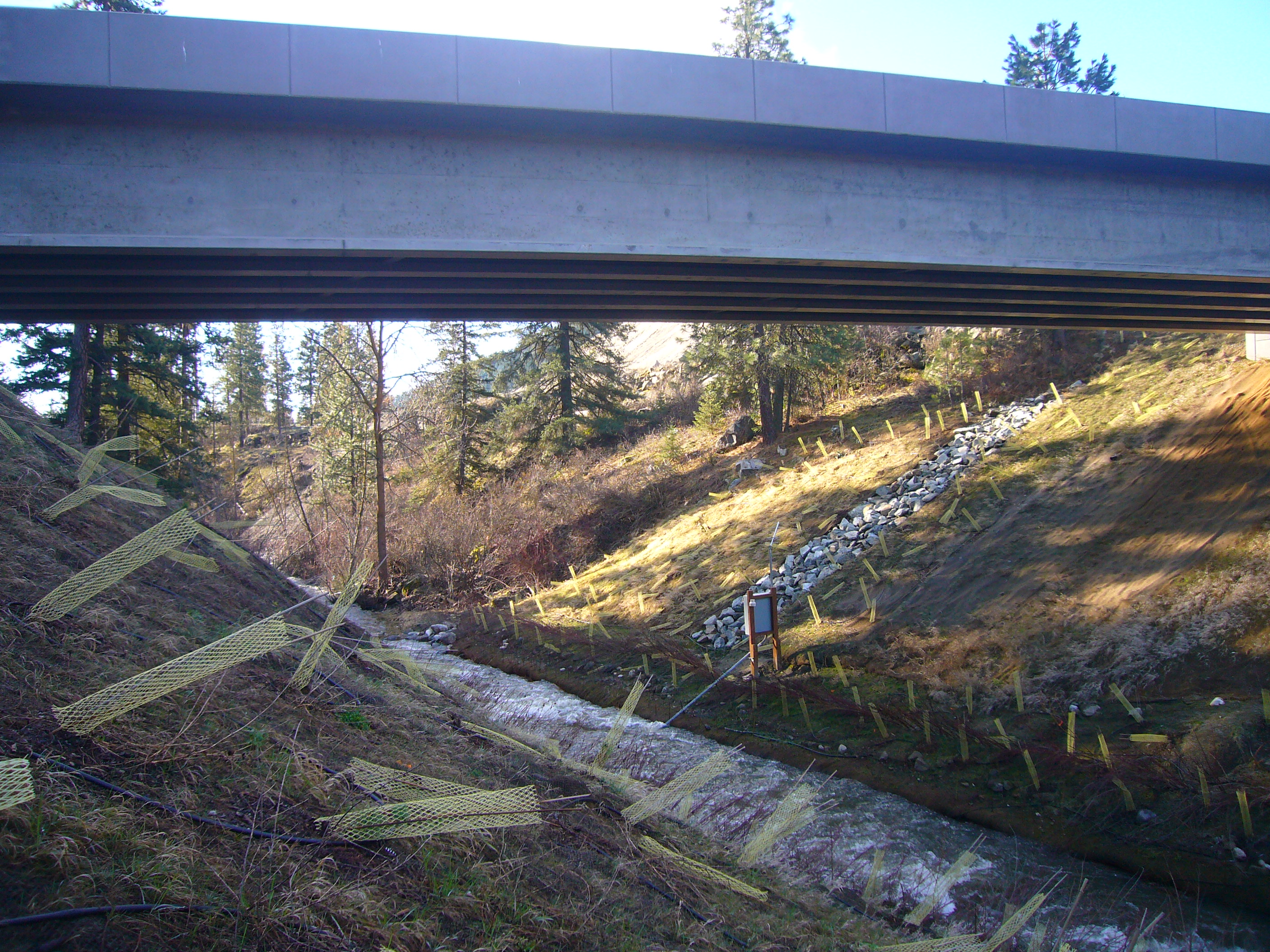

Photo Riparian Plantings.jpg 11/17/2011

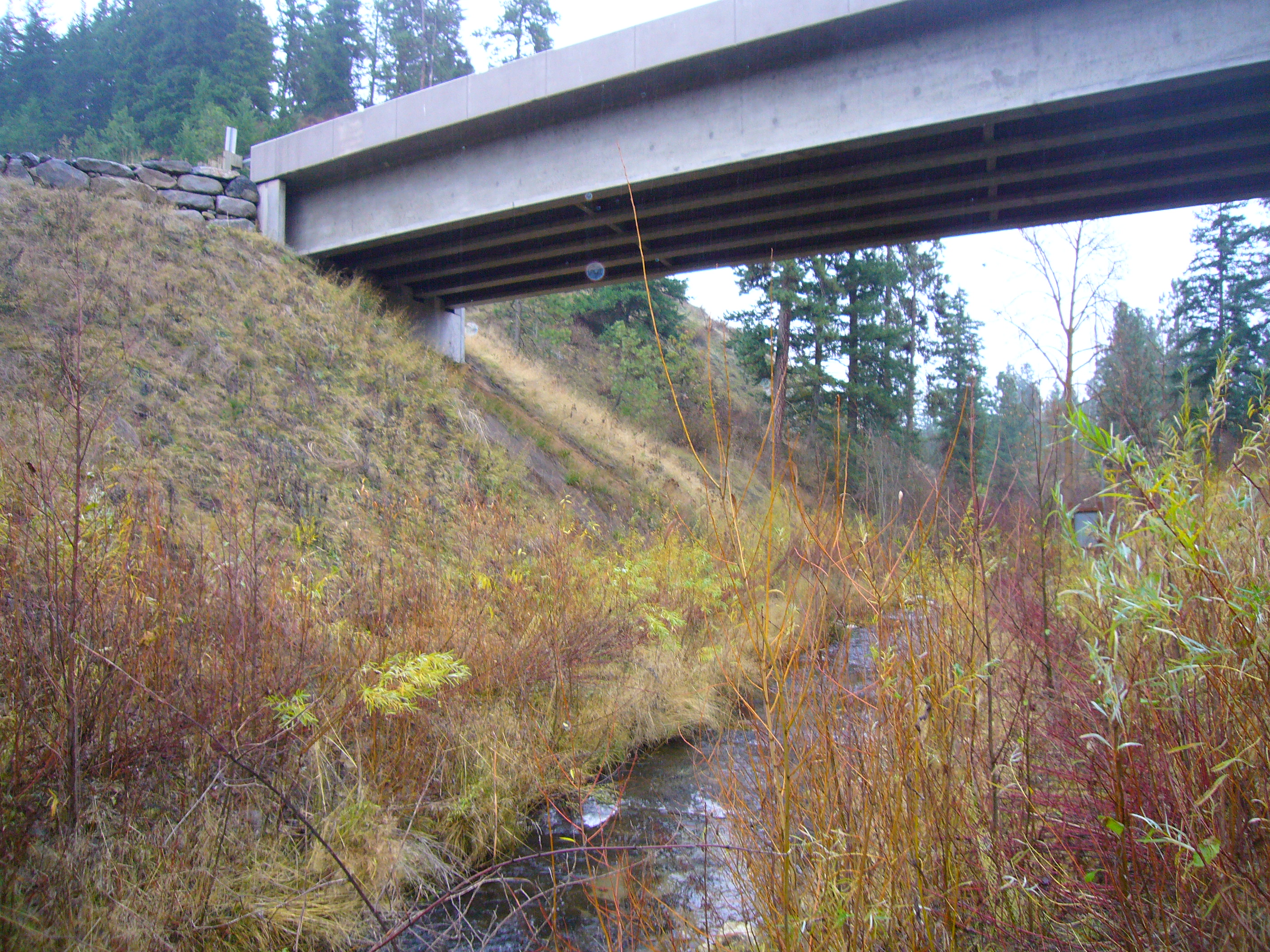

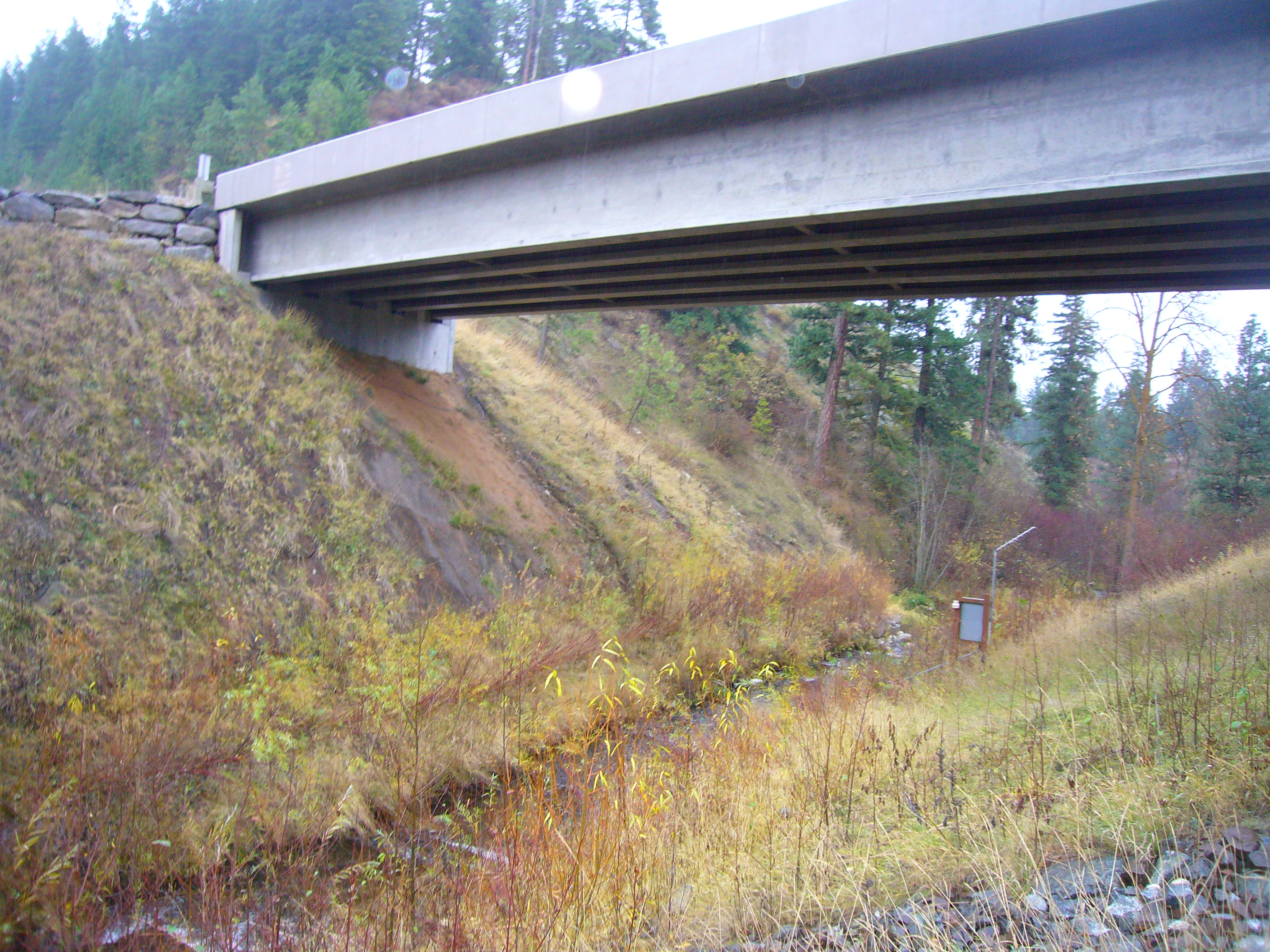

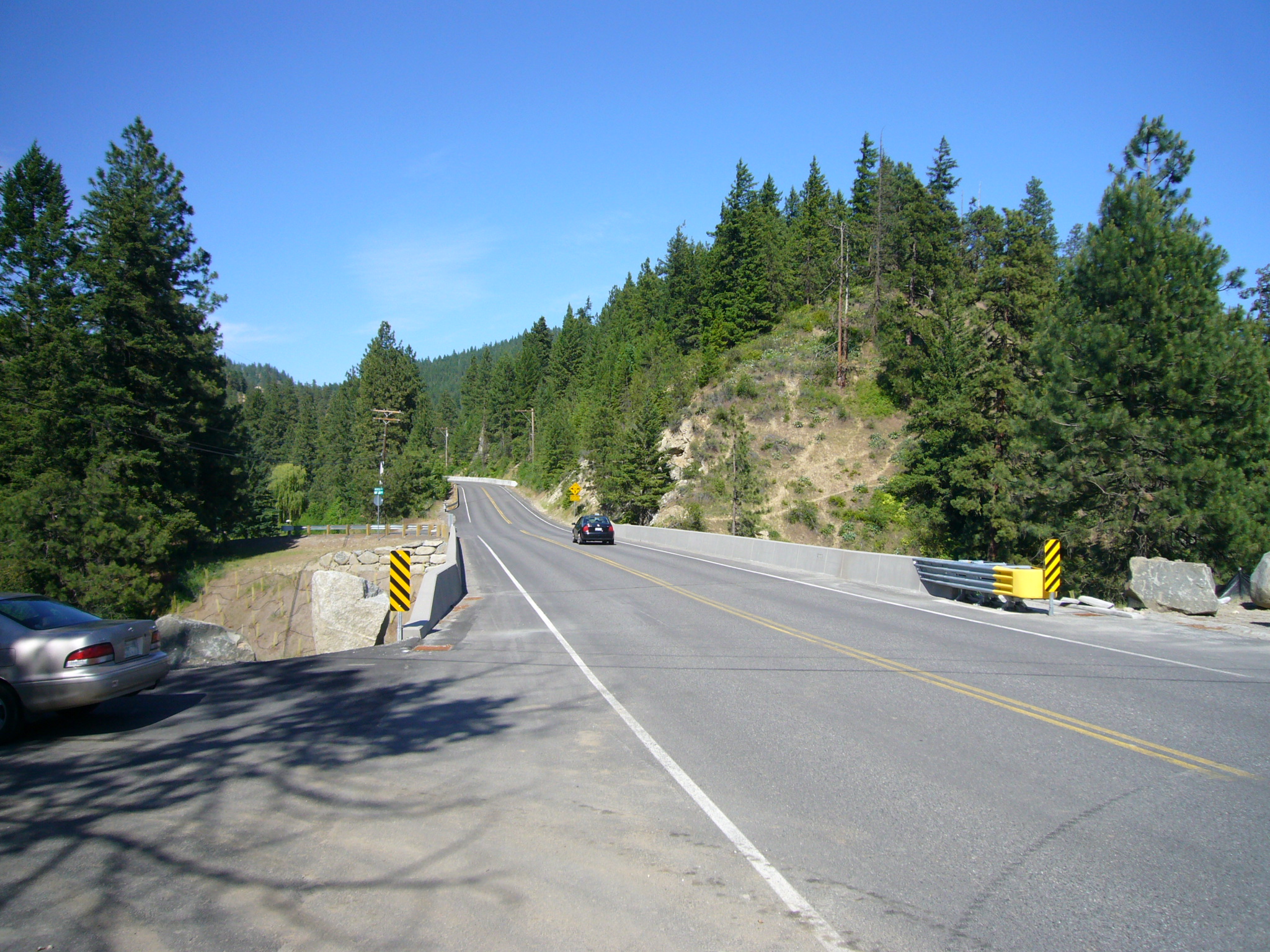

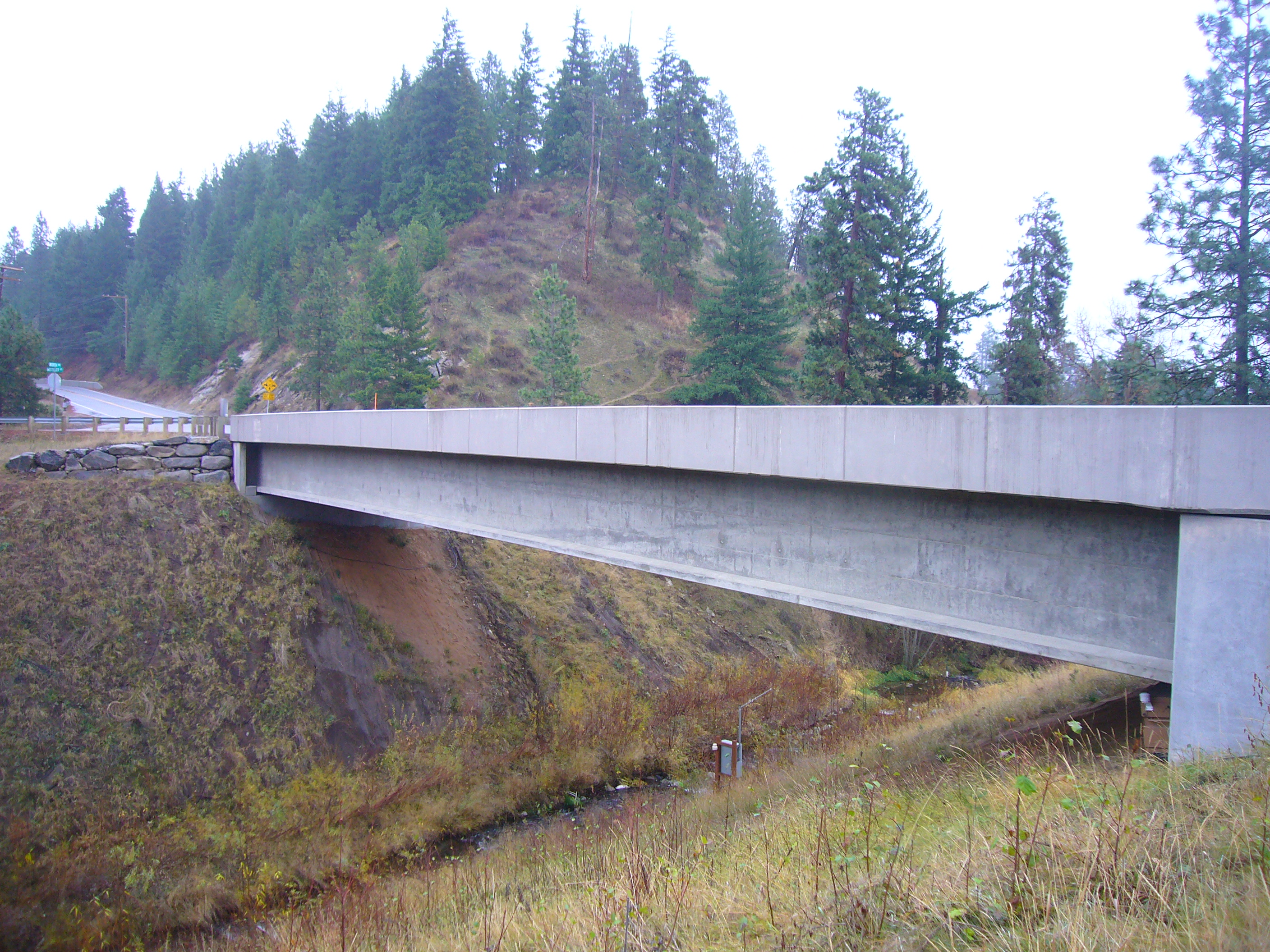

Photo North Road Bridge on Chumstick Creek.jpg 11/17/2011
Photo North Road final inspection photo.jpg 06/15/2010
Photo North Road final channel profile.jpg 06/15/2010

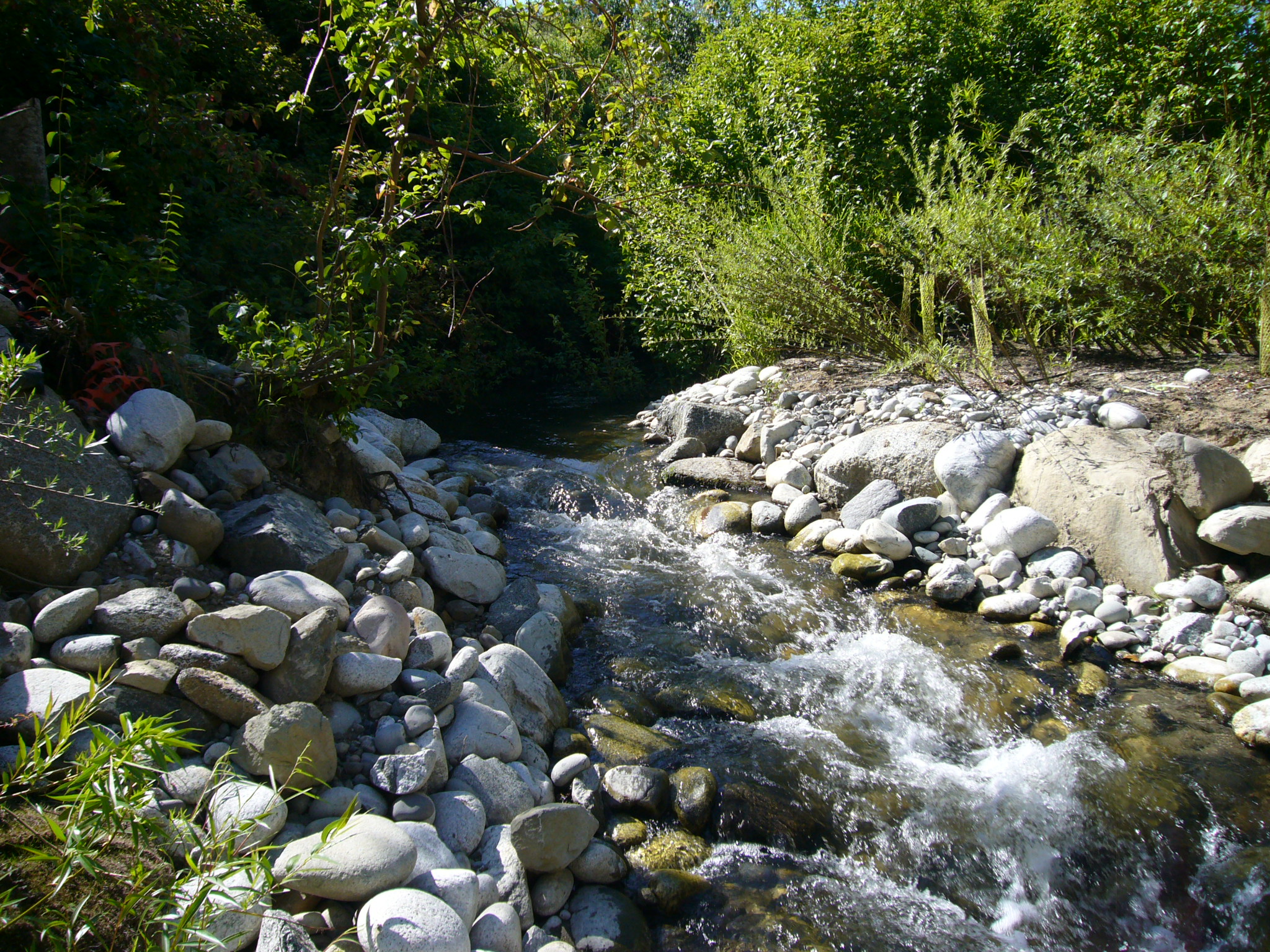

Photo North Road final channel.jpg 06/15/2010

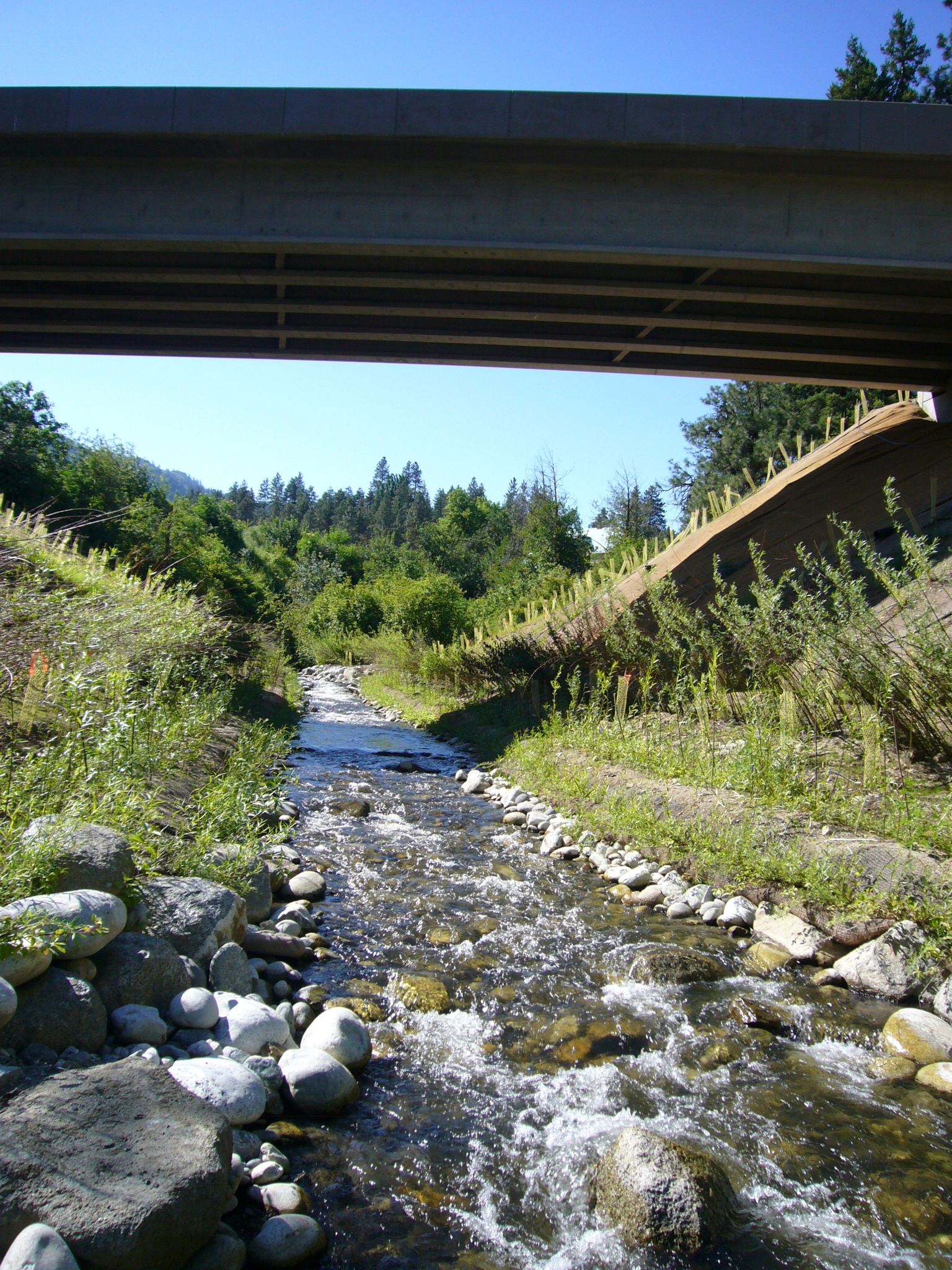

Photo North Road Final Inspection channel.jpg 06/15/2010

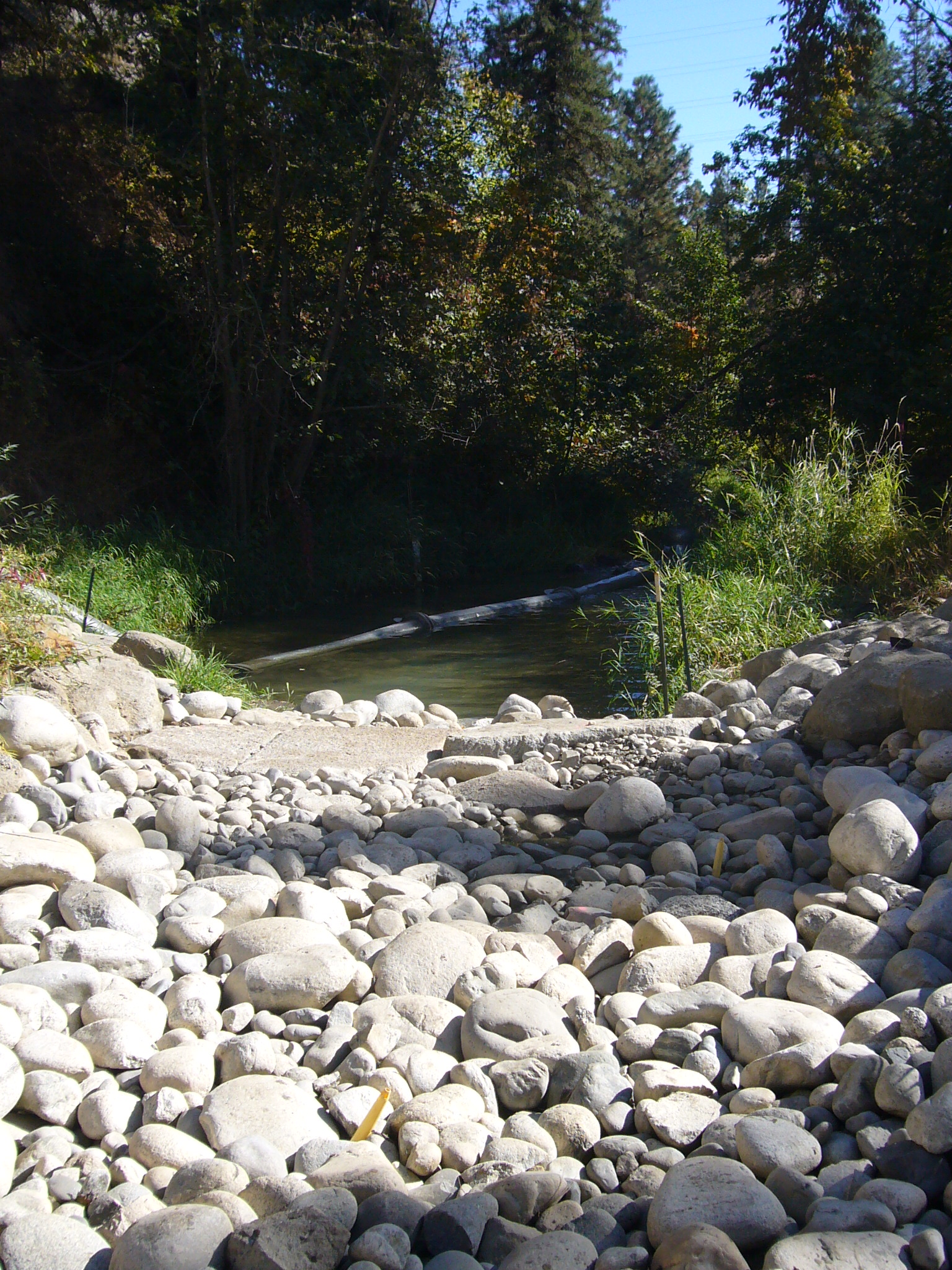

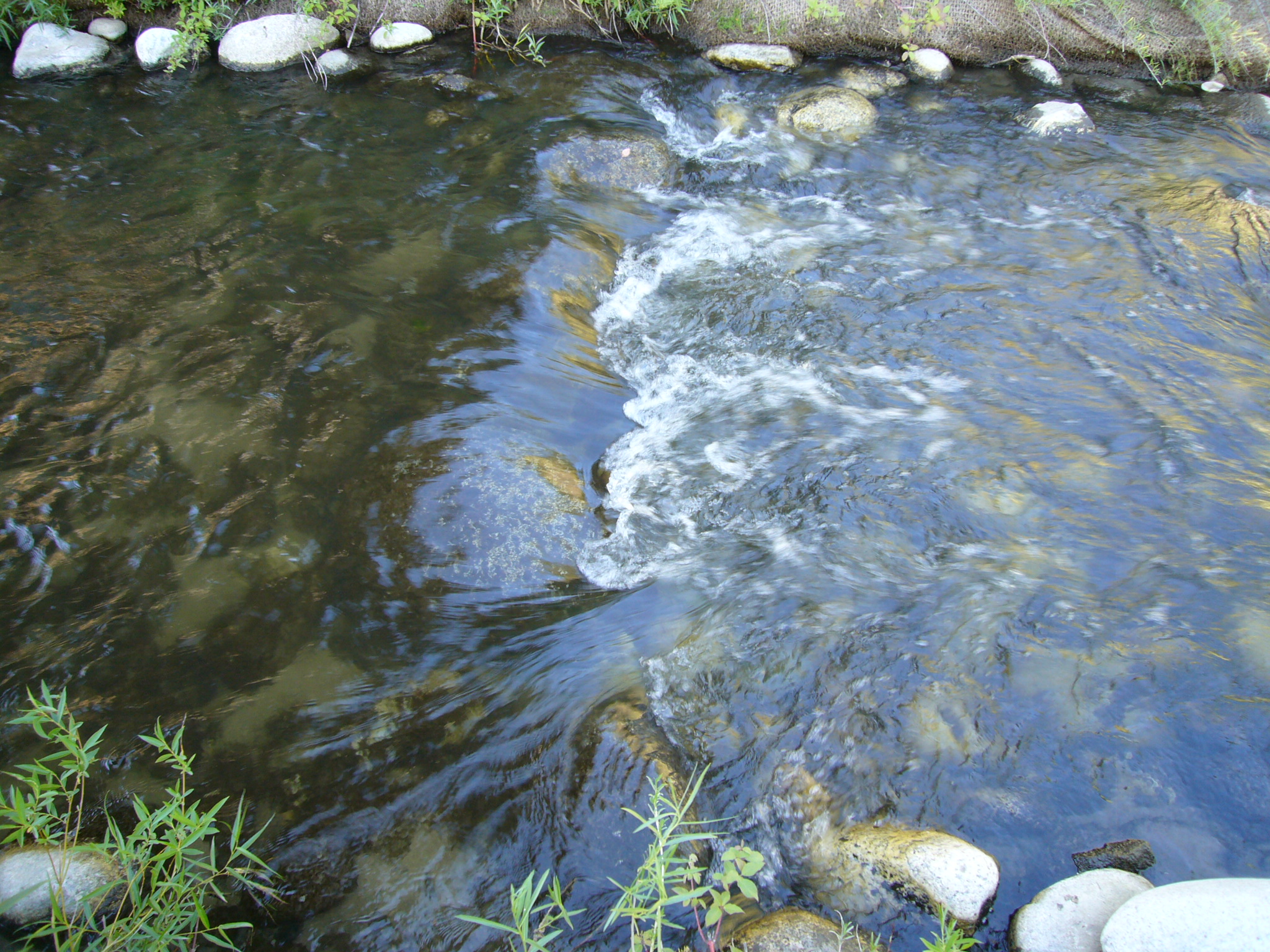

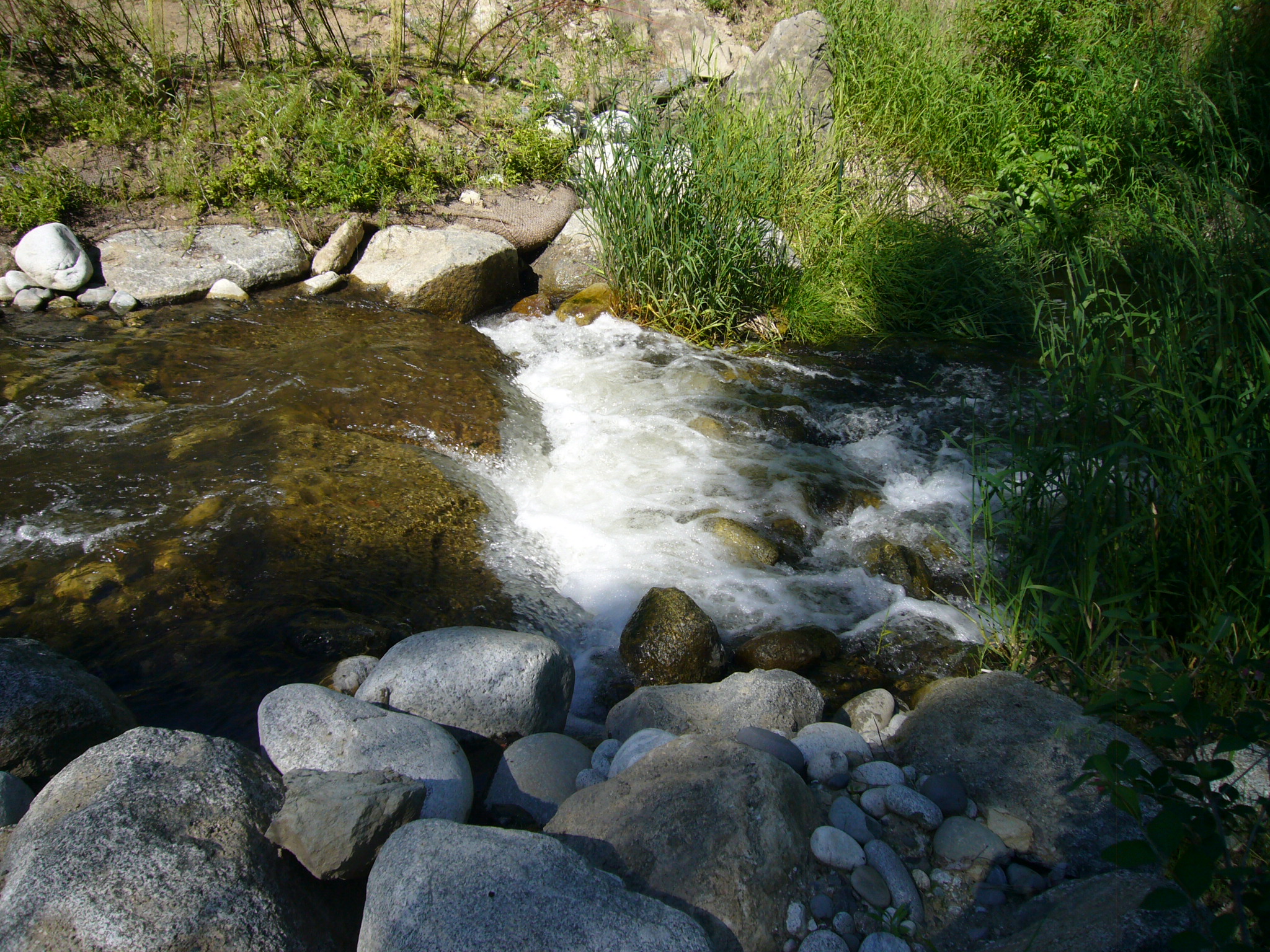

Photo North Road rock weir.jpg 06/15/2010
Photo North Road post construction 2.jpg 06/15/2010
Photo North Road post construction.jpg 06/15/2010
Photo North Road post.jpg 06/15/2010

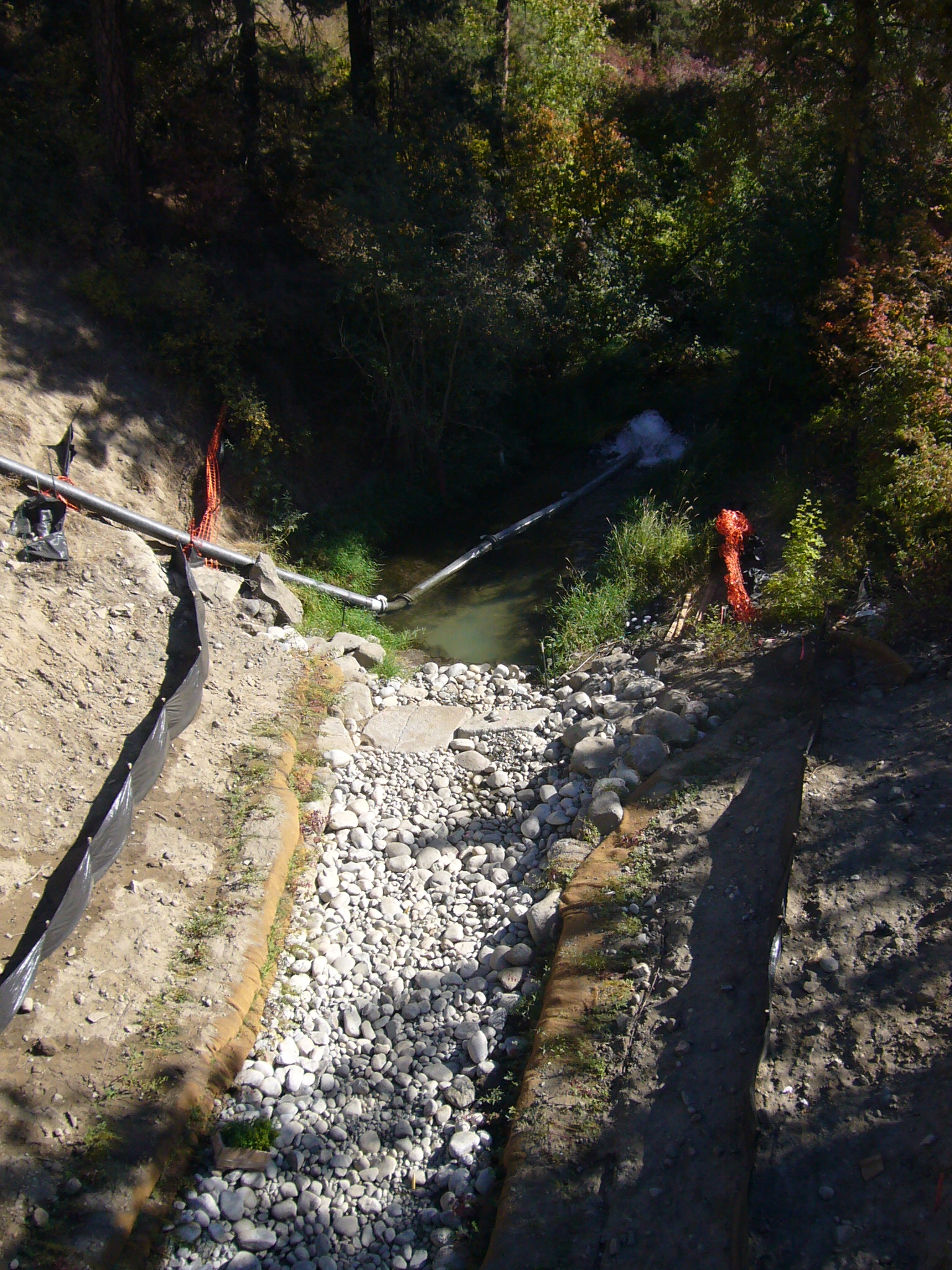

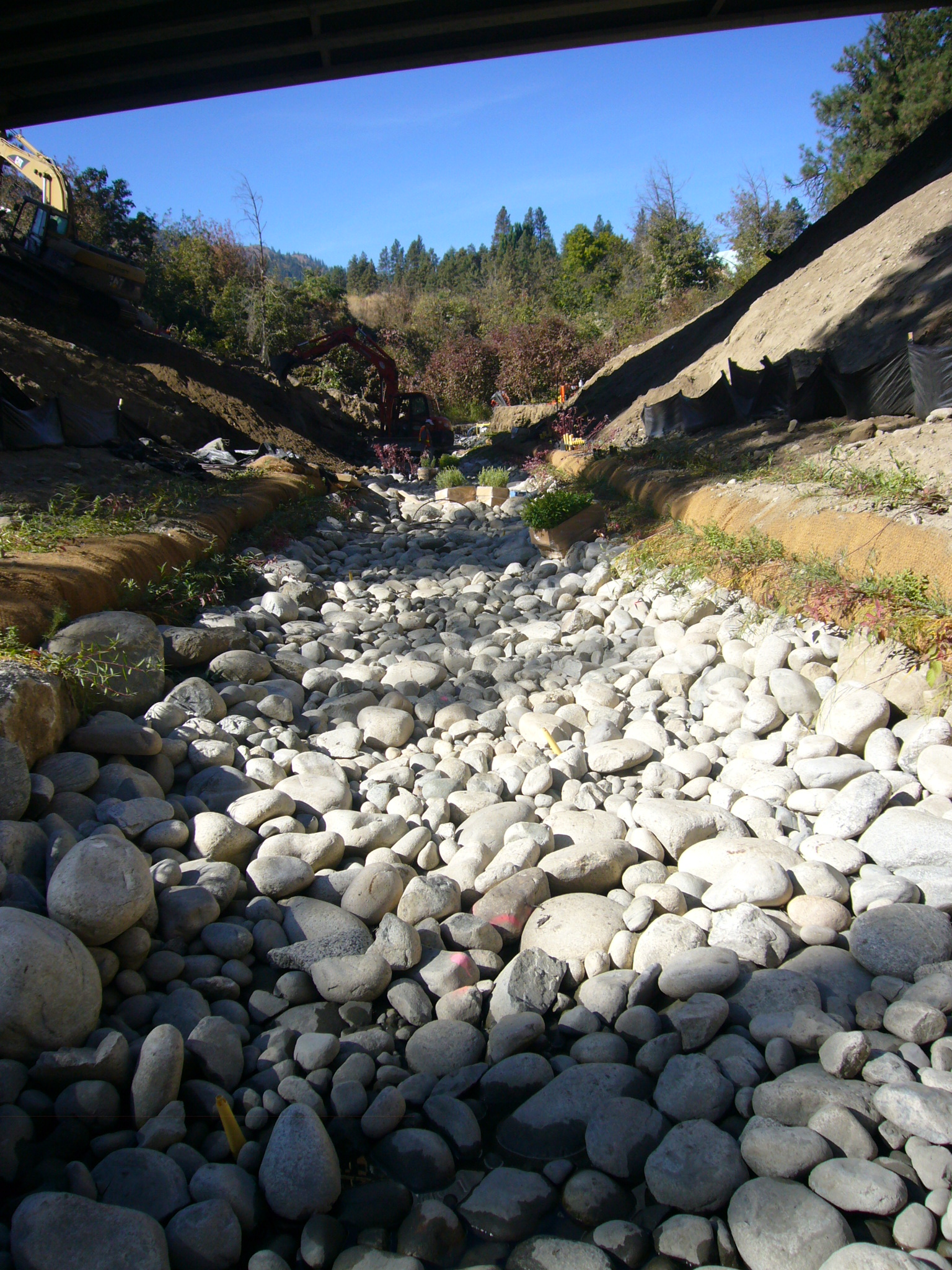

Photo north road culvert replacement channel.jpg 10/08/2009

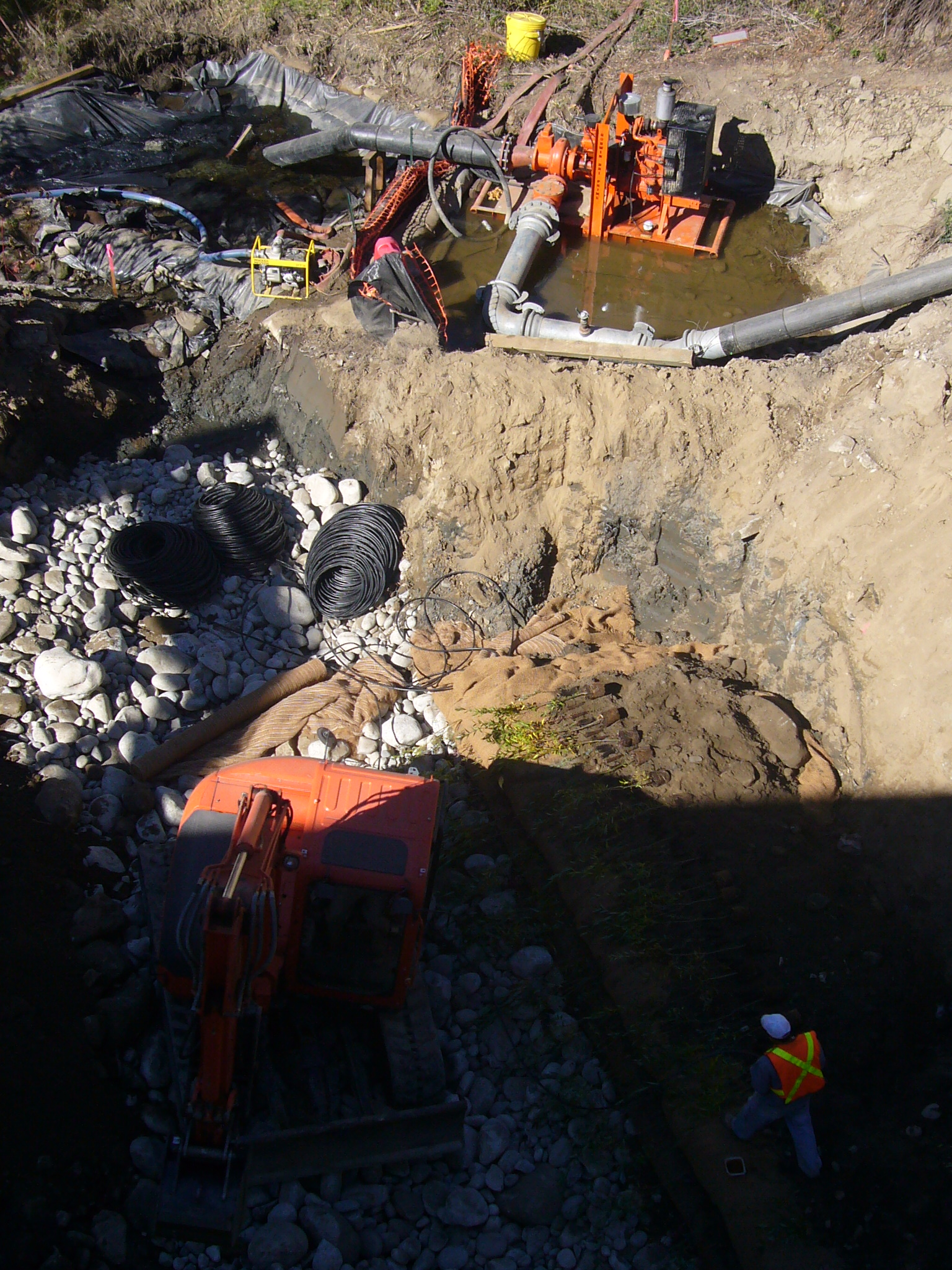

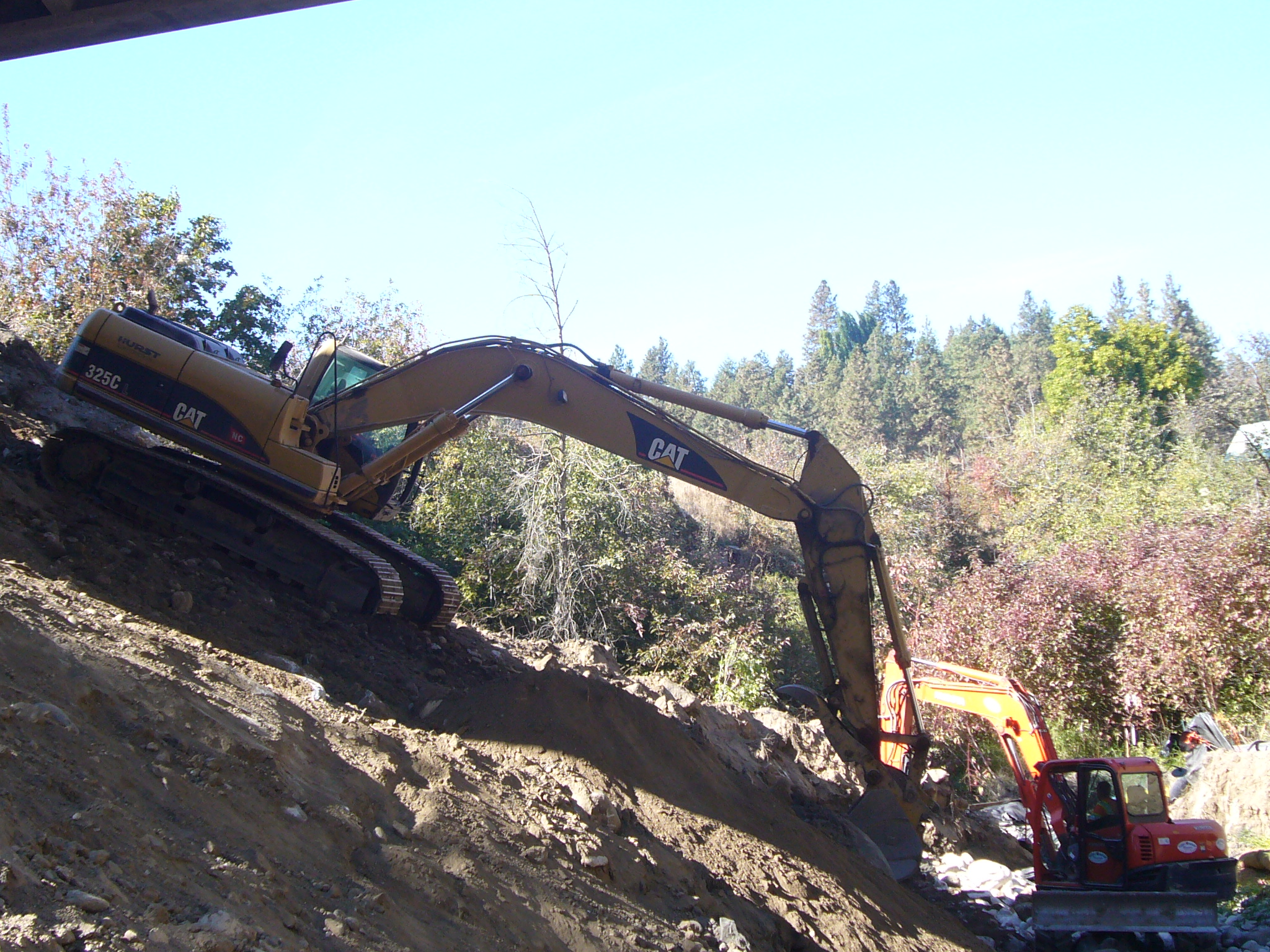

Photo excavator assisting with channel const north road.jpg 10/08/2009
Photo downstream end of new channel.jpg 10/08/2009

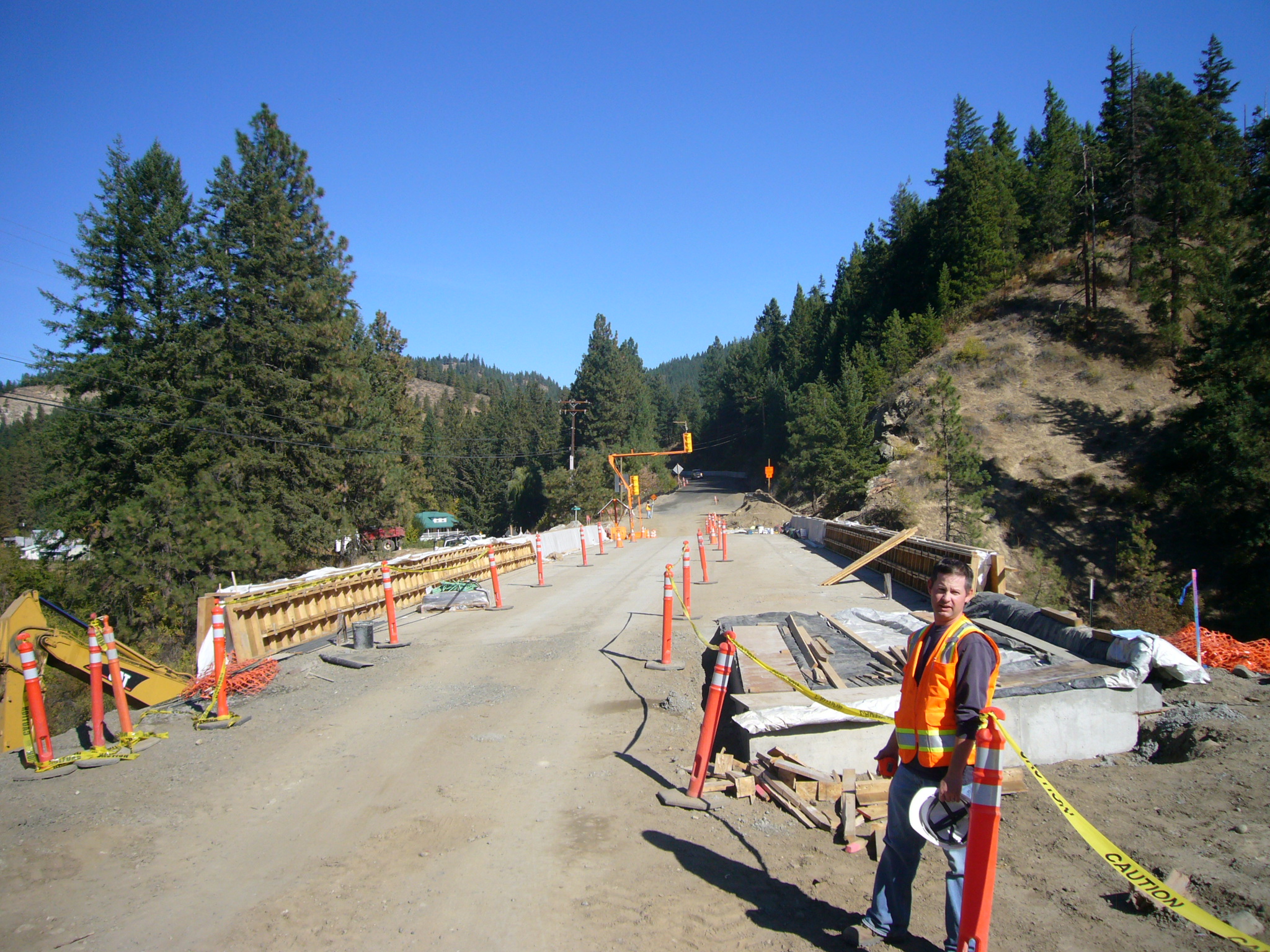

Photo Alan Schmidt on bridge.jpg 10/08/2009

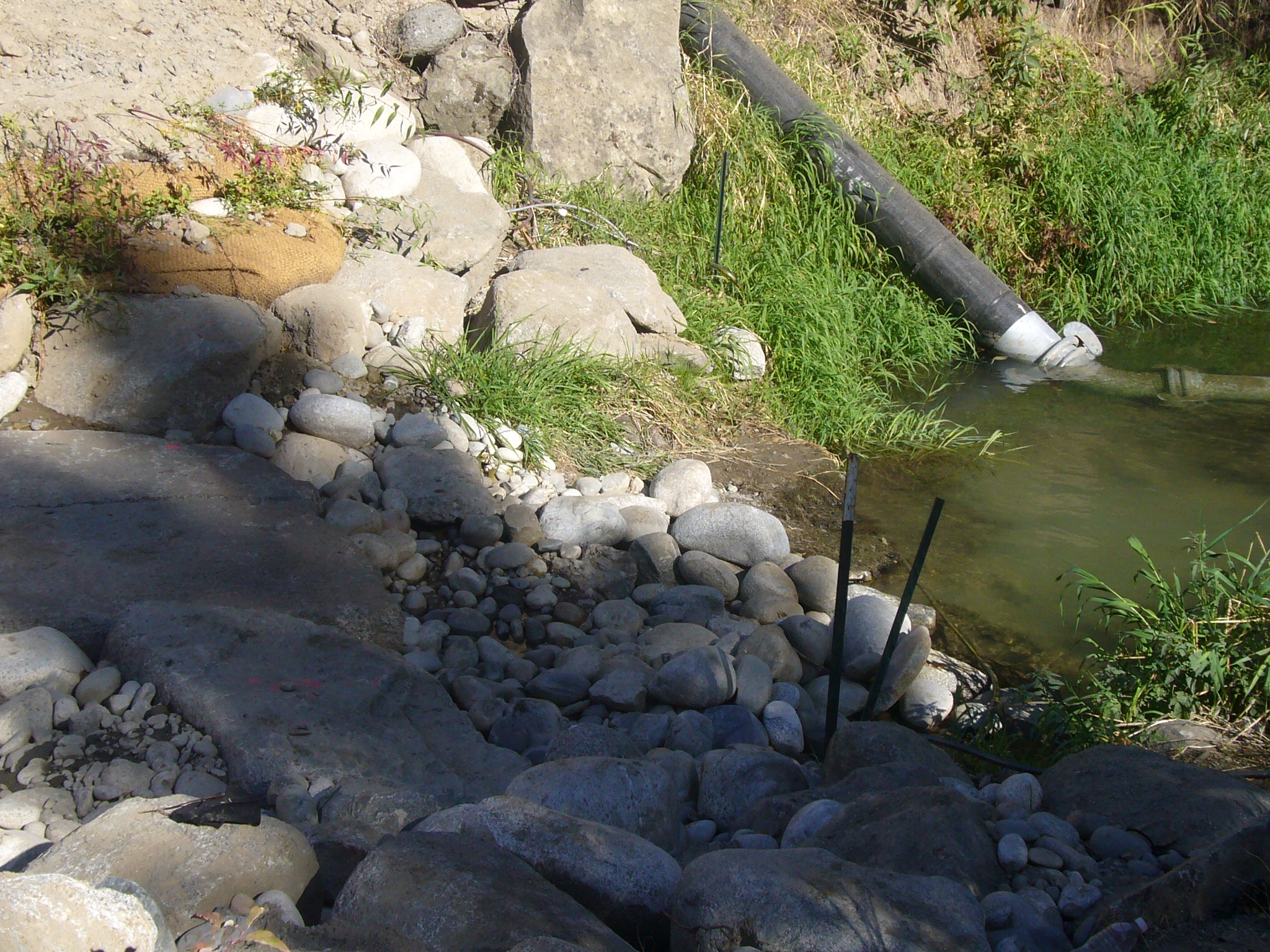

Photo north road culvert downstream sill.jpg 10/08/2009

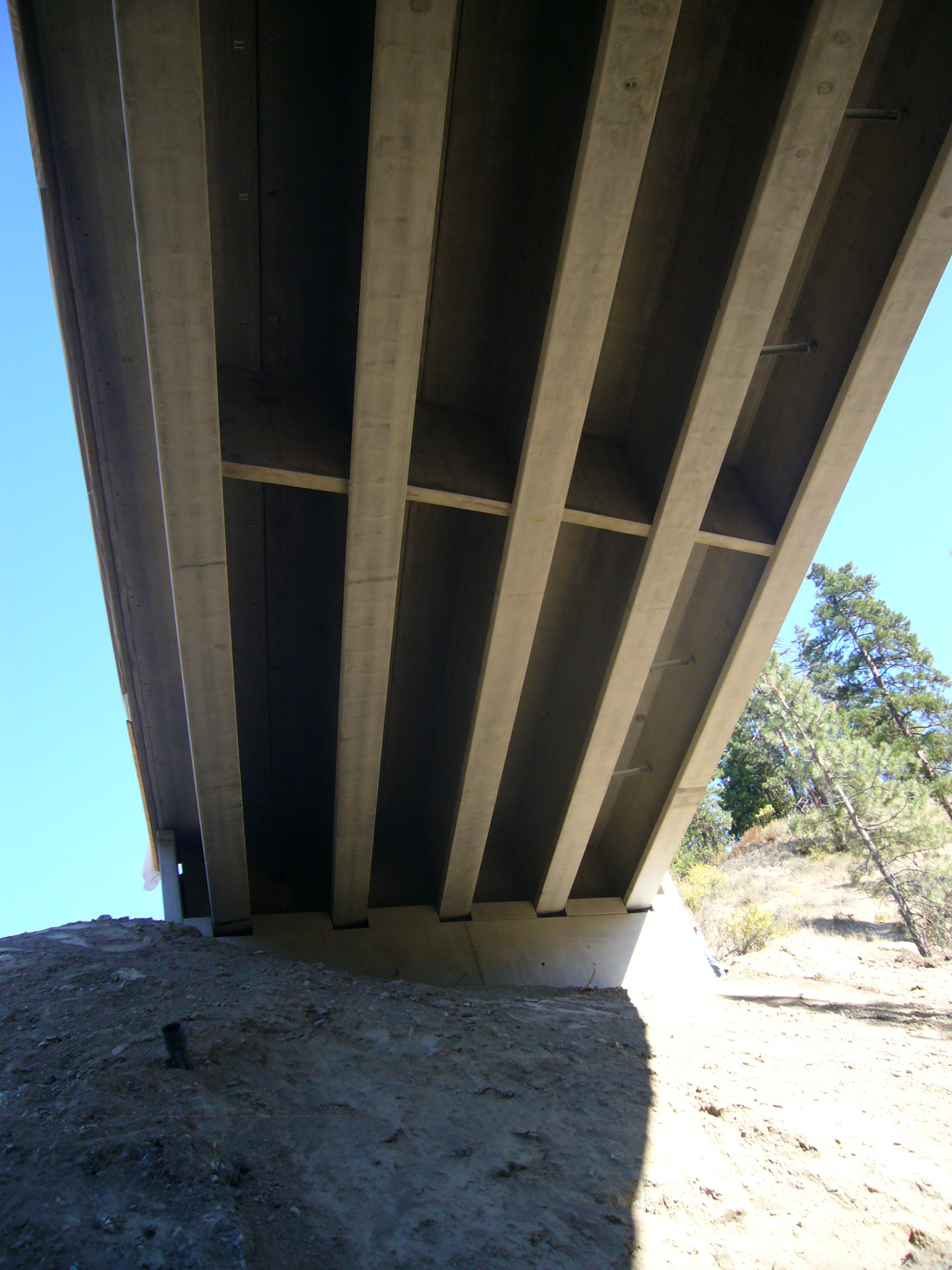

Photo north road concrete girders.jpg 10/08/2009
Photo north road bridge.jpg 10/08/2009

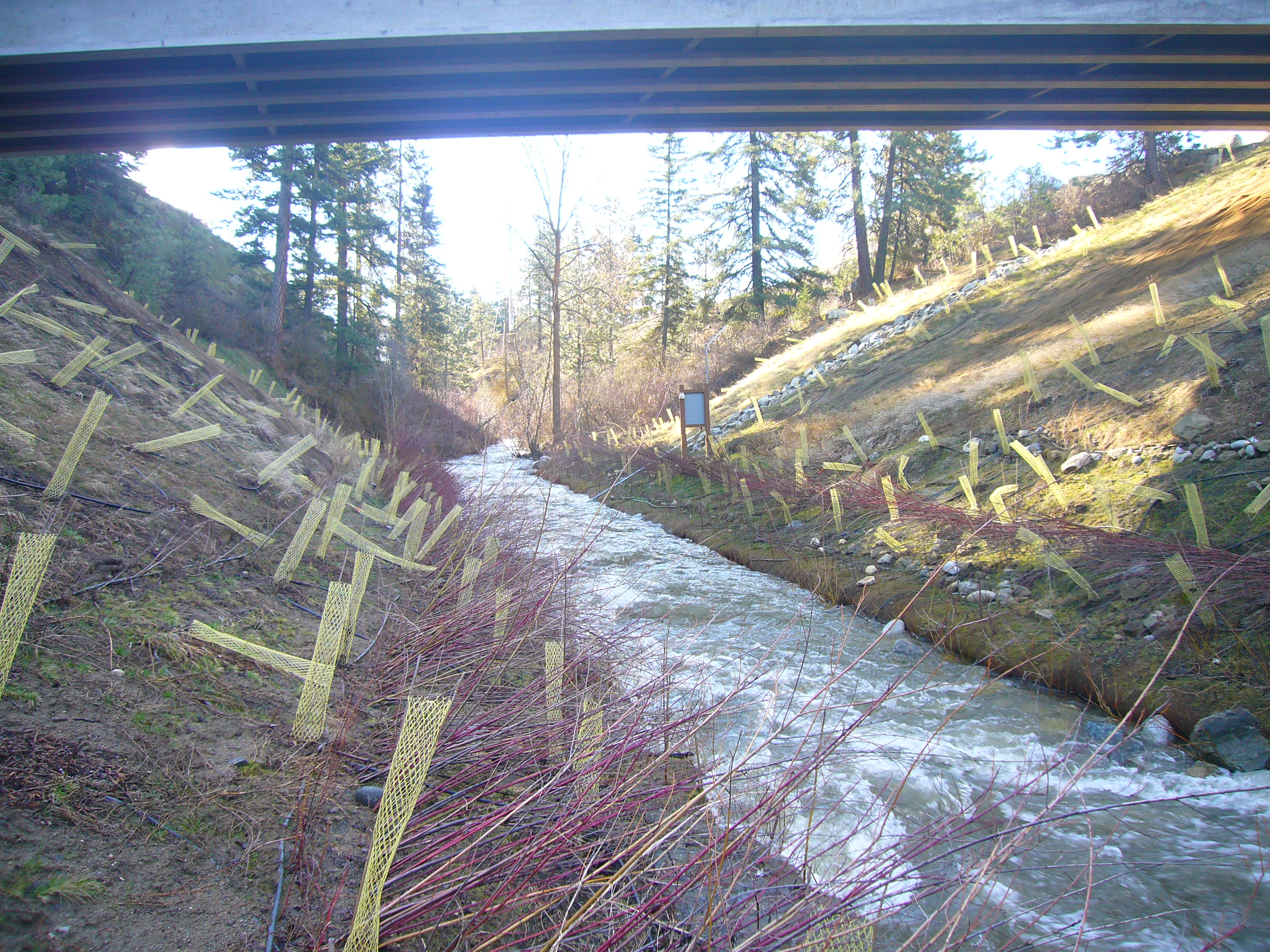

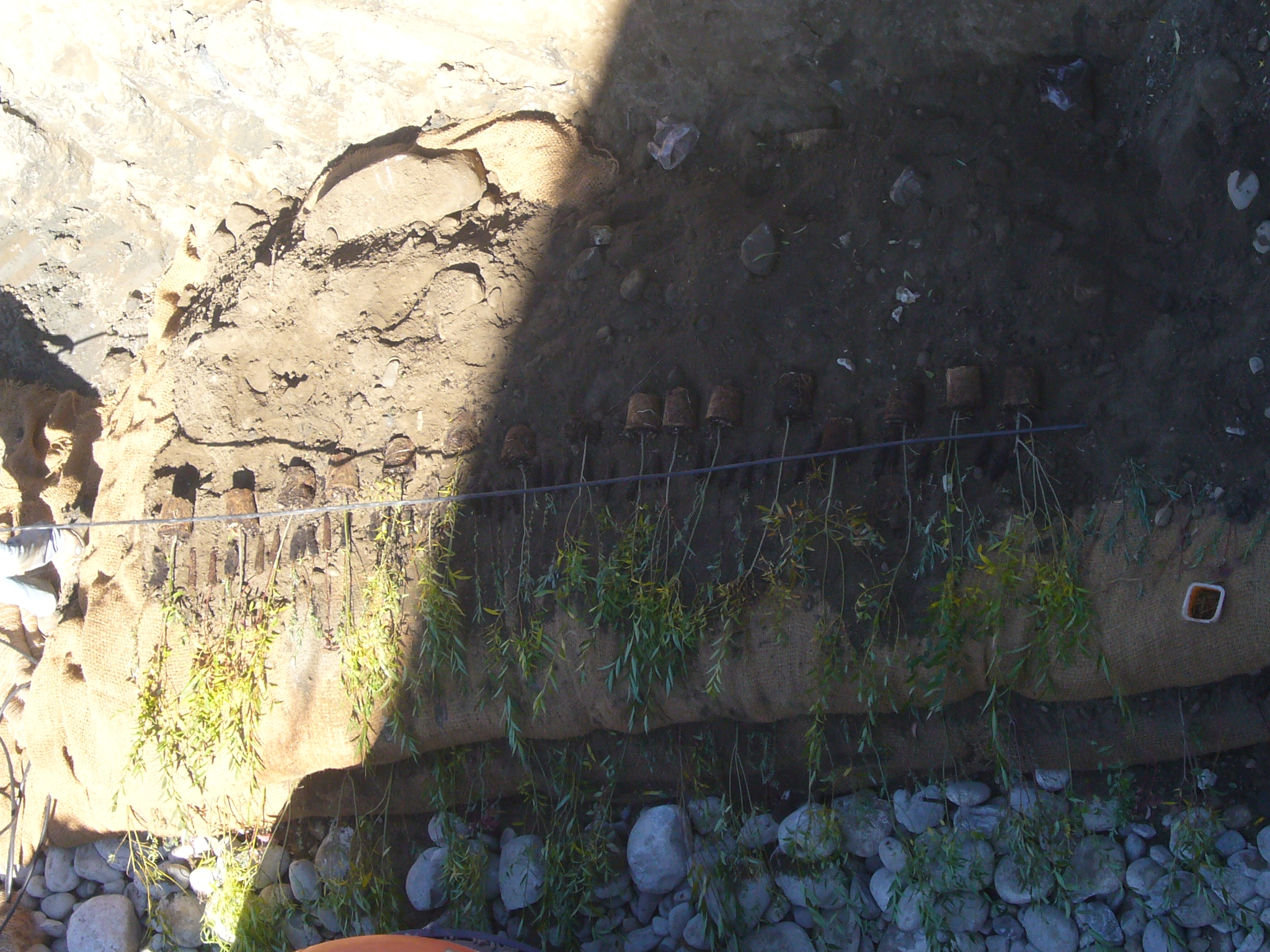

Photo north road bridge bioengineering c.jpg 10/08/2009
Photo north road bridge bioengineering b.jpg 10/08/2009
Photo north road bridge bioengineering a.jpg 10/08/2009

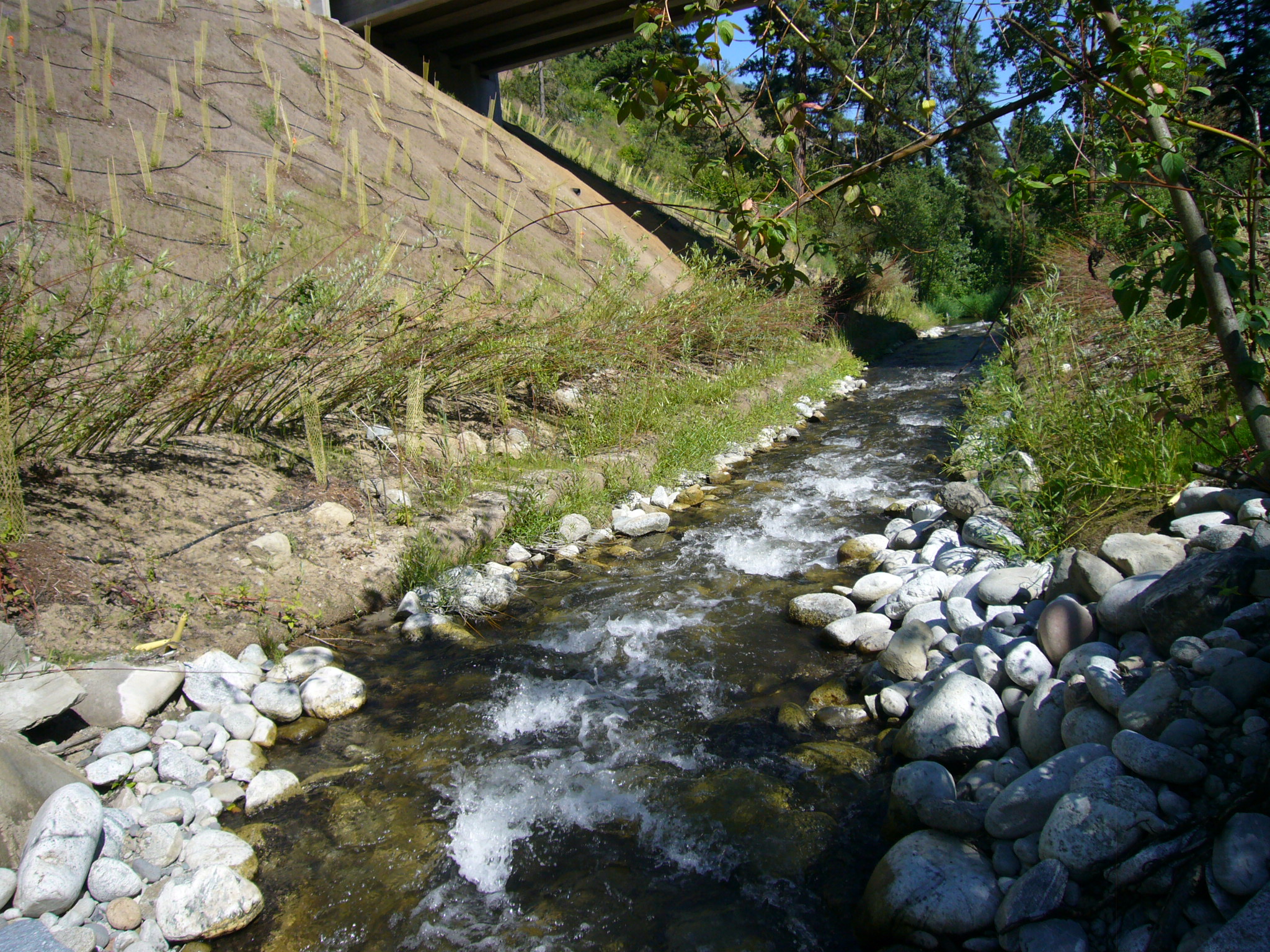

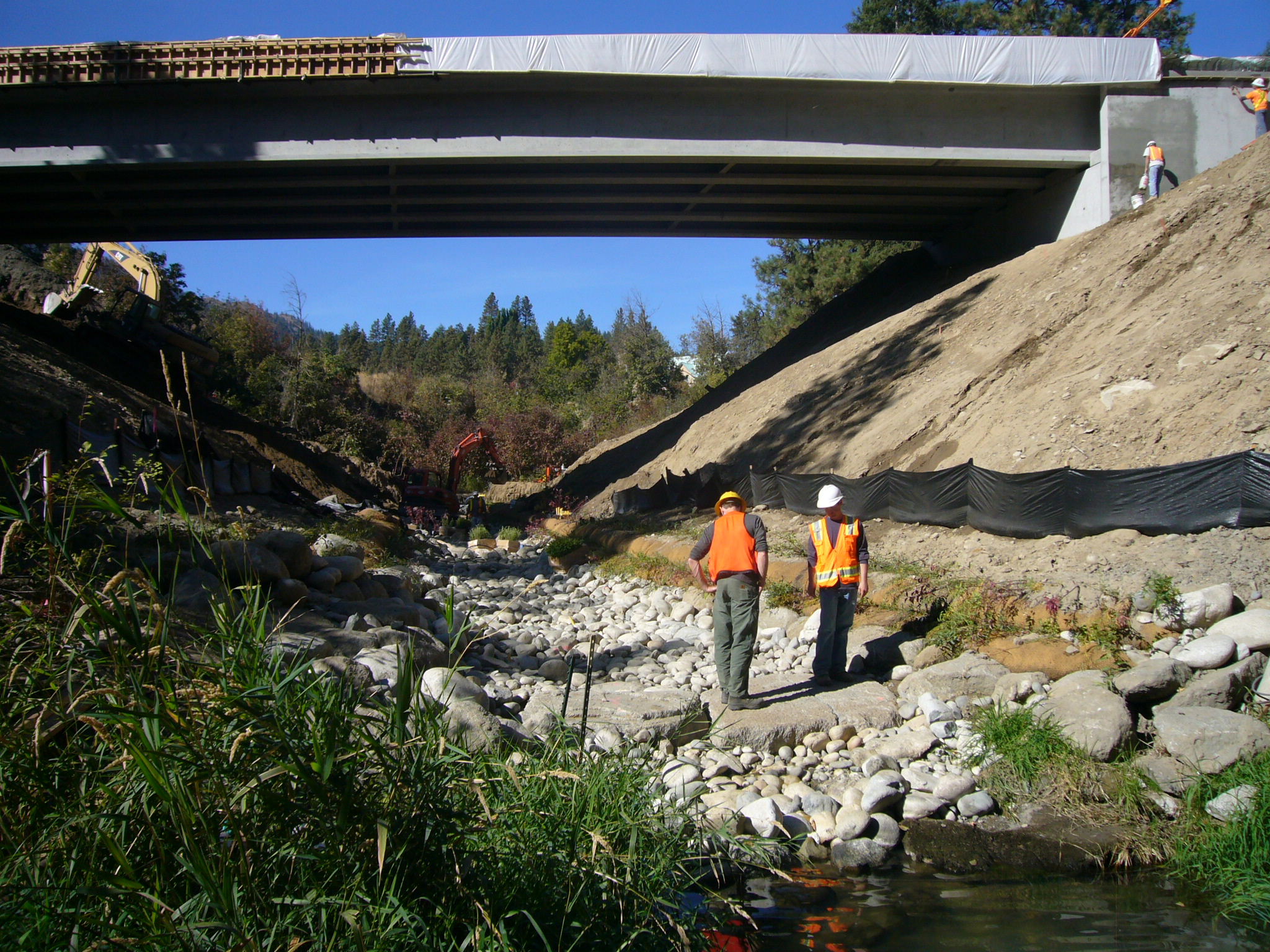

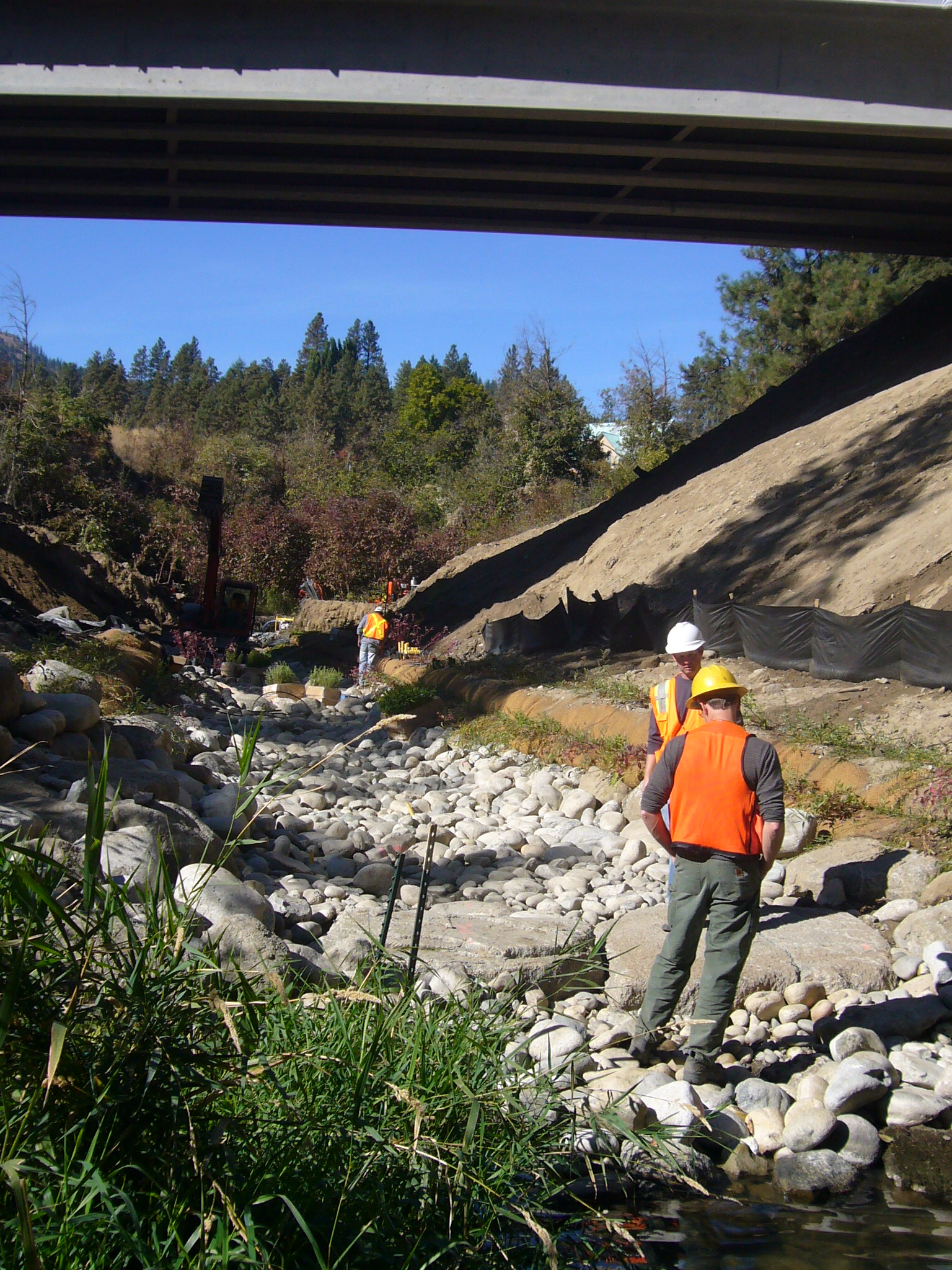

Photo north road bridge and channel.jpg 10/08/2009
Photo north road bridge and channel b.jpg 10/08/2009

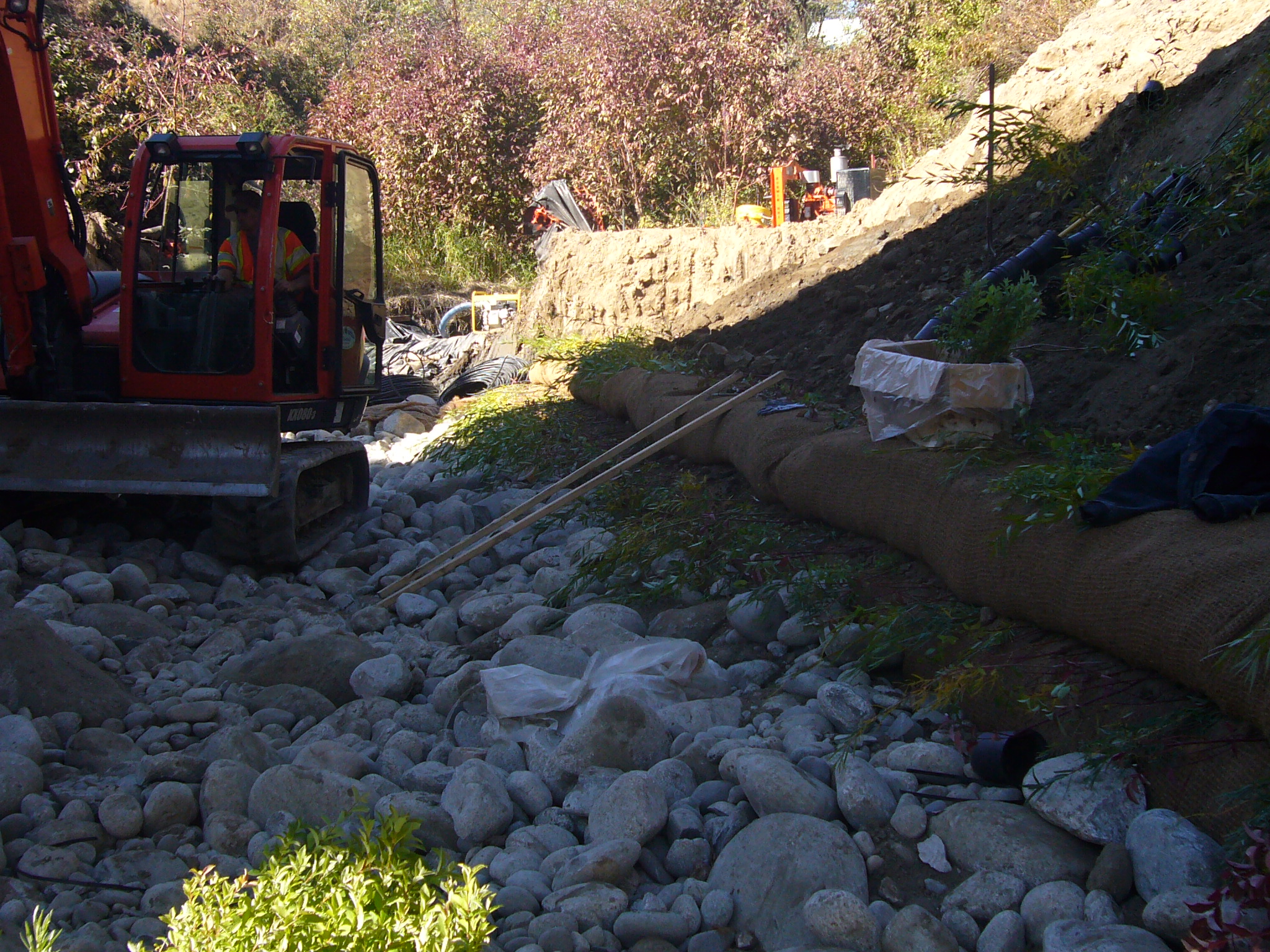

Photo north road channel and engineered banks.jpg 10/08/2009

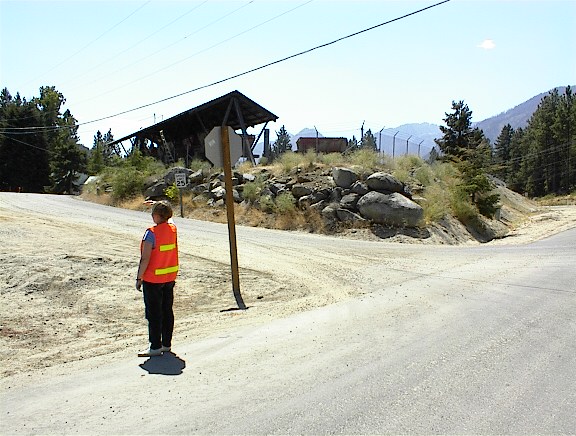

Photo North Road Culvert_staging area 1.jpg 08/07/2008

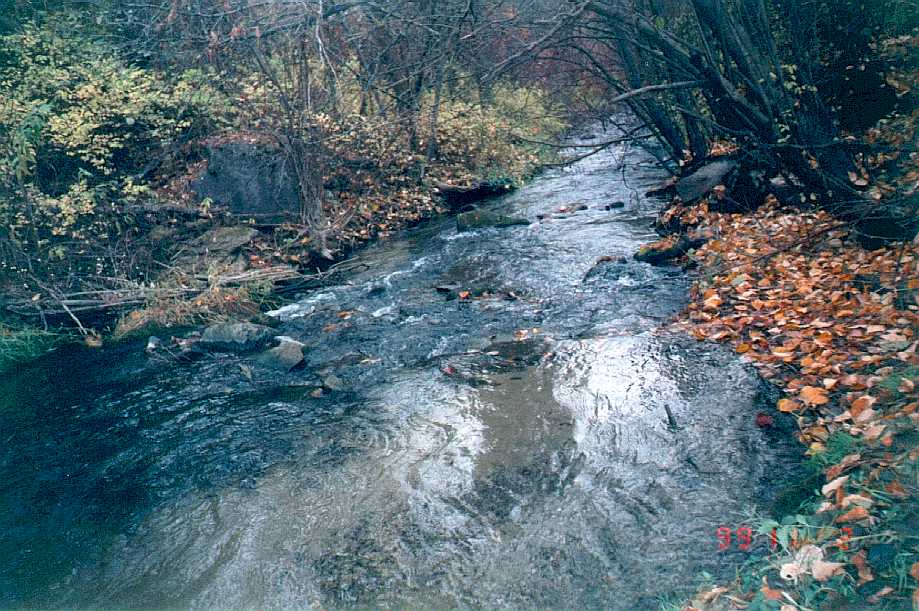

Photo Chumstick Creek looking downstream from North Road.jpg 08/07/2008

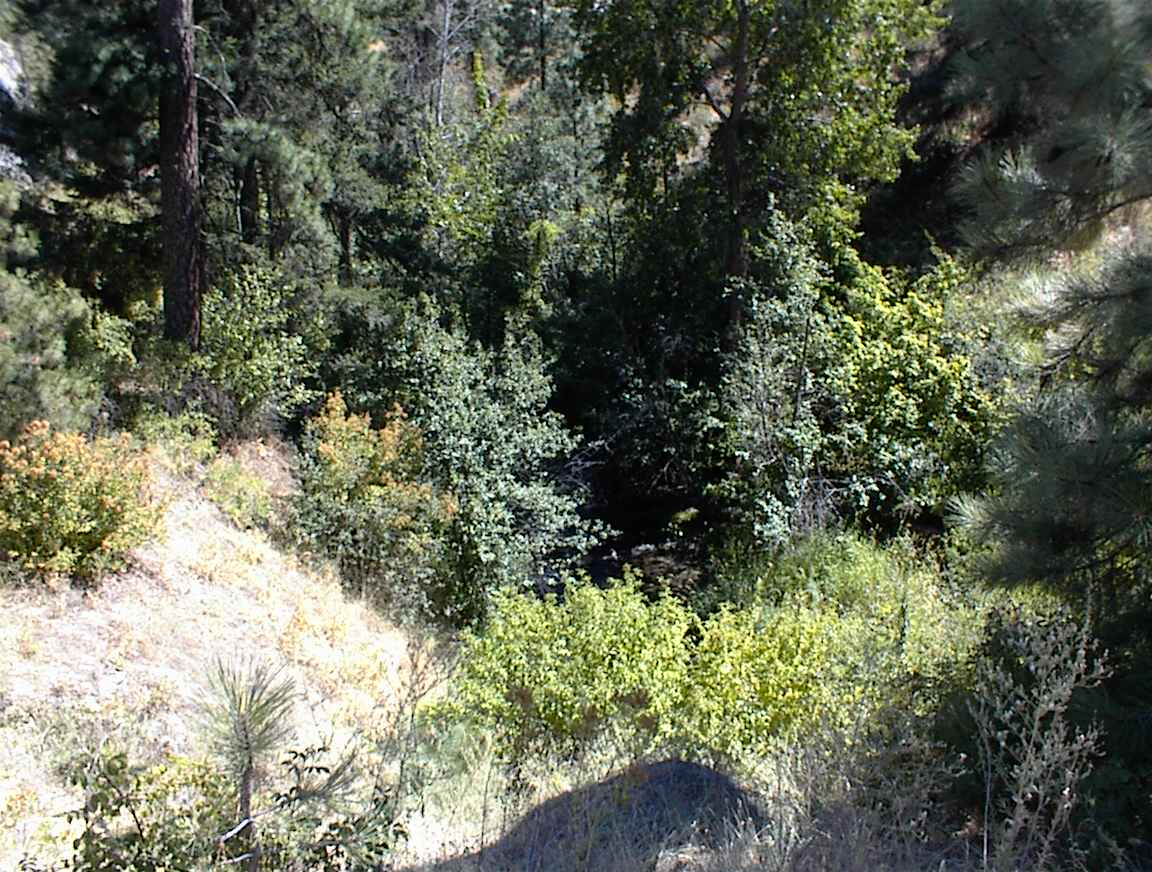

Photo North Road Culvert upstream 4.jpg 08/07/2008
Photo North Road Culvert upstream 3.jpg 08/07/2008
Photo North Road Culvert upstream 2.jpg 08/07/2008

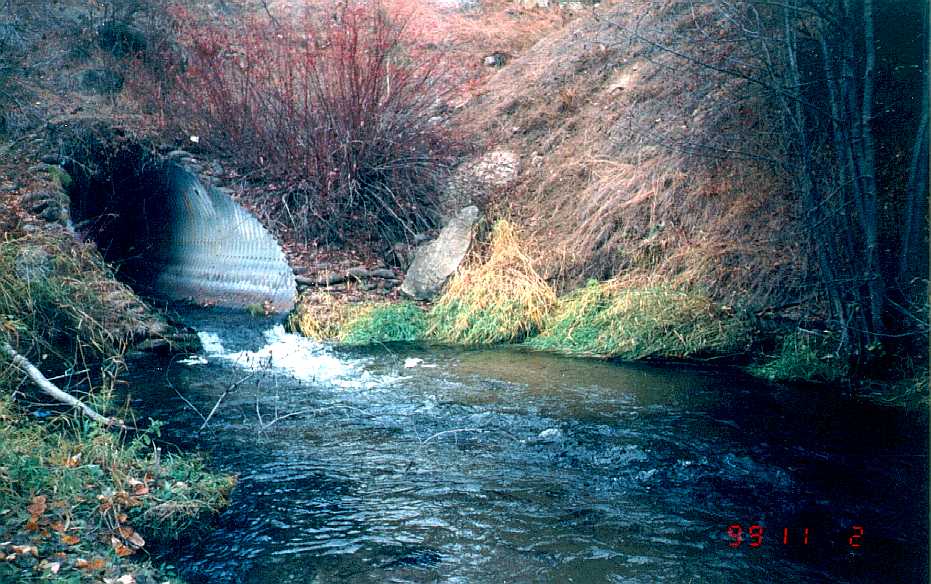

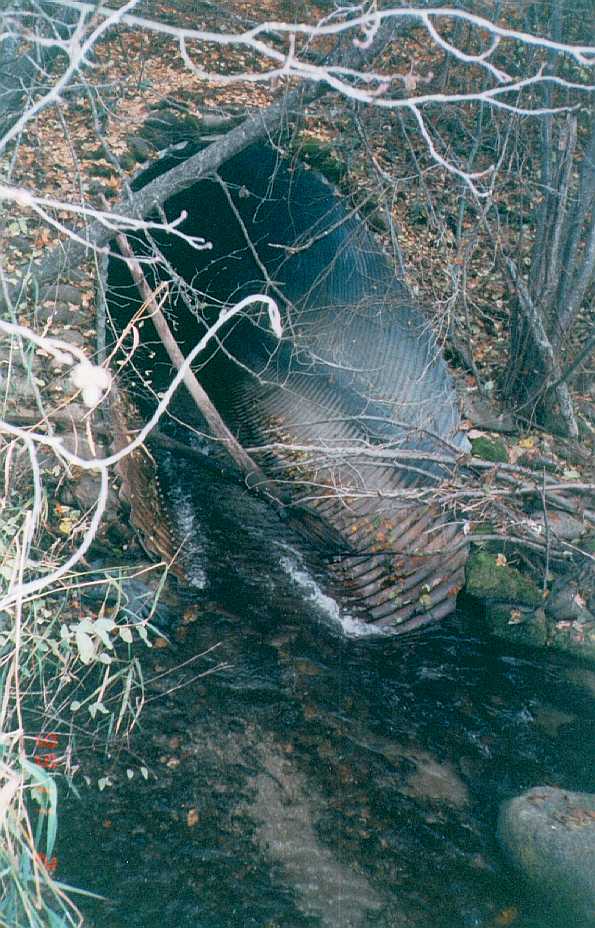

Photo North Road Culvert - 1.jpg 08/07/2008

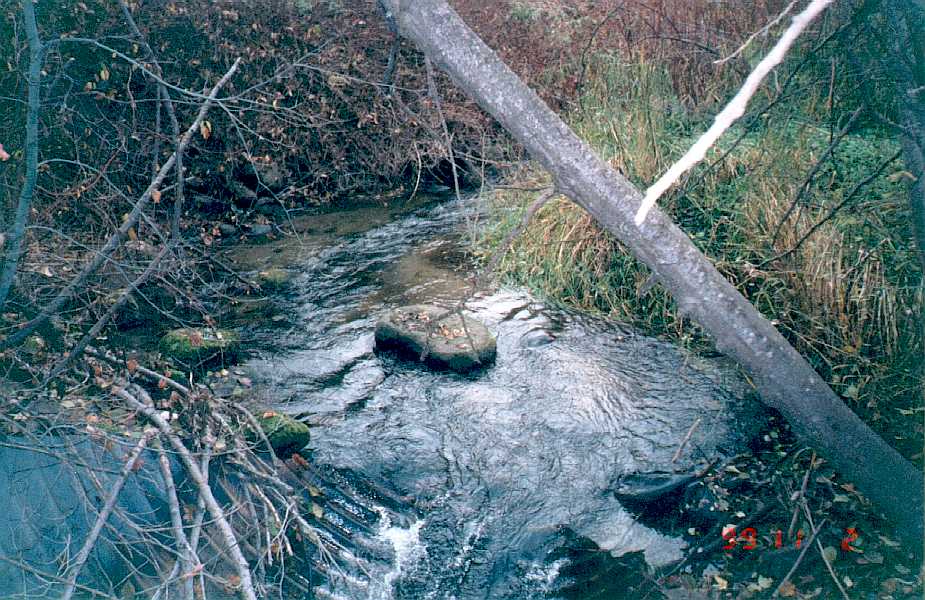

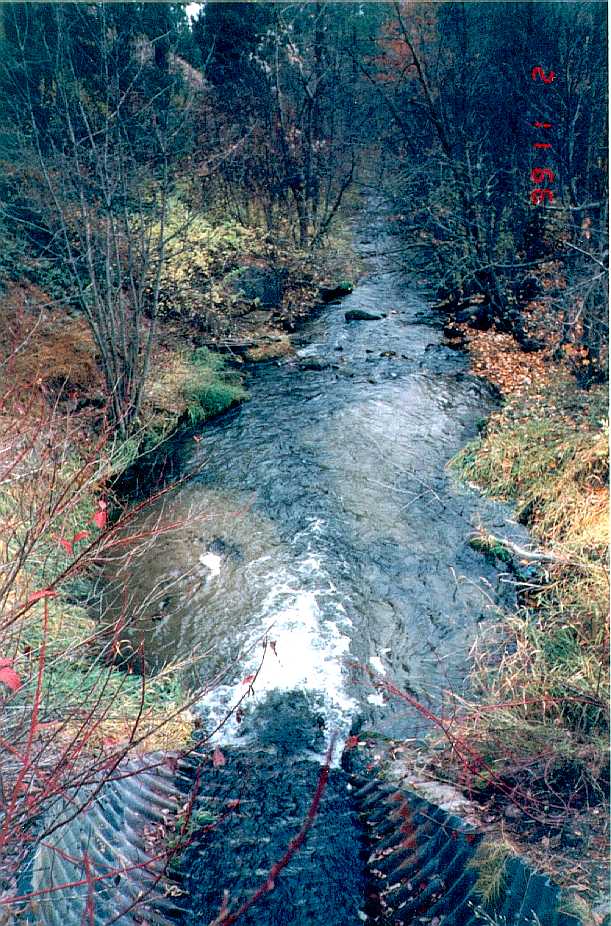

Photo North Road Culvert_downstream 3.jpg 08/07/2008
Photo North Road Culvert_downstream 2.jpg 08/07/2008
Photo North Road Culvert_downstream 1.jpg 08/07/2008

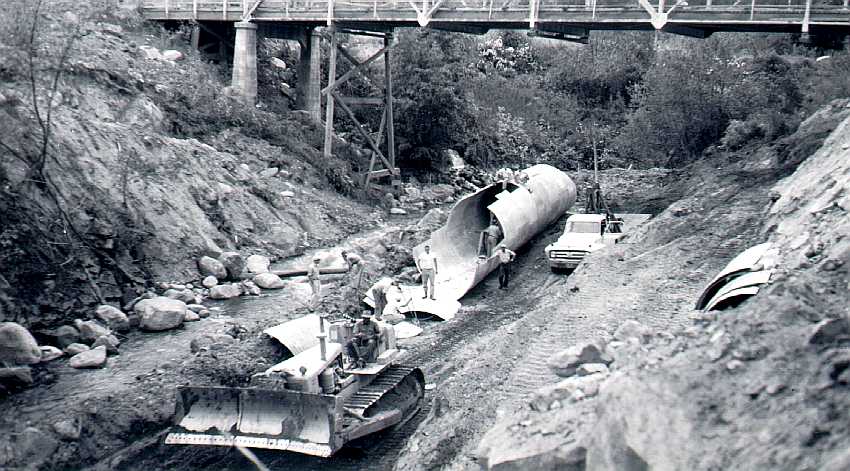

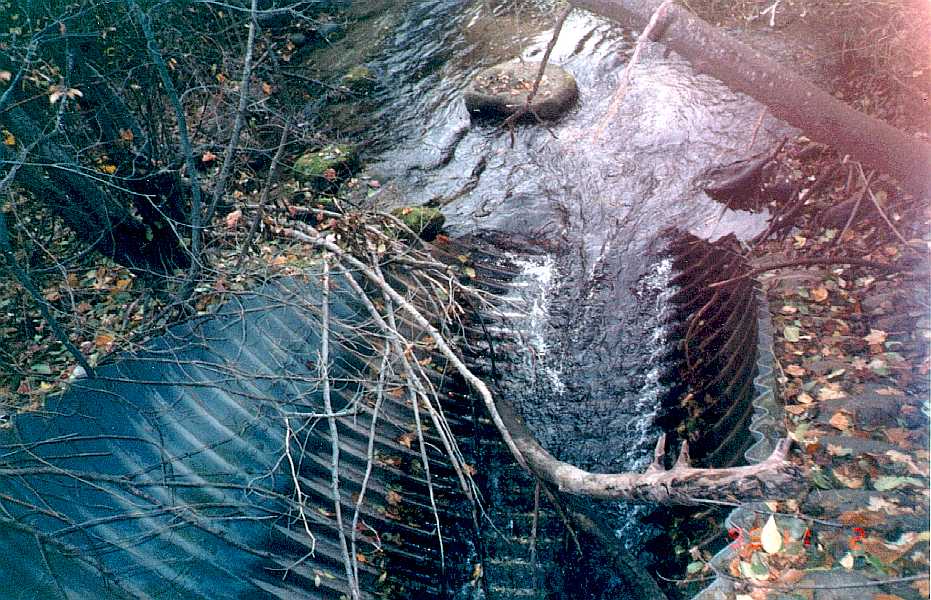

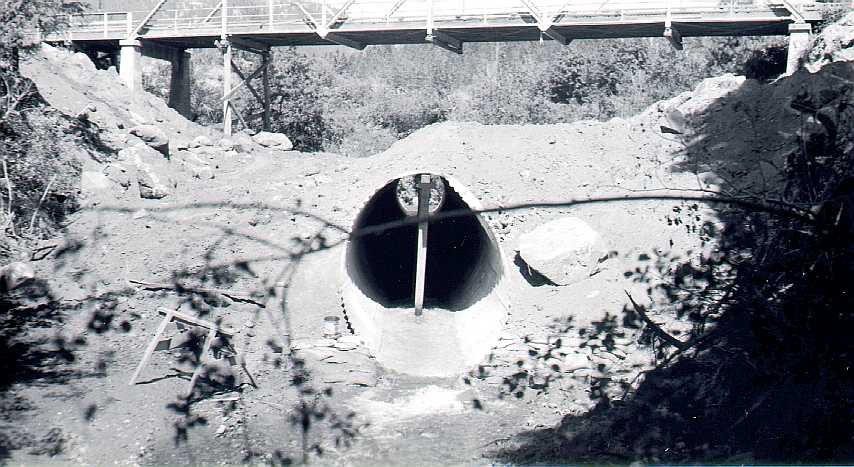

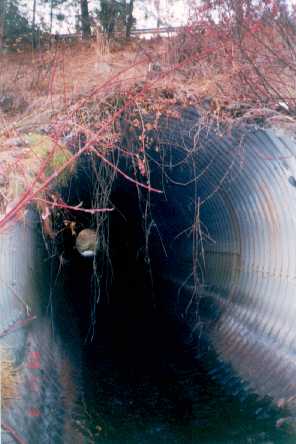

Photo North Road Culvert_1957_2.jpg 08/07/2008
Photo North Road Culvert_1957_1.jpg 08/07/2008

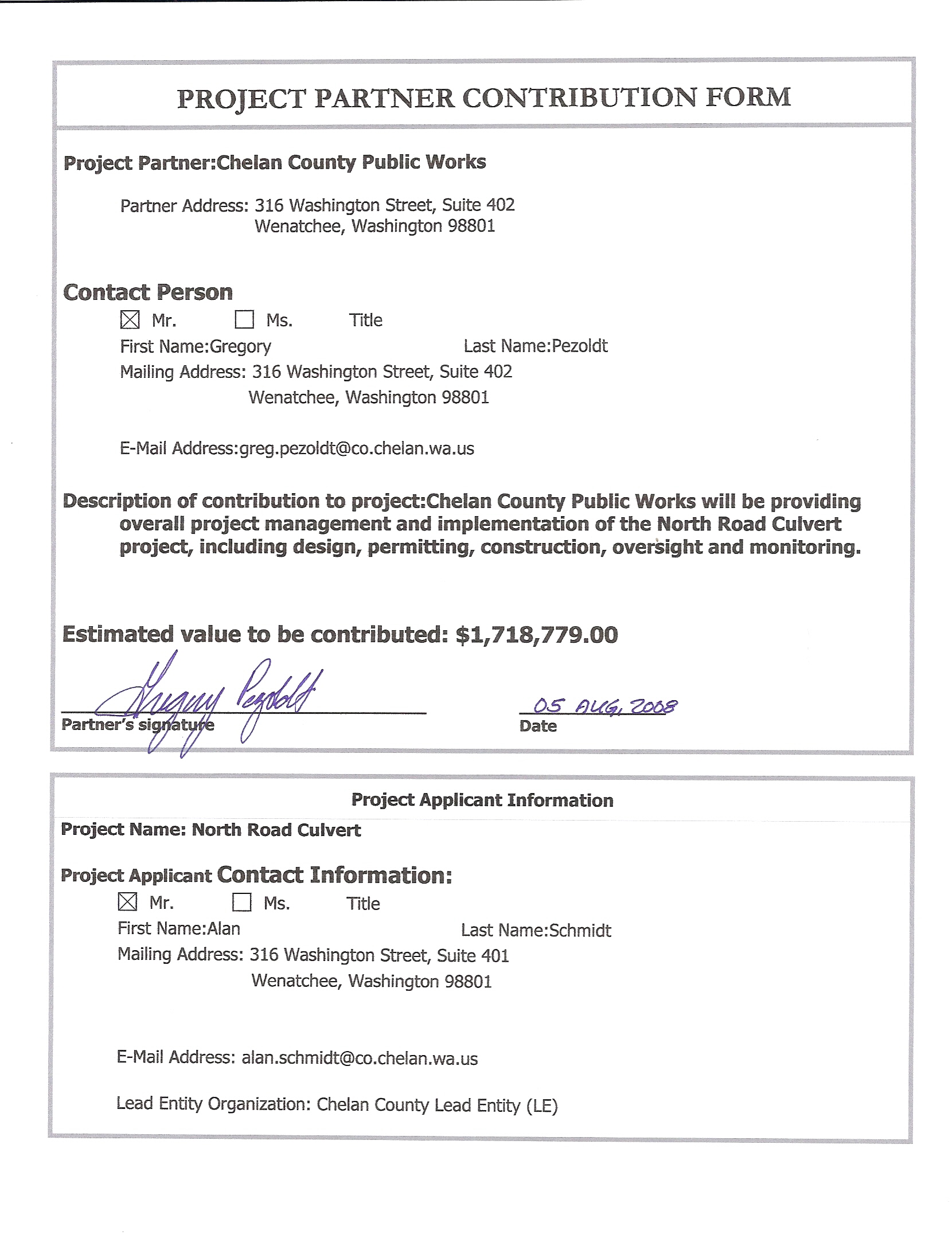

Project partnership form CCNRD_North Road Culvert_Project Partner Contribution Form_P.jpg 08/07/2008
Salmon Project Proposal North Road Trib Fund PreProposal final.pdf 08/07/2008
