Project Snapshot
PRISM Project #04-1056 (Completed)
Abell - Barnaby Creek

Collapse All

    Project Details

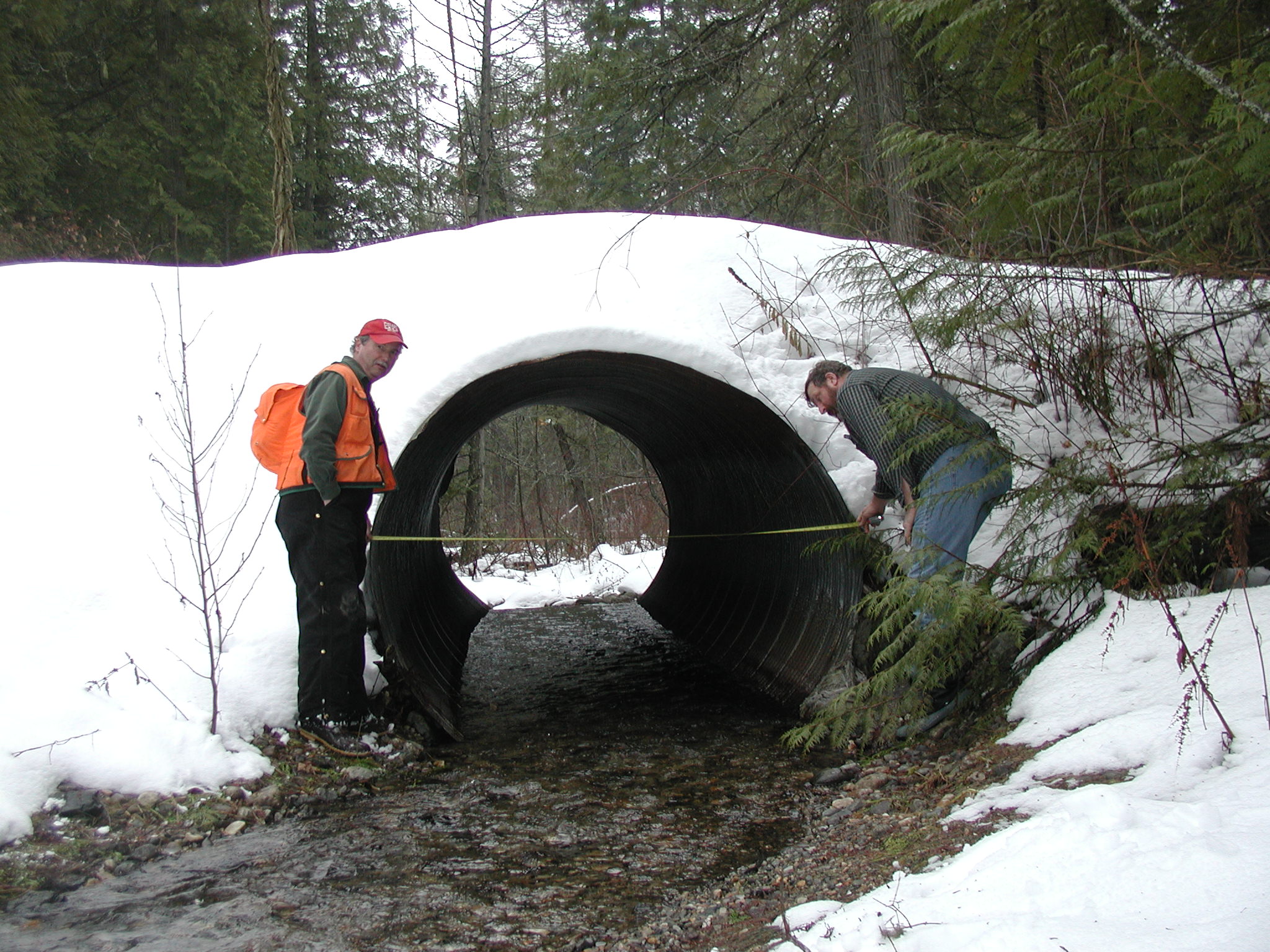

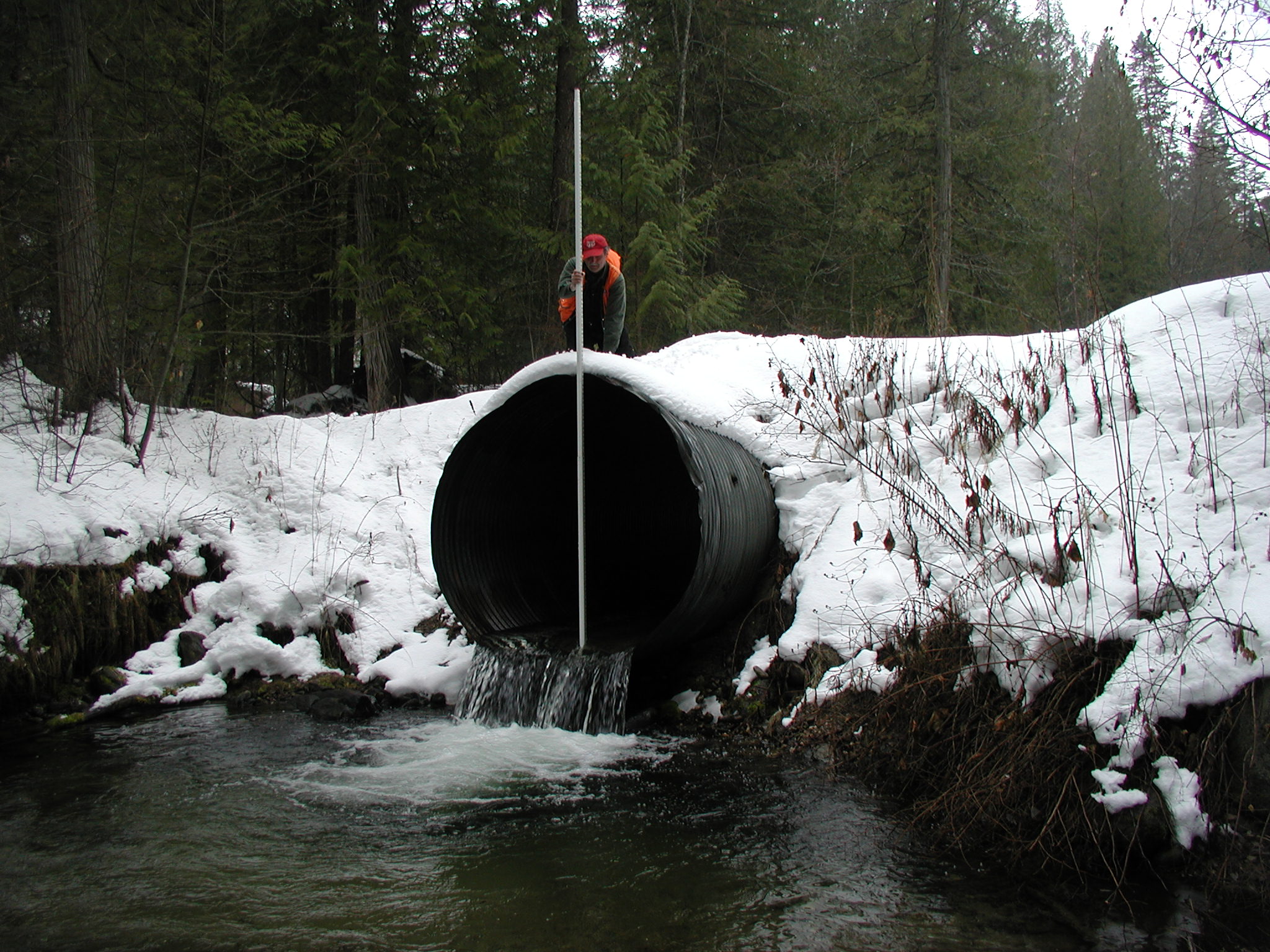

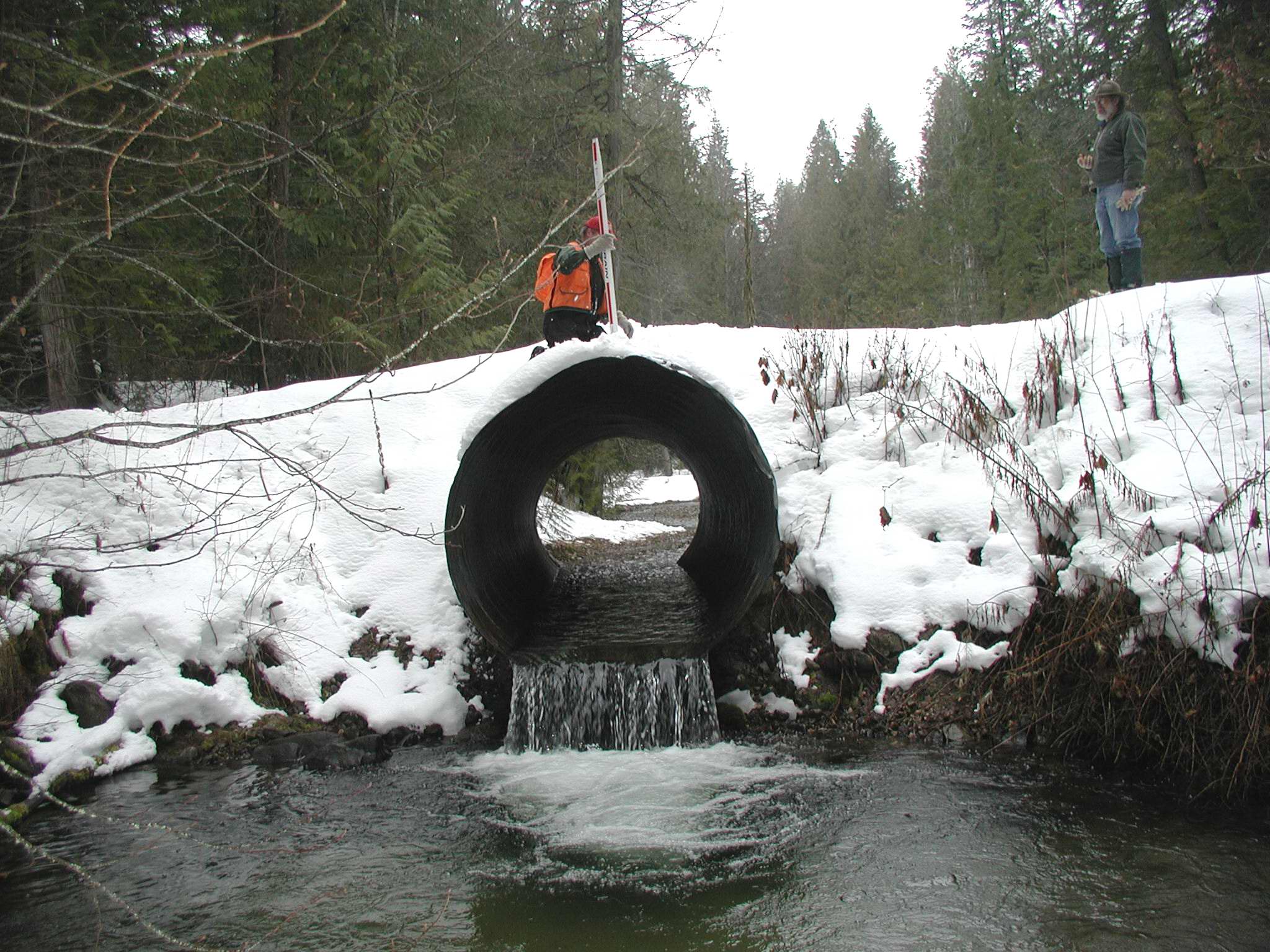

Colville Confederated Tribes; Abell - Barnaby Creek (#04-1056) Attachment #6526, Outlet
Colville Confederated Tribes; Abell - Barnaby Creek (#04-1056) Attachment #6526, Outlet

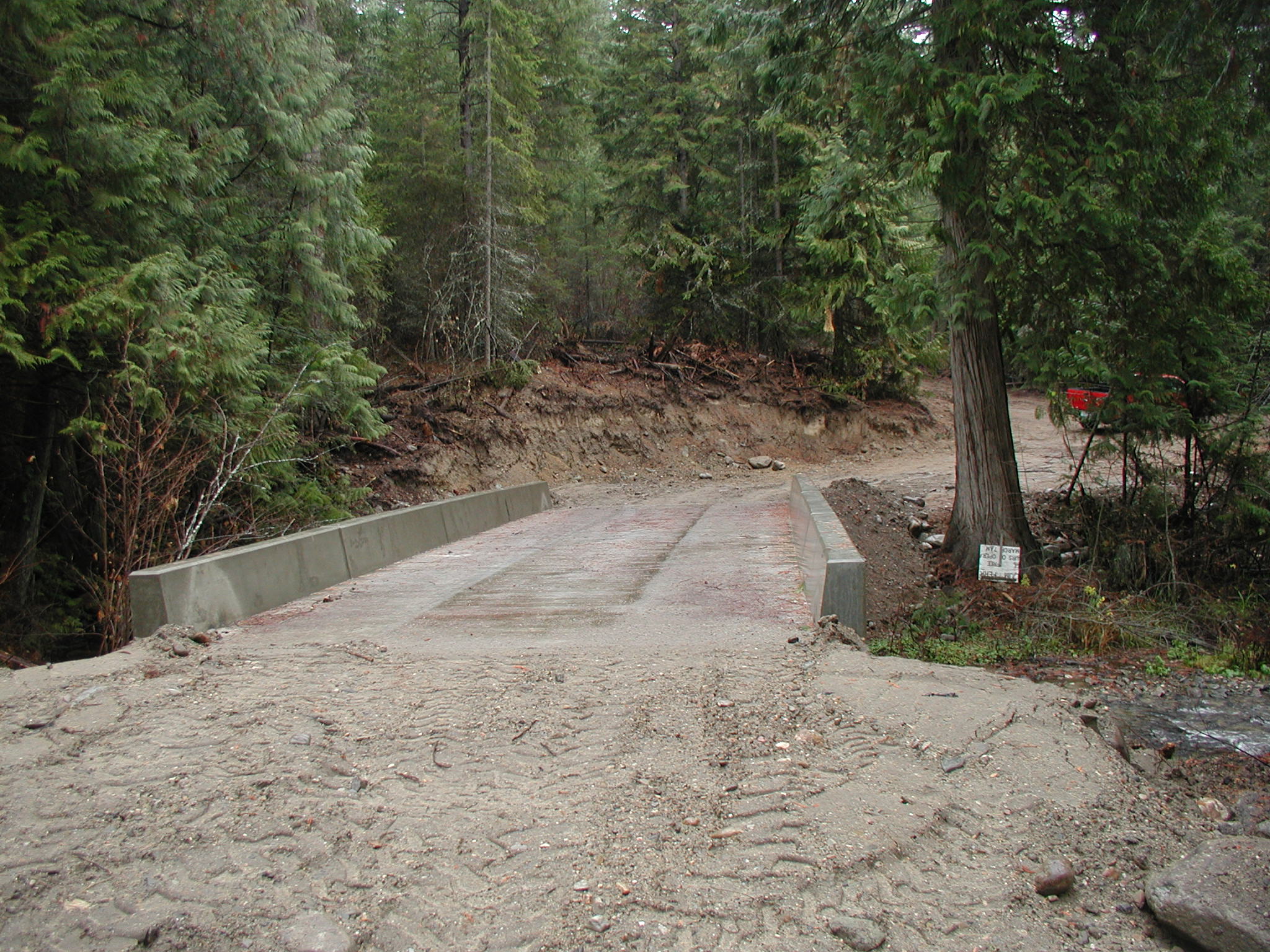

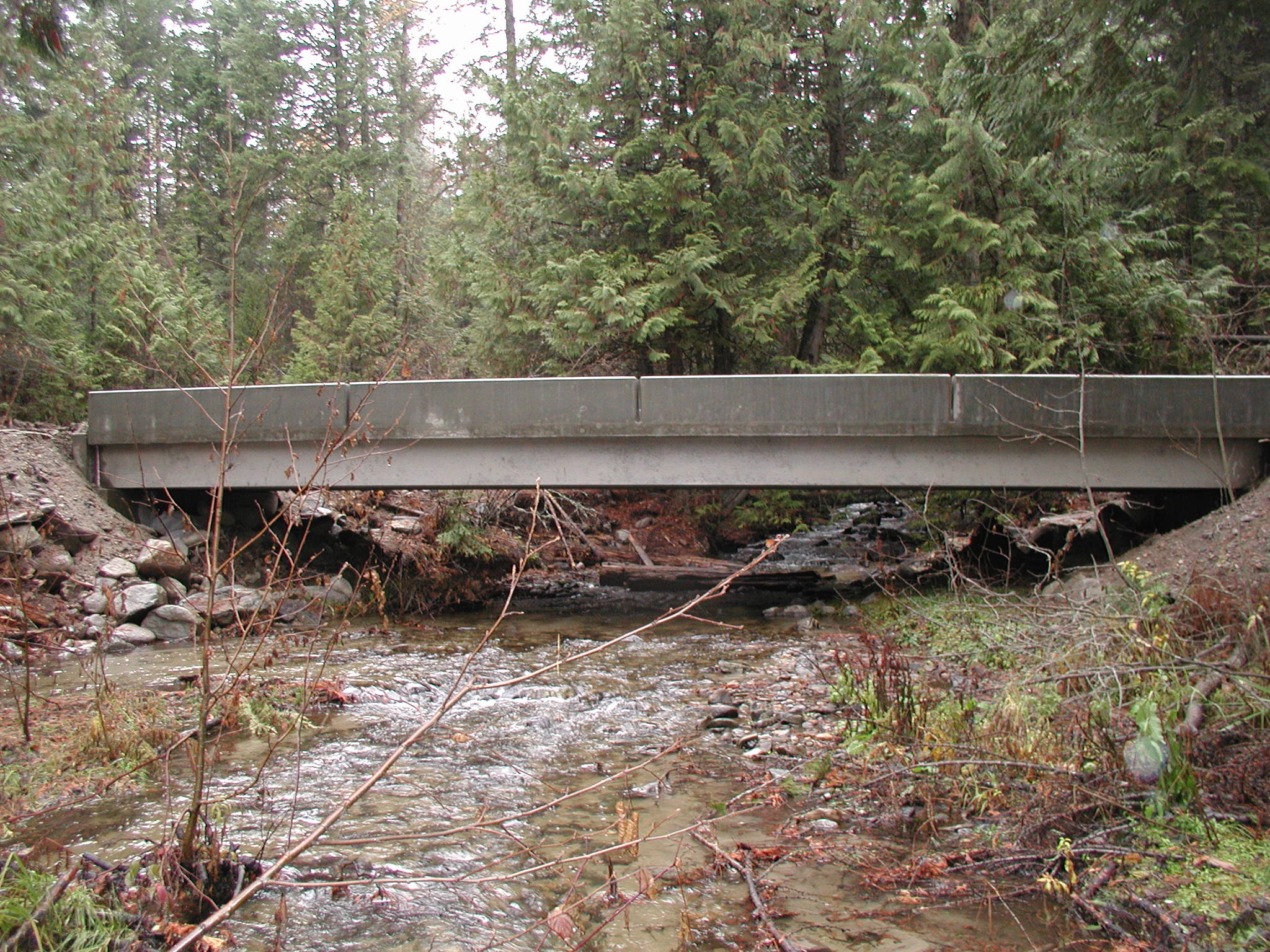

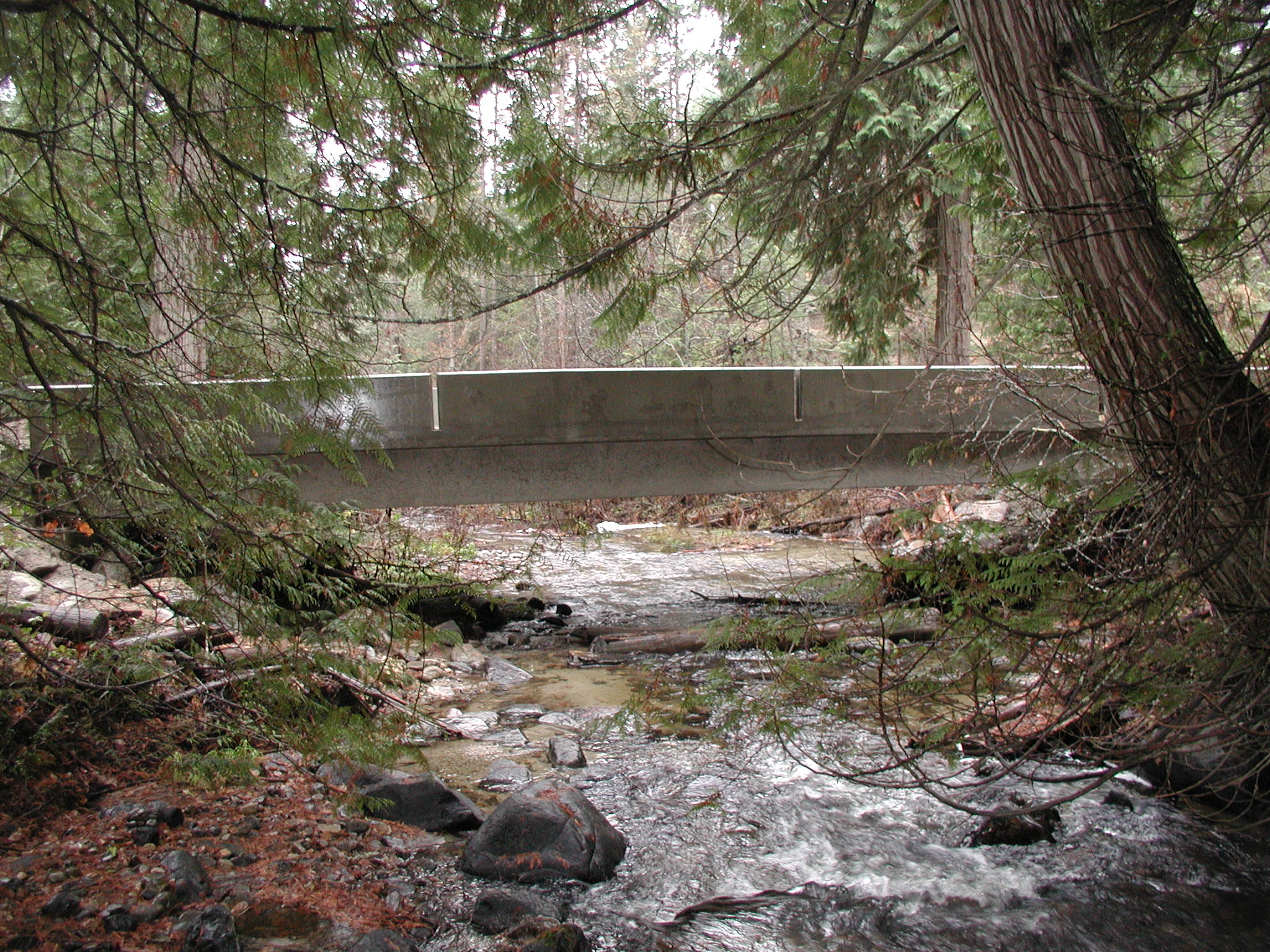

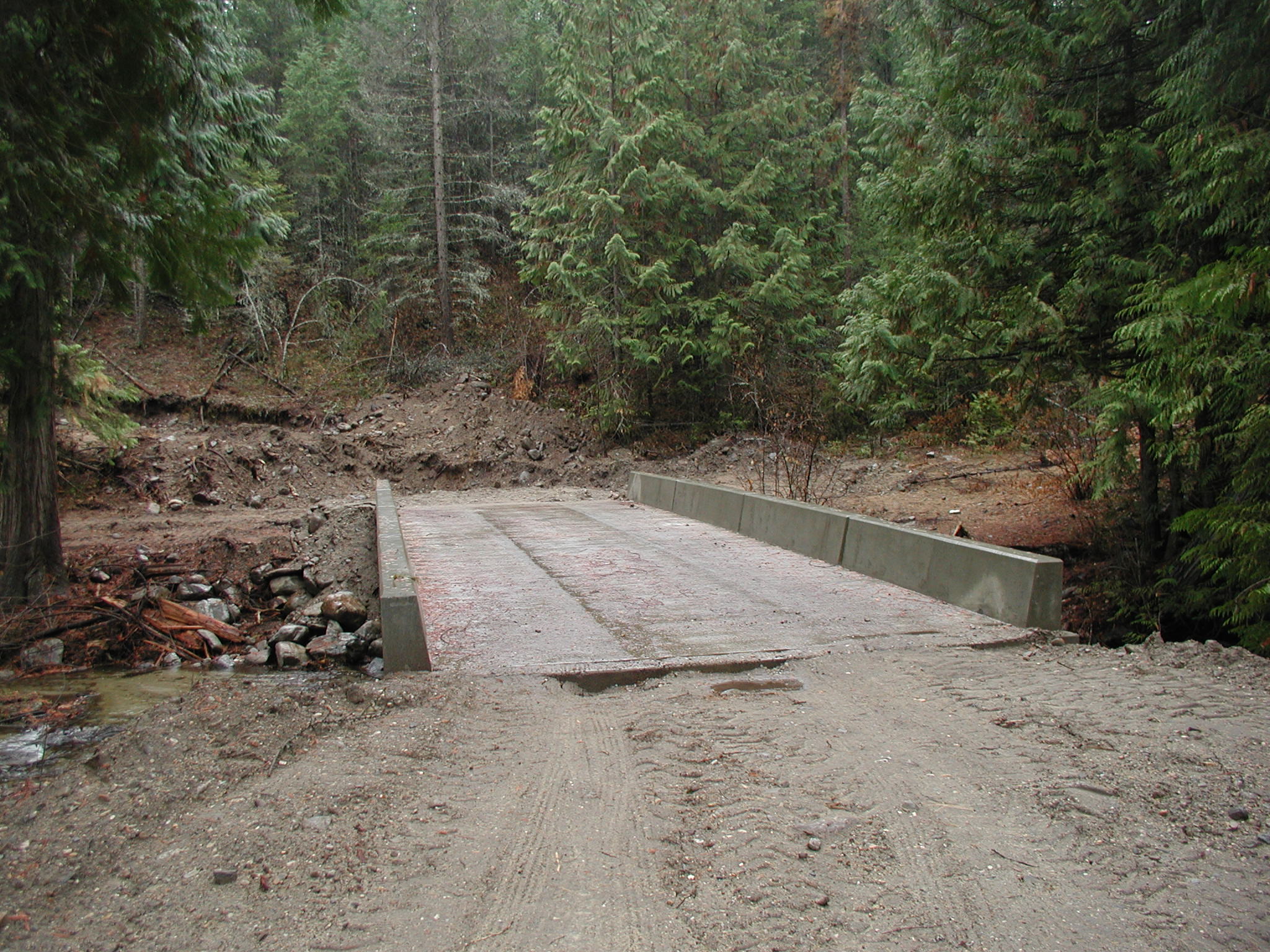

Colville Confederated Tribes; Abell - Barnaby Creek (#04-1056) Attachment #6526, Outlet Colville Confederated Tribes; Abell - Barnaby Creek (#04-1056) Attachment #41737, bridge looking upstream
Project Status:  Closed Completed since 02/09/2007

Project Type:  Restoration
Project Sponsor:  Confederated Tribes of the Colville Reservation
Funding Board:  Recreation and Conservation Office
              Funding
FFFPP Grants: $121,145
Total RCO Grant: $121,145 (96%)
Sponsor Match: $4,848 (4%)
Total Agreement: $125,993 (100%)
              Links


    Project Description
The Abell culvert replacement project will eliminate a fish passage barrier on Barnaby Creek which lies on in the north eastern portion of the Colville Reservation. This action will provide approximately 17.5 miles of additional stream for fish access with 4.3 miles on the Reservation and the remainder on National Forest lands. Fish species that will benefit include rainbow, (redband and coastal) and eastern brook trout. The project will increase access for all life stages of these species.



The project will replace a round 28 foot long by 90 inch diameter culvert with an appropriately sized bridge. At present the culvert has a two foot out fall drop which prevents passage. Because of topography only two alternative were feasible; bottomless culvert or bridge. Preliminary cost estimates indicated that bridging would result in achieving the projects goals for less money.



The Fish and Wildlife Department of the Confederated Tribes of the Colville Reservation will be the lead entity for the project.

    Project Contacts

Project Sponsor: Confederated Tribes of the Colville Reservation
  Project Contact: Eric Kruasz
eric.krausz@colvilletribes.com
(509) 722-7681

Funding Agency: Recreation and Conservation Office
  Project Manager: Tara Galuska
tara.galuska@rco.wa.gov


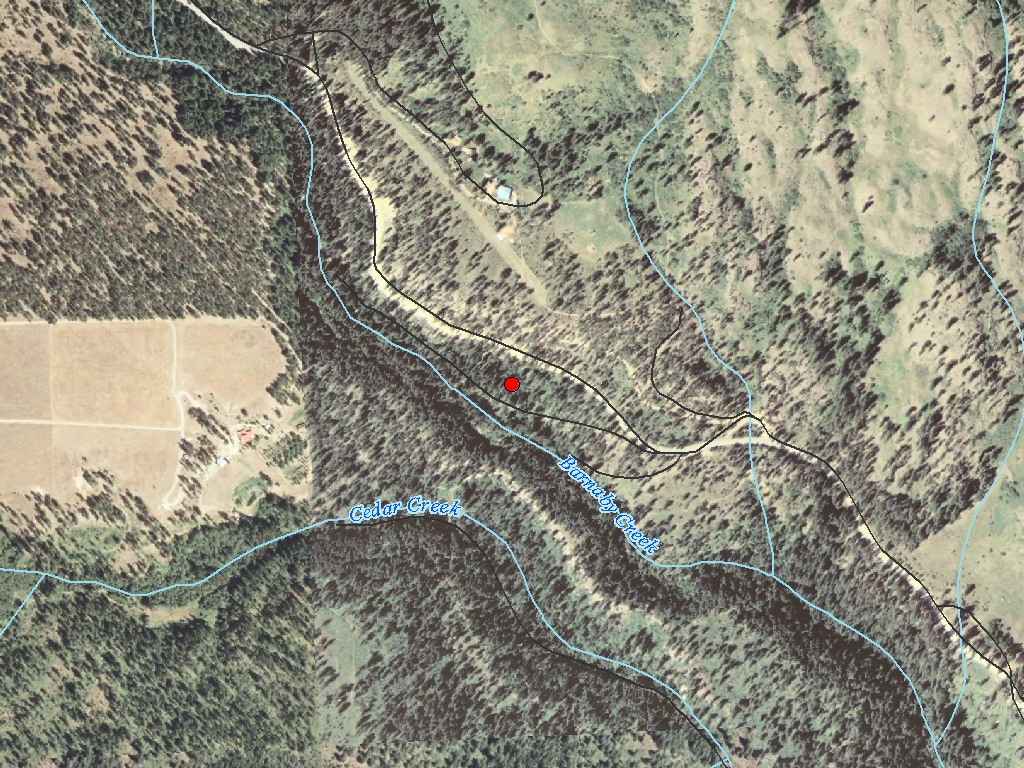

    Project Location
General Area:   Near Kettle Falls
Waterbody:   Barnaby Creek, Columbia River
County:   Ferry
Legislative District:   07
Congressional District 2022:   05
Salmon Recovery Regions:   Northeast Washington
Watershed Administrative Unit:   Barnaby Creek
HUC8:   Franklin D. Roosevelt Lake (17020001)
WRIA:   Middle Lake Roosevelt
Sections:   15
Township:   T34NR36E
Coordinates:   48.44605891
-118.24983908

    Worksites
Worksite NameScope of WorkActual Restoration Cost
Barnaby Creek Fish Passage (#1) Architectural & Engineering (A&E), Bridge installed or improved (C.2.g.1), Culvert installed or improved (C.2.f.1), Fish passage blockages removed or altered (C.2.c.1), Road-crossing removal (C.2.i.1) $24,169
 Total$24,169
Amounts may not be complete

    Properties
Worksite Name Property NameLandowner Type
Barnaby Creek Fish Passage (#1)   Property 1 - Property - Worksite #1 Private
   Total
Amounts may not be complete

    Project Metrics (Outcomes, Benefits)
 Category / Work Type / MetricFinal

Restoration Metrics (rolled up from Worksite level)

Fish Passage Improvement
      Fish passage blockages removed or altered (C.2.c.1)
Number of Blockages/Impediments/Barriers Removed/Altered (C.2.c.2) 1
      Bridge installed or improved (C.2.g.1)
Miles of stream made accessible by bridge installation/repair (C.2.g.3) 0.56
Number of bridges (C.2.g.2) 1

Number of blockages / impediments / barriers impeding passage (C.2.b.4) 1

    Project Permits
Permit TypeApplied
Date		Received
Date		Expiration
Date		Permit Number
Forest Practices Application [Forest & Fish]
Hydraulics Project Approval [HPA]

    Project Milestones
Milestone NameTarget DateDescription
Project Start 06/16/2004
Data Design Forms Submitted 06/30/2005
30% Design Review/Cost Check 06/30/2005
Applied for Permits 10/16/2005
Bid Awarded/Contractor Hired 10/30/2005
Construction Started 07/15/2006
Construction Complete 09/30/2006
Agreement End Date 10/30/2006
Final Docs/Billing to Mgmt Agy 11/30/2006


    Project Attachments
Attachment TypeAttachment TitleAttach Date
Agreement - State 04-1056 Agreement 2 pgs..pdf 07/28/2007
Application Document 04-1056 Abell FFFPP Acceptance letter and info..pdf 06/11/2004
Barrier evaluation form 04-1056 Fish Barrier replacement estimates.pdf 01/06/2005
Correspondence 04-1056 Abell project management FFFPP 6-19-06.pdf 07/19/2006
Design document (as built) 04-1056 CERTIFIED FOR CONSTRUCTION 2-13-06.pdf 06/24/2022
Inspection Report 04-1056 Project Site Inspection Final 11-19-06.pdf 01/17/2007
Landowner application 04-1056 Abell application.pdf 06/11/2004

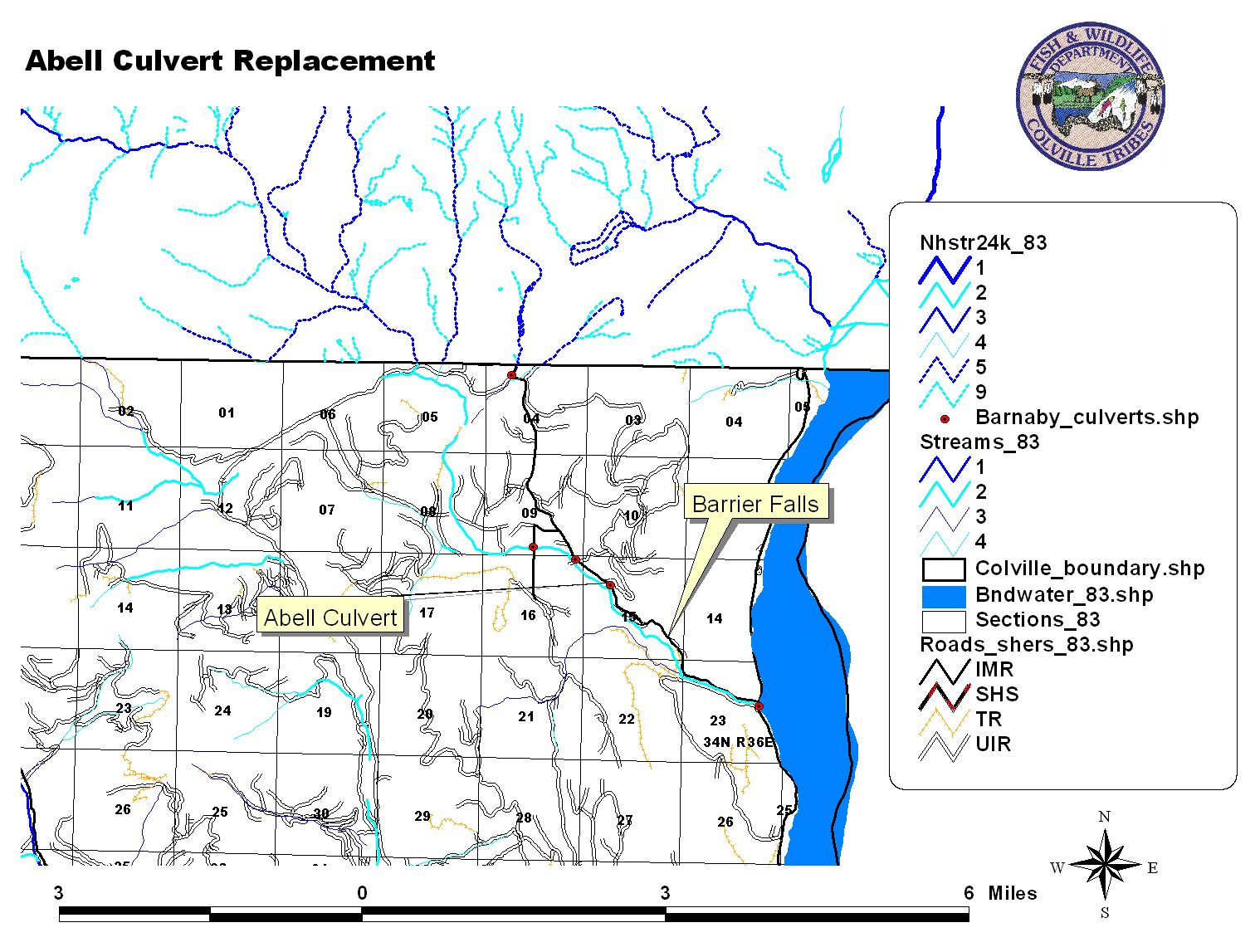

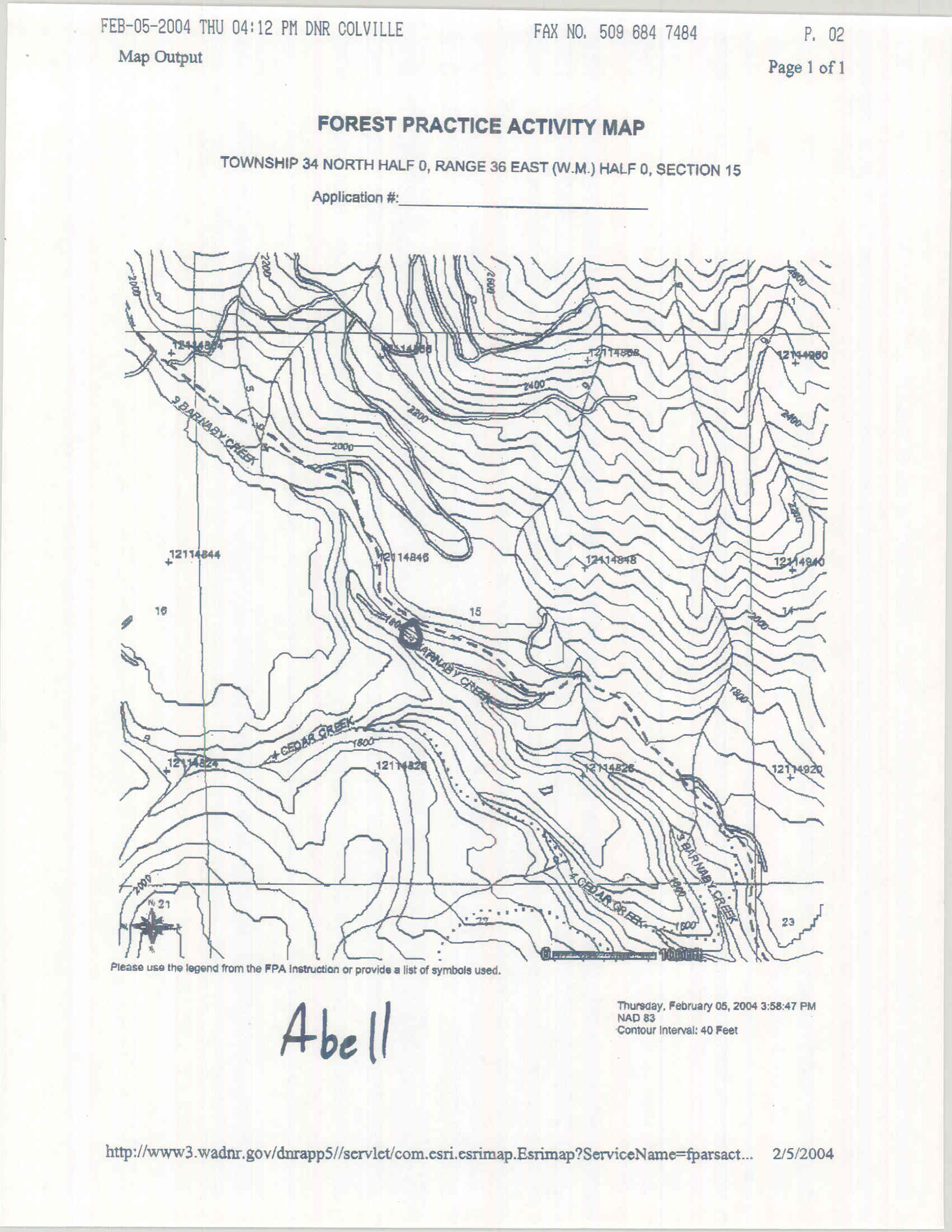

Map: Area of Potential Effect (APE) 04-1056 Abell culvert replacement map.jpg 03/22/2004
Map: Area of Potential Effect (APE) 04-1056 Contour map - Fish Passage Activity map.jpg 02/09/2004

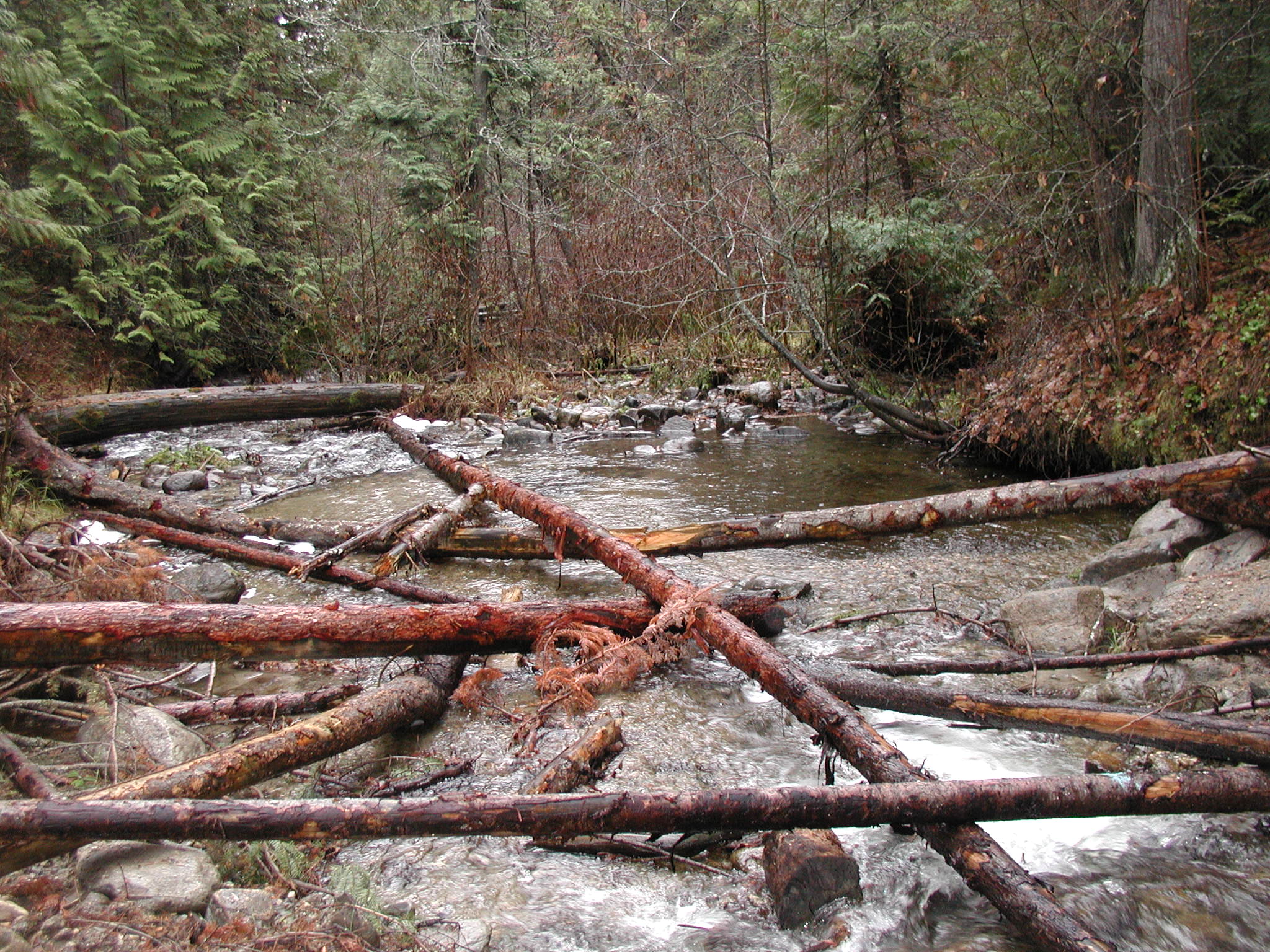

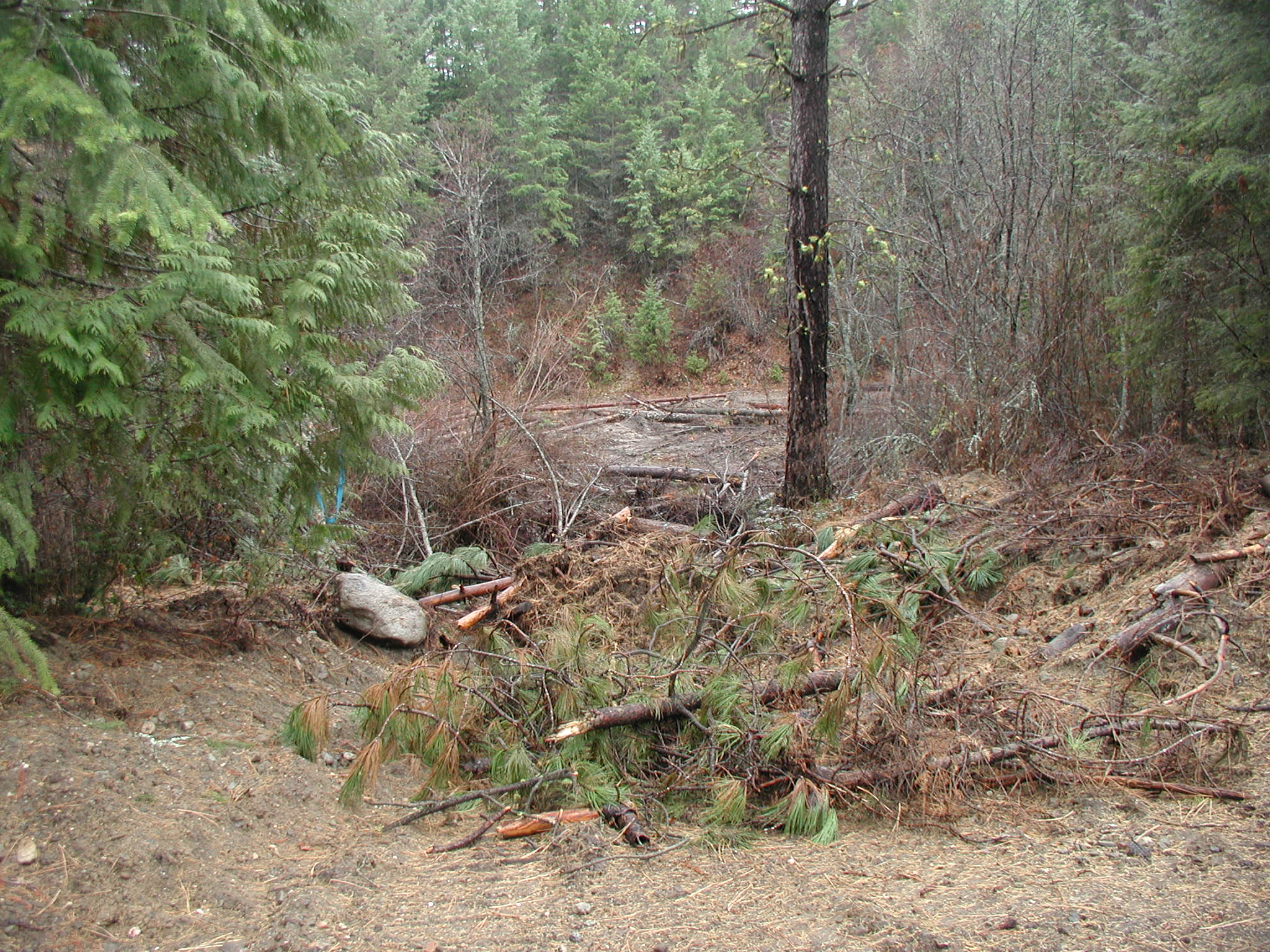

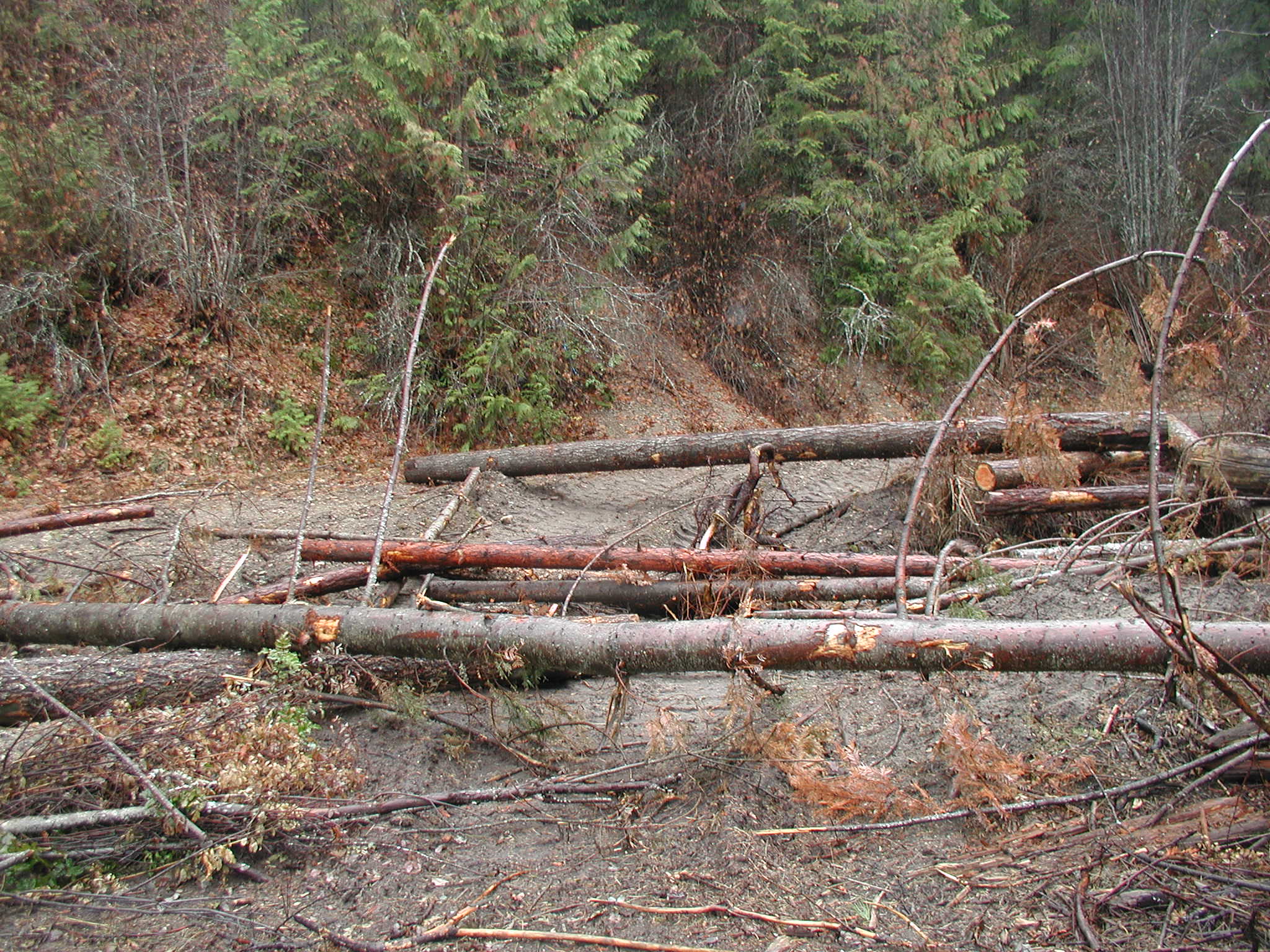

Photo lwd placement.jpg 01/17/2007

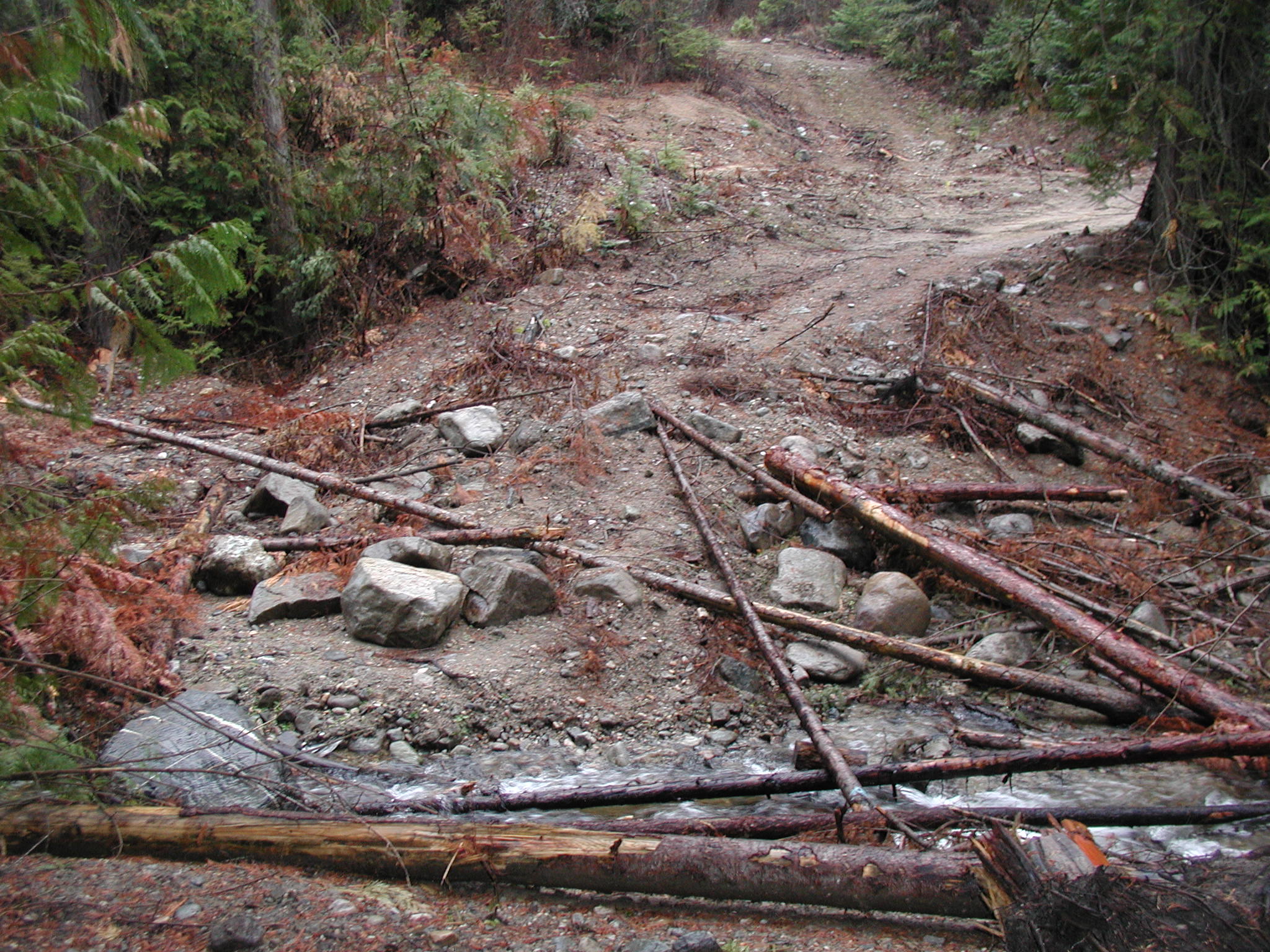

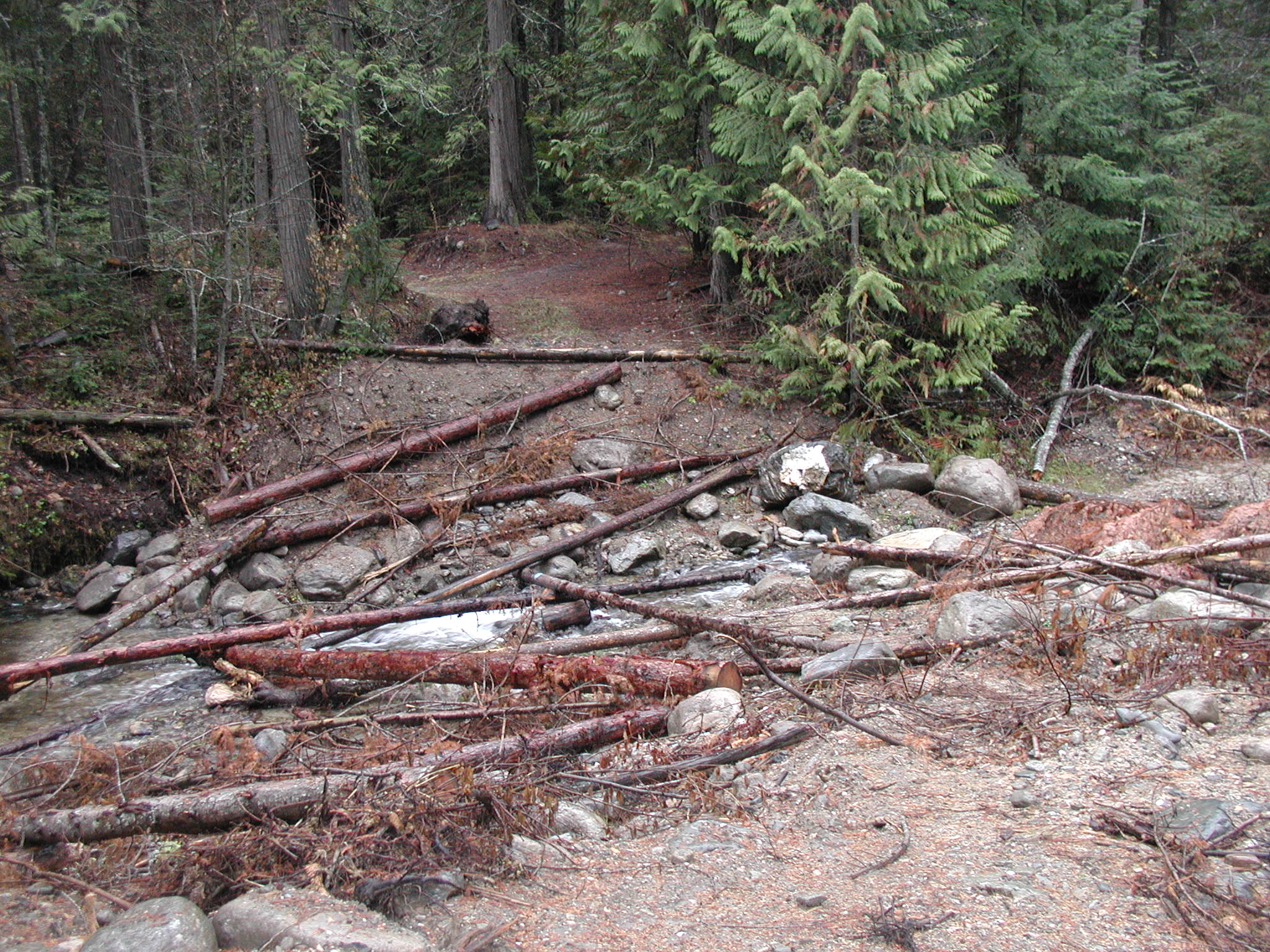

Photo ford2.jpg 01/17/2007

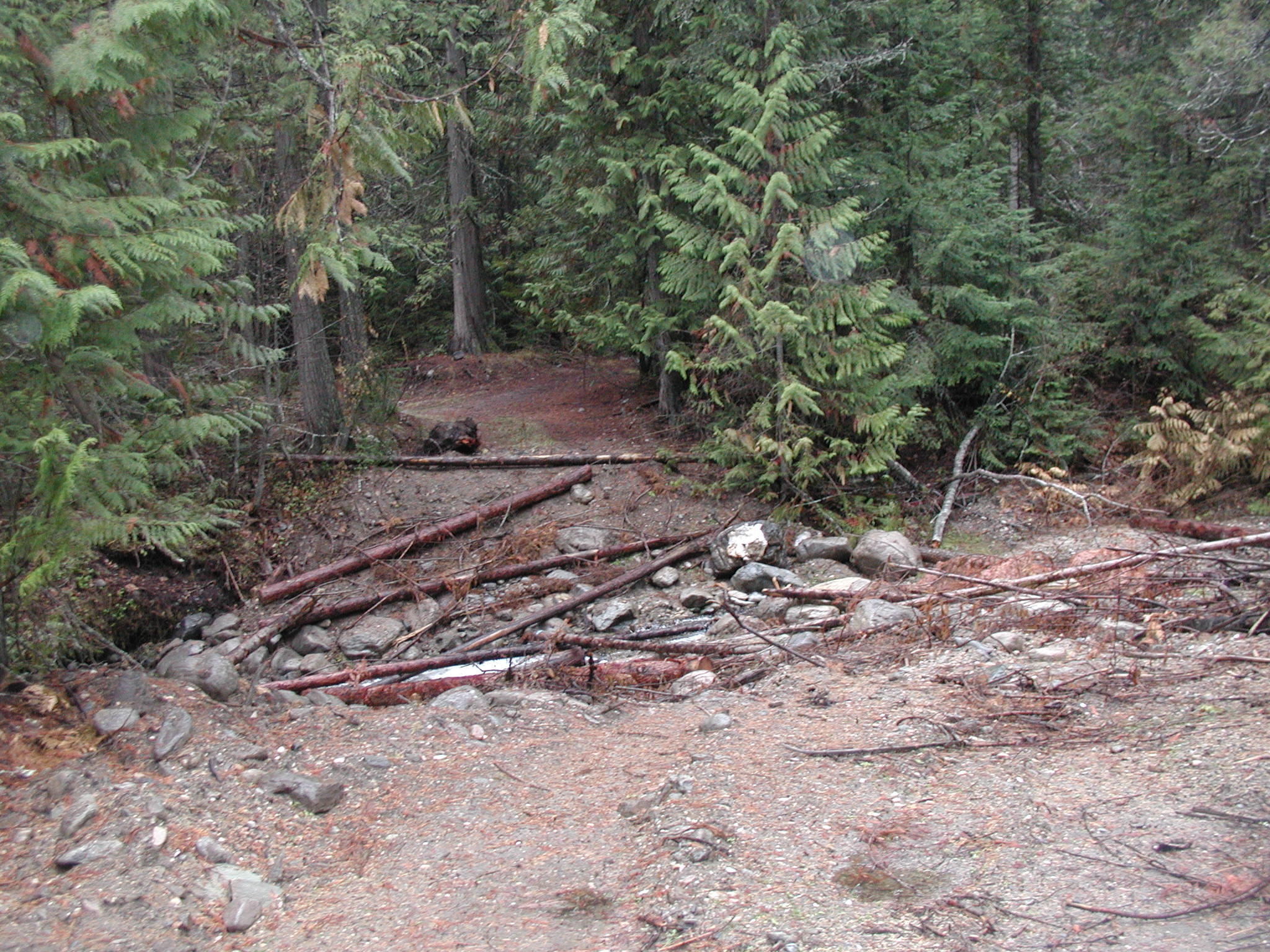

Photo ford.jpg 01/17/2007

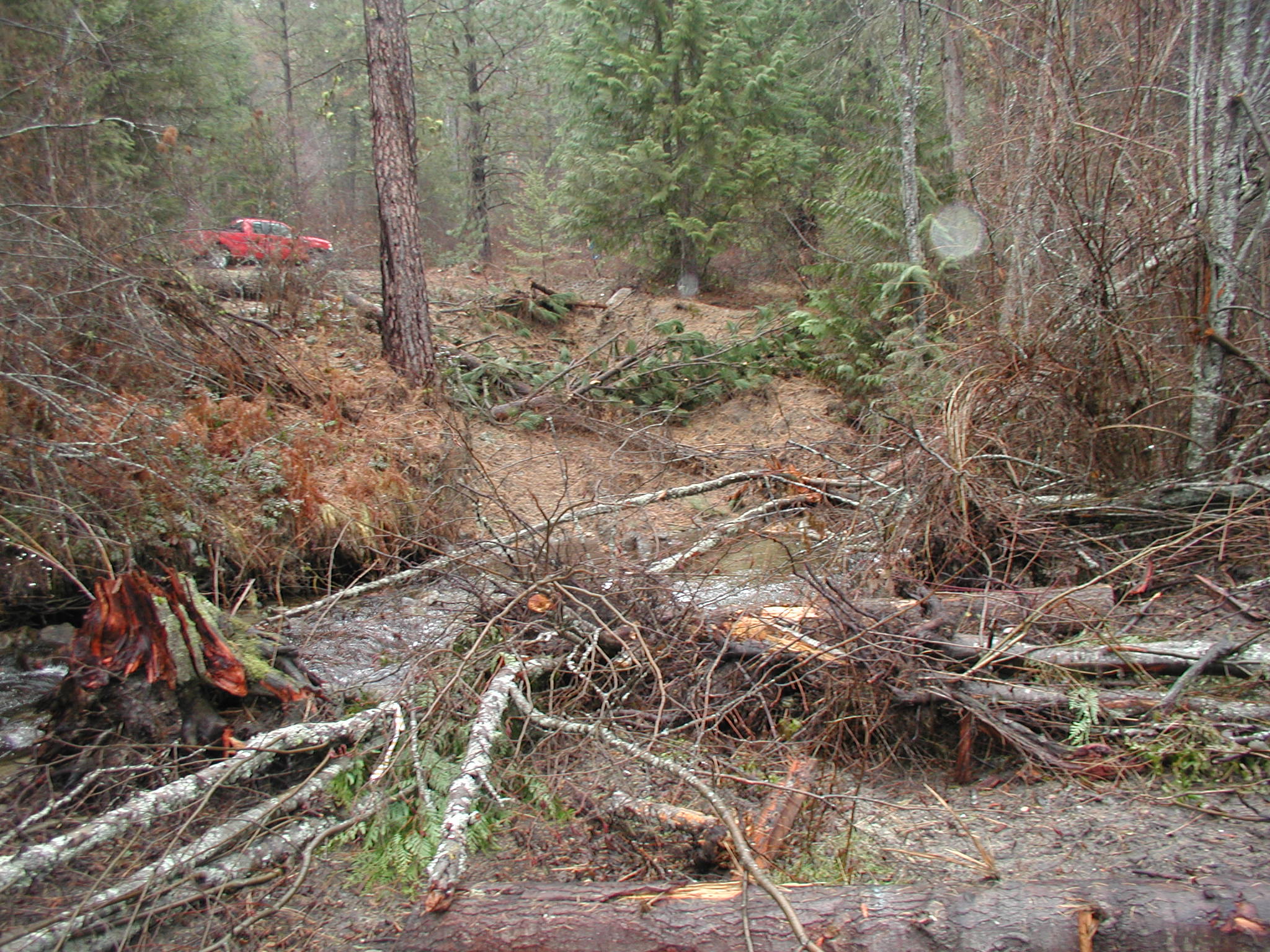

Photo downstream of culvert.jpg 01/17/2007
Photo culvert site2.jpg 01/17/2007
Photo culvert site1.jpg 01/17/2007
Photo culvert site.jpg 01/17/2007
Photo bridge other side.jpg 01/17/2007

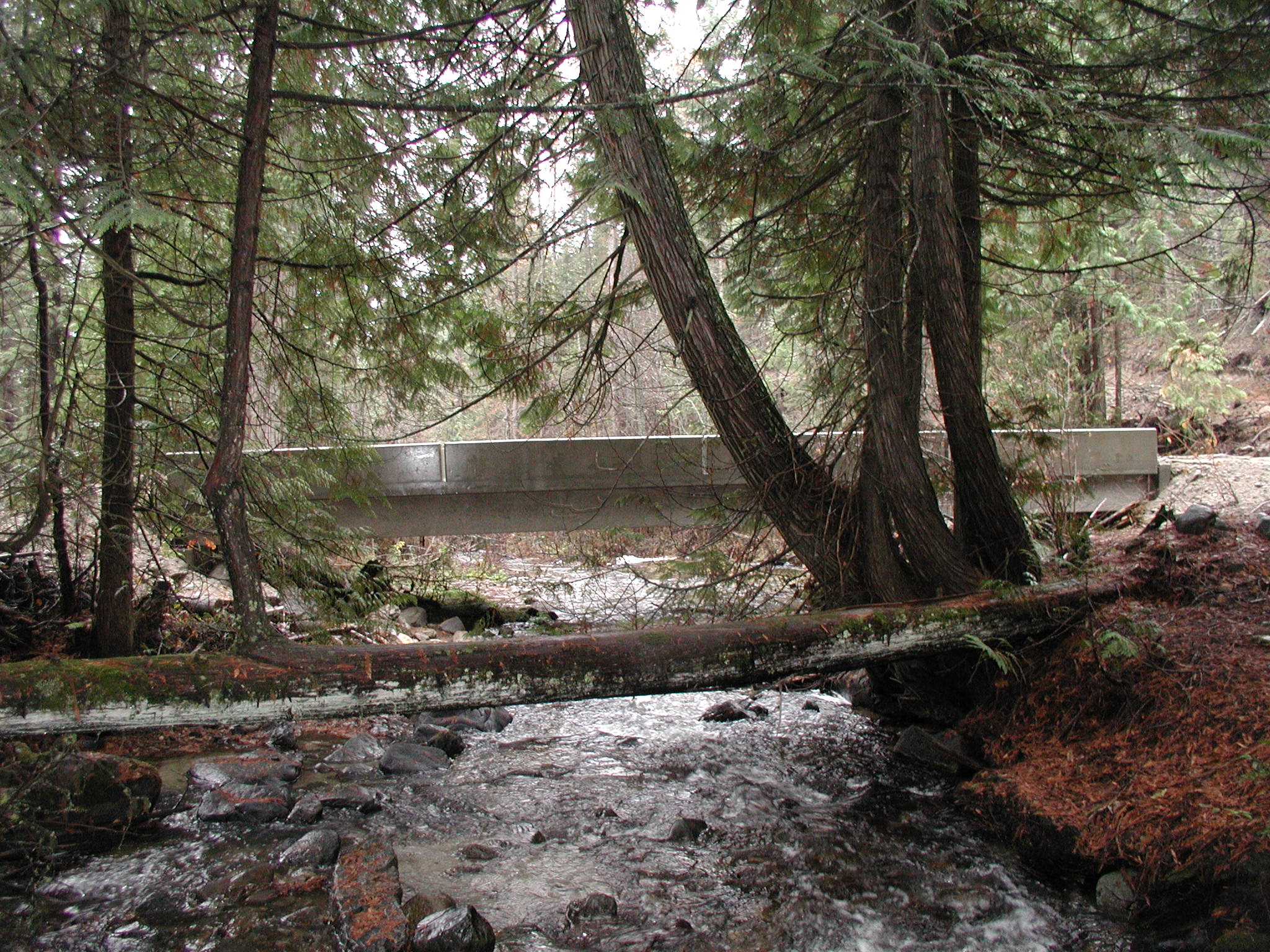

Photo bridge looking upstream1.jpg 01/17/2007
Photo bridge looking upstream.jpg 01/17/2007

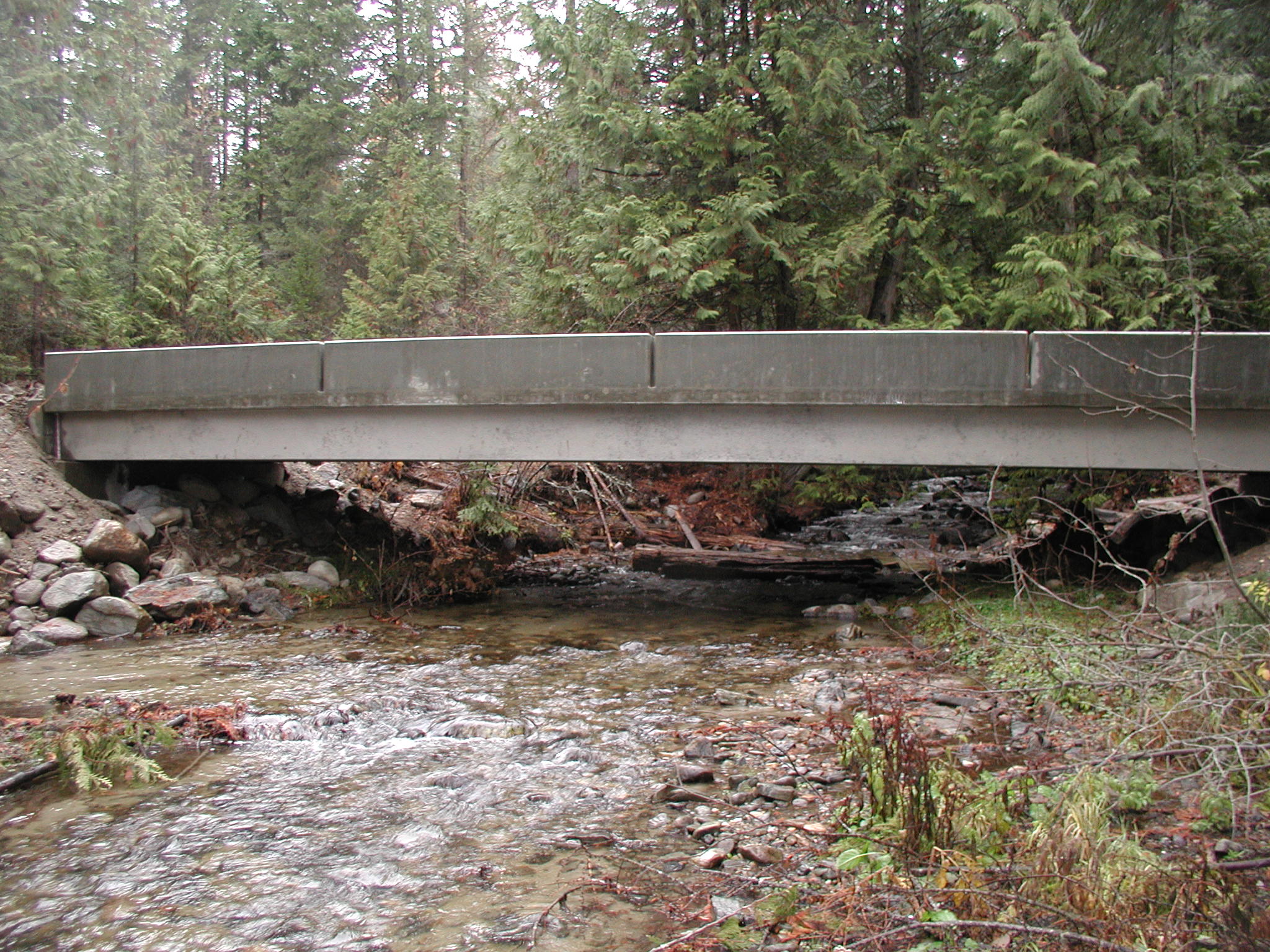

Photo bridge looking downstream1.jpg 01/17/2007
Photo bridge looking downstream.jpg 01/17/2007

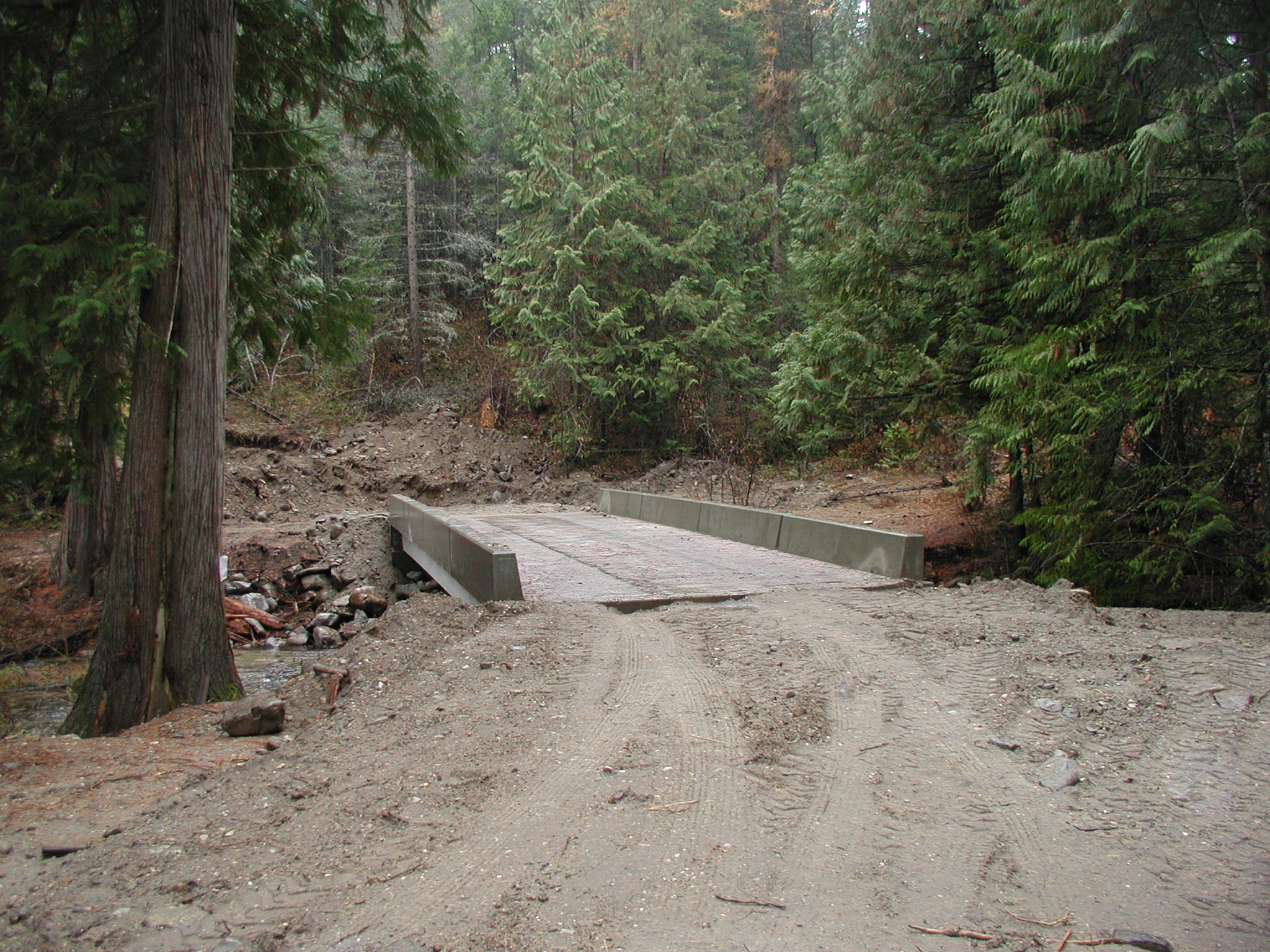

Photo bridge approach1.jpg 01/17/2007
Photo bridge approach.jpg 01/17/2007

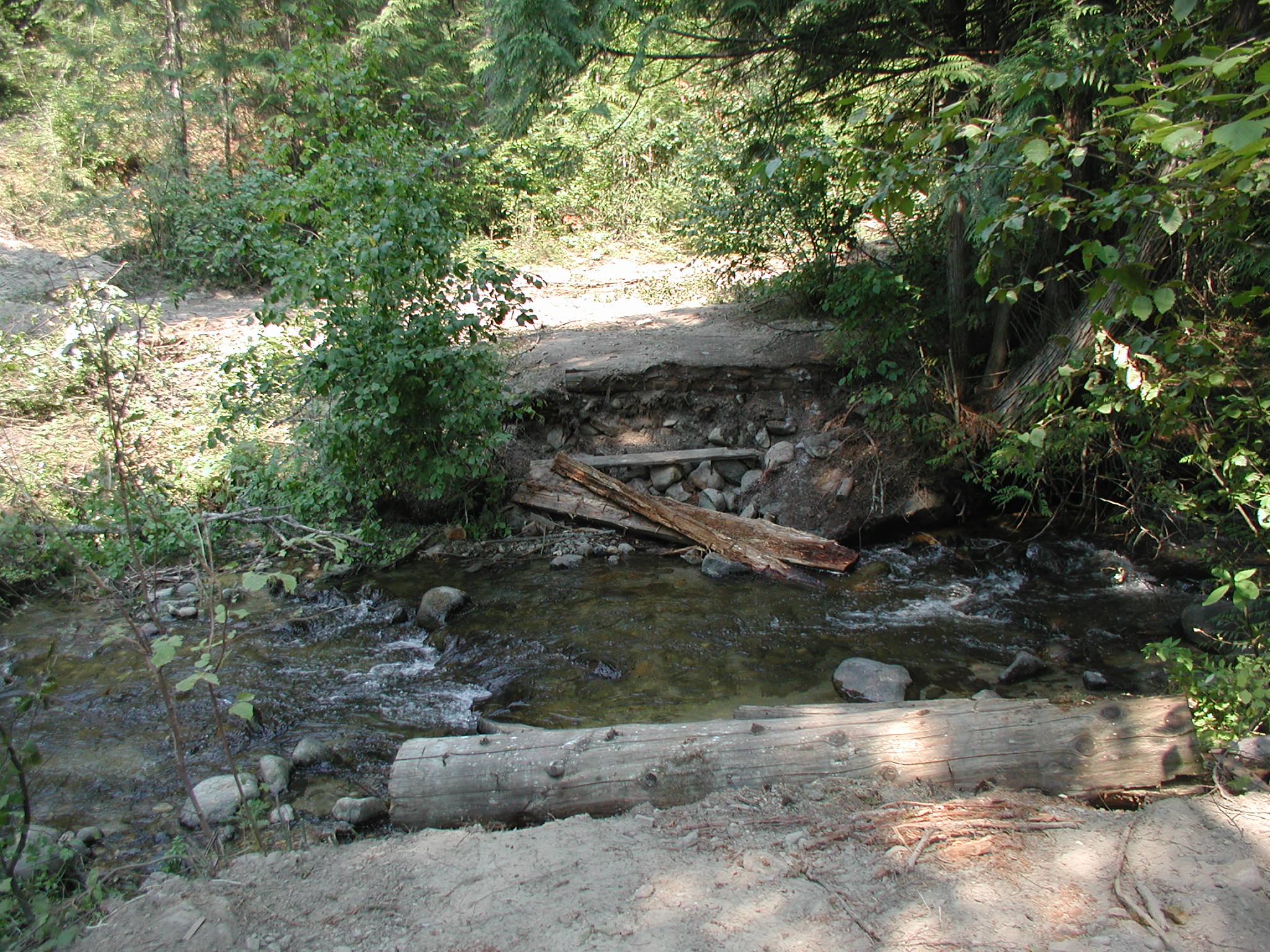

Photo Abell bridge removal.jpg 08/01/2006
Photo Outlet.jpg 02/09/2004
Photo Outlet.jpg 02/09/2004
Photo Inlet.jpg 02/09/2004
Photo Inlet.jpg 02/09/2004
Preliminary design report 04-1056 ISSUED FOR CONSTRUCTION Sheet 1 OF 2.pdf 06/27/2005
Preliminary design report 04-1056 ISSUED FOR CONSTRUCTION Sheet 2 OF 2.pdf 06/27/2005
Preliminary design report 04-1056 TOPO drawing.pdf 06/27/2005
Preliminary design report 04-1056 Sheet S1 Bridge plan and design.pdf 06/27/2005
Preliminary design report 04-1056 Appx A-GeoTech Report {Text and Photos (not color)}.pdf 06/27/2005
Preliminary design report 04-1056 Bridge Specs.pdf 06/27/2005
Preliminary design report 04-1056 Pre. Bridge Design & Culvert Removal Barnaby Ck..pdf 06/27/2005
Preliminary design report 04-1056 Abell SITE PLAN Design drawing 6-2-05.pdf 06/27/2005
Site map WDFW 04-1056 Site Map WDFW WRIA 58.pdf 03/30/2004
Sponsor final report 04-1056 Abell Restoration Final Report 12-18-06.pdf 01/17/2007
WDFW barrier & screening forms Watershed Map WDFW.pdf 03/30/2004
WDFW barrier & screening forms Abell BEF.pdf 03/22/2004
WDFW barrier & screening forms EBEF Abell_Barnaby Creek.pdf 03/22/2004
