Project Snapshot
PRISM Project #19-1584 (Completed)
Chumstick Crk Culverts - RM 0.52 and RM 1.48

Collapse All

    Project Details

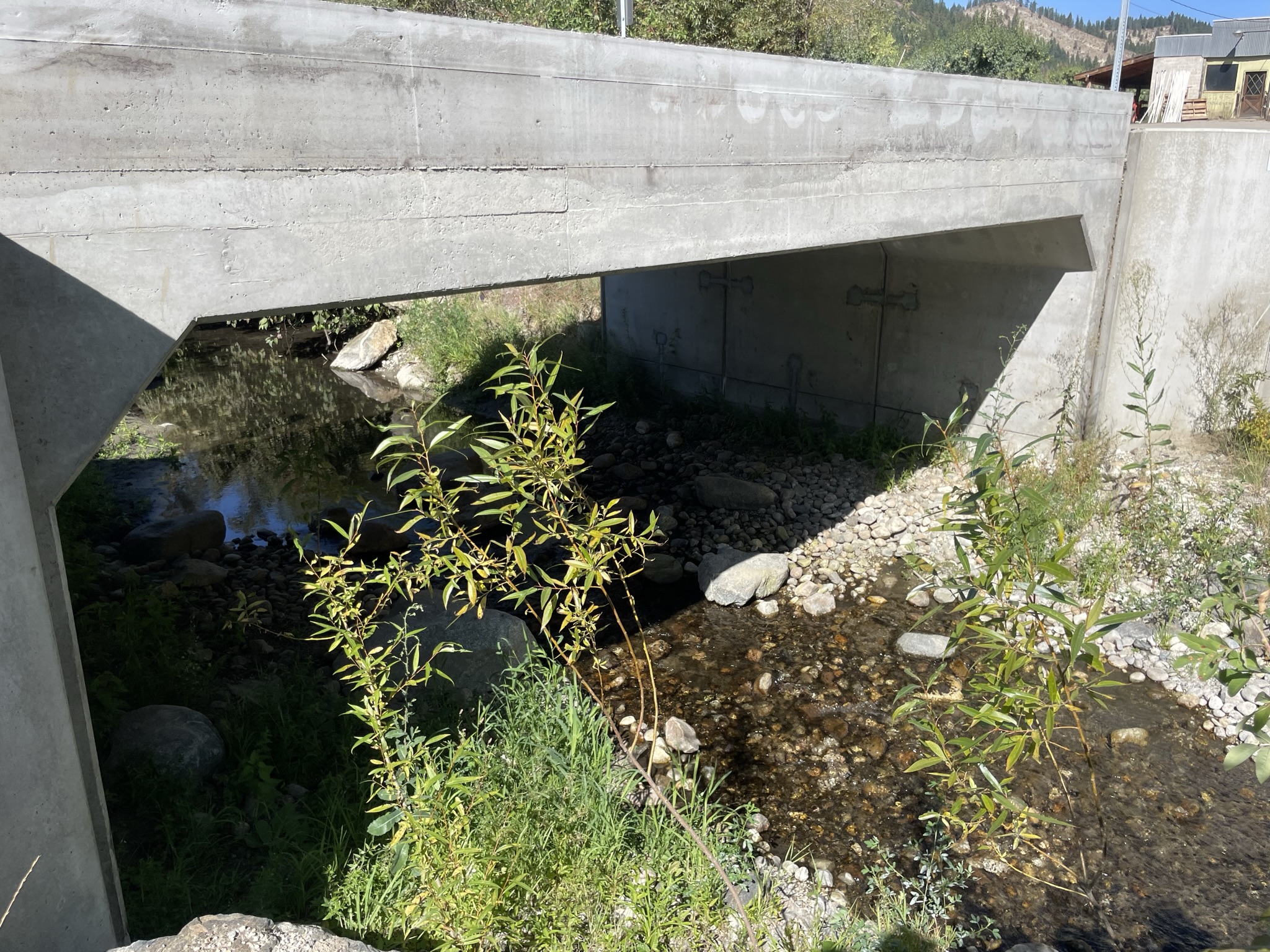

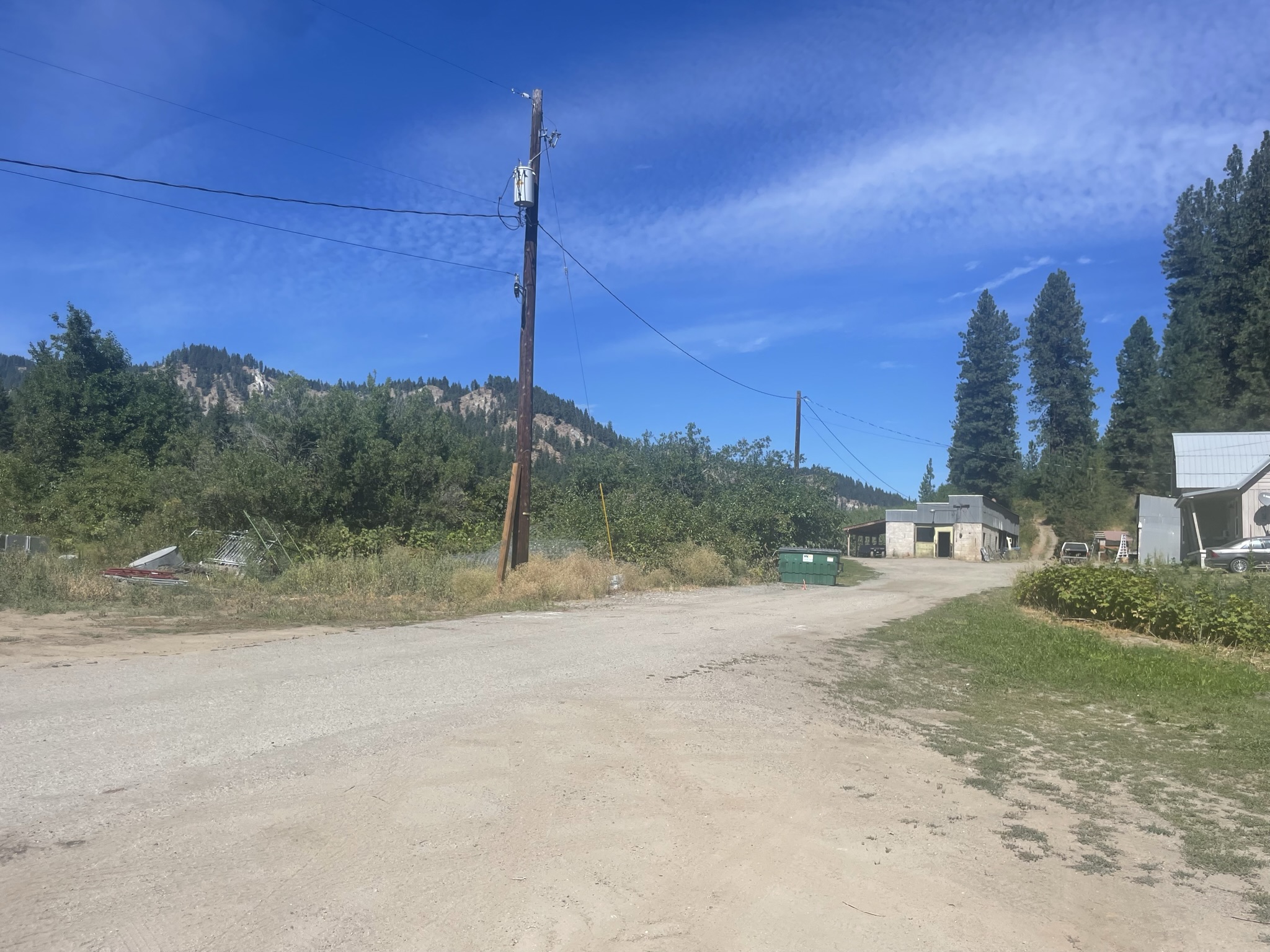

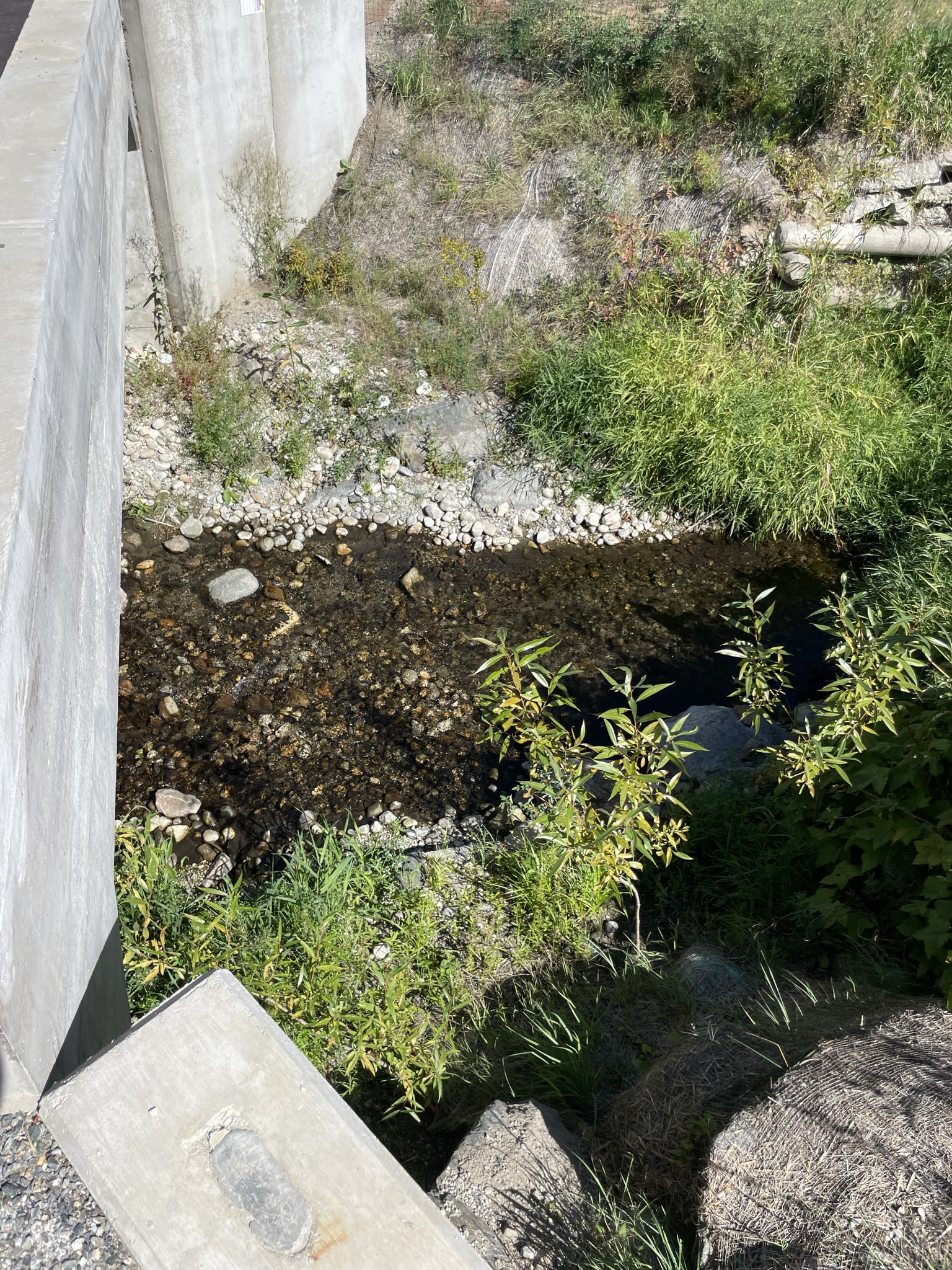

Chelan Co Natural Resource; Chumstick Crk Culverts - RM 0.52 and RM 1.48 (#19-1584) Attachment #544639, 11-15-2022 Inspection
Chelan Co Natural Resource; Chumstick Crk Culverts - RM 0.52 and RM 1.48 (#19-1584) Attachment #544639, 11-15-2022 Inspection

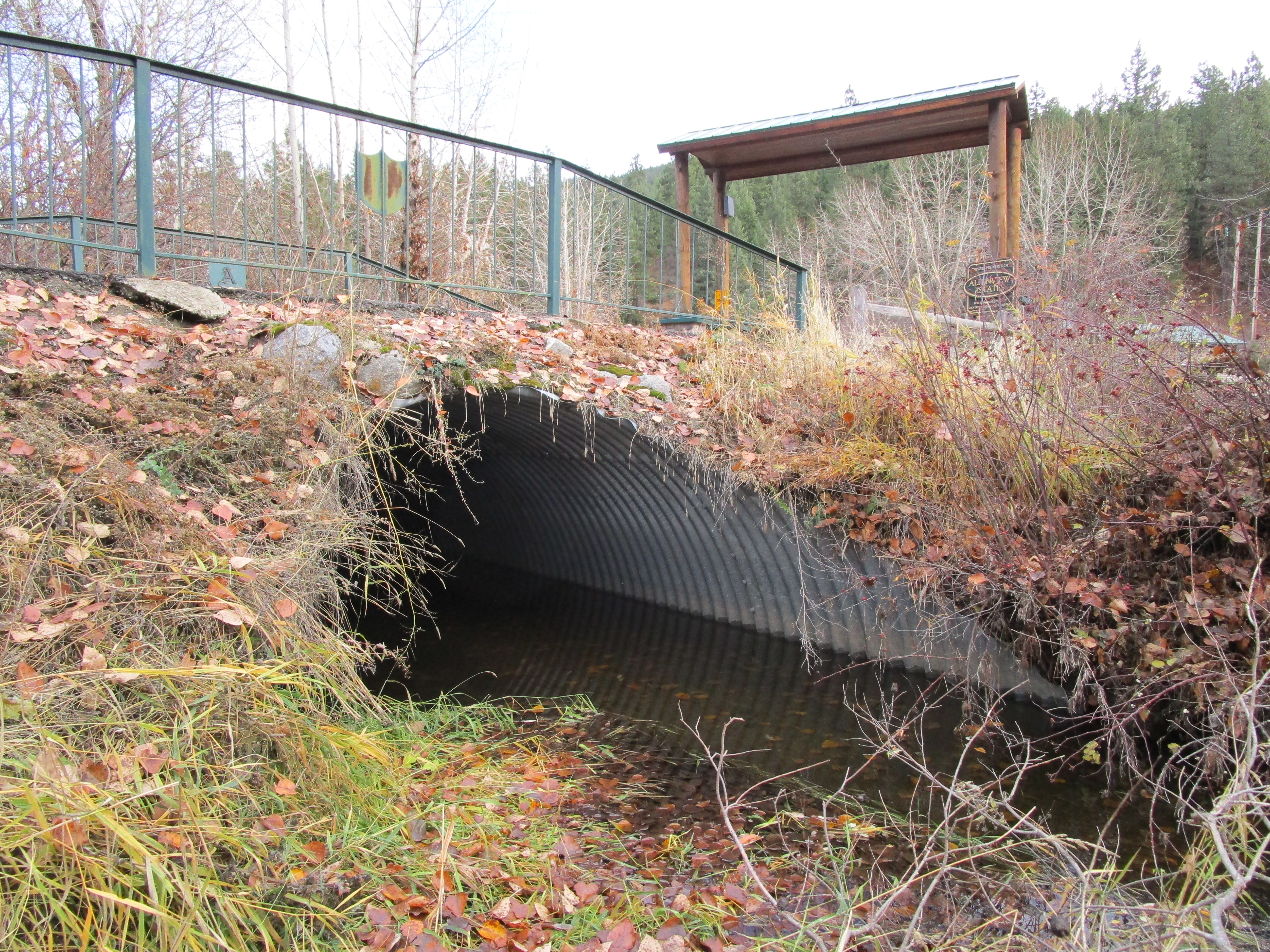

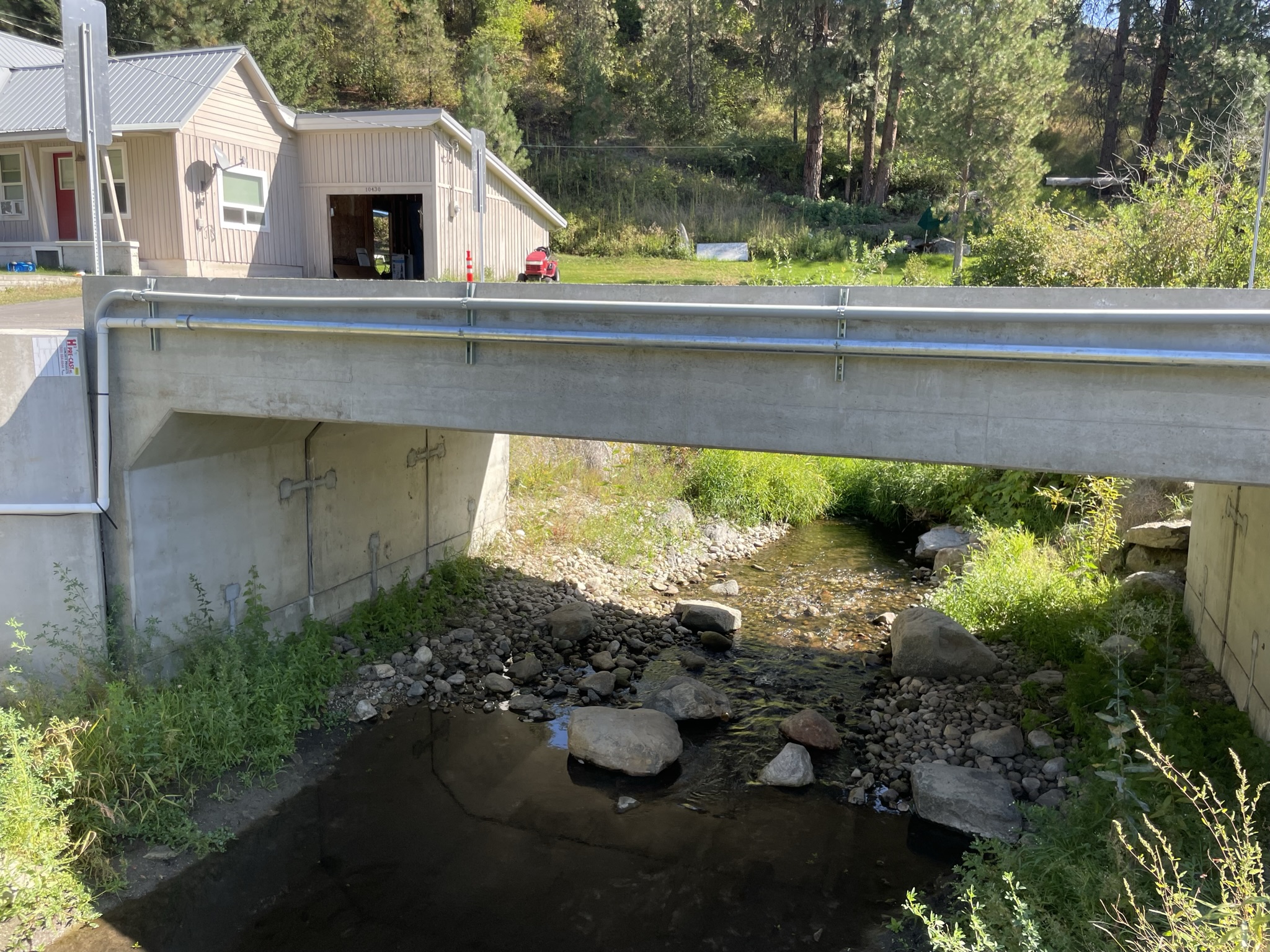

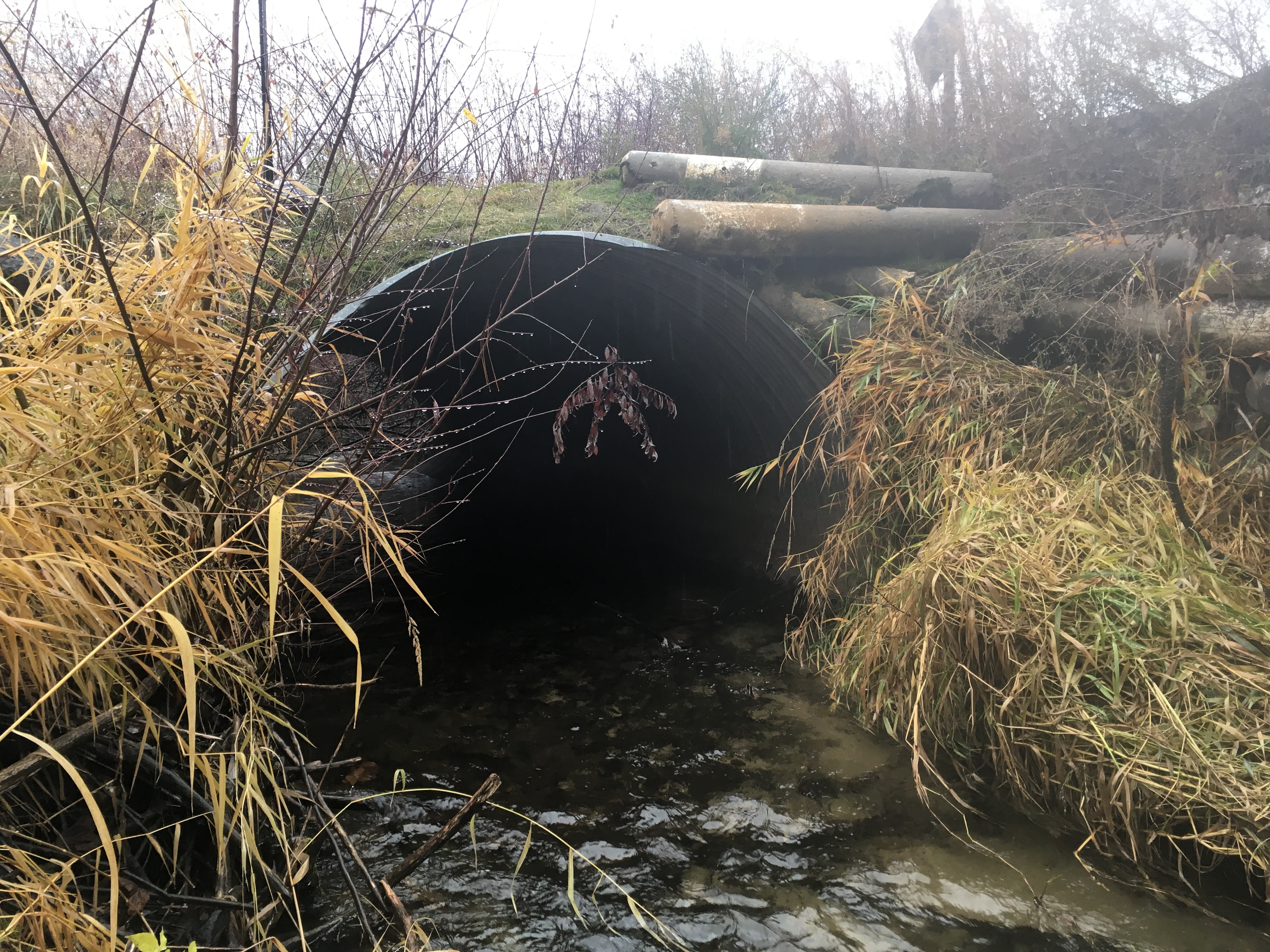

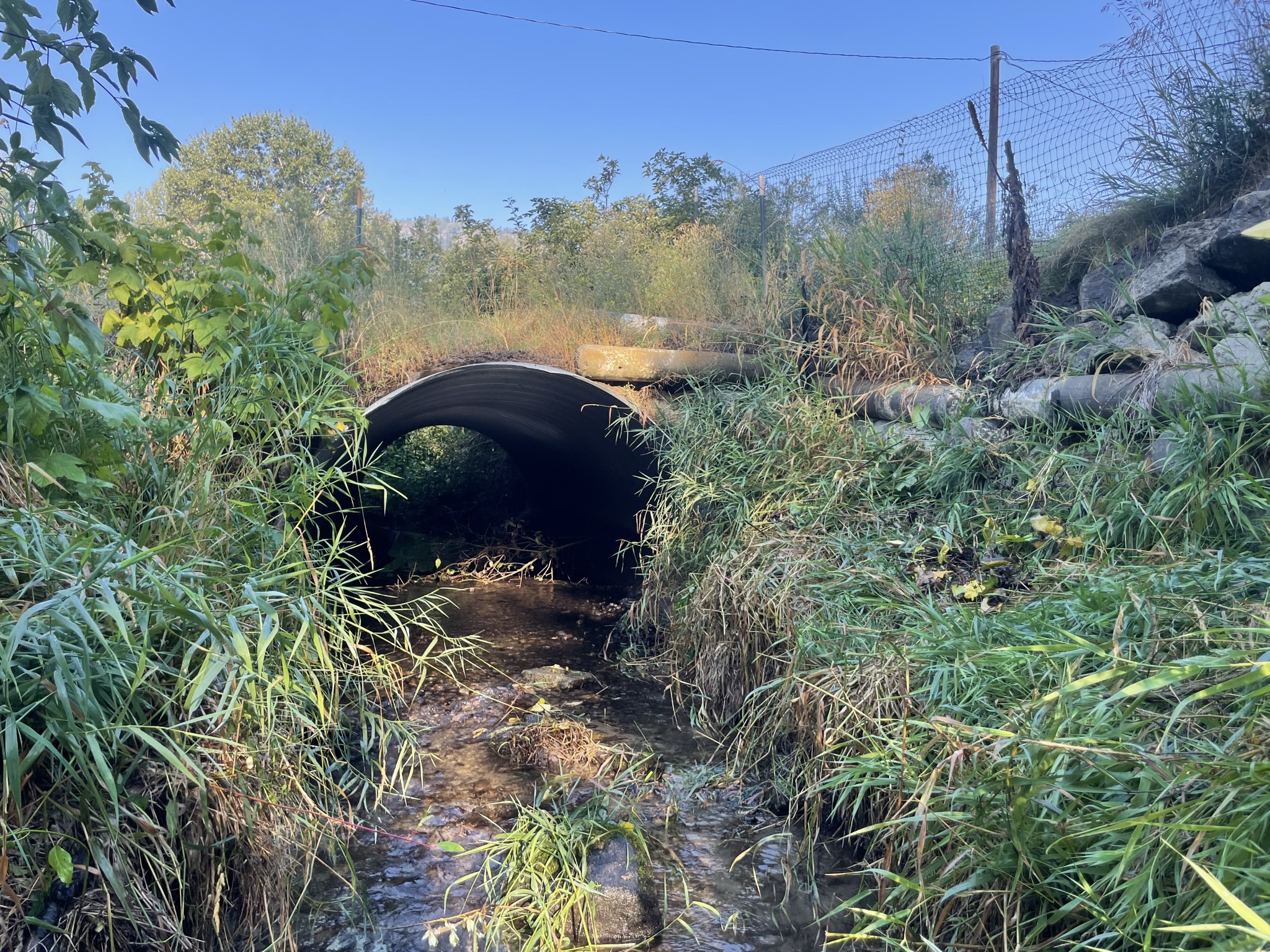

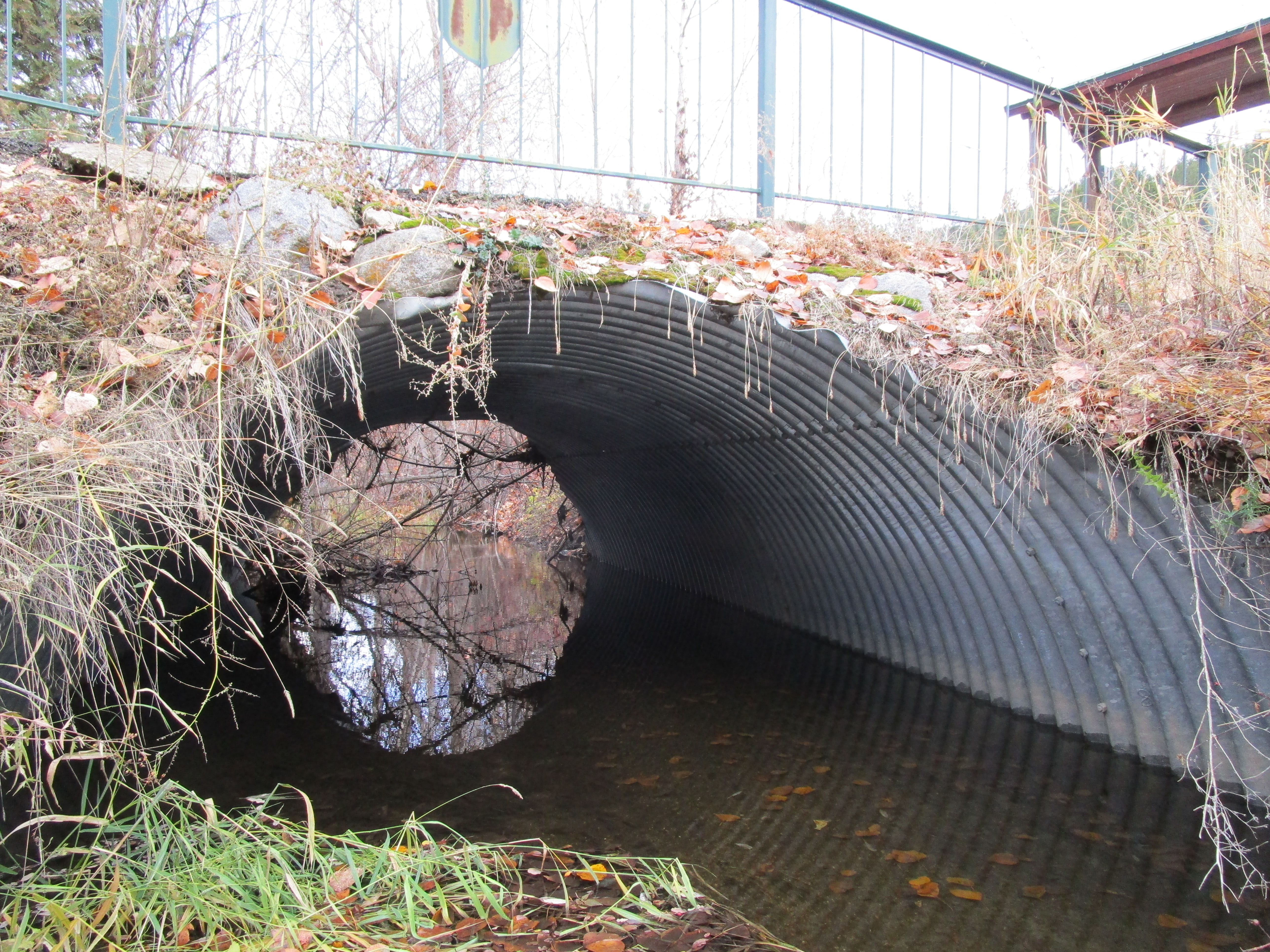

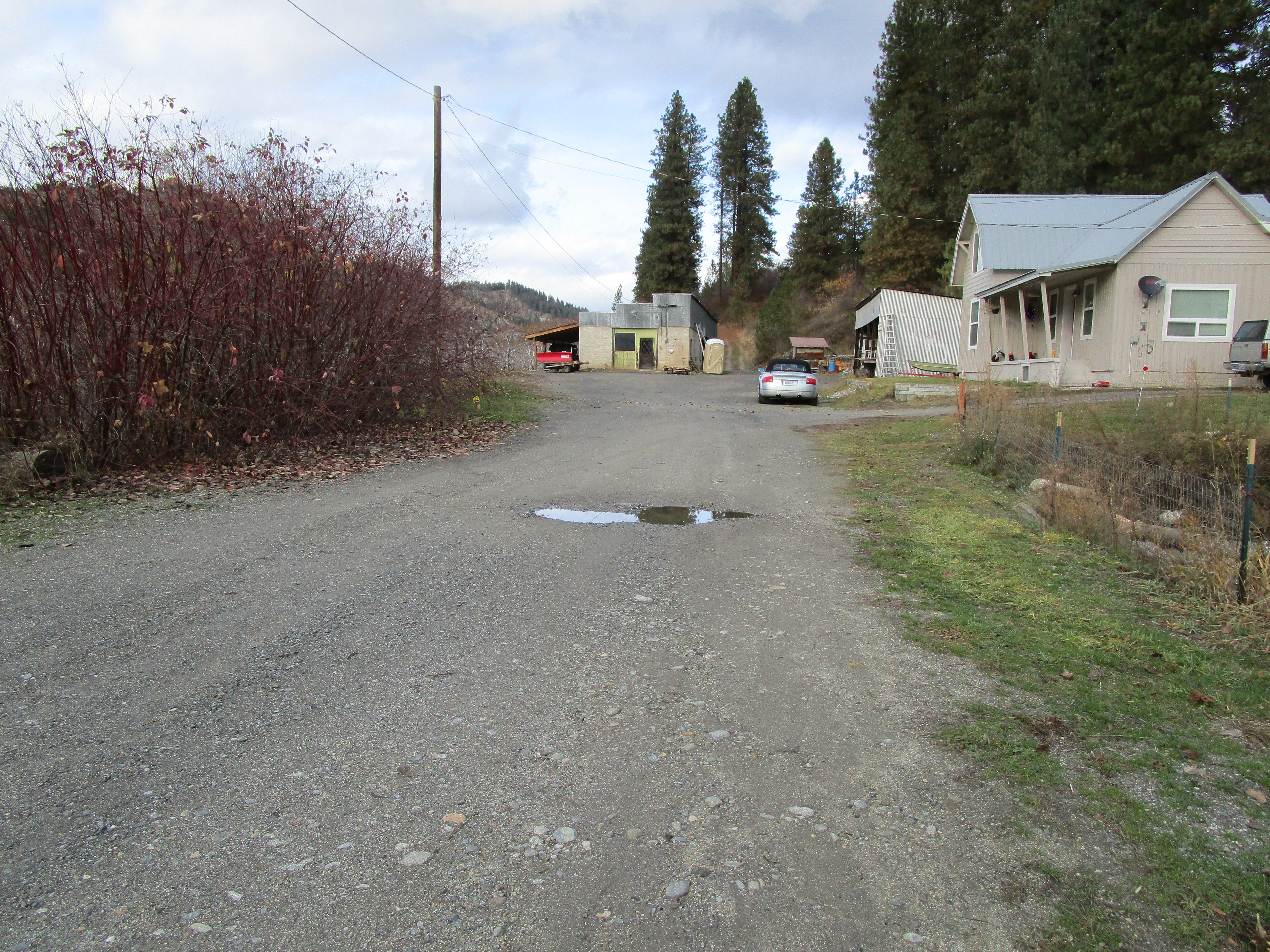

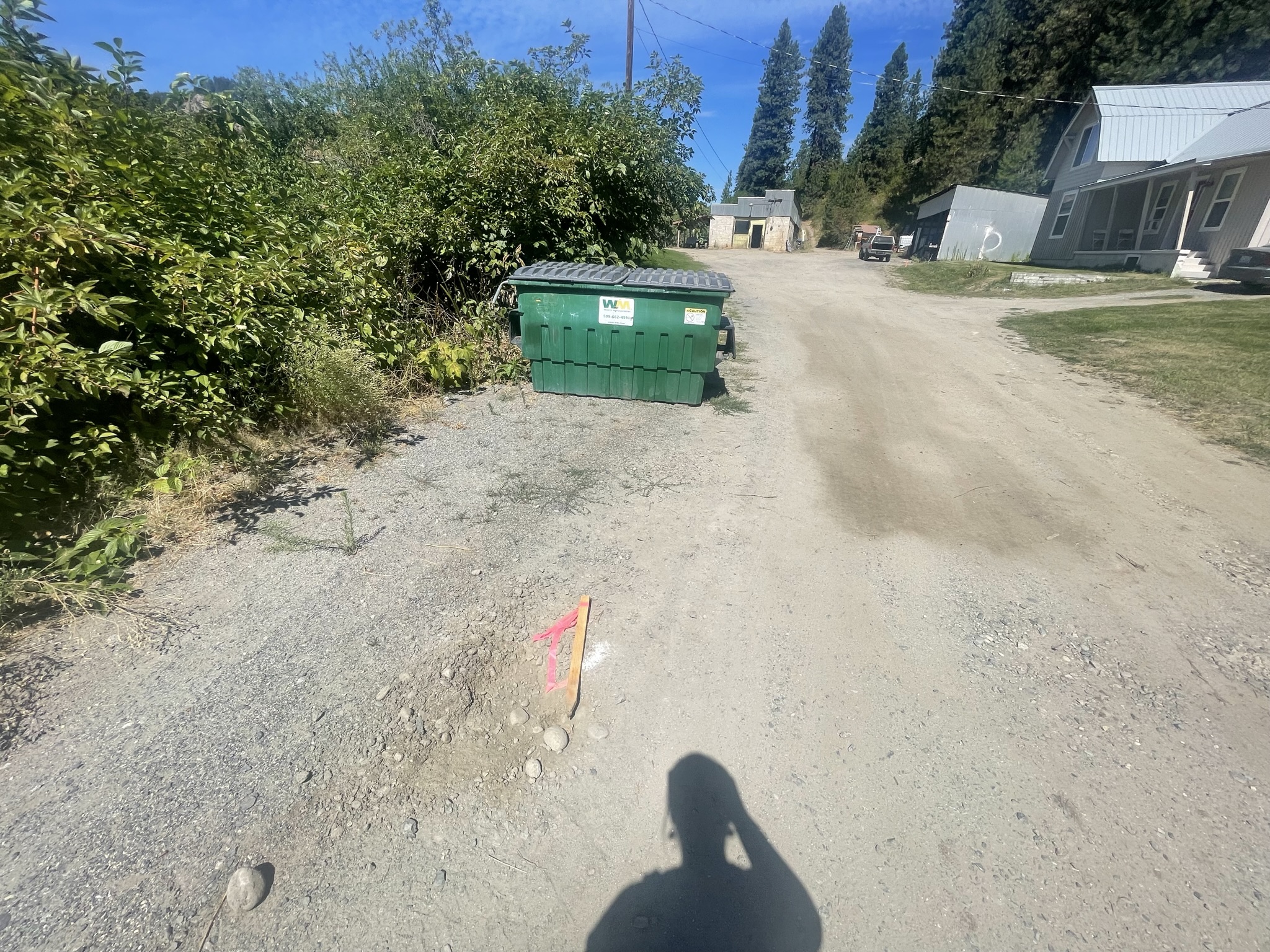

Chelan Co Natural Resource; Chumstick Crk Culverts - RM 0.52 and RM 1.48 (#19-1584) Attachment #544639, 11-15-2022 Inspection Chelan Co Natural Resource; Chumstick Crk Culverts - RM 0.52 and RM 1.48 (#19-1584) Attachment #391255, Motteler2.JPGChelan Co Natural Resource; Chumstick Crk Culverts - RM 0.52 and RM 1.48 (#19-1584) Attachment #391257, Motteler1.JPGChelan Co Natural Resource; Chumstick Crk Culverts - RM 0.52 and RM 1.48 (#19-1584) Attachment #393964, AlpenView1.JPGChelan Co Natural Resource; Chumstick Crk Culverts - RM 0.52 and RM 1.48 (#19-1584) Attachment #393965, AlpenView2.JPG
Project Status:  Closed Completed since 02/07/2024

Project Type:  Restoration
Project Sponsor:  Chelan County Natural Resources Department
Funding Board:  Recreation and Conservation Office
              Funding
FBRB Coordinated Pathway: $445,514
Total RCO Grant: $445,514 (85%)
Sponsor Match: $78,642 (15%)
Total Agreement: $524,156 (100%)
              Links


    Project Description
This project will remove two fish passage barrier culverts and replace it with structures that meets WDFW fish passage criteria on RM 0.52 and RM 1.48 on Chumstick Creek, tributary to the Wenatchee River in WRIA 45. This project will increase the quantity and quality of accessible off-channel rearing and over-wintering habitat for juvenile steelhead, spring Chinook, and coho salmon in Chumstick Creek.

    Project Contacts

Project Sponsor: Chelan County Natural Resources Department Lead Entity: Upper Columbia Salmon Recovery Board Lead Entity
  Project Contact: Allison Lutes
alutes@streamline-env.ca
(509) 679-7095

Funding Agency: Recreation and Conservation Office
  Project Manager: John Foltz
john.foltz@rco.wa.gov
13608678573

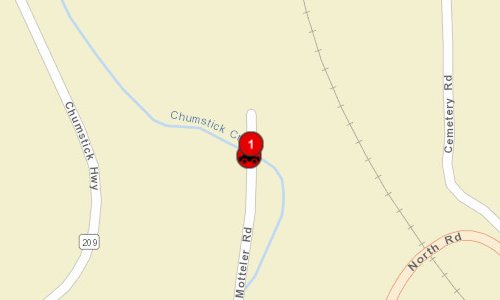

    Project Location
County:   Chelan
Legislative District:   12
Congressional District 2022:   08
Salmon Recovery Regions:   Upper Columbia River
Watershed Administrative Unit:   Derby
HUC8:   Wenatchee (17020011)
WRIA:   Wenatchee
Sections:   01
Township:   T24NR17E
Coordinates:   47.60810264
-120.64724131

    Worksites
Worksite NameScope of WorkActual Restoration Cost
Chumstick Creek Crossings (#1) Architectural & Engineering (A&E), Bridge installed or improved (C.2.g.1), Obtain permits $528,676
 Total$528,676
Amounts may not be complete

    Properties
Worksite Name Property NameLandowner Type
Chumstick Creek Crossings (#1)   Property 1 - Motteler Road RM 0.52 Local Government
Chumstick Creek Crossings (#1)   Property 2 - Alpenview Drive RM 1.48 Private
   Total
Amounts may not be complete

    Project Metrics (Outcomes, Benefits)
 Category / Work Type / MetricFinal

Restoration Metrics (rolled up from Worksite level)

Permits
      Obtain permits
Number of permits required for implementation of project 3

Fish Passage Improvement
      Bridge installed or improved (C.2.g.1)
Miles of stream made accessible by bridge installation/repair (C.2.g.3) 14.29
Number of bridges (C.2.g.2) 1

Number of blockages / impediments / barriers impeding passage (C.2.b.4) 1

    Project Milestones
Milestone NameTarget DateDescription
Project Start 07/01/2019
Progress Report Due 12/31/2019
Preliminary Design to RCO 04/01/2020 Special Condition: Each design phase (Conceptual, Preliminary and Final), completed to Manual 22 Appendix D specifications, must be submitted to RCO. Allow up to 30 days for review.
Cultural Resources Complete 06/30/2020 Cultural Resources Survey required prior to initiation of any ground disturbing activities. Survey must meet standard reporting format and requirements.
Annual Project Billing Due 07/31/2020
Progress Report Due 07/31/2020
Landowner Agreement to RCO 03/31/2021
Applied for Permits 03/31/2021
Progress Report Due 03/31/2021
Bid Awarded/Contractor Hired 02/21/2022 For Alpenview.
Permits Complete 03/07/2022
Bid Awarded/Contractor Hired 03/28/2022 For Motteler Road.
Restoration Started 08/01/2022
Final Design to RCO 12/31/2022 Special Condition: Each design phase (Conceptual, Preliminary and Final), completed to Manual 22 Appendix D specifications, must be submitted to RCO. Allow up to 30 days for review.
Restoration Complete 06/30/2023 For Motteler Road.
Restoration Complete 06/30/2023 For Alpenview.
RCO Final Inspection 07/15/2023
Other 08/31/2023 As-built complete; If completed project differs from final design.
Progress Report Due 08/31/2023
Funding Acknowl Sign Posted 11/30/2023 Required. Provided by RCO.
Final Report Due 11/30/2023
Final Billing Due 11/30/2023 Up to 90 days from Agreement End Date to submit final invoice
Agreement End Date 12/31/2023 PROJECT CLOSING. All expenditures must be prior to this date.


    Project Attachments
Attachment TypeAttachment TitleAttach Date
Agreement - State 19-1584 Chumstick Crk Culverts - RM 0.52 and RM 1.48.pdf 11/21/2019
Amendment - State 19-1584 Amendment #6 - Admin Limit Change - signed.pdf 11/08/2023
Amendment - State 19-1584 Amendment #5 - Time Extension.pdf 08/28/2023
Amendment - State 19-1584 Amendment #4 - Time Extension.pdf 06/08/2023
Amendment - State 19-1584 Amendment #3 - Time Extension.pdf 12/14/2022
Amendment - State 19-1584 Amendment #2 - Time Extension.pdf 06/07/2021
Amendment - State 19-1584 Amend #1 Time Ext.pdf 08/11/2020
Amendment request Time Extension Request 06052023.pdf.pdf 06/06/2023
Applicant Resolution/Authorizations Applicant resolution_19-1585_AlpenView Drive.pdf.pdf 06/24/2019
Applicant Resolution/Authorizations Applicant resolution_19-1584_Motteler road.pdf.pdf 06/05/2019
Application Review Report Application Review Report, 19-1584R(compl 07/16/19 12:26:51).pdf 07/16/2019
Barrier evaluation form expandedbarrierform_mott.pdf.pdf 05/28/2019
Cost Estimate FBRB Cost Estimate COMBINED Spreadsheet_updated05.28.xlsx.xlsx 06/24/2019
Design document Motteler As Builts - 110223.pdf.pdf 12/26/2023
Design document AppendixB.BasisofDesignReport.pdf.pdf 04/06/2021
Design document AppendixA.Designs.pdf.pdf 04/06/2021
Design document WDFW Motteler Road Design Comments_CCNRD 11-09-2020.xlsx 11/10/2020
Design document Chumstick Creek Alpineview Road - Final Design 053020.pdf.pdf 07/25/2020
Design document Chumstick Creek - Motteler Road Culvert - Preliminary Design.pdf 03/16/2020
Design document Chumstick Creek - Alpineview Road Culvert - Base Maps with P.pdf 03/09/2020
Environmental Clearance AppendixI.FEMANoRise.pdf.pdf 04/06/2021
Environmental Clearance AppendixD.Section106.DAHP.Tribal.pdf.pdf 04/06/2021
Expanded barrier evaluation form expandedbarrierform_Alpenview.doc.doc 06/24/2019
FBRB Final Application Questions FBRB Final Application QuestionsAlpenView.pdf.pdf 06/24/2019
FBRB Final Application Questions FBRB Final Application QuestionsMotteler.pdf.pdf 05/28/2019
Final project report Final Report, 19-1584 (accepted 02/05/24 11:04:27).pdf 02/05/2024
Inspection Report Inspection Report, #3798 (Accepted 02/05/24 15:07:08).pdf 02/05/2024
Map: Restoration Worksite Chelan County_AlpenView_Restoration.pdf.pdf 06/24/2019
Map: Restoration Worksite Chelan County_Motteler_RestorationWorksite.pdf.pdf 05/28/2019
Milestones Restoration milestone worksheet_chumstickBarriers.doc.doc 08/22/2019
Milestones Planning Milestone Worksheet 2018_ChumstickBarriers.doc.doc 08/22/2019
Permit FDP 21-0003.pdf.pdf 04/06/2021
Permit HPA 2021-2-35+01 for APP ID 24480.pdf.pdf 04/06/2021

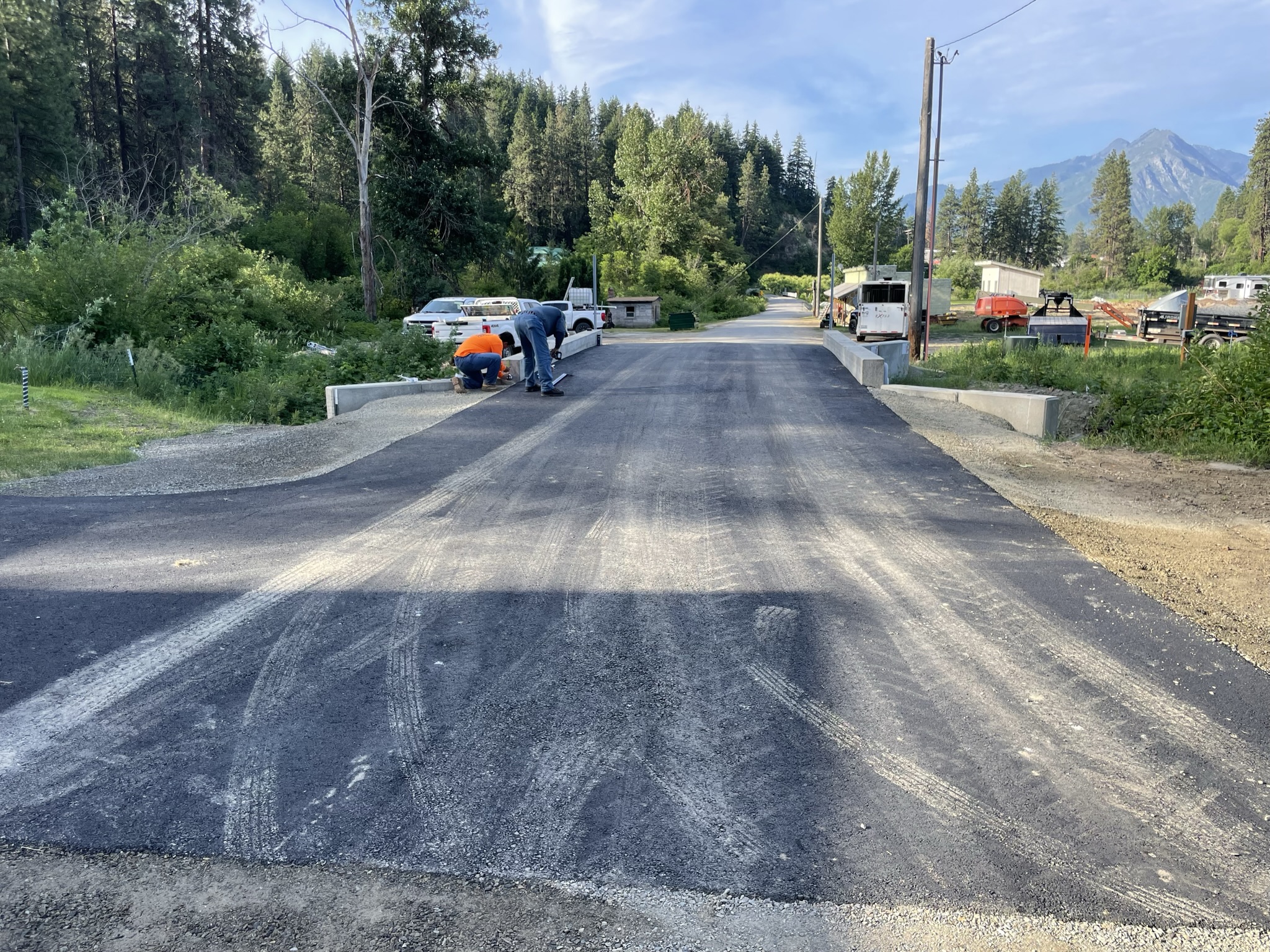

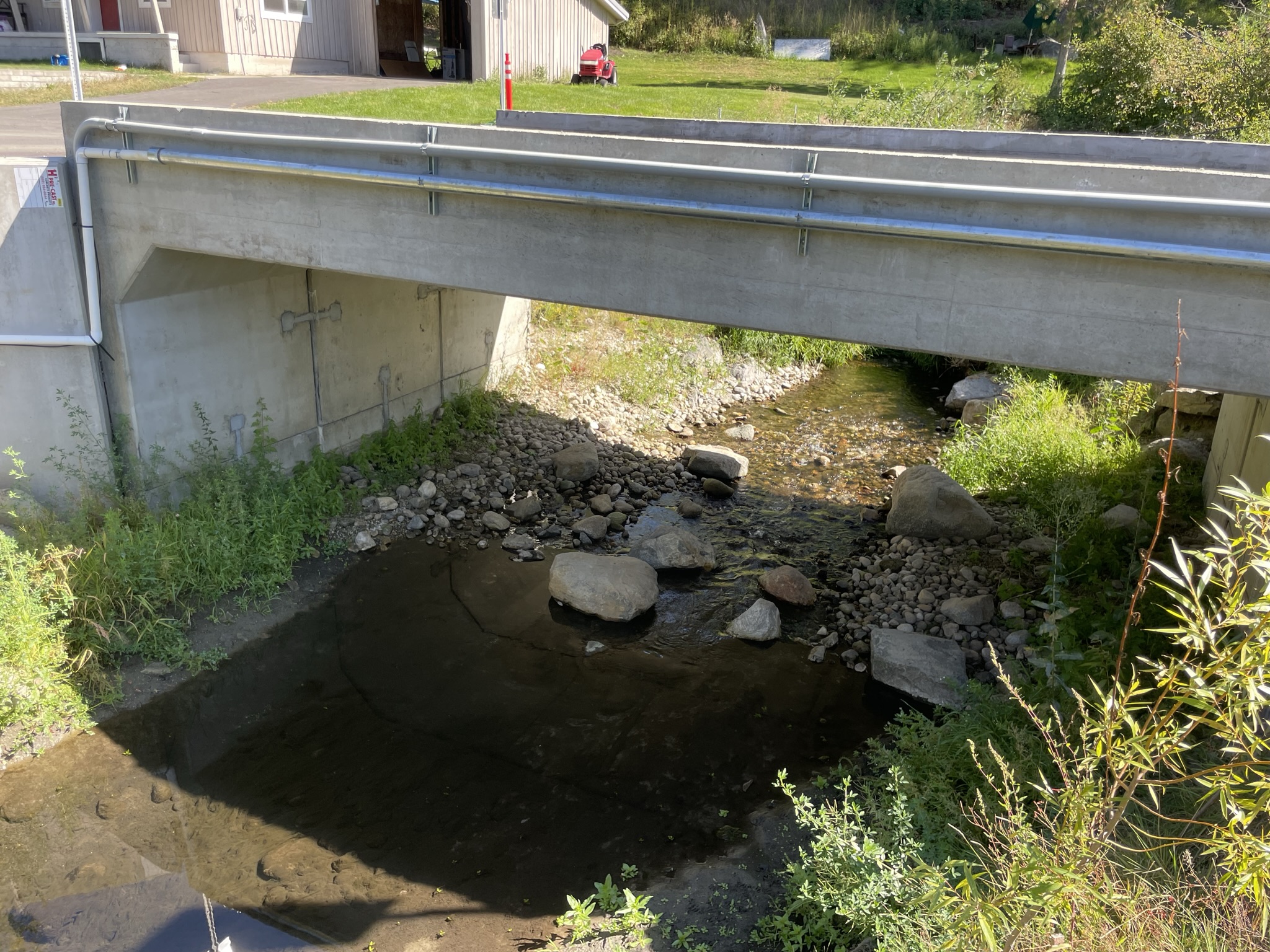

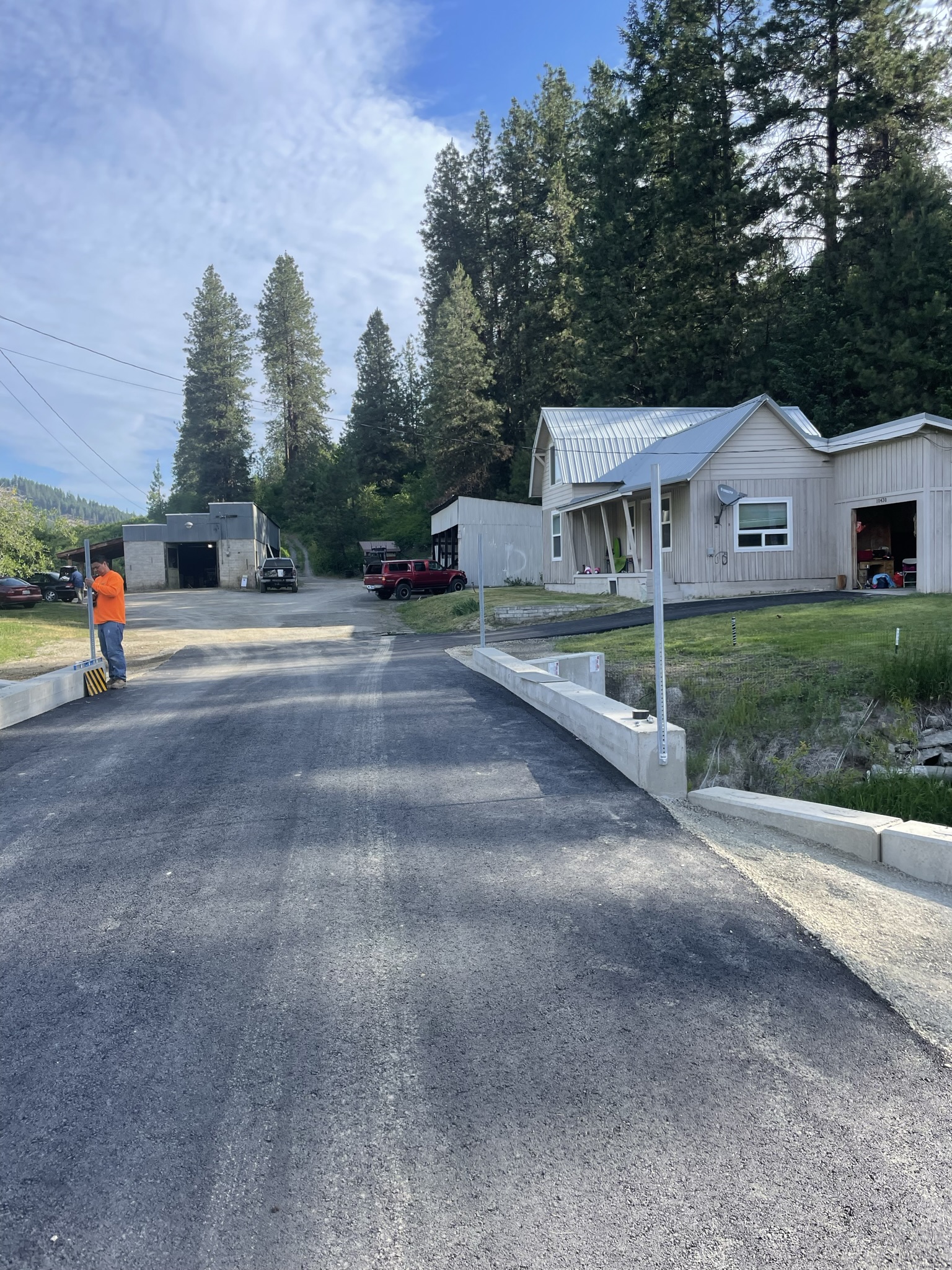

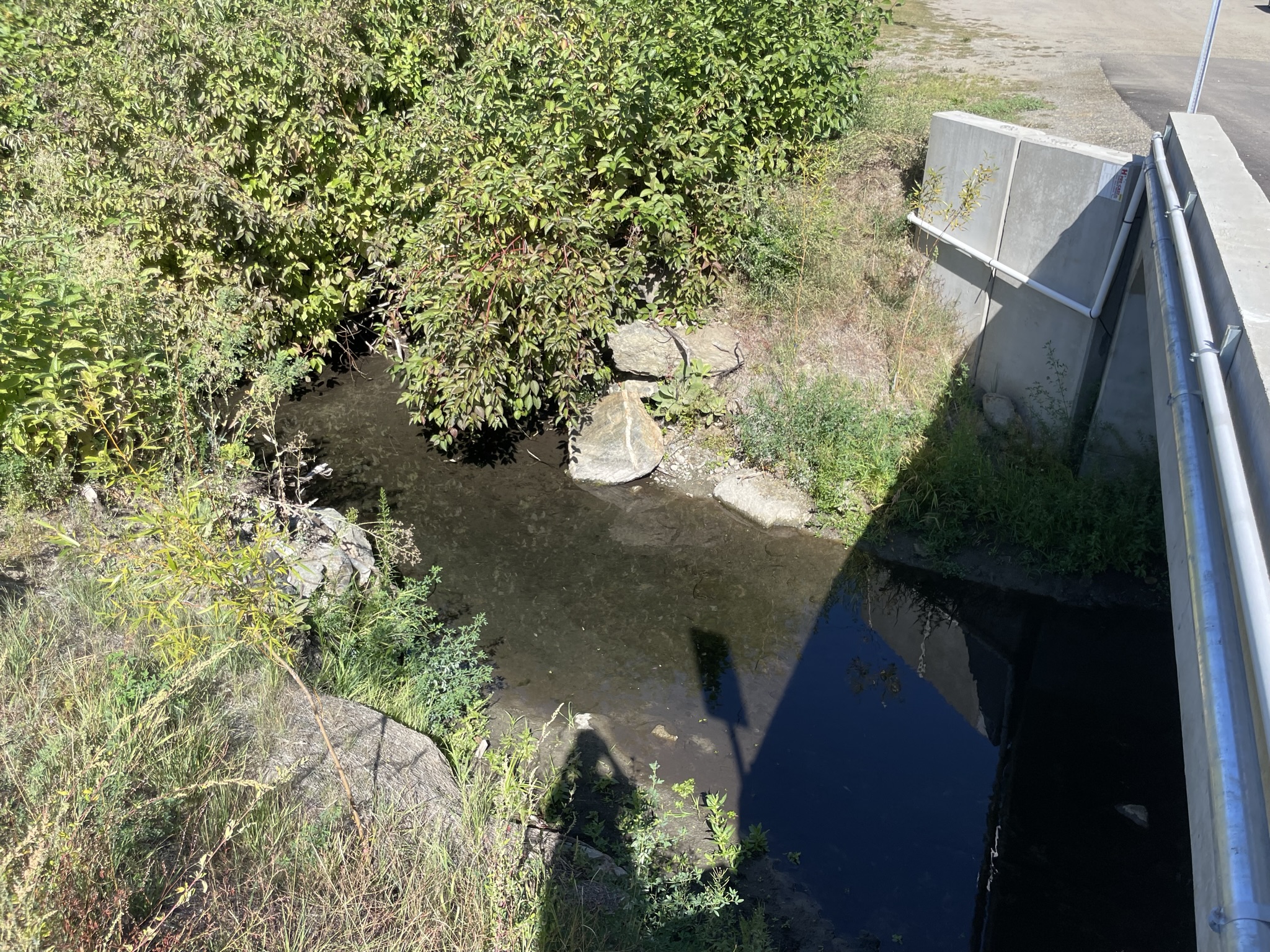

Photo IMG_6996.JPEG; Post Con.jpeg 12/26/2023
Photo IMG_6995.JPEG; Post Con.jpeg 12/26/2023
Photo IMG_6994.JPEG; Post Con.jpeg 12/26/2023
Photo IMG_6993.JPEG; Post Con.jpeg 12/26/2023
Photo IMG_6992.JPEG; Post Con.jpeg 12/26/2023
Photo IMG_4653.JPEG; Post Con.jpeg 12/26/2023
Photo IMG_4633.JPEG; Post Con.jpeg 12/26/2023

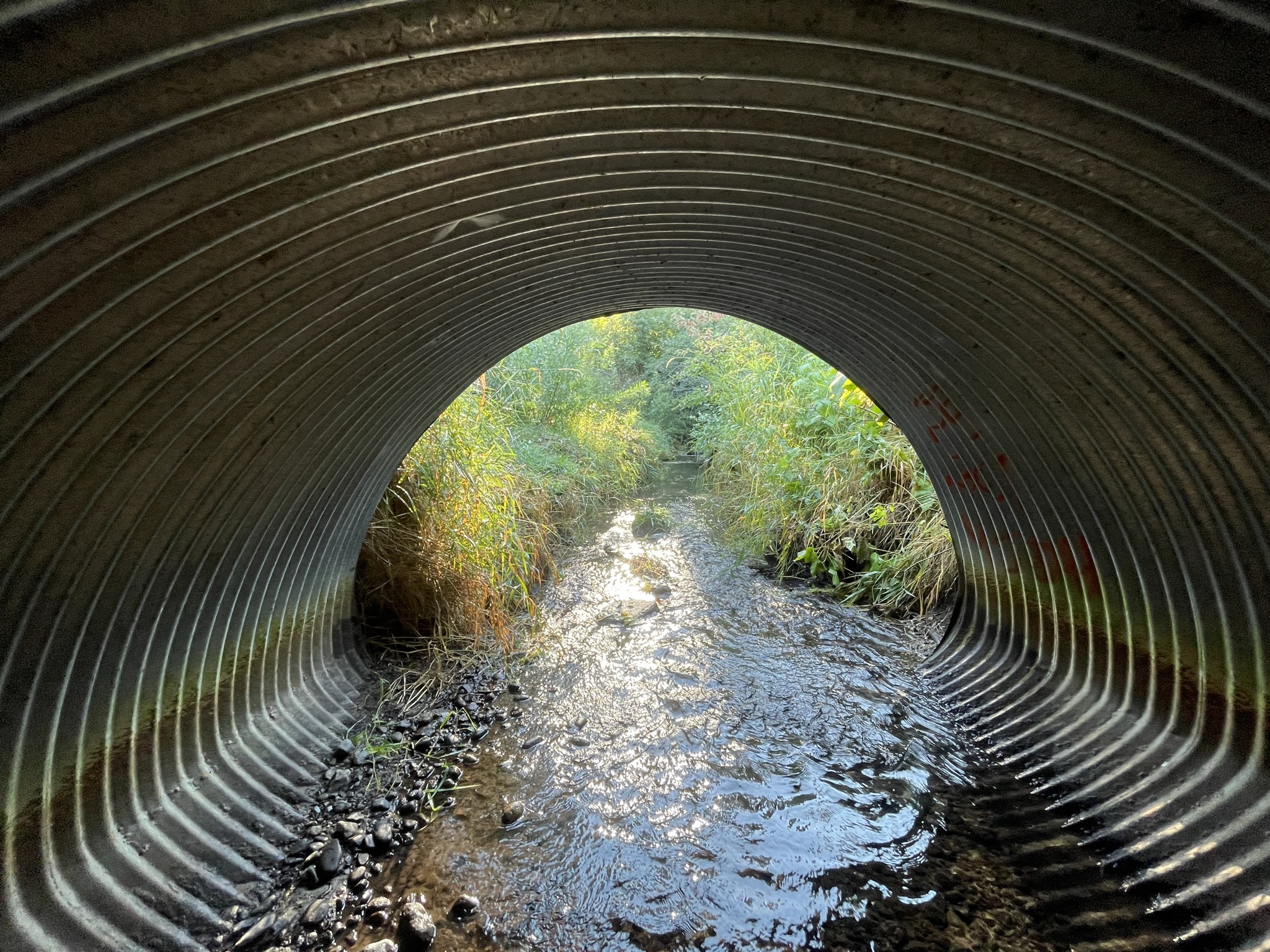

Photo IMG_8224.JPEG; Precon.jpeg 12/26/2023
Photo IMG_8219.JPEG; Precon.jpeg 12/26/2023
Photo IMG_8150.JPEG; Precon.jpeg 12/26/2023
Photo IMG_8136.JPEG; Precon.jpeg 12/26/2023
Photo IMG_8128.JPEG; Precon.jpeg 12/26/2023
Photo IMG_8127.JPEG; Precon.jpeg 12/26/2023
Photo IMG_8126.JPEG; Precon.jpeg 12/26/2023
Photo IMG_6996.JPEG.jpeg 09/25/2023
Photo IMG_6995.JPEG.jpeg 09/25/2023
Photo 11-15-2022 Inspection.jpg 12/14/2022
Photo AlpenView2.JPG.jpg 06/24/2019
Photo AlpenView1.JPG.jpg 06/24/2019
Photo Motteler1.JPG.jpg 05/28/2019
Photo Motteler2.JPG.jpg 05/28/2019
Progress report Progress Report, 19-1584 (accepted 09/26/23 09:51:04).pdf 09/26/2023
Progress report Progress Report, 19-1584 (accepted 06/06/22 17:00:46).pdf 06/06/2022
Progress report Progress Report, 19-1584 (accepted 04/13/21 15:10:55).pdf 04/13/2021
Progress report Progress Report, 19-1584 (accepted 07/28/20 09:13:26).pdf 07/28/2020
Progress report Progress Report, 19-1584 (accepted 03/10/20 12:49:15).pdf 03/10/2020
Progress report Progress Report, 19-1584 (accepted 01/14/20 21:14:16).pdf 01/14/2020
Project Application Report Application Report, 19-1584R (submitted 06/05/19 11:18:35).pdf 06/05/2019
Stewardship plan 19-1584_ChumstickCulverts_ResStewardshipPlan.pdf.pdf 02/07/2024
Visuals Post Project Photos Chumstick Culverts RM 0.52 and RM 1.48 .pptx 09/27/2023
