Snyder Creek Fish Passage (Mill #1)
|
Klickitat County of; Snyder Creek Fish Passage (Mill #1) (#99-1623)

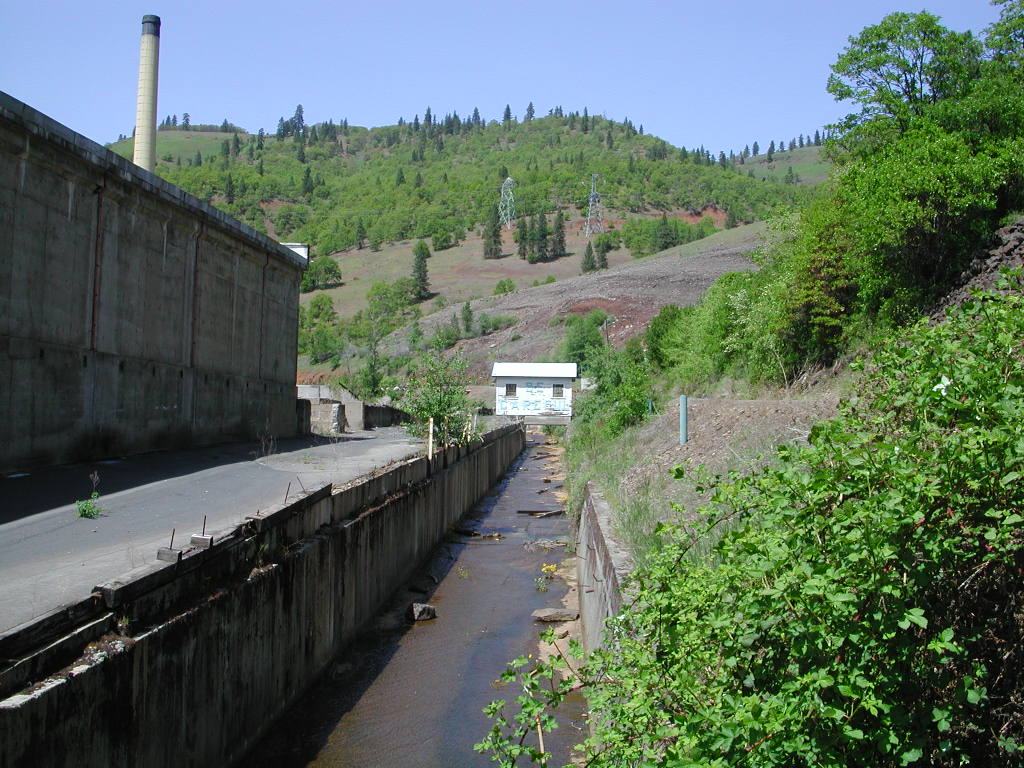

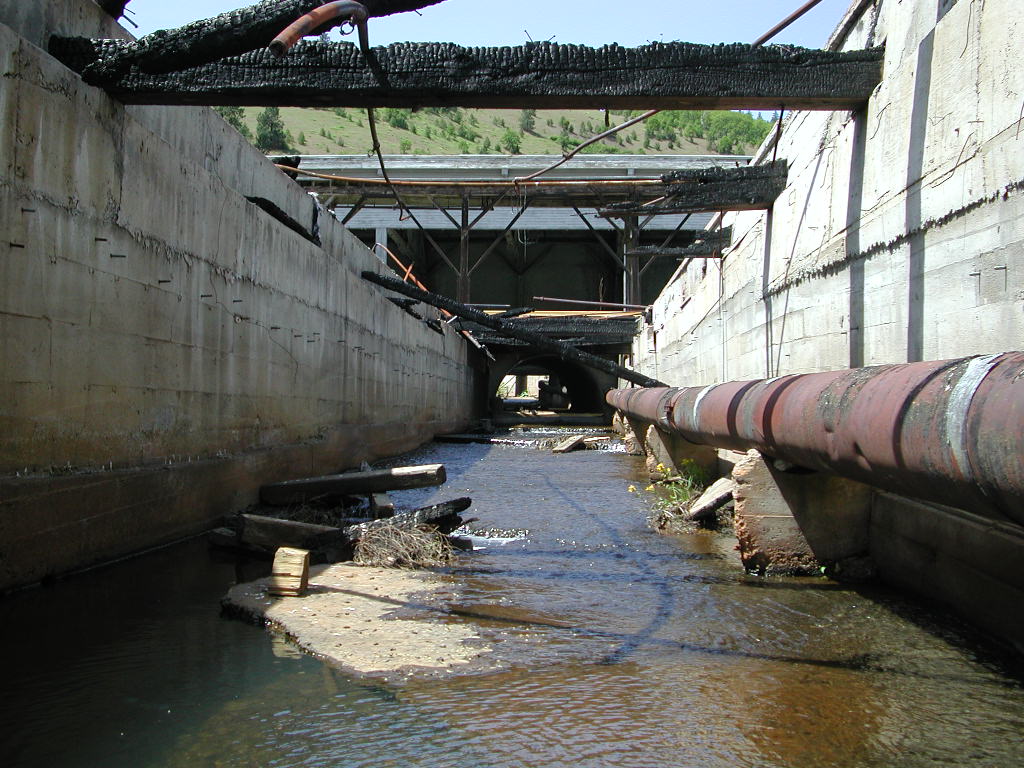

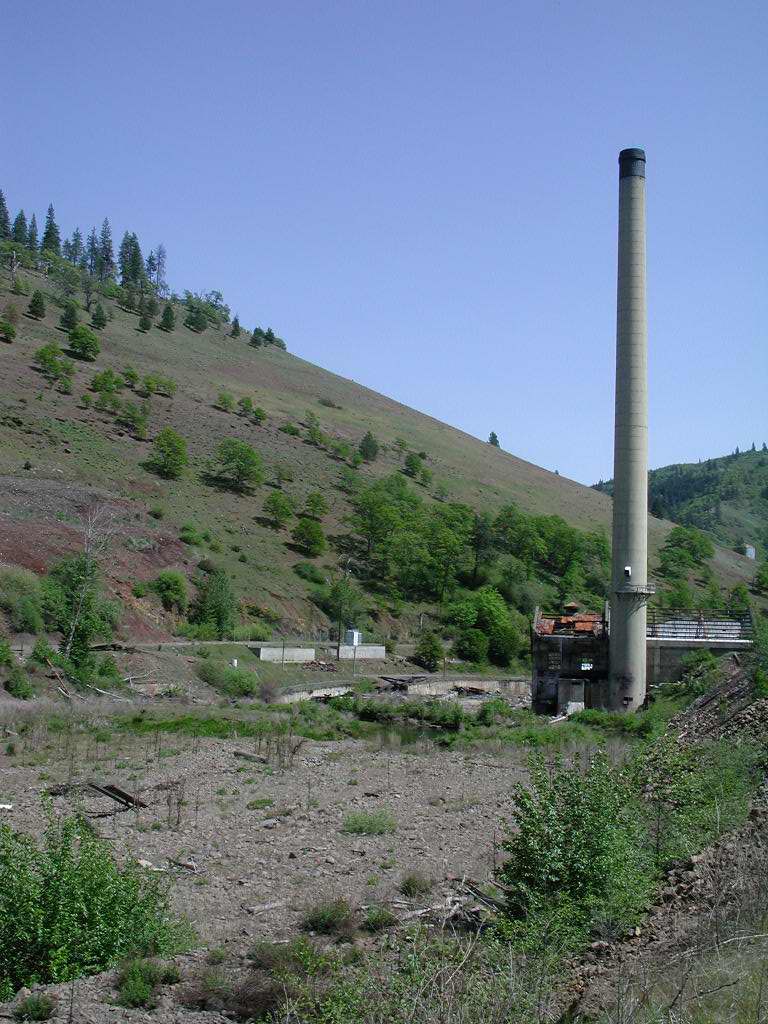

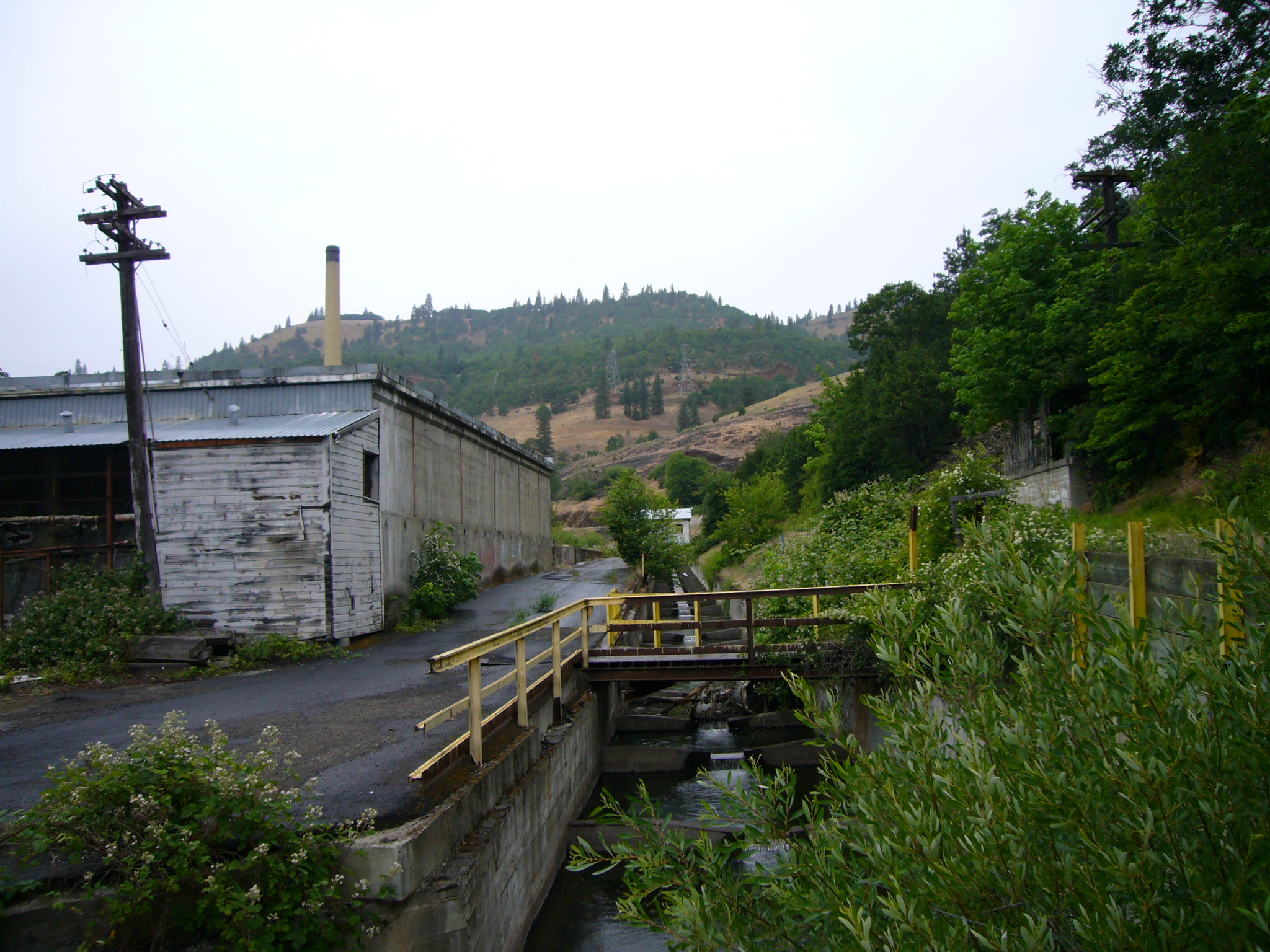

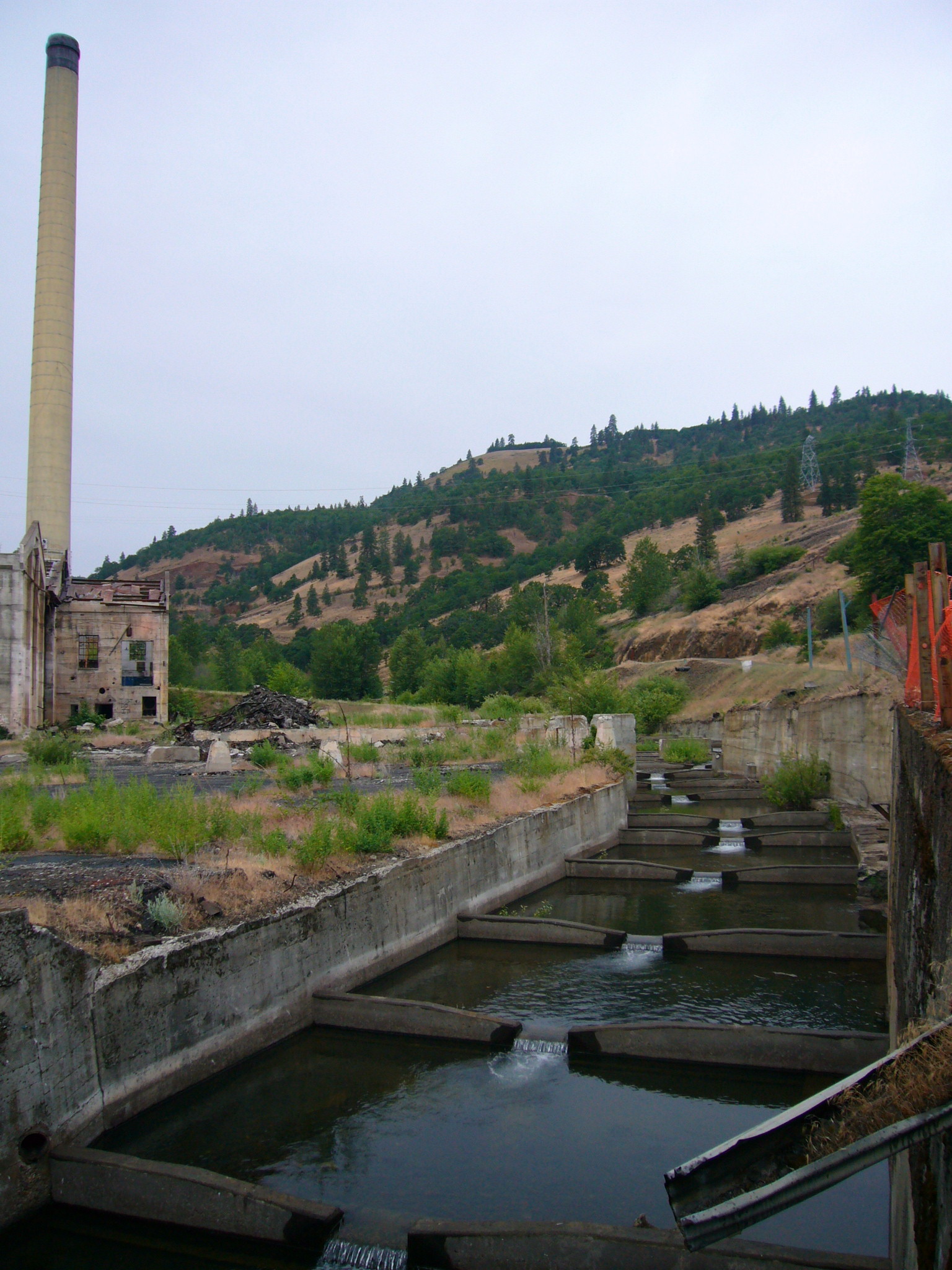

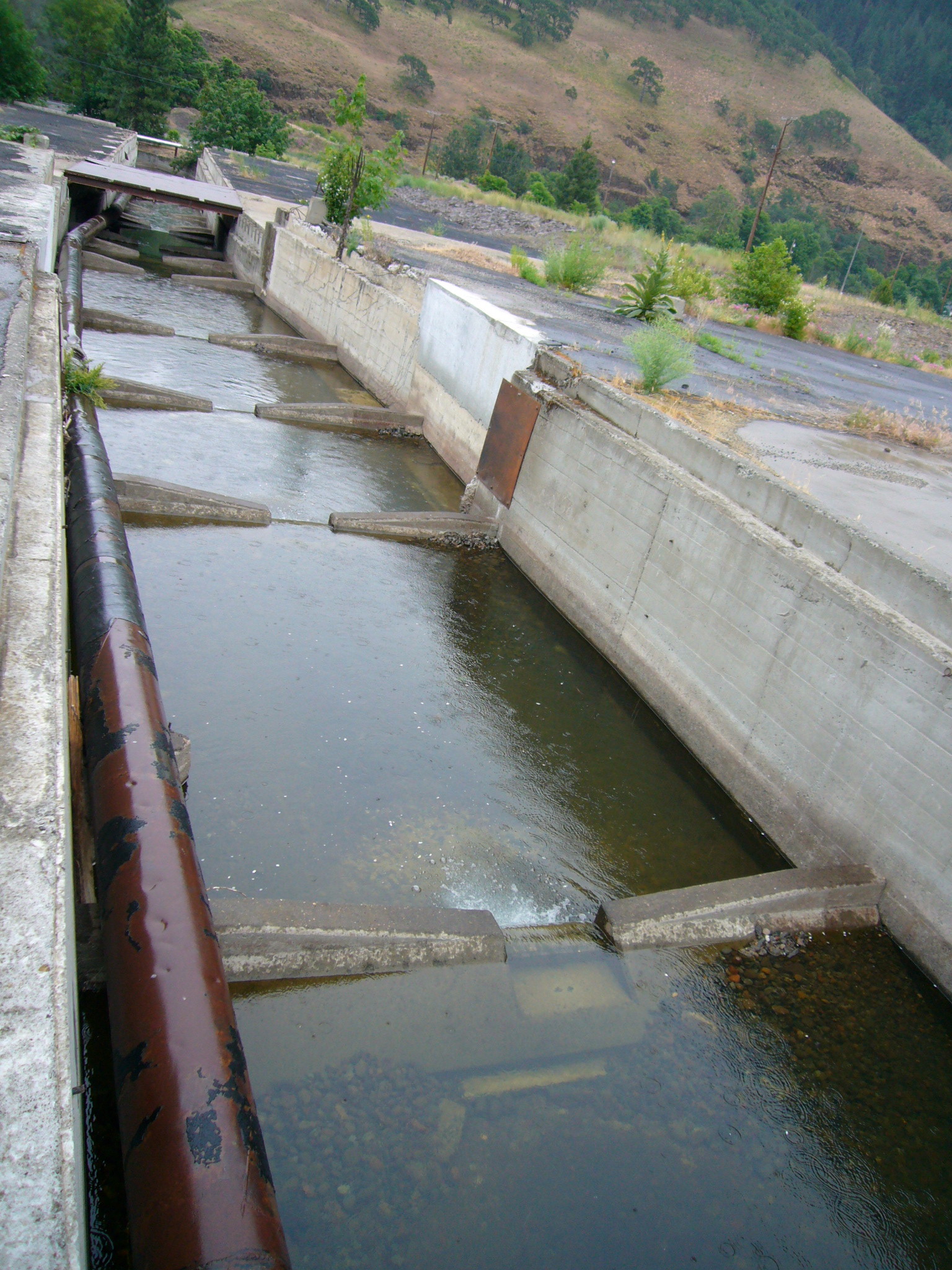

05/08/2001, Attachment #1469, Sluiceway Below Smokestack
|
|
|
|
|
|

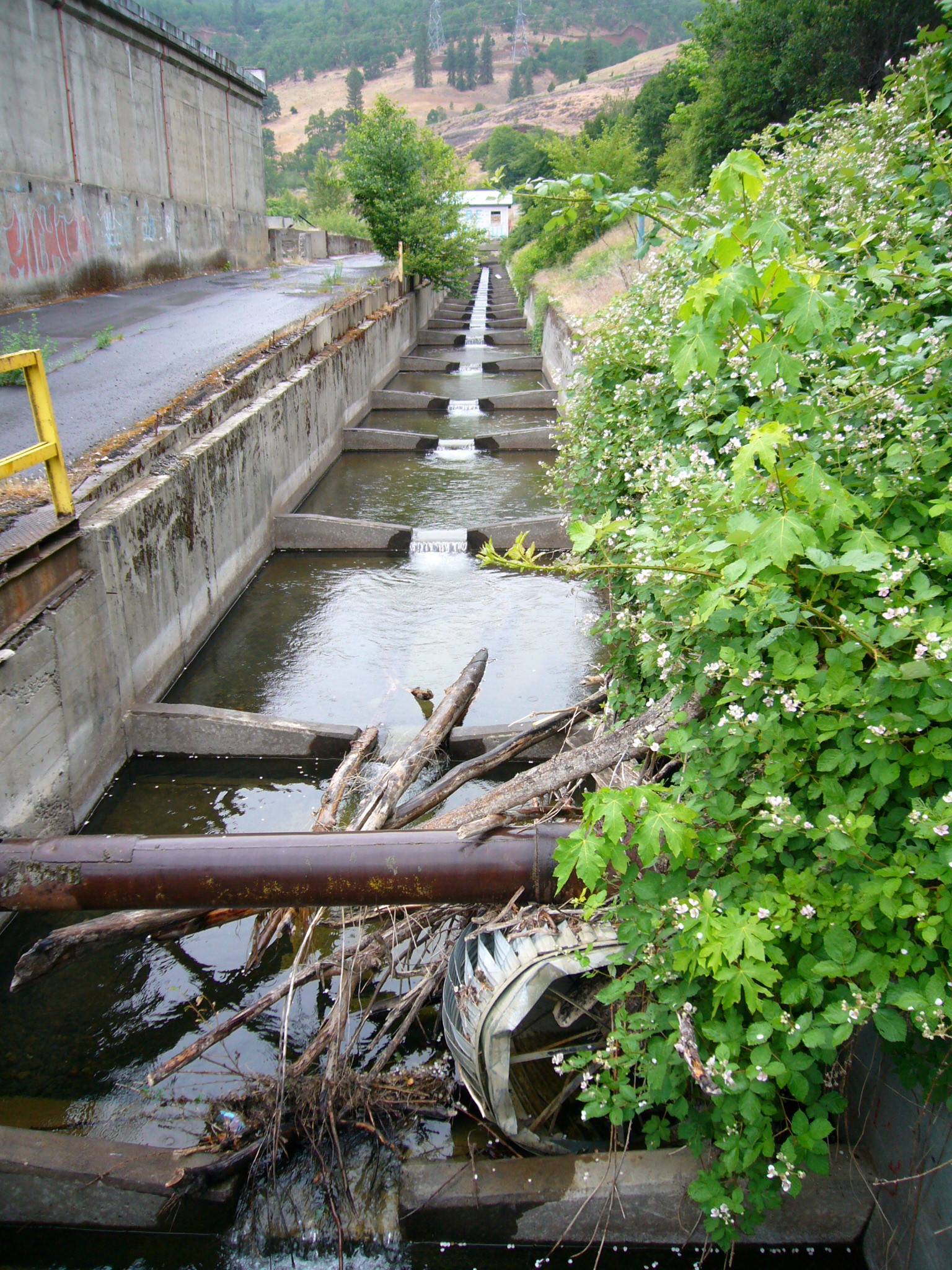

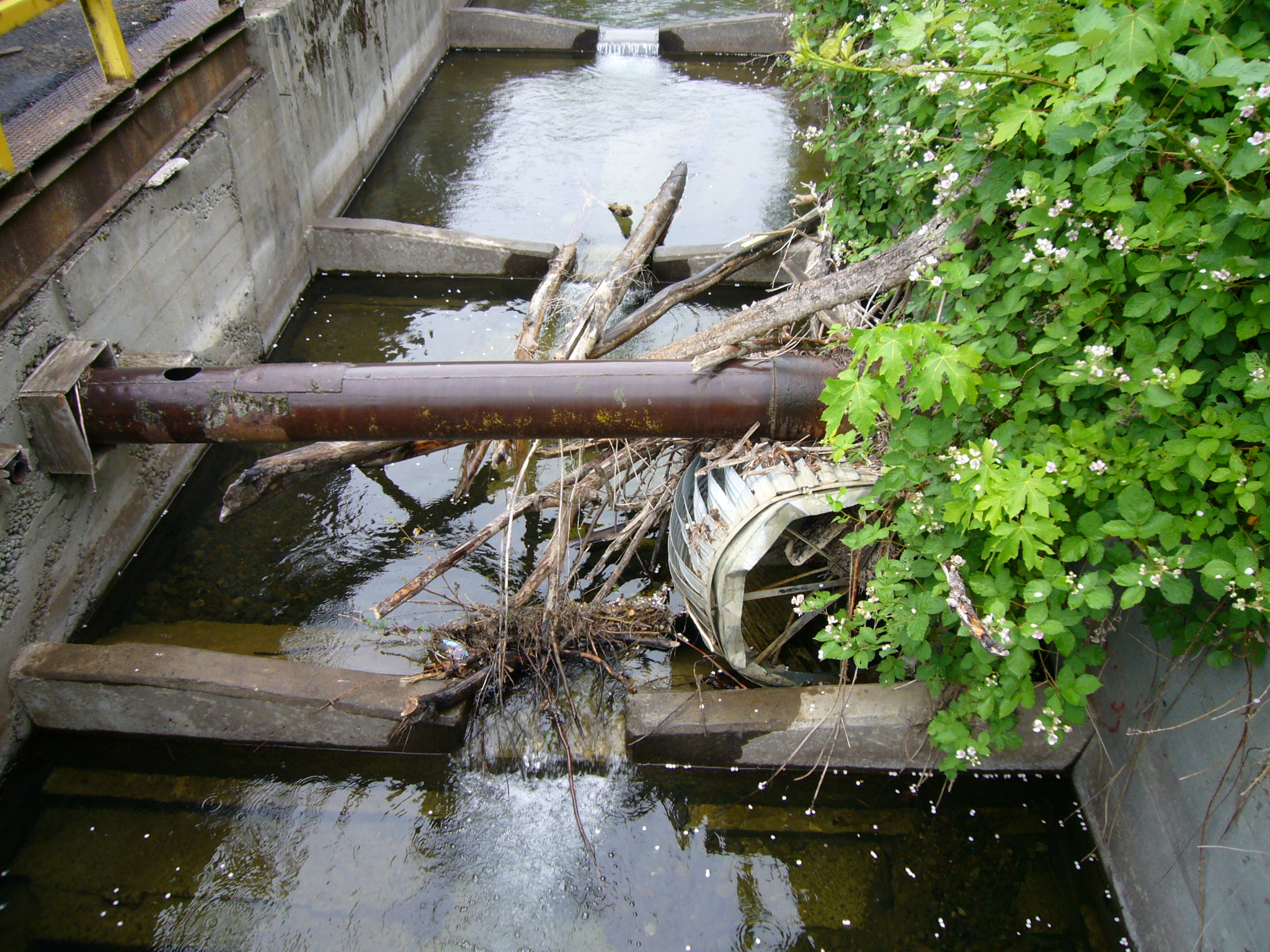

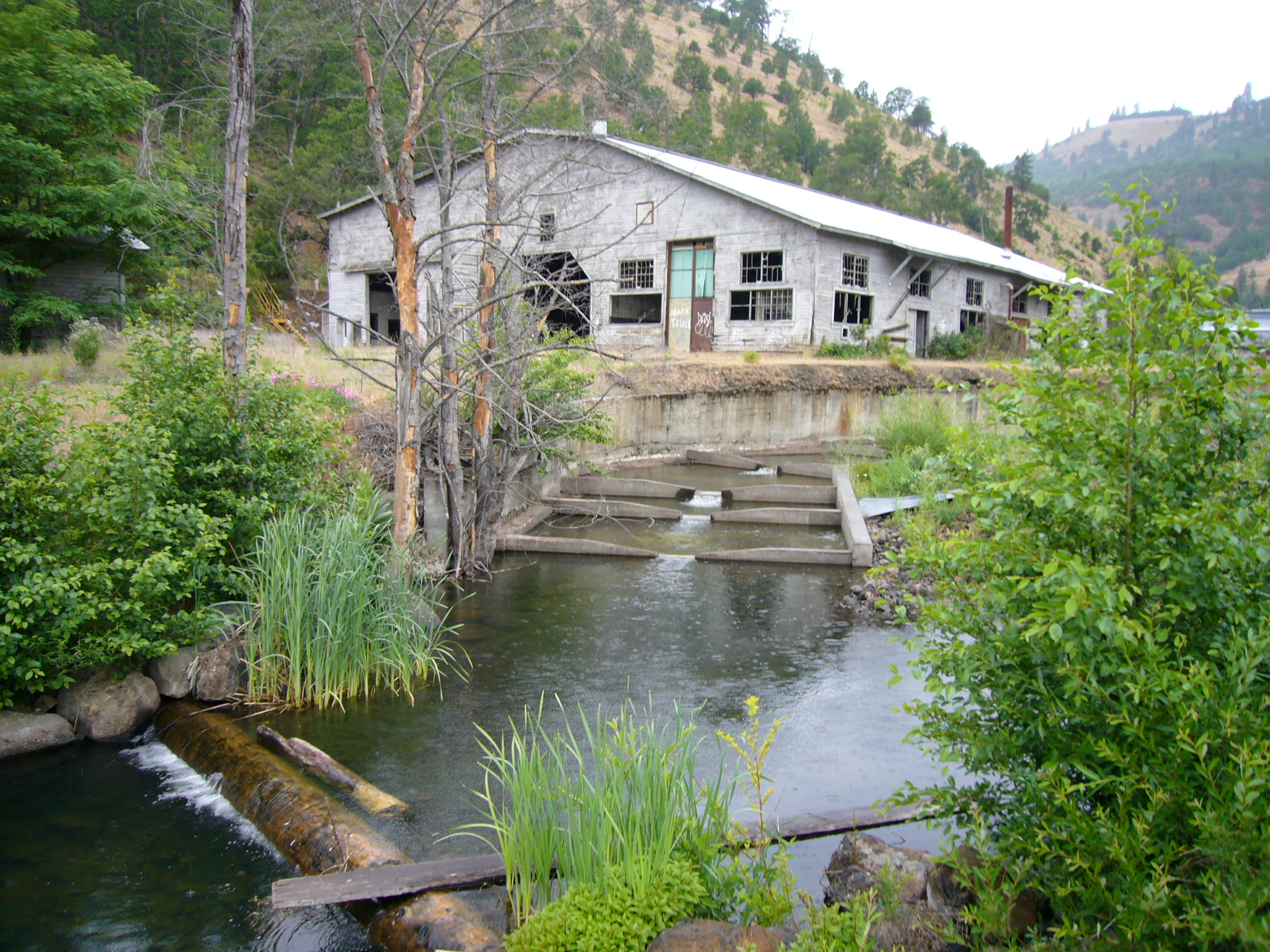

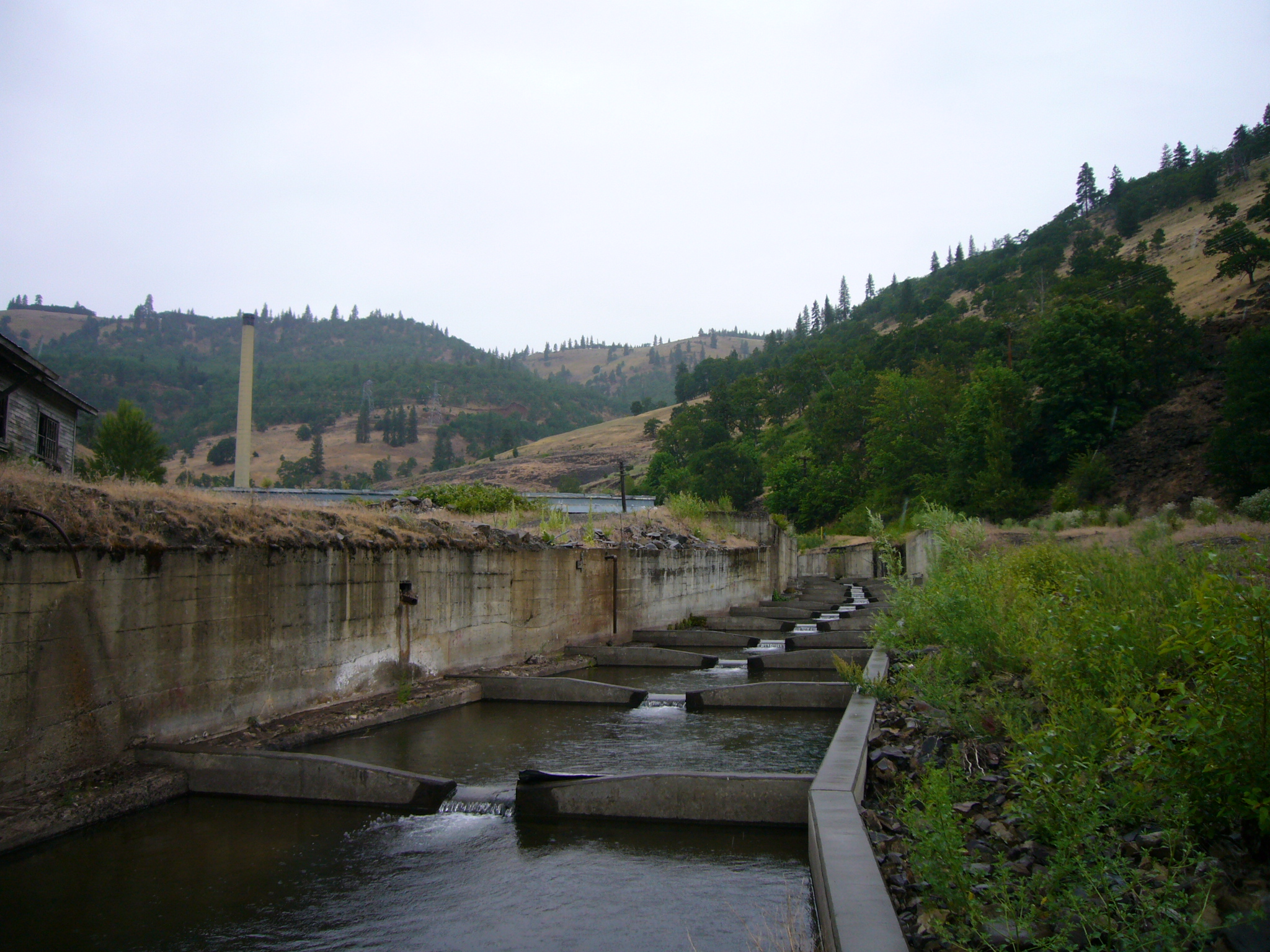

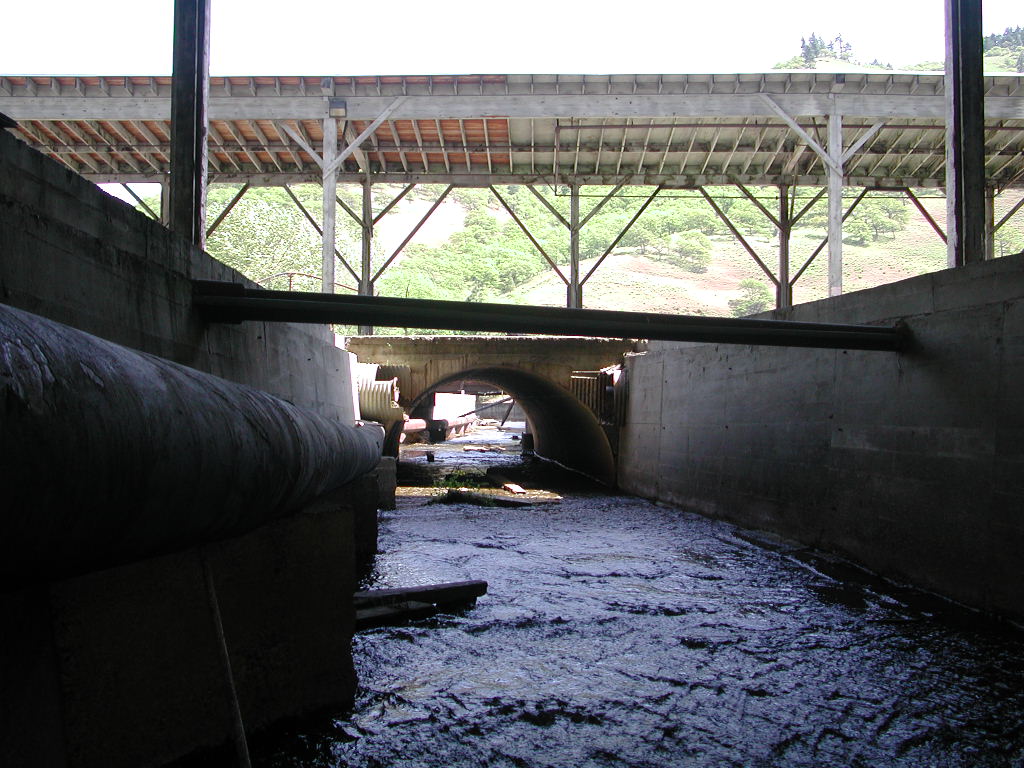

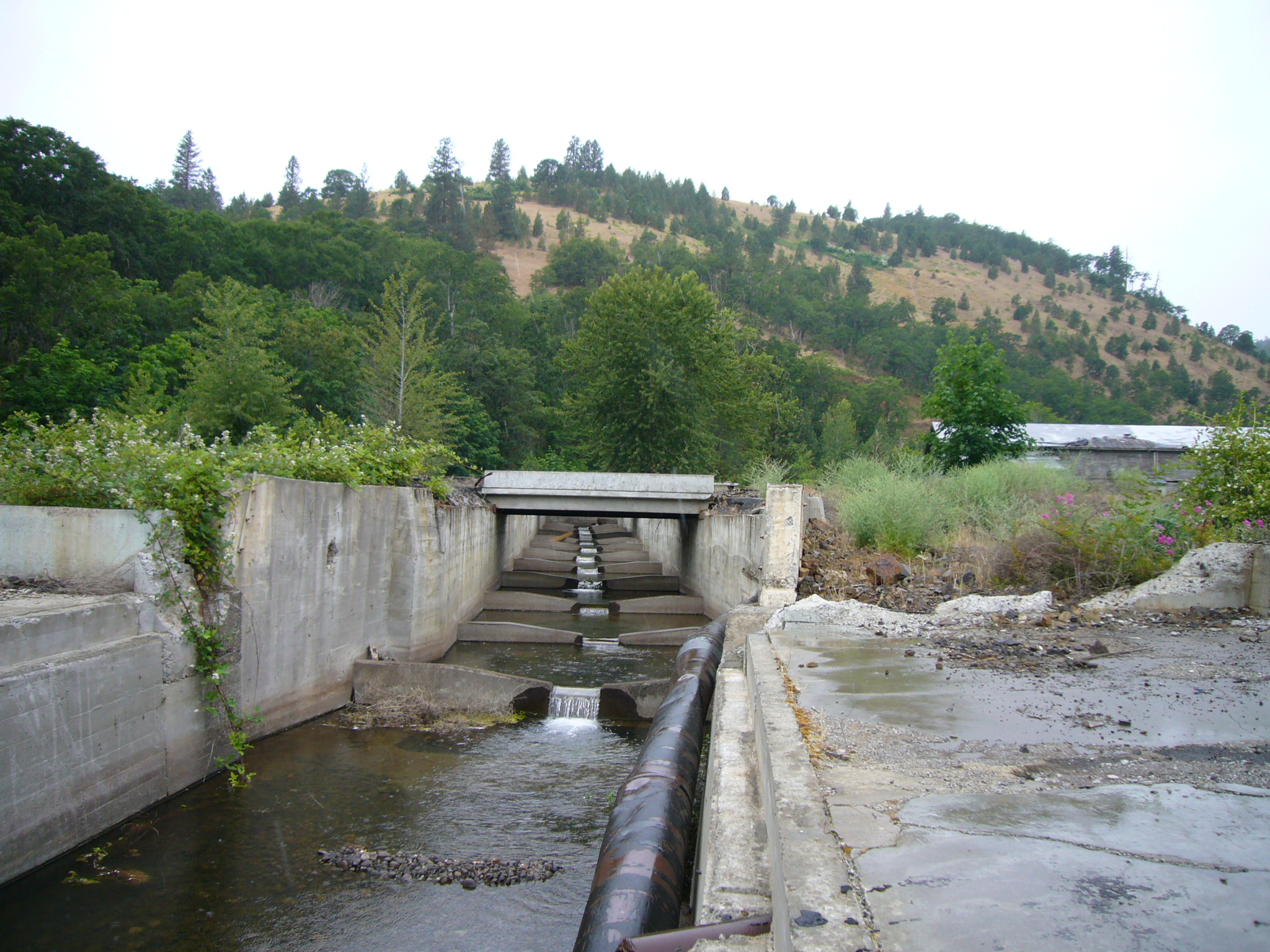

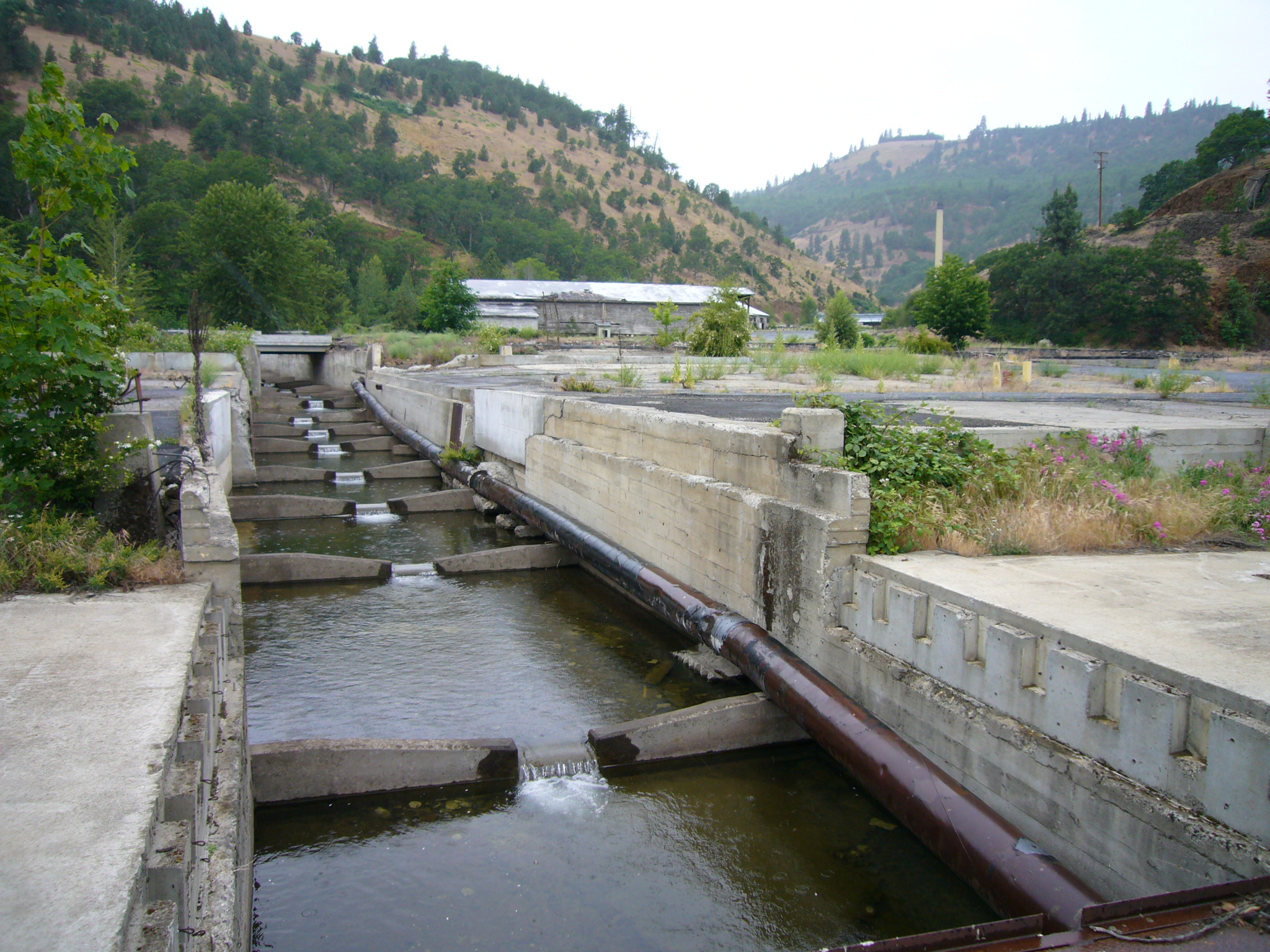

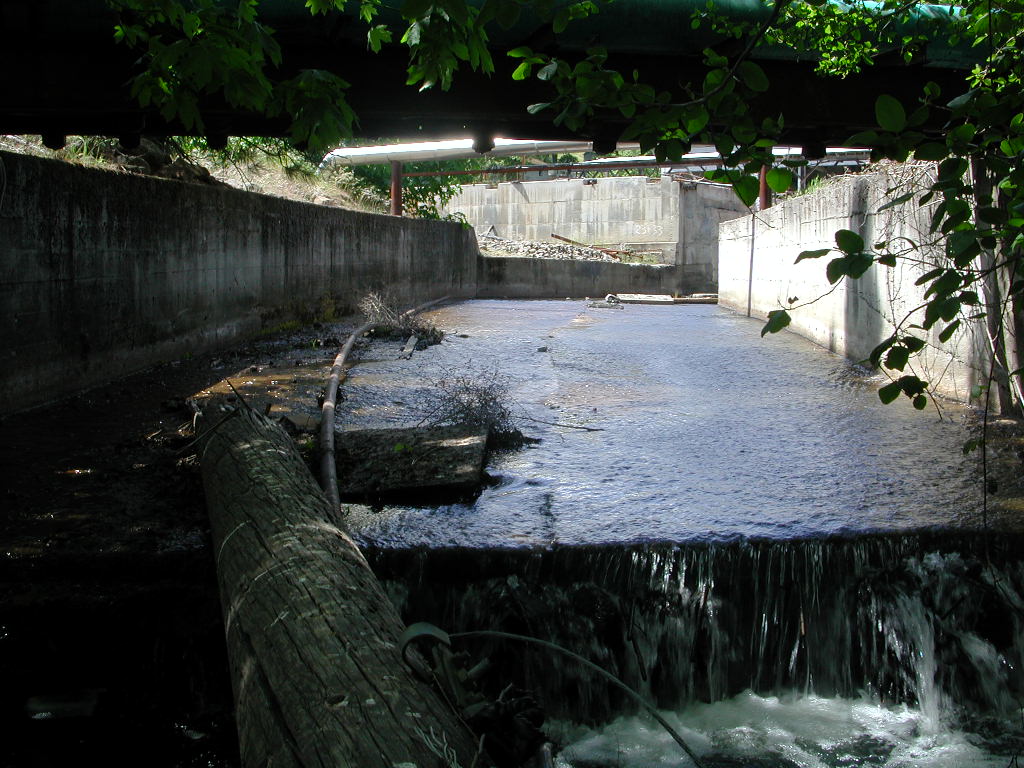

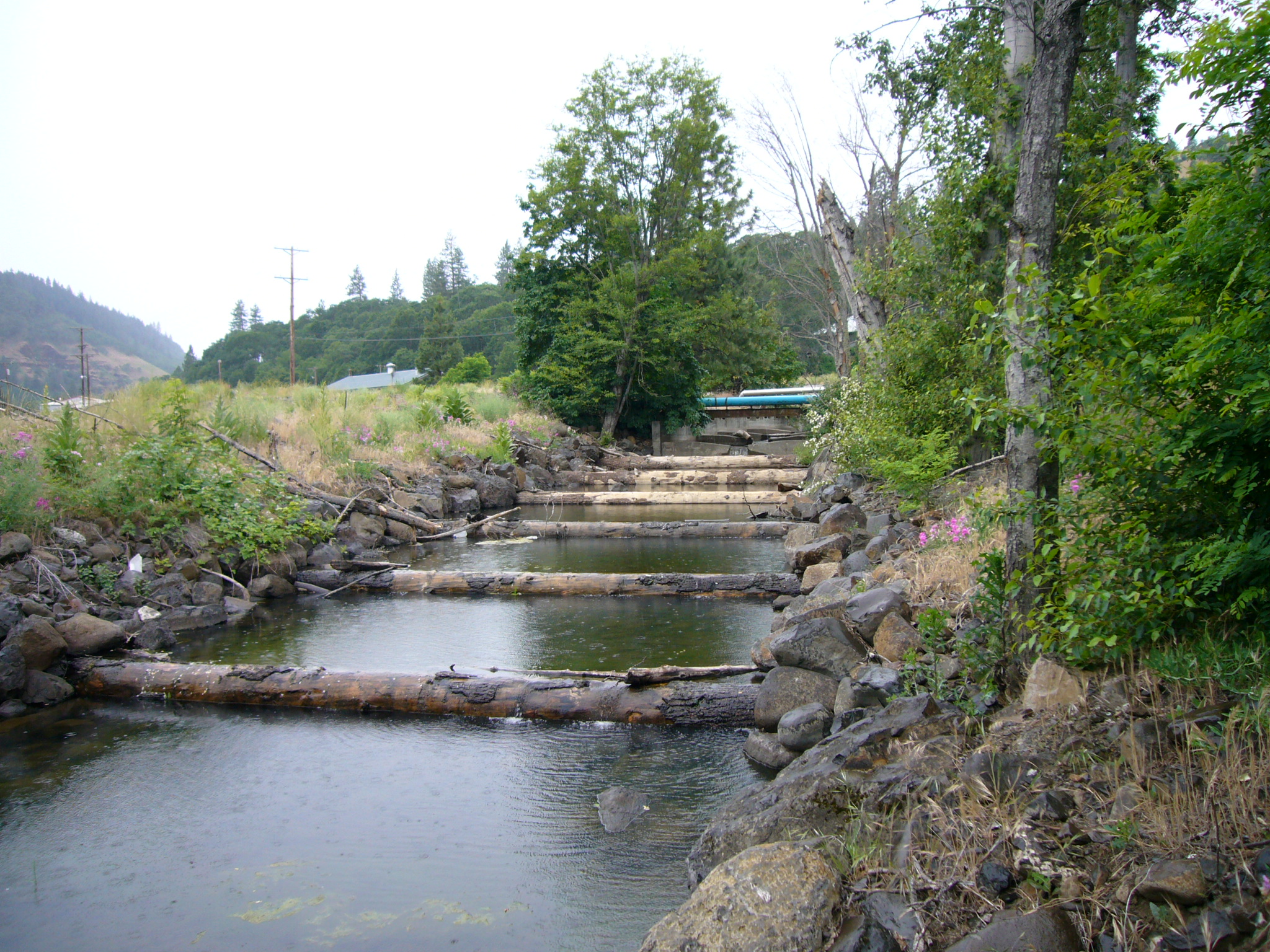

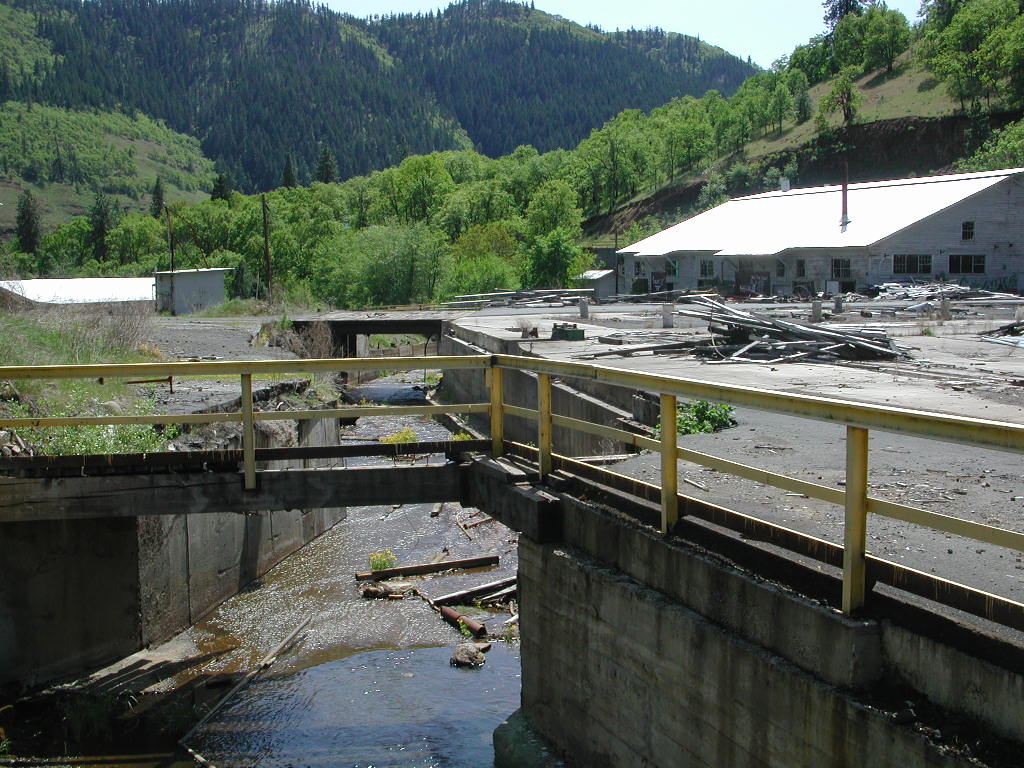

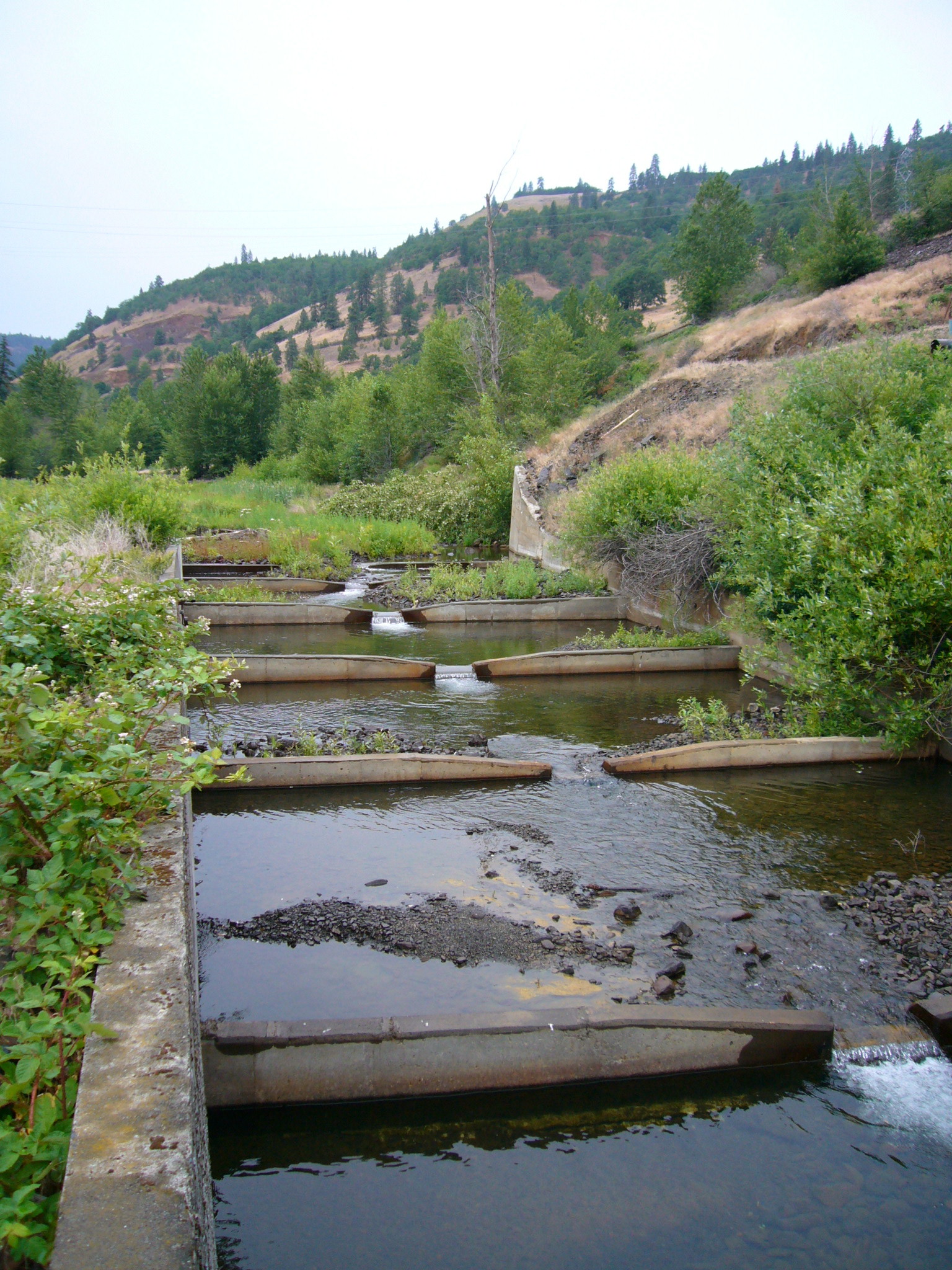

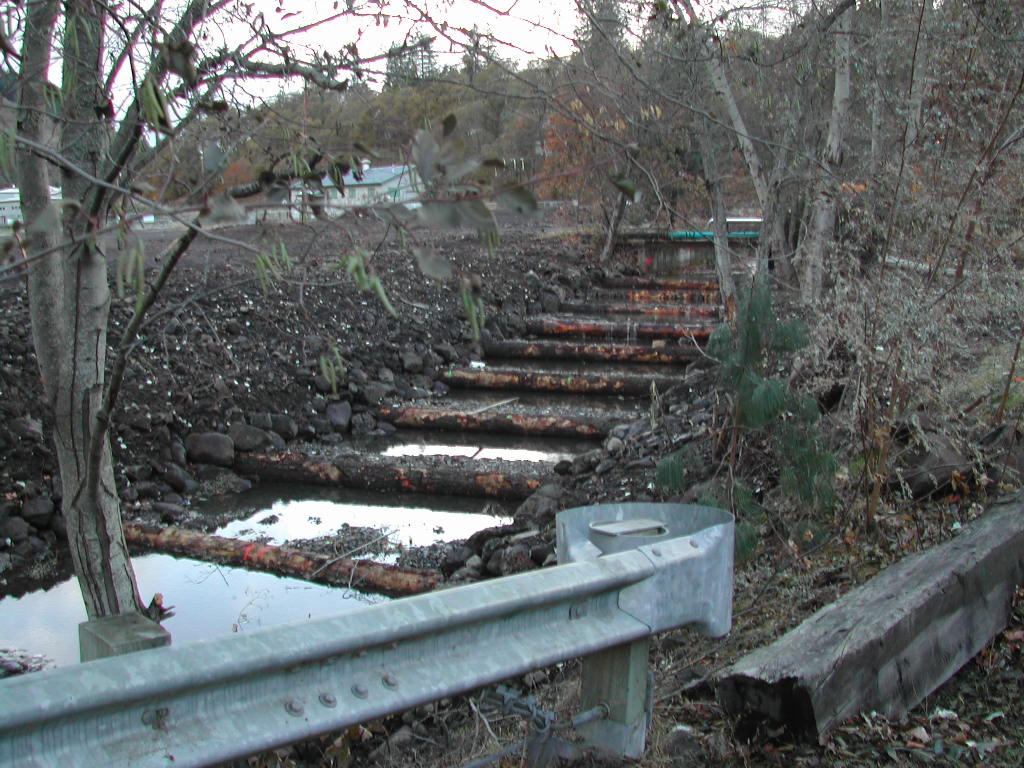

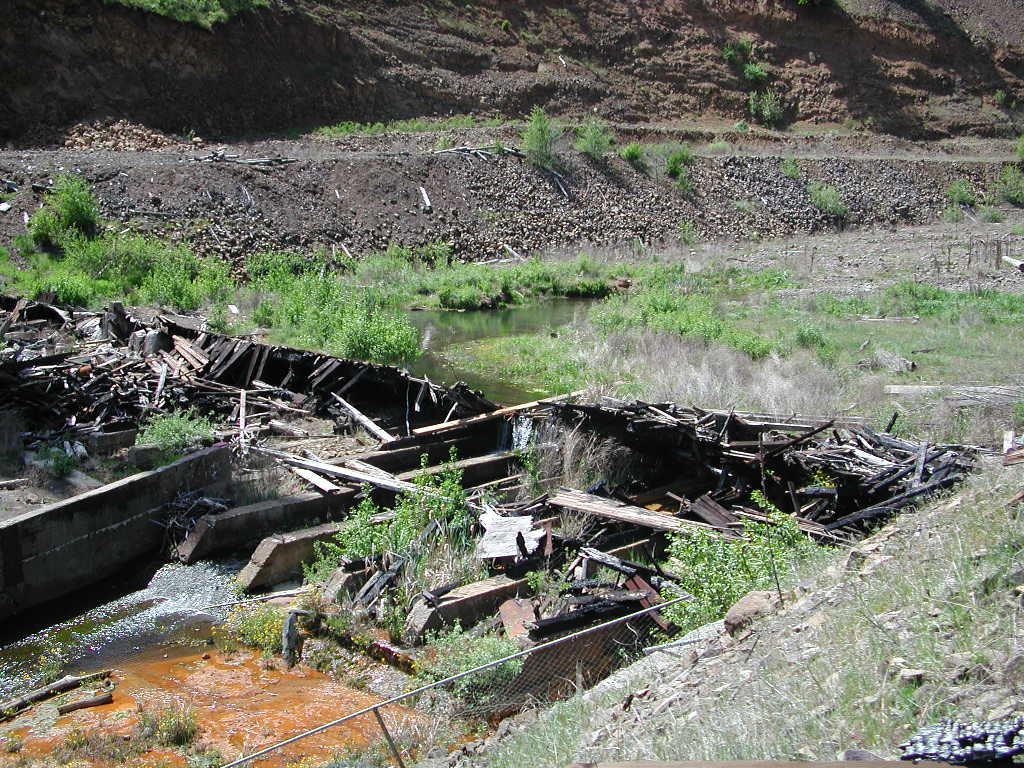

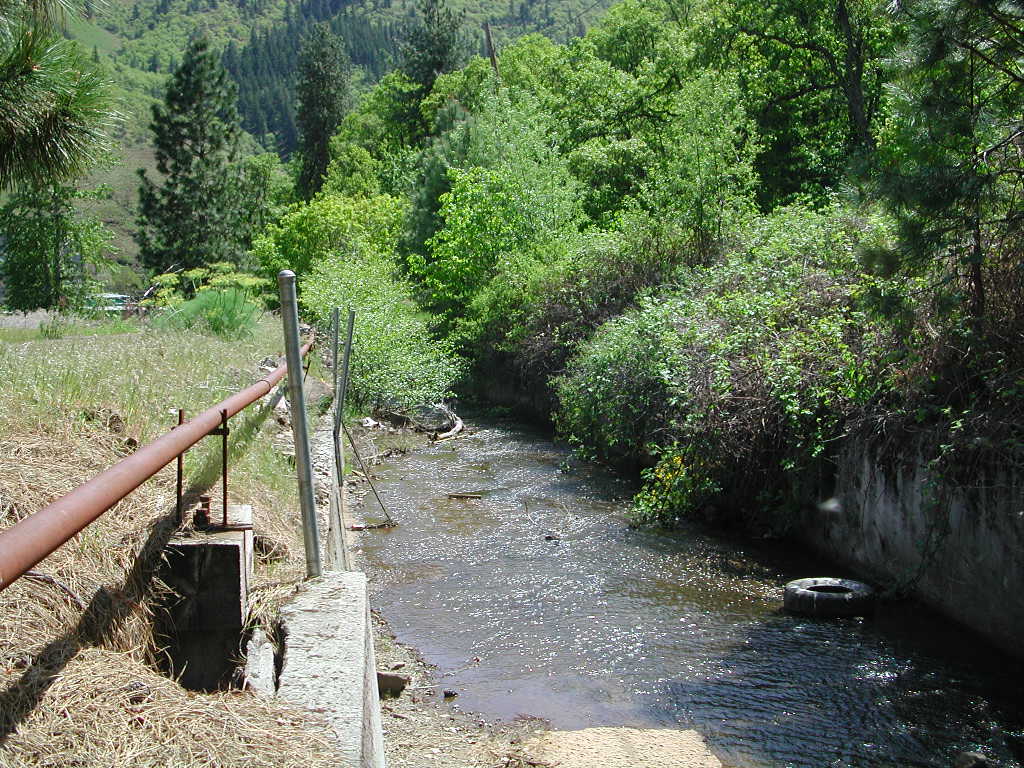

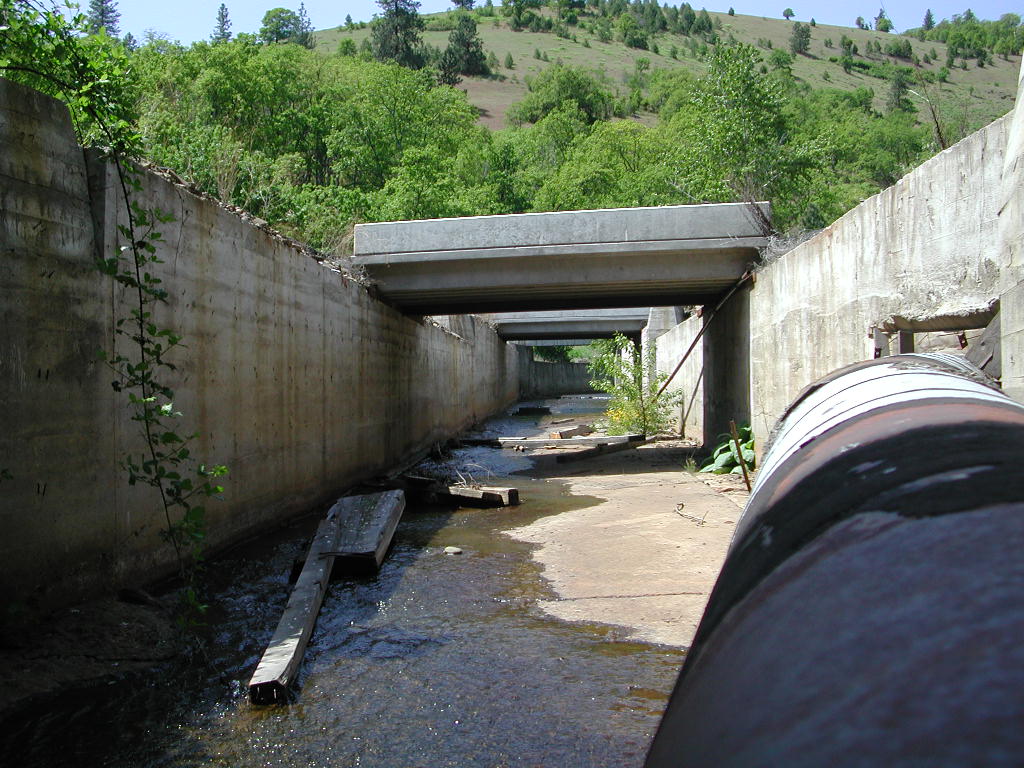

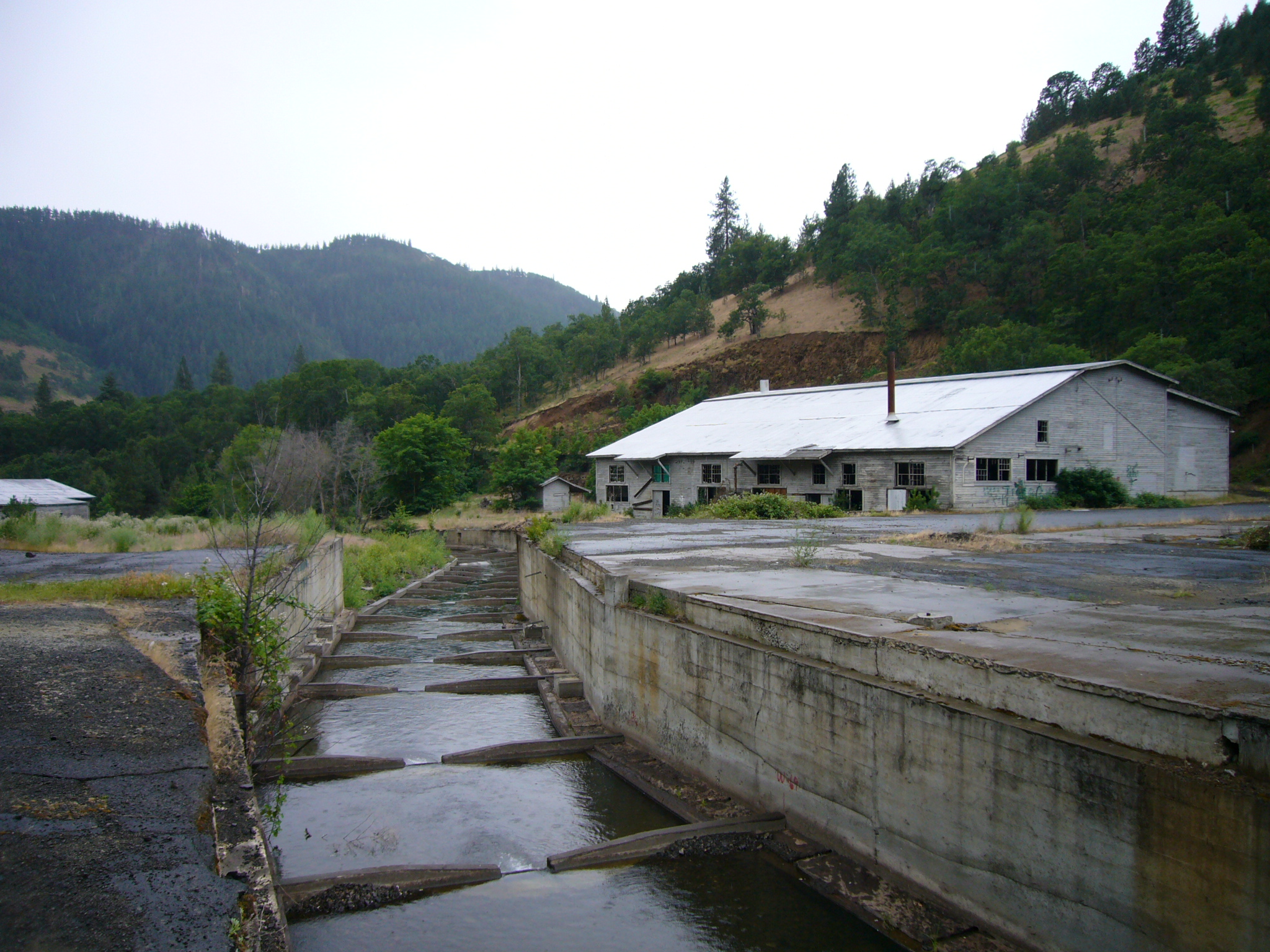

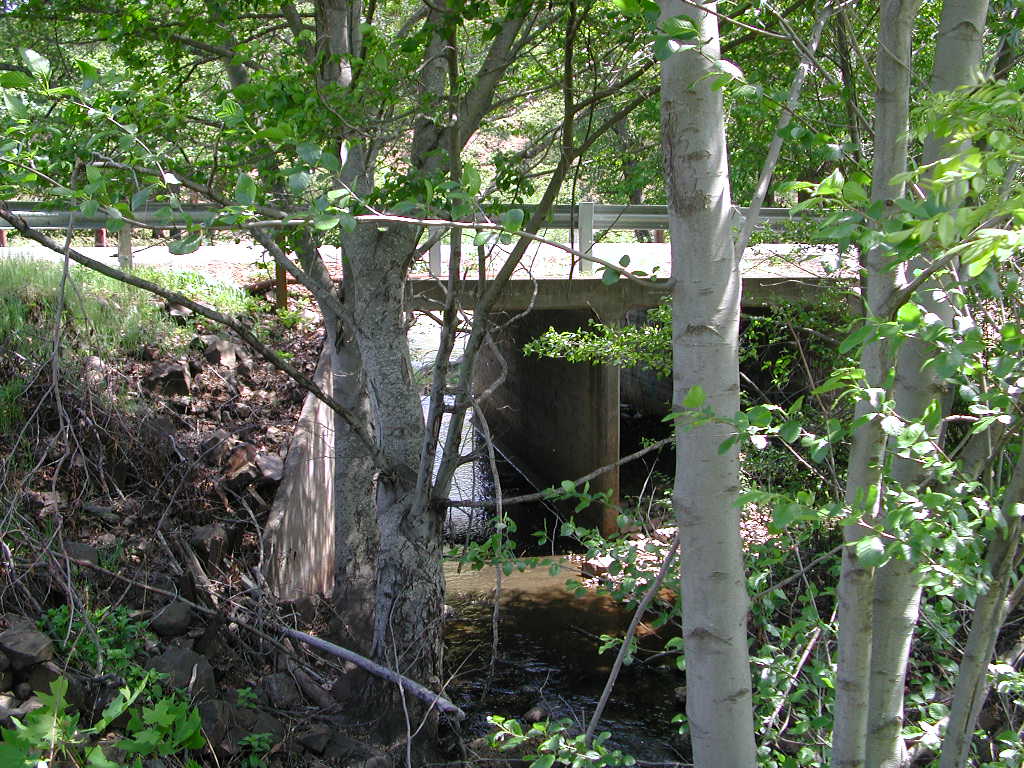

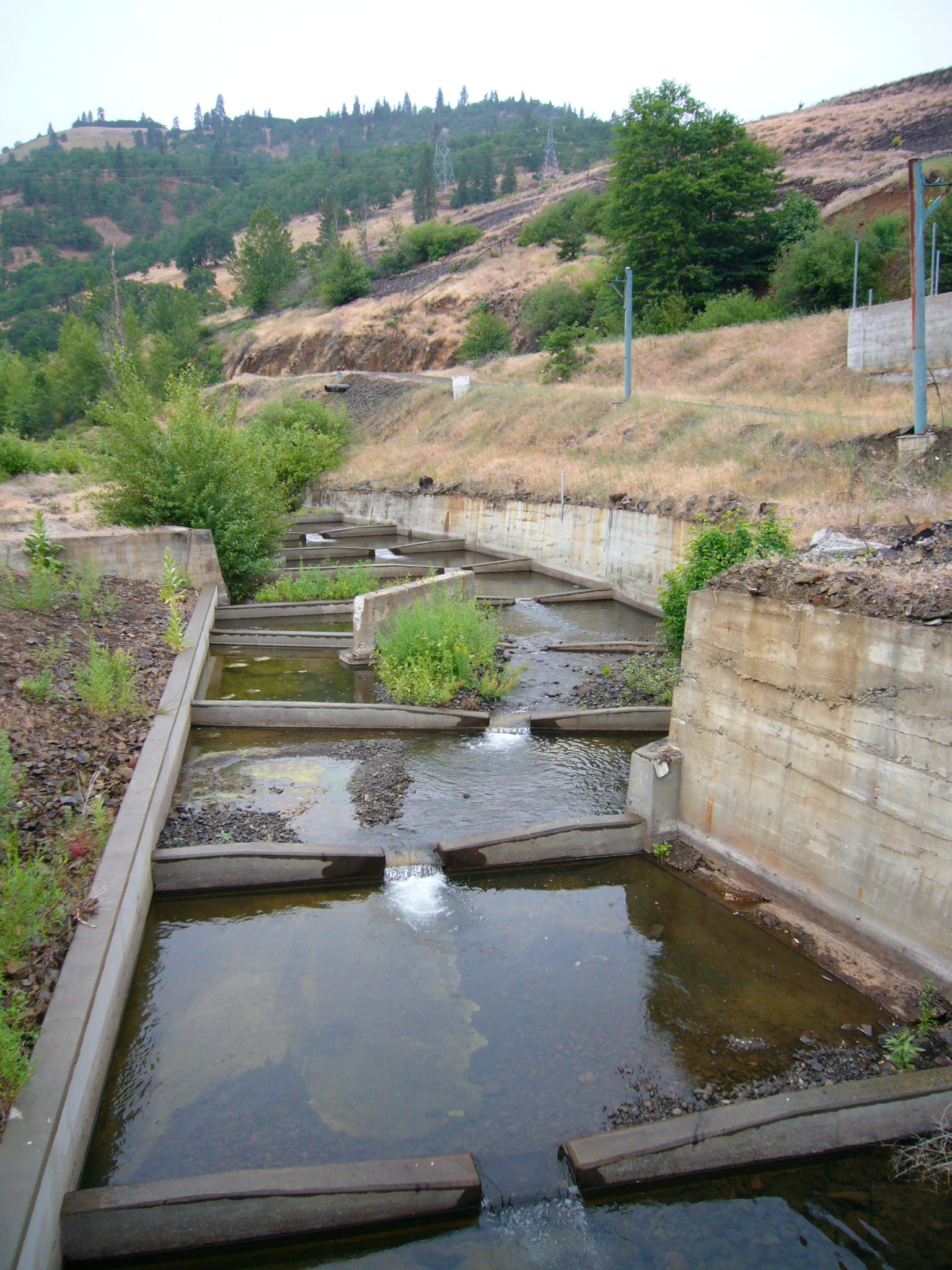

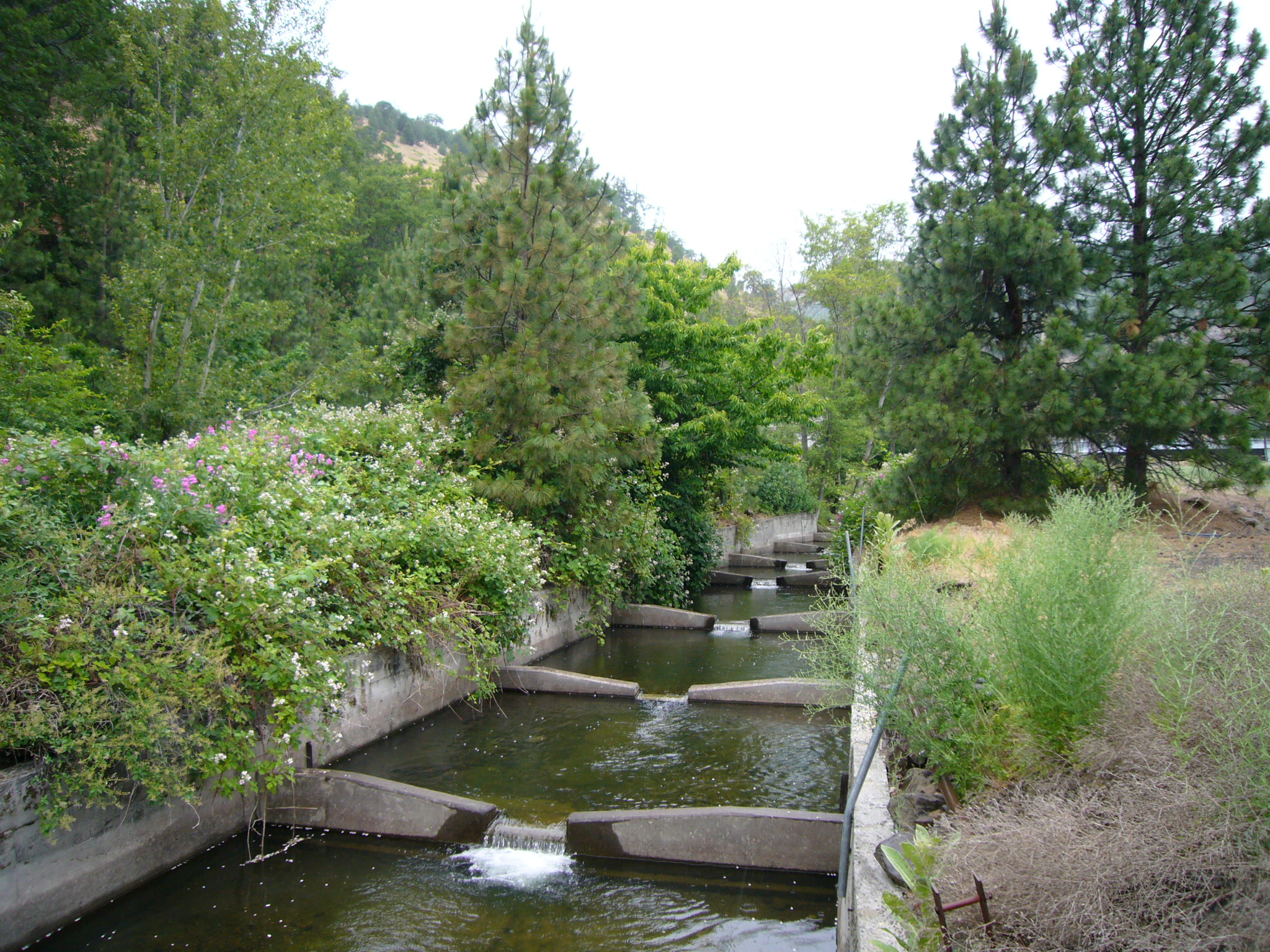

Since Champion International sold their mill in Klickitat, Washington, biologists have been planning various strategies to allow for fish passage into upper Snyder Creek. Currently, one mile of the lower Snyder Creek remains a cement flume. Now, there is an opportunity to re-establish Snyder Creek's natural stream channel to allow for native steelhead passage. The new owner of the mill is "fish-friendly," and is presently working with a number of agencies and the Yakamas to restore and enhance the site. The objective of this project is to re-establish steelhead and coho salmon populations in Snyder Creek, while also providing rearing and spawning habitat. Elements of the project include installation of metal baffles at various points along Snyder Creek to provide velocity breaks. Also, construct a plunge pool at the mill dam pond to allow for fish passage above the pond and to plant native vegetation to provide bank stabilization at the pond site. NRCS and Americorps are currently surveying the concrete plume to determine where the baffles should be placed. WDFW has performed the engineering on the entire passage project, while Klickitat High School students will become involved with the monitoring component of the project.
|
|
Waterbody:
|
|
Klickitat River, Snyder Creek
|
|
County:
|
|
Klickitat
|
|
Legislative District:
|
|
14
|
|
Congressional District 2022:
|
|
04
|
|
Salmon Recovery Regions:
|
|
Middle Columbia River
|
|
Watershed Administrative Unit:
|
|
Snyder Canyon
|
|
HUC8:
|
|
Klickitat (17070106)
|
|
WRIA:
|
|
Klickitat
|
|
Sections:
|
|
23
|
|
Township:
|
|
T04NR13E
|
|
Coordinates:
|
|
45.81985926
-121.14955572
|
|
|
| Worksite Name | Scope of Work | Actual Restoration Cost |
|
Snyder Creek (#1)
|
Architectural & Engineering (A&E), Channel structure placement (C.4.d.1), Culvert installed or improved (C.2.f.1), Fish passage blockages removed or altered (C.2.c.1), Other restoration activities, Restored land maintained (C.11.c.1), Road-crossing removal (C.2.i.1)
|
$3,430
|
| | Total | $3,430 |
Amounts may not be complete
| Worksite Name | | Property Name | Landowner Type |
|
Snyder Creek (#1)
|
|
Property 1 - Property - Worksite #1
|
|
| | | | Total |
Amounts may not be complete
| | Category / Work Type / Metric | Final |
Restoration Metrics (rolled up from Worksite level) |
Fish Passage Improvement |
| Fish passage blockages removed or altered (C.2.c.1) |
|
|
Number of Blockages/Impediments/Barriers Removed/Altered (C.2.c.2)
|
3
|
| Road-crossing removal (C.2.i.1) |
|
|
Miles of stream made accessible by road crossing removal (C.2.i.3)
|
3.80
|
| |
|
|
Number of blockages / impediments / barriers impeding passage (C.2.b.4)
|
3
|
| Milestone Name | Target Date | Description |
|
Project Start
|
05/01/1999
|
|
|
Estimated Billing Schedule
|
06/01/1999
|
|
|
Design & Engineering Complete
|
06/01/1999
|
|
|
Permits Complete
|
10/01/1999
|
|
|
Plans Reviewed by Mgmt Agy
|
06/01/2003
|
|
|
Bid Awarded
|
07/15/2003
|
|
|
Construction Started
|
07/30/2003
|
|
|
100% Construction Complete
|
06/30/2004
|
|
|
Agreement End Date
|
06/30/2004
|
|
|
Final Docs/Billing to Mgmt Agy
|
07/31/2004
|
|
