Simmons Creek Restoration
|
Underwood Conservation Dist; Simmons Creek Restoration (#07-1722)
Attachment #47242, Simmons Creek 4 small
|
|
|
|
|

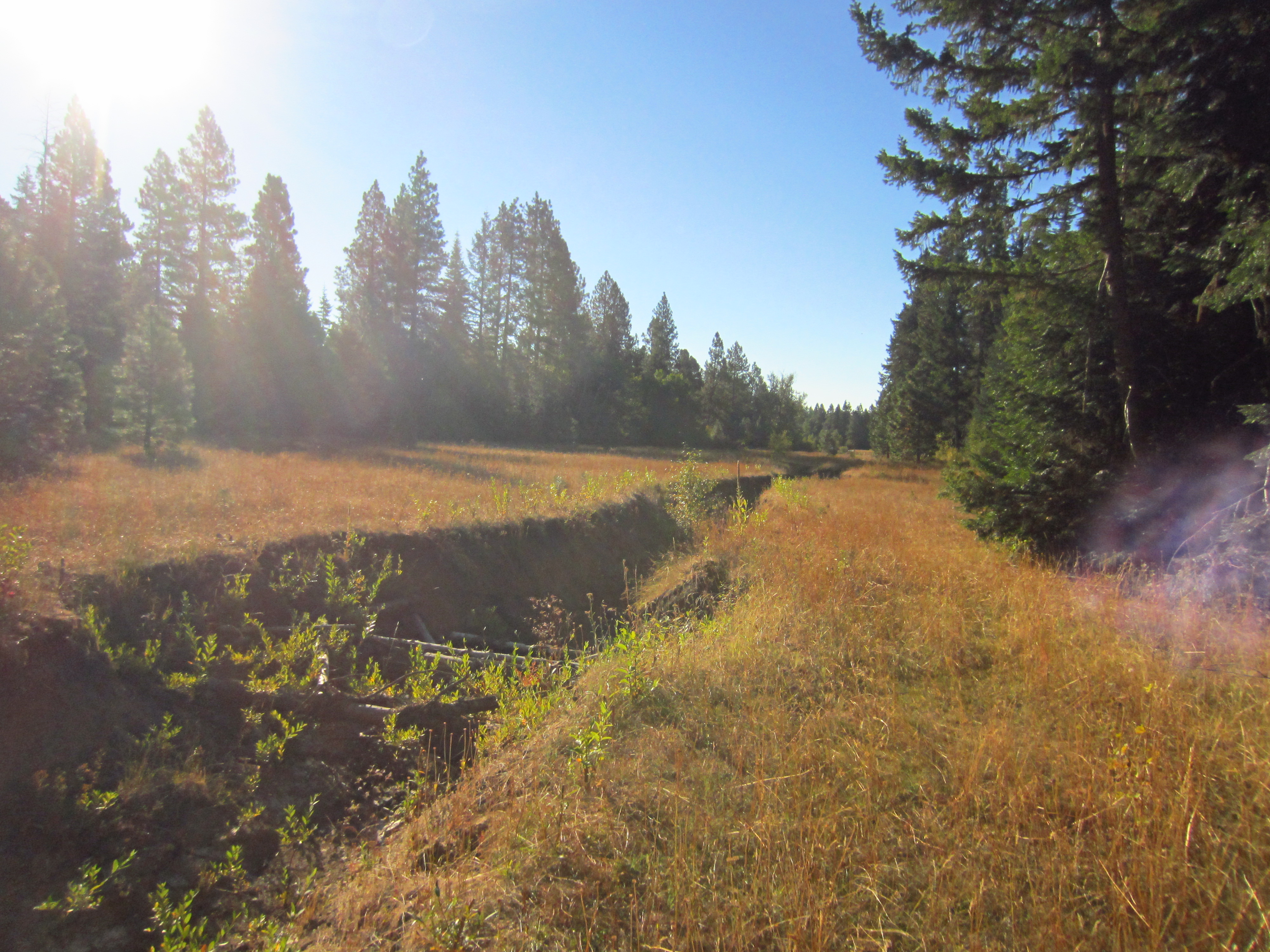

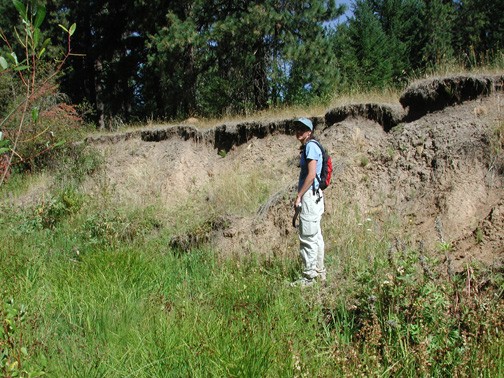

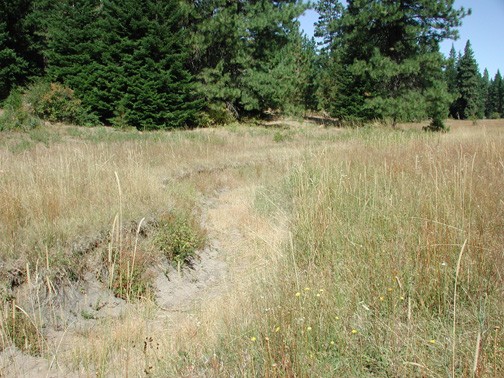

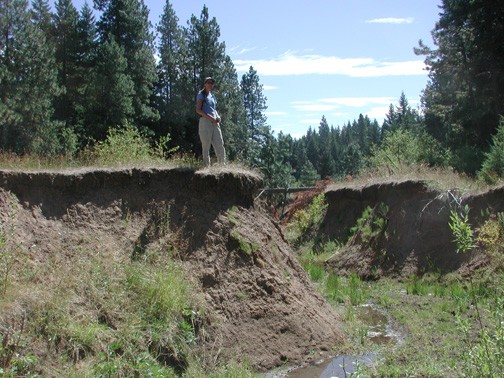

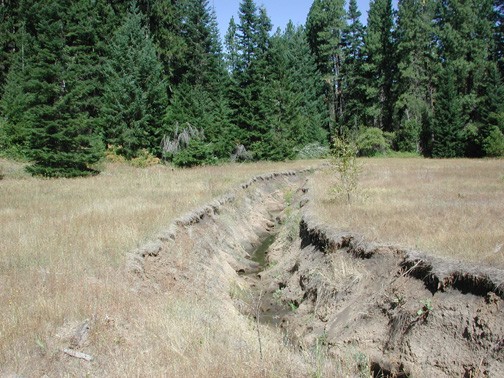

This project is located on Simmons Creek. The upper reaches of Simmons Creek are located on a relatively flat plateau with deep, fine-grained soils. At least a 6,600 linear foot length of the stream is moderately to deeply incised. The condition is probably due to a combination of historic agricultural clearing and ditching and past intensive grazing. Erosion and downcutting occurs in these streams during high flows, as water is unable to spread onto the floodplain. Rapid runoff results in poor groundwater recharge, exacerbating low, warm summer flows in downstream reaches of Snyder Creek, which contains spawning and rearing habitat for ESA-listed Middle Columbia steelhead.

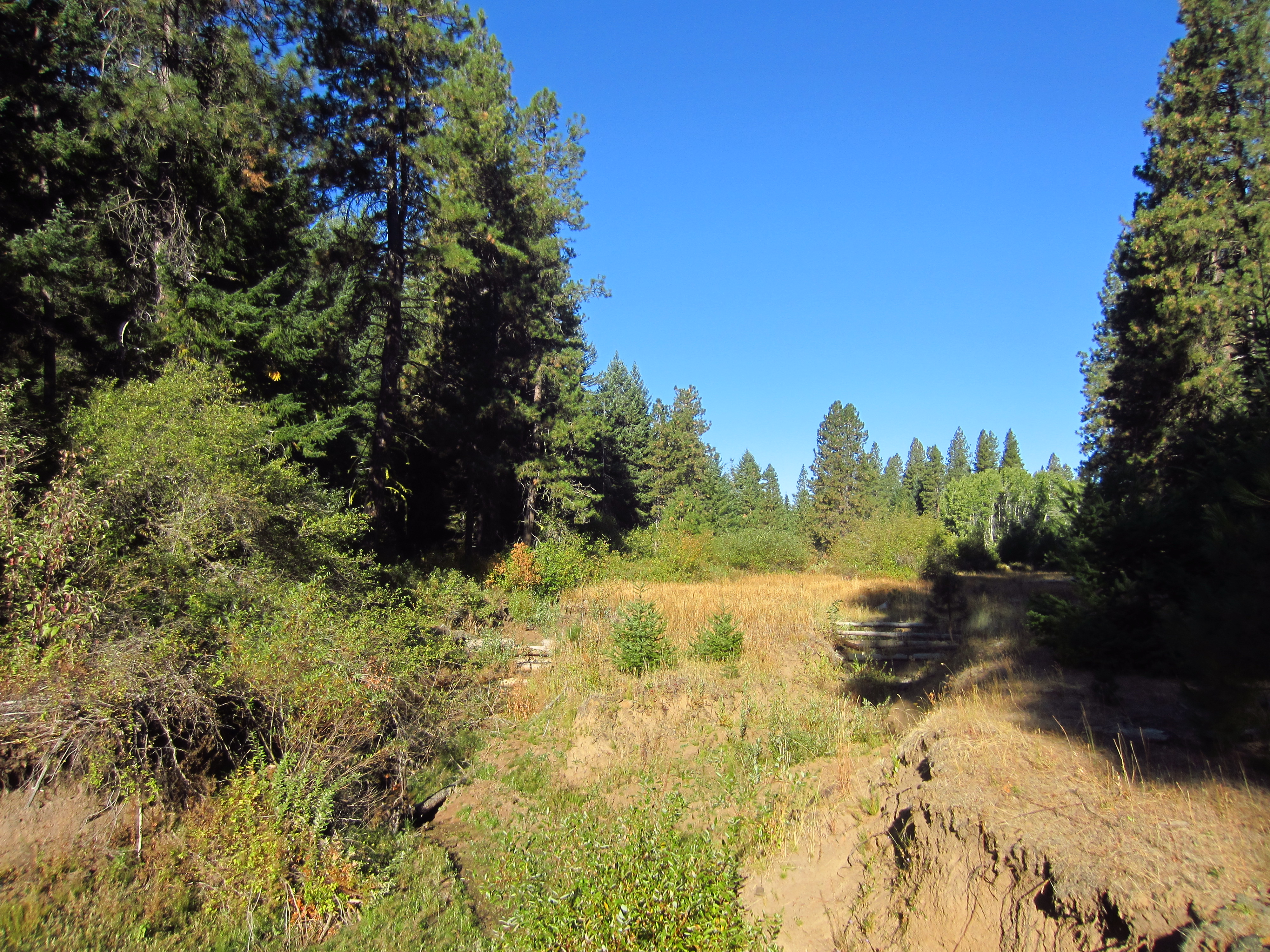

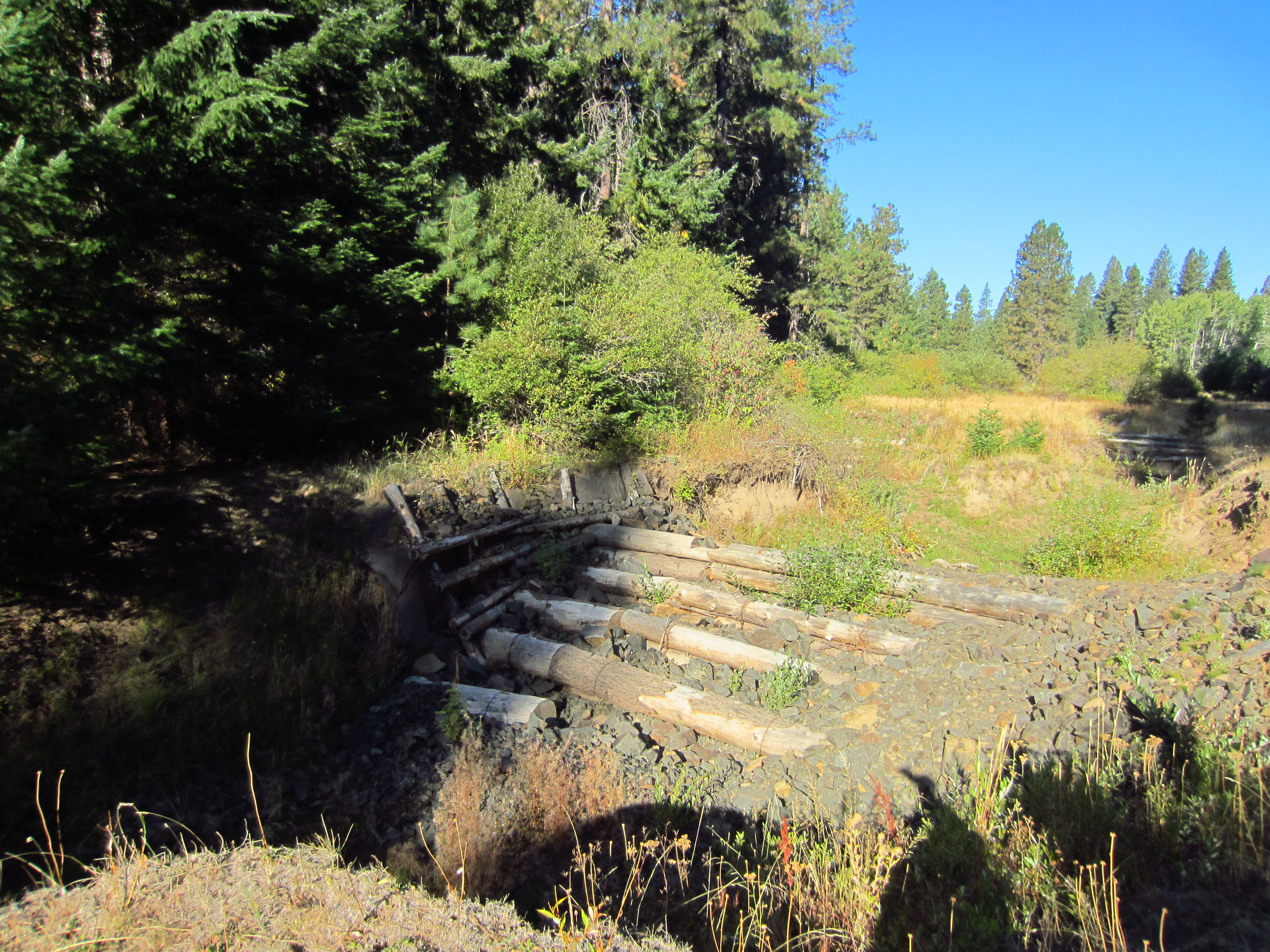

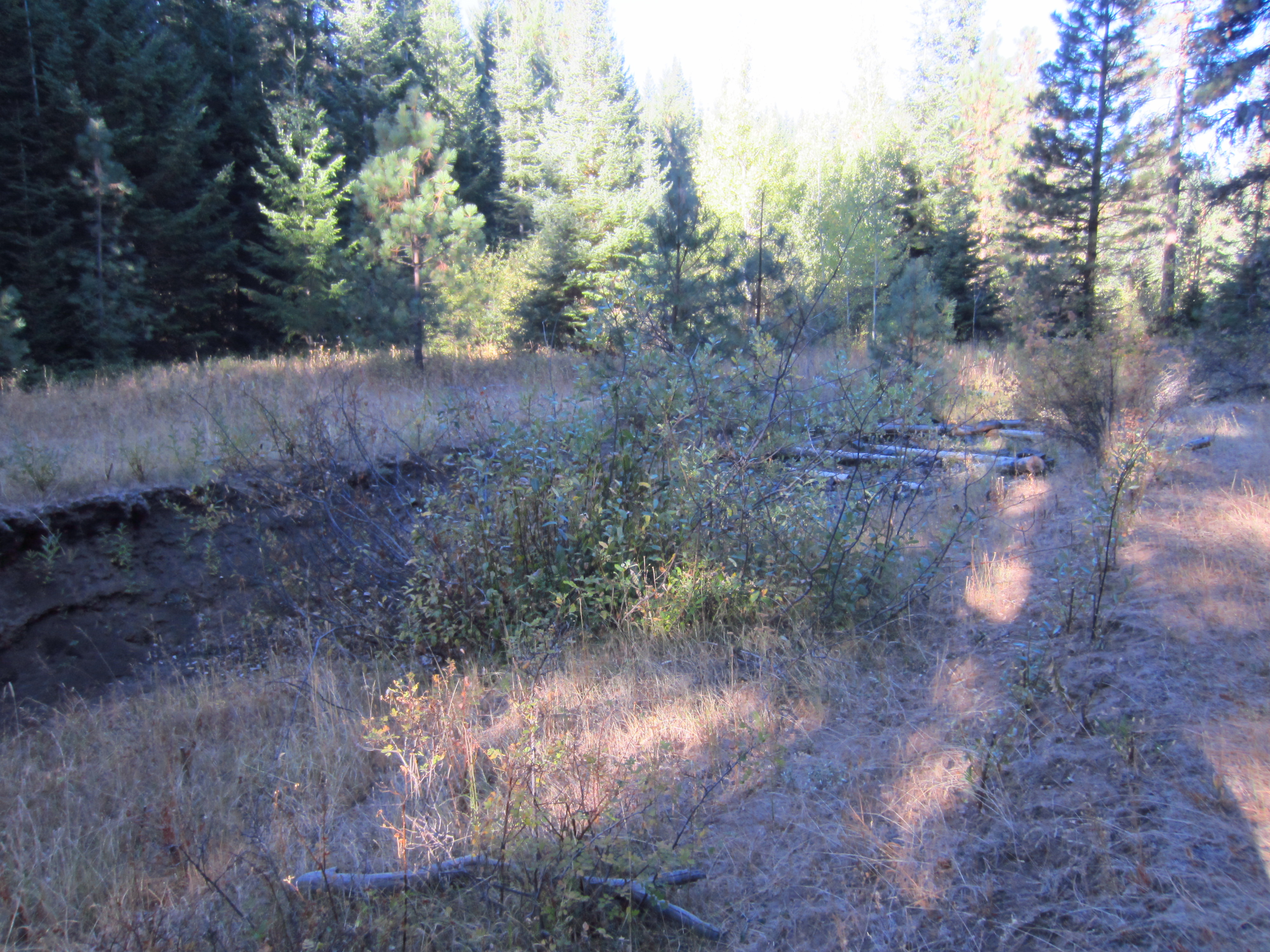

The proposal is to build approximately 40-50 channel roughness/sediment capture structures and off-stream cattle watering systems within the 6,600 linear foot stream segment of Simmons Creek. Structure installation will be accomplished under the guidance of the District Engineer and WDFW’s Integrated Streambank Protection Guidelines. Riparian plantings of willow, black cottonwood, and other species will be included. The objective is to use wood, vegetation, and small rock to add channel roughness, stabilize eroding banks, increase groundwater recharge, reduce downstream sedimentation, and increase summer flows in downstream salmonid habitat.
A rapid assessment will be conducted to evaluate sediment budget in the area which will lead to future projects in the basin.
|
|
General Area:
|
|

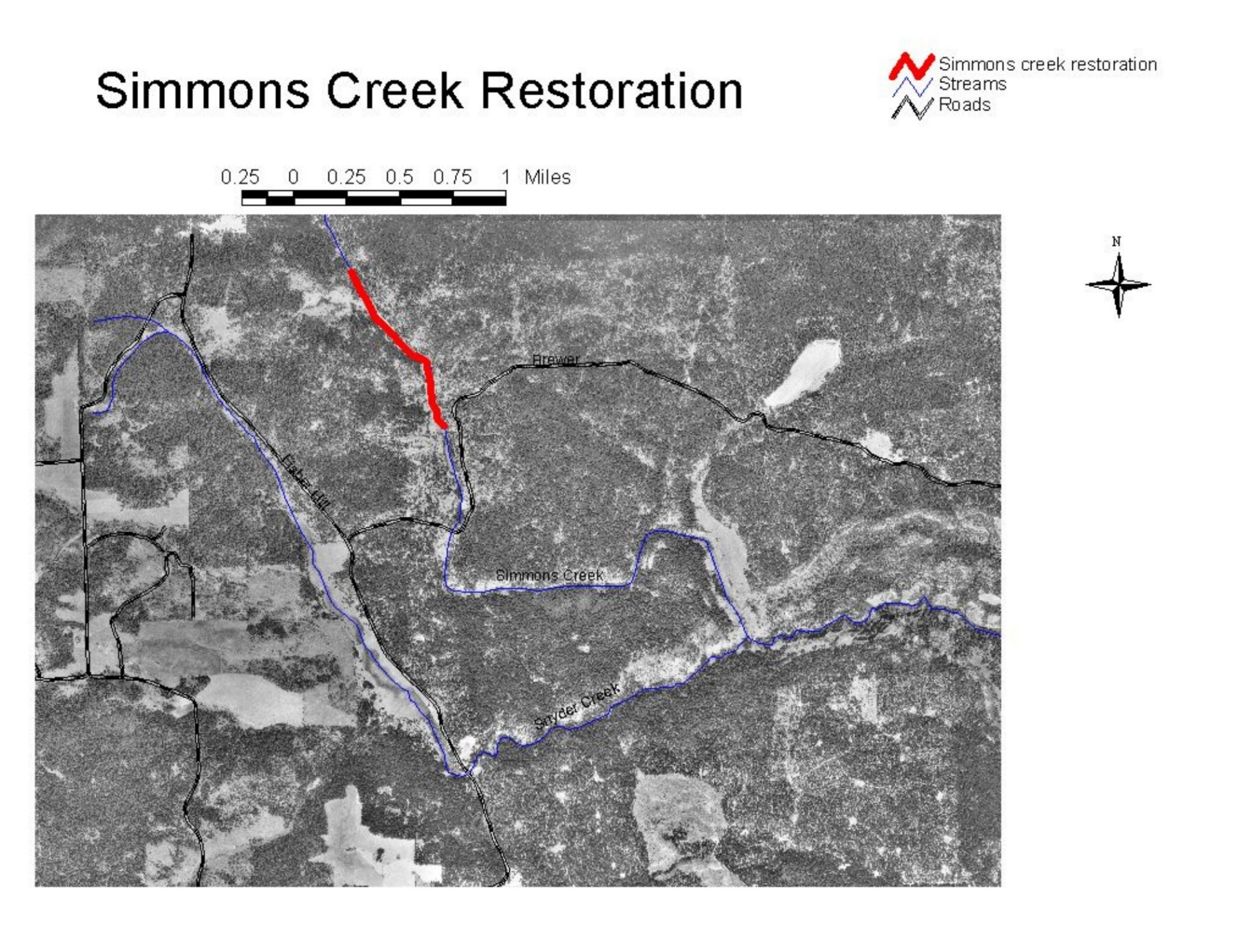

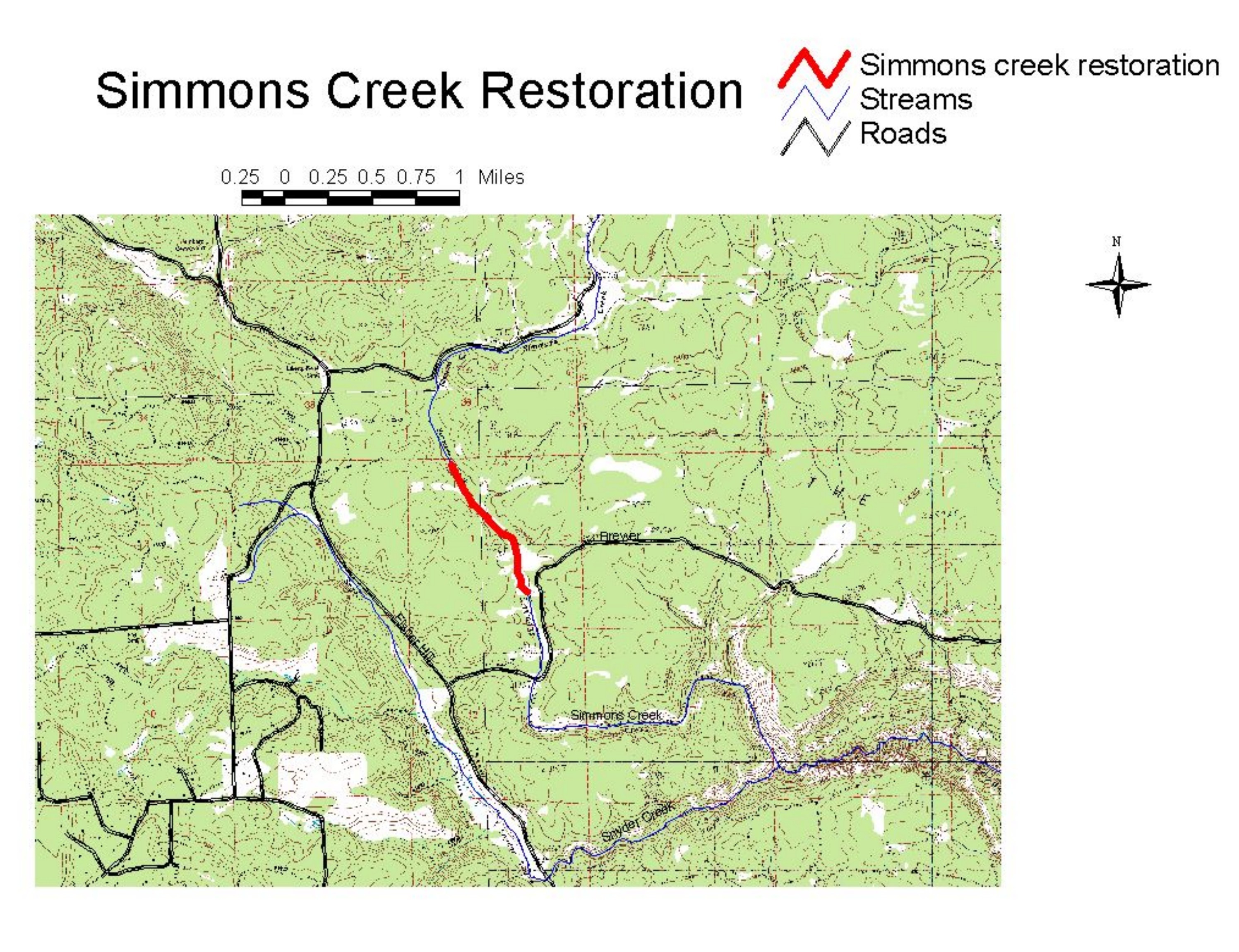

This project is located on Simmons Creek, which feeds Snyder Creek, a tributary of the Klickitat River
|
|
Waterbody:
|
|
Simmons Creek, Snyder Creek
|
|
County:
|
|
Klickitat
|
|
Legislative District:
|
|
17
|
|
Congressional District 2022:
|
|
04
|
|
Salmon Recovery Regions:
|
|
Middle Columbia River
|
|
Watershed Administrative Unit:
|
|
Snyder Canyon
|
|
HUC8:
|
|
Klickitat (17070106)
|
|
WRIA:
|
|
Klickitat
|
|
Sections:
|
|
01
|
|
Township:
|
|
T04NR12E
|
|

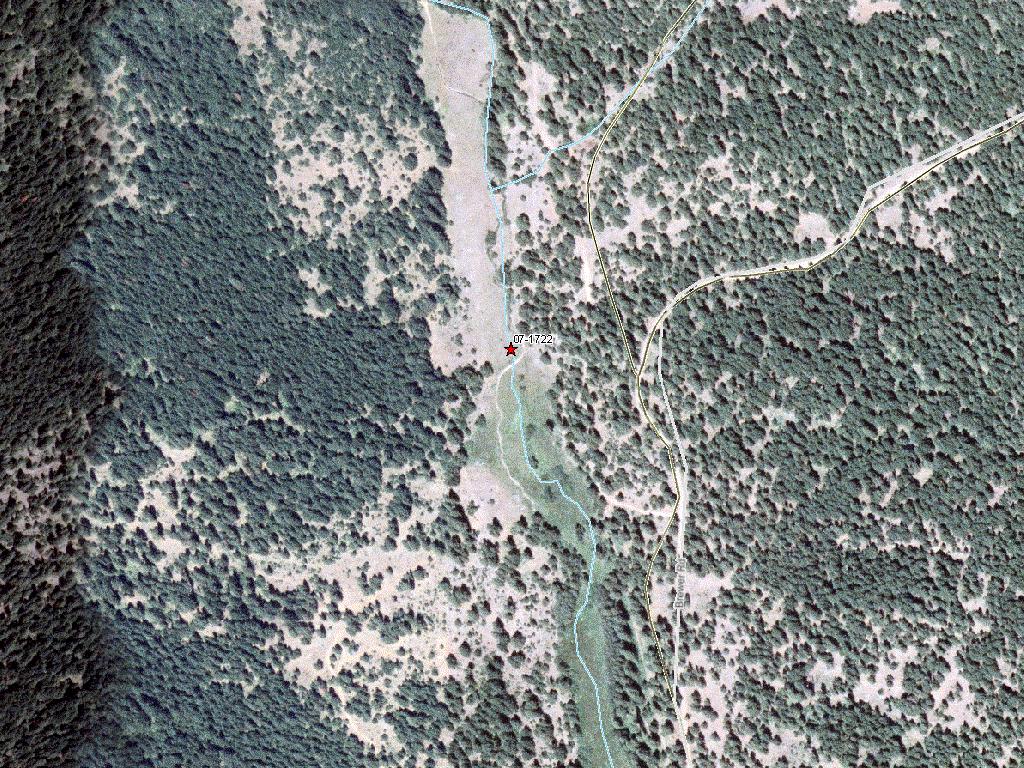

Coordinates:
|
|
45.85924392
-121.24658083
|
|
|
| Worksite Name | Scope of Work | Actual Restoration Cost |
|
Simmons Creek (#1)
|
Architectural & Engineering (A&E), Channel structure placement (C.4.d.1), Other restoration activities, Planting (C.5.c.1), Riparian Plant removal / control (C.5.h.1), Water gap development (C.5.f.1)
|
$155,224
|
| | Total | $155,224 |
Amounts may not be complete
| Worksite Name | | Property Name | Landowner Type |
|
Simmons Creek (#1)
|
|
Property 1 - Hancock Forest Mgt - Simmons Creek
|
Private
|
| | | | Total |
Amounts may not be complete
| | Category / Work Type / Metric | Final |
Restoration Metrics (rolled up from Worksite level) |
Instream Habitat Project |

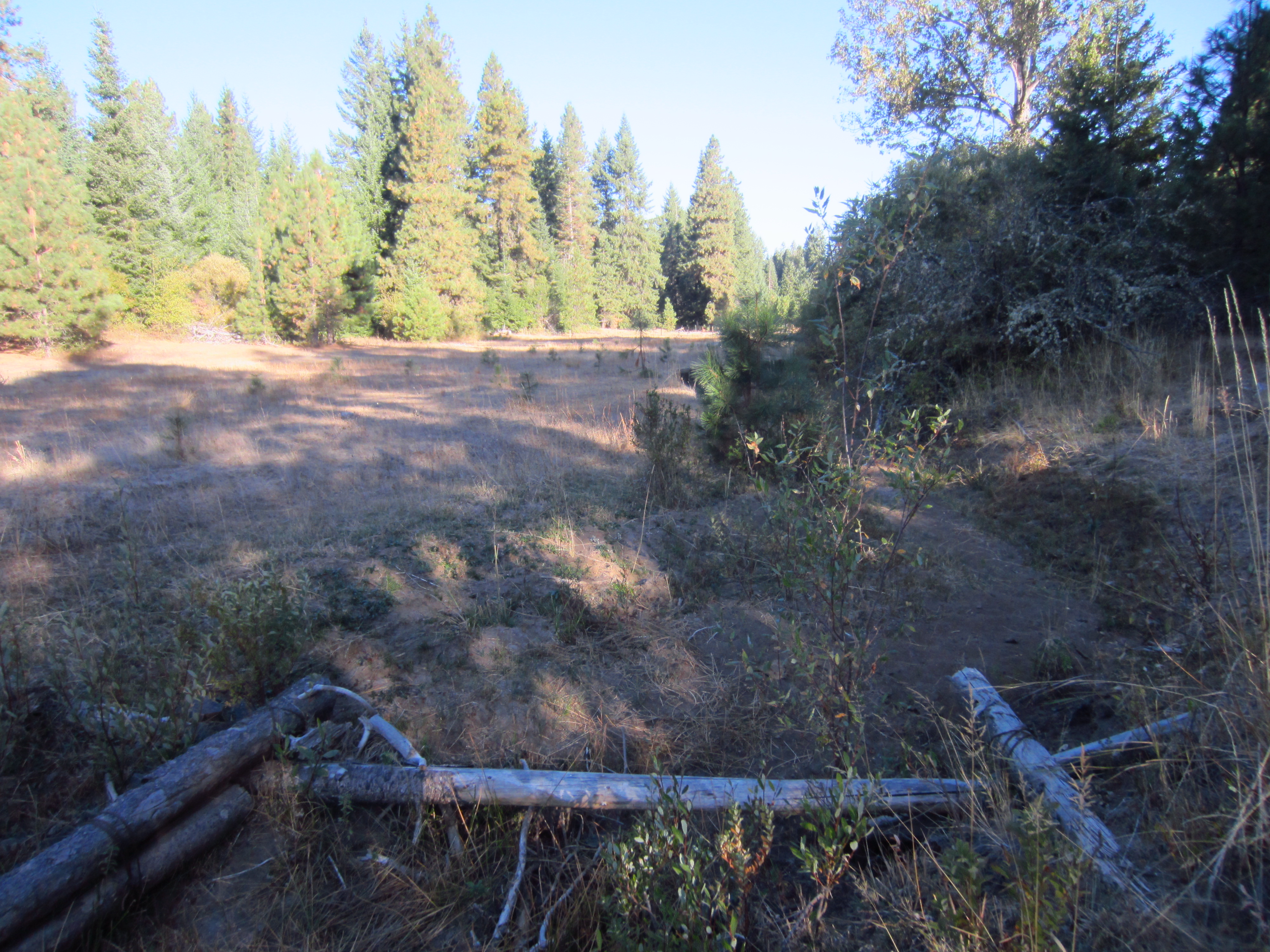

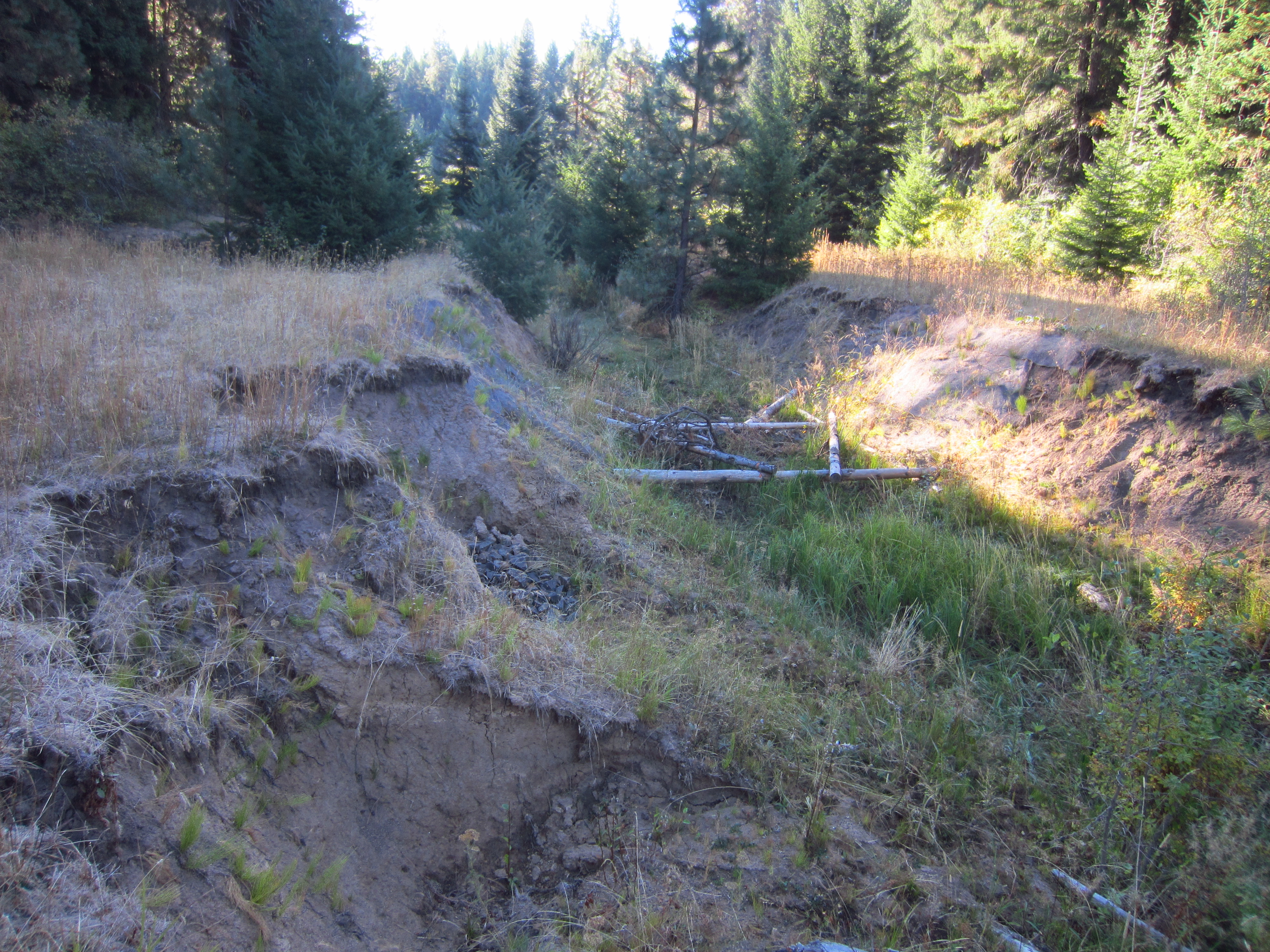

| Channel structure placement (C.4.d.1) |
|
|
Miles of Stream Treated for channel structure placement (C.4.d.3)
|
0.65
|
|
|
Acres Of Streambed Treated for channel structure placement (C.4.d.4)
|
2.4
|
|
|
Pools Created through channel structure placement (C.4.d.5)
|
20
|
|
|
Number of structures placed in channel (C.4.d.7)
|
20
|
Riparian Habitat Project |
| Planting (C.5.c.1) |
|
|
Acres Planted in riparian (C.5.c.3)
|
3.0
|

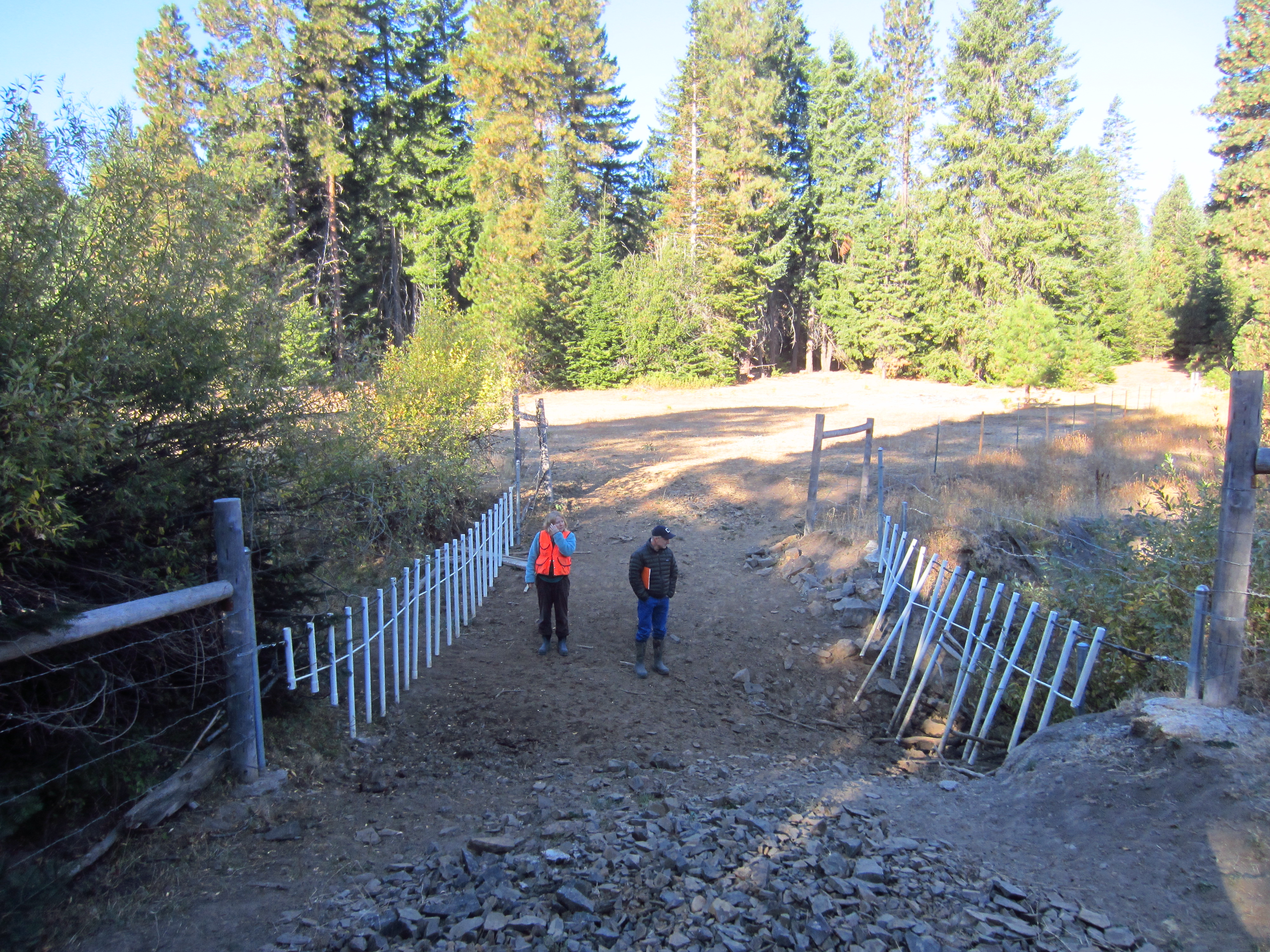

| Water gap development (C.5.f.1) |
|
|
Number of water gap installations (C.5.f.2)
|
1
|
| Riparian Plant removal / control (C.5.h.1) |
|
|
Acres of riparian treated for plant removal/control (C.5.h.3)
|
0.1
|
| Milestone Name | Target Date | Description |
|
Project Start
|
01/02/2008
|
|
|
RFP Complete
|
05/31/2008
|
to hire small excavator
|
|
Annual Project Billing Due
|
07/31/2008
|
|
|
Special Conditions Met
|
07/31/2008
|
Ensure compliance with EO 05-05 before construction begins.
|
|
Applied for Permits
|
02/28/2009
|
|
|
Bid Awarded/Consultant Hired
|
07/15/2009
|
to hire small excavator
|
|
Construction Started
|
07/15/2009
|
when permits allow
|
|
Annual Project Billing Due
|
07/31/2009
|
|
|
Construction Complete
|
10/01/2009
|
|
|
Annual Project Billing Due
|
07/31/2010
|
|
|
Annual Project Billing Due
|
07/31/2011
|
|
|
Monitor/Steward Plan Submitted
|
06/01/2012
|
including additional required assessment
|
|
Special Conditions Met
|
06/01/2012
|
Additional required assessment work
|
|
Agreement End Date
|
06/01/2012
|
|
|
Final Docs/Billing to Mgmt Agy
|
08/01/2012
|
|
