Tepee Creek Fish Passage Restoration
|
Yakama Nation; Tepee Creek Fish Passage Restoration (#04-1716)

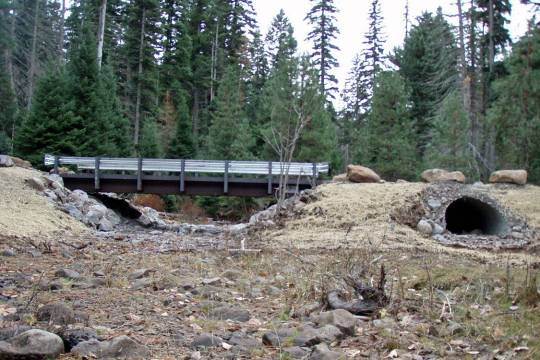

Attachment #153220, White Creek - IXL Road after
|
|
|
|
|
|
Tepee Creek, a tributary to White Creek in the Klickitat River subbasin, provides important spawning and rearing habitat for ESA-listed Mid Columbia River steelhead. The White Creek watershed as a whole is likely the most important spawning and rearing tributary watershed within the Klickitat subbasin. In recent years, the White Creek watershed has accounted for up to 40% of the observed steelhead spawning in the entire Klickitat subbasin. Tepee Creek has accounted for up to 21% of the observed spawning in the Klickitat subbasin in recent years, however in most years it likely accounts for between 5% and 10%. This project will replace 3 partial barriers to restore juvenile access to 8.7 miles of upstream habitat. Because of the very low to nonexistent base flow conditions at many spawning areas, post-emergence movement by steelhead fry and juveniles is critical to their survival. Access to refugia (in the form of perennially-flowing stream reaches or remnant pools in otherwise dry reaches) is necessary for successful rearing within this watershed.
|
|
General Area:
|
|
Tepee Creek, a tributary of White Creek in the Klickitat River subbasin.
|
|
Waterbody:
|
|
East Fork Tepee Creek, Tepee Creek, White Creek
|
|
County:
|
|
Yakima
|
|
Legislative District:
|
|
14
|
|
Congressional District 2022:
|
|
04
|
|
Salmon Recovery Regions:
|
|
Middle Columbia River
|
|
Watershed Administrative Unit:
|
|
Tepee Creek
|
|
HUC8:
|
|
Klickitat (17070106)
|
|
WRIA:
|
|
Klickitat
|
|
Sections:
|
|
14
|
|
Sections:
|
|
22
|
|
Sections:
|
|
27
|
|
Township:
|
|
T08NR14E
|
|

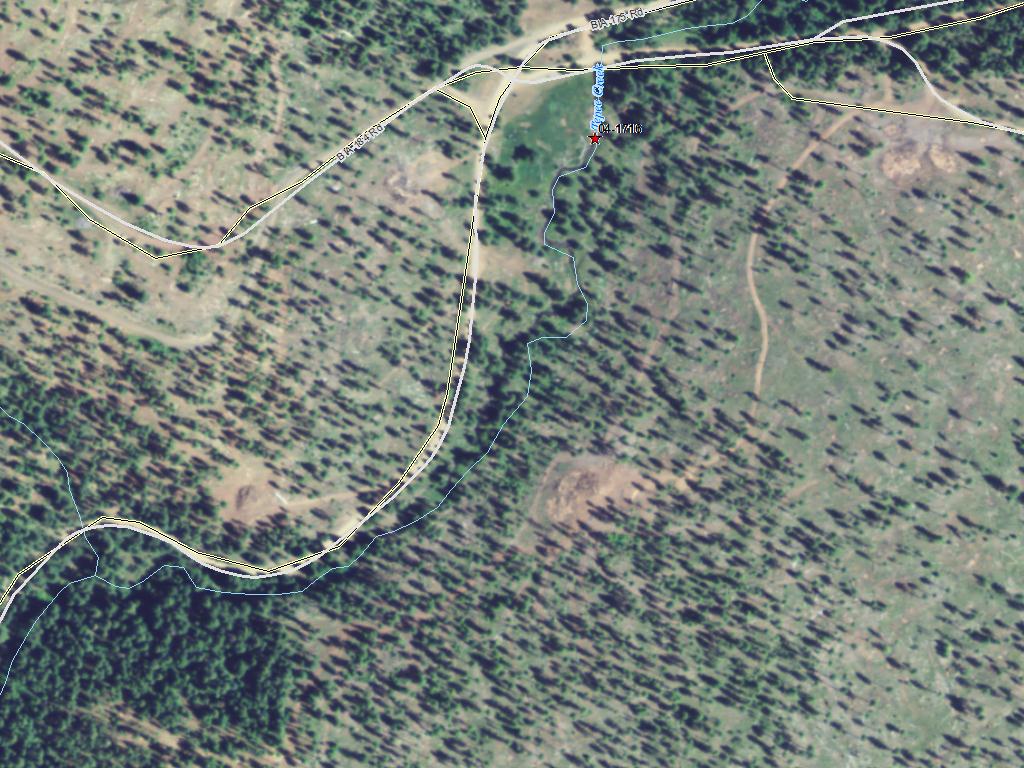

Coordinates:
|
|
46.18066044
-121.02412727
|
|
|
| Worksite Name | Scope of Work | Actual Restoration Cost |
|
Tepee Ck. Fish Passage Rest., upper site (#1)
|
Architectural & Engineering (A&E), Culvert installed or improved (C.2.f.1)
|
$19,376
|
|
Tepee Ck. Fish Passage Rest.,middle site (#2)
|
Culvert installed or improved (C.2.f.1), Fish passage blockages removed or altered (C.2.c.1)
|
$152,383
|
|
Tepee Ck. Fish Passage Rest.,lower site (#3)
|
Culvert installed or improved (C.2.f.1), Fish passage blockages removed or altered (C.2.c.1), Streambank stabilization (C.4.e.1)
|
$152,382
|
|
White Creek-IXL Road Crossing (#4)
|
Culvert installed or improved (C.2.f.1), Fish passage blockages removed or altered (C.2.c.1), Streambank stabilization (C.4.e.1)
|
$152,382
|
| | Total | $476,523 |
Amounts may not be complete
| Worksite Name | | Property Name | Landowner Type |
|
Tepee Ck. Fish Passage Rest., upper site (#1)
|
|
Property 1 - Property - Worksite #1
|
Tribal Government
|
|
Tepee Ck. Fish Passage Rest.,middle site (#2)
|
|
Property 2 - Property - Worksite #2
|
Tribal Government
|
|
Tepee Ck. Fish Passage Rest.,lower site (#3)
|
|
Property 3 - Property - Worksite #3
|
Tribal Government
|
|
White Creek-IXL Road Crossing (#4)
|
|
Property 4 - White Creek/IXL road crossing
|
Tribal Government
|
| | | | Total |
Amounts may not be complete
| | Category / Work Type / Metric | Final |
Restoration Metrics (rolled up from Worksite level) |
Fish Passage Improvement |
| Fish passage blockages removed or altered (C.2.c.1) |
|
|
Number of Blockages/Impediments/Barriers Removed/Altered (C.2.c.2)
|
4
|
Instream Habitat Project |
| Streambank stabilization (C.4.e.1) |
|
|
Miles of Streambank Stabilized (C.4.e.3)
|
0.02
|
Fish Passage Improvement |
| Culvert installed or improved (C.2.f.1) |
|
|
Miles of stream made accessible by culvert installation/repair (C.2.f.3)
|
6.27
|
|
|
Number of culverts (C.2.f.2)
|
4
|
| |
|
|
Number of blockages / impediments / barriers impeding passage (C.2.b.4)
|
4
|
| Milestone Name | Target Date | Description |
|
Project Start
|
12/03/2004
|
|
|
Construction Started
|
09/01/2006
|
|
|
Annual Project Billing Due
|
07/31/2008
|
Annual billing required
|
|
Construction Complete
|
12/01/2008
|
|
|
Agreement End Date
|
12/01/2008
|
|
|
Final Docs/Billing to Mgmt Agy
|
02/15/2009
|
|
